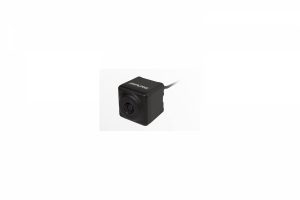

High Dynamic Range (HDR) Rear View Camera with Direct Camera Connection – HCE-C1100D
Thanks to HDR technology, the picture quality is much better compared to regular camera systems – for easier maneuvering and greater safety.
A rear view camera is a great way to improve your parking skills and make reversing safer. The camera image automatically comes on when you shift into reverse.
The cameras are very small, so they’re easy to install and don’t change the appearance of the car.
Works with Alpine products featuring Direct Camera Input.
Product information
All New Alpine HDR Cameras
Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.
High-resolution camera for great picture quality and high details
Amazing night-view capabilities in low-light environments
Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
New, small connectors for easy installation of camera and cables
Distance Guides
This camera includes convenient distance guides that can be fully adjusted to match the width of your vehicle. This makes
parking safer and more convenient compared to a regular rear-view camera.
Works with Alpine products featuring Direct Camera Input
This high performance camera connects via cable directly to the head unit (no black-box) for quick and easy installation.
FEATURES
General
Rearview Image
Direct Camera Connection
Vehicle Reverse Signal Synchronization
Camera
Mirror Image Output
Color CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization
SPECIFICATIONS
Dimensions
Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
Camera Cable Length: 0.5m
Camera Extension Cable Length: 10.5m
General
Power Requirement: 6.0 V.DC
Negative Ground
Max. Power Consumption: 0.5W
Weight Camera: 27g (including cable)
Camera
Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
Image Output: 1 Vp-p (75 Ohms)
Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
Lens Focal Length: f=1.34mm
Lens Brightness: F=1:2.0
Angle of Field: Horizontal = 131°, Vertical = 103°
S/N Ratio: 40.5 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C – +70°C
Illumination Range: Approximately 1.5 to 100klx
