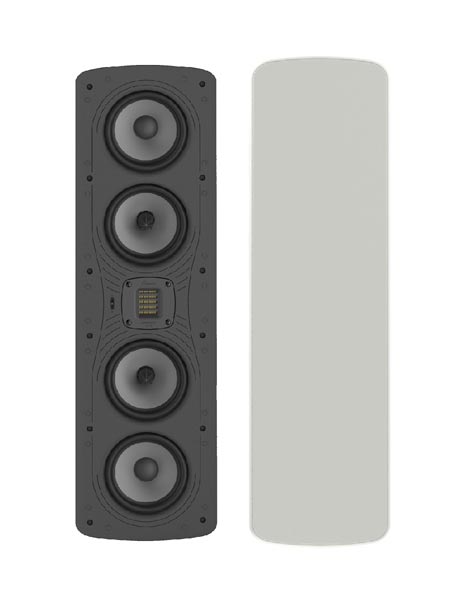

The Invisa Signature Point Source is intended for use as a main front left, right or center channel loudspeaker, as well as a side or rear surround, in high quality multi-channel home theater and music systems, as well as in simpler two channel systems of the highest quality. It presents a compact 28-3/16” x 8-9/16” fascia, and, of course, is of a proper depth (3-1/4” without optional backbox, 3-3/4” with) to allow it to easily fit, into a standard wall depth. Each Invisa SPS incorporates four 5-1/4” high-definition cast basket drivers, which are very similar to those found in the award-winning Triton Reference. The Invisa SPS also incorporates an extraordinary Triton Reference High-Gauss, High Velocity Folded Ribbon Tweeter. The complex crossover network utilizes the special fully balanced topology incorporated in our upper range models, with a special polystyrene film capacitor on the high frequency section. The drivers are wired with special wire which has a unique twist that was engineered for highest performance.
The four 5-1/4” drivers are not identical, nor do they cover the same frequency range. In order to achieve a point source radiation pattern, with the dramatic benefits of better dispersion and improved imaging, the outer two drivers have their upper range limited to 500 Hz., while the two inner 5-1/4” drivers go all the way up to 3 kHz in order to meet and blend perfectly with the tweeter. All this is precisely accomplished by the complex balanced crossover network. Other small, but important details include: a switch to allow adjustment of the tweeter level, a magnetically attached low profile grille, non-resonant mineral-filled frame structure, special dogs to allow easy and secure attachment to the wall, and a rotatable tweeter to allow for correct orientation of the tweeter for vertical or horizontal positioning. There is a unique optional backbox available, that has been engineered with special EVA damping foam internally and open-cell foam externally to prevent bleed though of sound into the adjacent room.
27-9/16″ (70 cm) H x 7-15/16″ (20.2 cm) W
x 3-1/4″ (8.25 cm) D
With Optional Back Box 3-3/4″ (9.5 cm)
28-5/16″ (71.59 cm) H x 8-9/16″ (21.74 cm) W
26-9/16″ (67.43 cm) x 7-3/16″ (18.25 cm)
Product: 14 lbs (6.4 kg) /
Shipping: 17 lbs (7.7 kg)
25 Hz – 35 kHz
Compatible with 8 ohms
Two – 5.25″ (13.33 cm) high-definition cast-basket MVPP™ mid/bass drivers
Two – 5.25″ (13.33 cm) high-definition cast-basket lower mid/bass drivers
One – High-Gauss HVFR™ High Velocity Folded Ribbon tweeter
20 – 350 watt/channel
