DOLBY ATMOS® CINEMA IN THE HOME
The Cinema 1200 Dolby Atmos Sound Bar, with 1200 watts of power and integrated,
discrete height speakers in the sound bar and surrounds, brings decades of
professional cinema acoustic research and development to your home with the same
power, dynamics, and detail as the movie theater. Dolby Atmos technology brings
sound to life from all directions, including overhead, to fill a home theater with
astonishing clarity, detail, and depth.
EASY PLUG AND PLAY SET UP
The Cinema 1200 is designed to quickly connect to your TV. Simply plug in the included
HDMI cable or an optical cable to seriously upgrade your TV sound, using your TV’s
remote to control it. The included 12” wireless subwoofer and two wireless surrounds
are pre-paired to connect automatically out of the box, for a hassle free set up in just
minutes. Next generation HDMI eARC connectivity means true Dolby Atmos sound and
ultra-high definition video with a single HDMI cable.
WIRELESS MULTI-ROOM STREAMING
Built-in universal Wi-Fi works with Google Assistant, Amazon Alexa, and Spotify
Connect, allowing you to add the Cinema 1200 Dolby Atmos Sound Bar to your existing
smart home ecosystem and play your favorite streaming music service anywhere in
your home. User selectable “Streamer Mode” allows for seamless integration with
other external audio streaming devices.
BEST-IN-CLASS 12-INCH WIRELESS SUBWOOFER
The Cinema 1200 comes with a powerful wireless 12” subwoofer that you can place
anywhere in your room, for true Klipsch cinema sound. Wireless 2.4 GHz technology
automatically connects the sound bar and the subwoofer together, while a wired
subwoofer output allows you to add a second subwoofer to your setup or simply
replace the included wireless subwoofer with the subwoofer of your choice.
Features HDCP 2.3, for 8K HDR video pass-through for use with state-of-the-art TVs
and HDMI sources.
7.1.4 DOLBY ATMOS DECODING
With Dolby Atmos processing in the sound bar, The Cinema 1200 Dolby Atmos Sound
Bar creates overhead sound to deliver cinematic surround sound with greater realism,
detail, and immersion.
DIALOG ENHANCEMENT MODES
All new custom tuned dialog modes not only raise the volume of the dialog in your
TV shows and movies, but also optimize the EQ setting of the system, to ensure the
dialogue is crisp, clear, and exceptionally intelligible no matter what’s happening on
screen. Three levels of dialogue enhancement ensure that you can find the perfect
setting for your needs.
The Cinema 1200 is a true 5.1.4 system, featuring a dedicated center channel speaker for
enhanced vocal clarity, and horn-loaded tweeters, just like our legendary professional
cinema speakers, for dynamic power in every detail of your music and movies. The
Cinema 1200 is crafted from high-quality wood materials, just like legendary Klipsch
WIRELESS SURROUND SOUND
Independent wireless surrounds give you the versatility to place anywhere with no
extra wiring needed.
BLUETOOTH® WIRELESS TECHNOLOGY READY
Works great with all Bluetooth-enabled smartphones, tablets and computers – allowing
you to play music direct from your device, while the latest Bluetooth 5.0 chip means
better connectivity, better range, and better battery life on your connected devices.

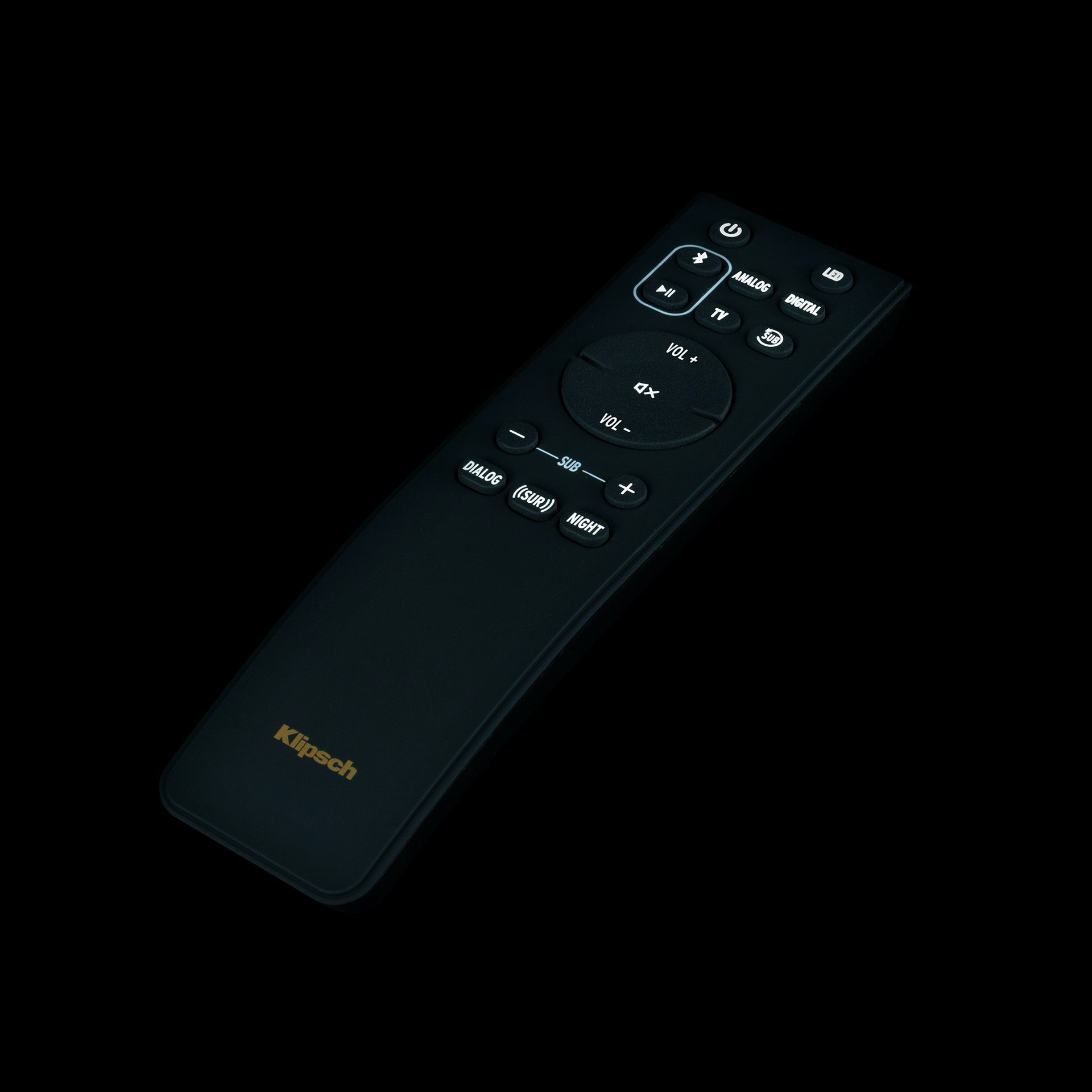

MOTION SENSING REMOTE
The included premium remote features motion-sensing LED buttons so you’re in full
control, even when the lights are low. In addition to volume and input selection, the
remote lets you adjust subwoofer level, surround level, and sound mode with the push
of a button to dial in the perfect listening experience right from your seat.
DOLBY AUDIO® BUILT IN
The built-in Dolby Digital and Dolby Digital Plus processing enables powerful cinema
experiences with discrete processing for dialog and surround channels.
SPEAKER SYSTEM 54” 5.1.4 Dolby Atmos Soundbar System with 12” Wireless Subwoofer
and Wireless Surround Speakers
MAX ACOUSTIC OUTPUT 109dB
HIGH FREQUENCY DRIVERS (3) 1″ (25.4mm) soft dome tweeters mated to Tractrix® horns
MIDRANGE (6) 3″ (76.2mm) high output oval fiber composite cone woofers
HEIGHT CHANNELS 3″ (76.2mm) high output Cerametallic cone woofers
SURROUNDS 3″ (76.2mm) high output fiber composite cone woofers
SUBWOOFER 12″ (305mm) wireless ported subwoofer
ENCLOSURE TYPE Bar: Wood • Subwoofer: Wood • Surround: Wood
TOTAL SYSTEM POWER 1200W
FREQUENCY RESPONSE 22-20kHz
INPUTS HDMI-eARC • (2) HDMI • Bluetooth® • 3.5mm Analog • Optical Digital
OUTPUTS Subwoofer (RCA) Output
DIMENSIONS (BAR) 54″ (137.2 cm) W x 2 15/16″ (7.5cm) H x 6 3/16″ (15.7cm) D
DIMENSIONS (SUBWOOFER) 15 5/8″ (39.6cm) W x 20 3/8″ (51.6cm) H x 15 7/8″ (40.3cm) D
FINISH Black (interchangeable walnut end caps included)
VOLTAGE 100-240V 50/60Hz internal power supply
WEIGHT 42 lbs (14.52kg)
INCLUDED ACCESSORIES LED Backlit Remote control
(2) 1.5m power cord (Region specific)
(2) Keyhole mounting clip(With 1/4 – 20 Screw) Wall mount template
(2) AA batteries
(1) 1.5m HDMI Cable
MOUNTING OPTIONS 1/4-20 Keyhole Mount
Included slim-depth wall brackets
