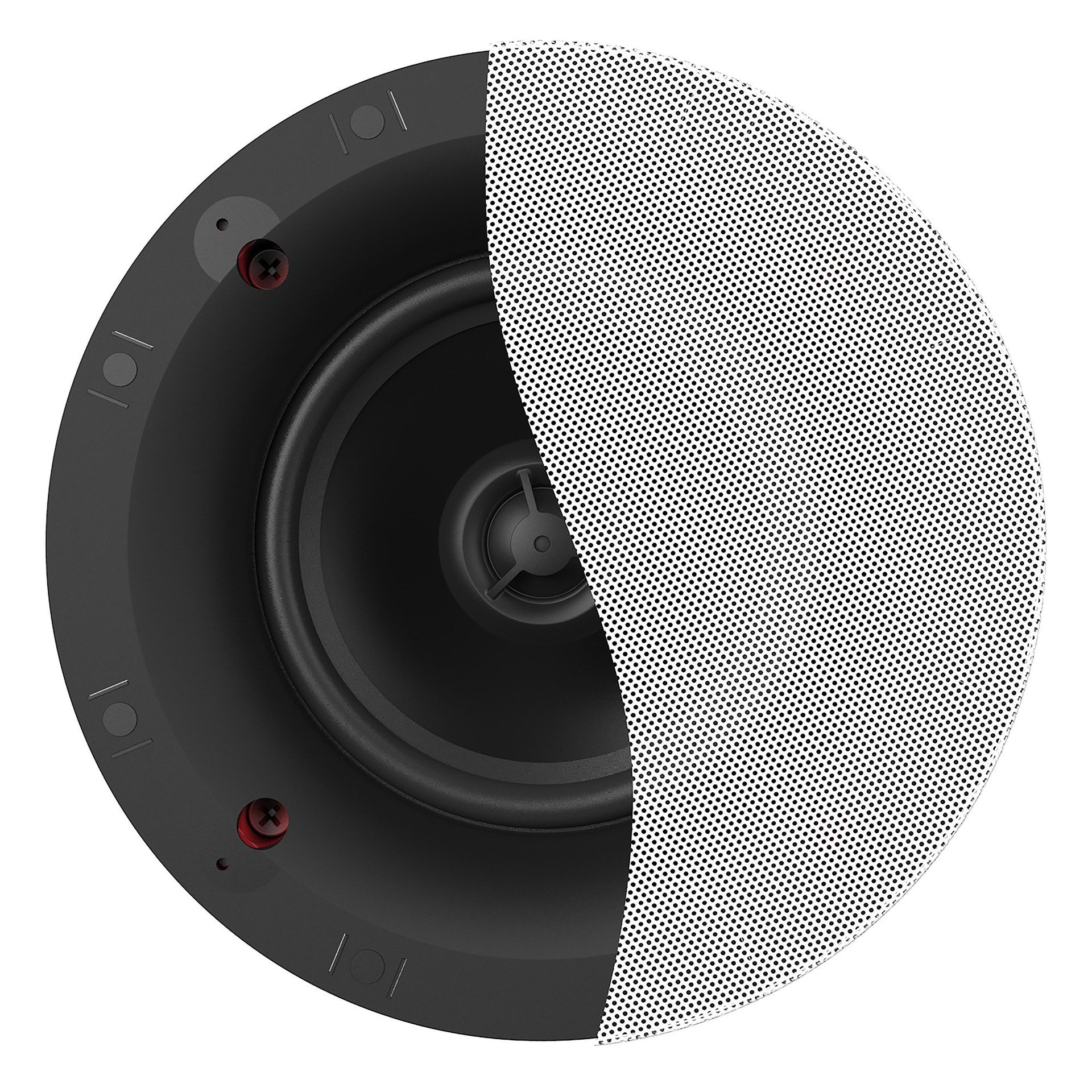

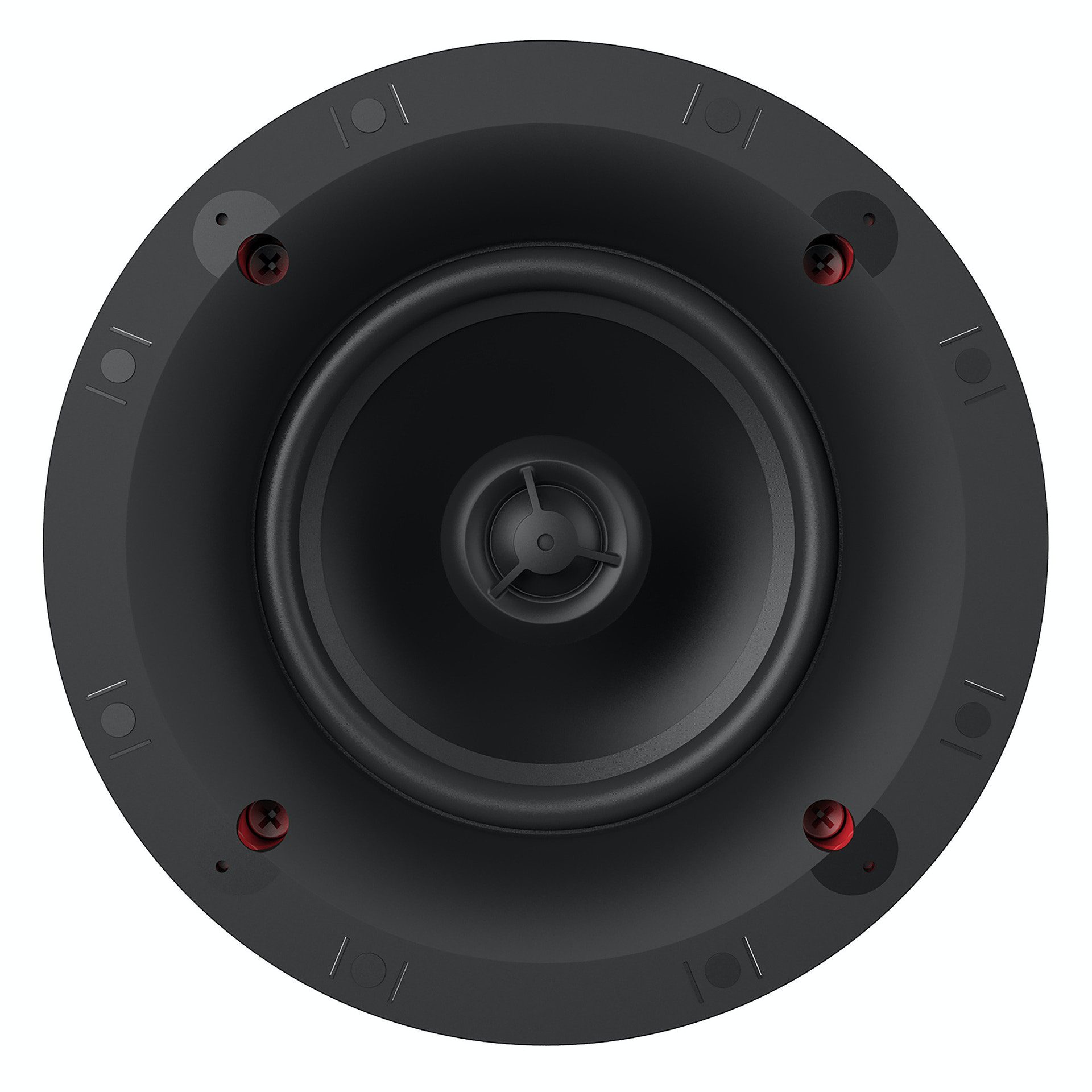

Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160C features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles of
our more premium architectural and box speaker lines, the all new
Klipsch Designer series delivers true Klipsch power and performance.
With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated
to a round Tractrix® horn, the DS-160C brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM

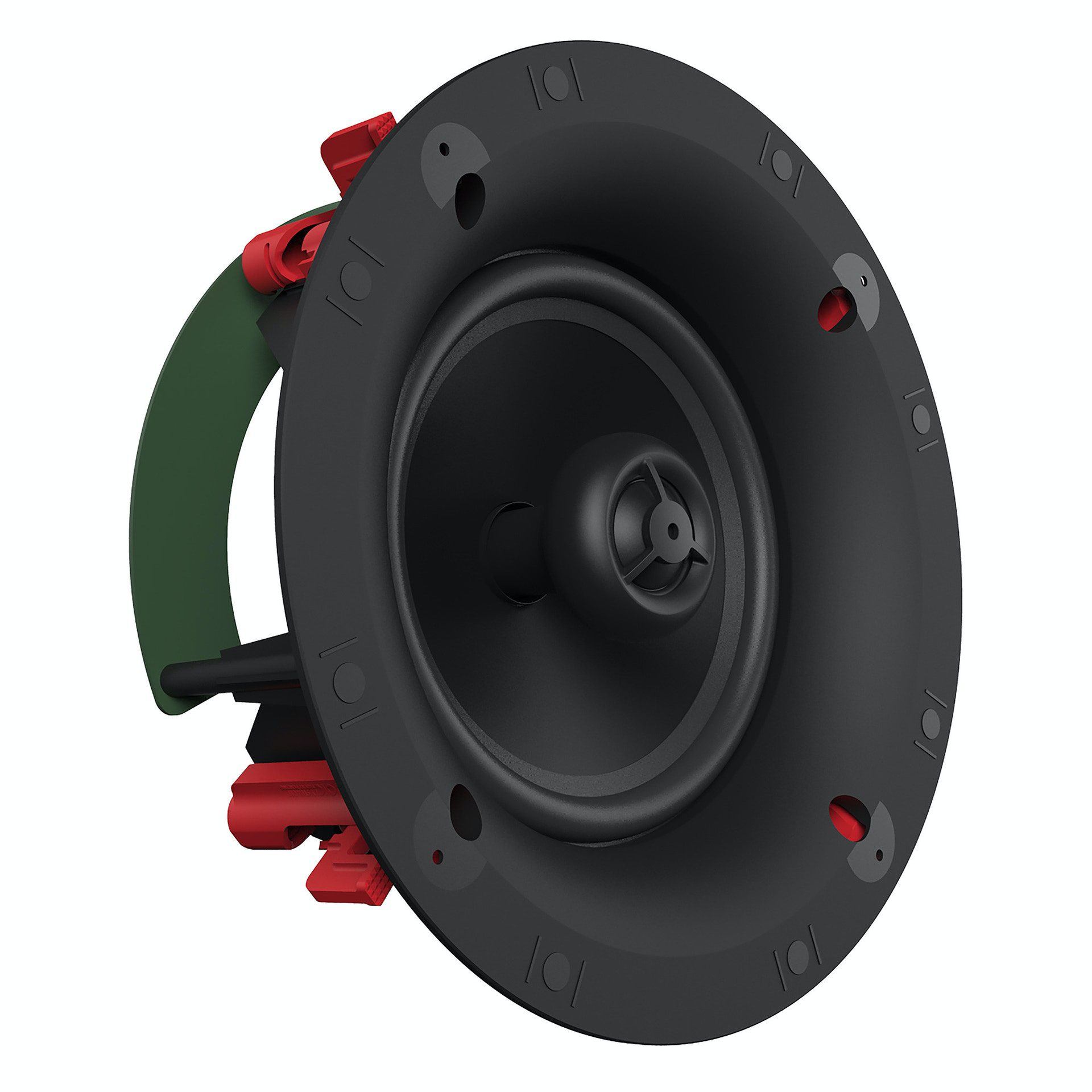

The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

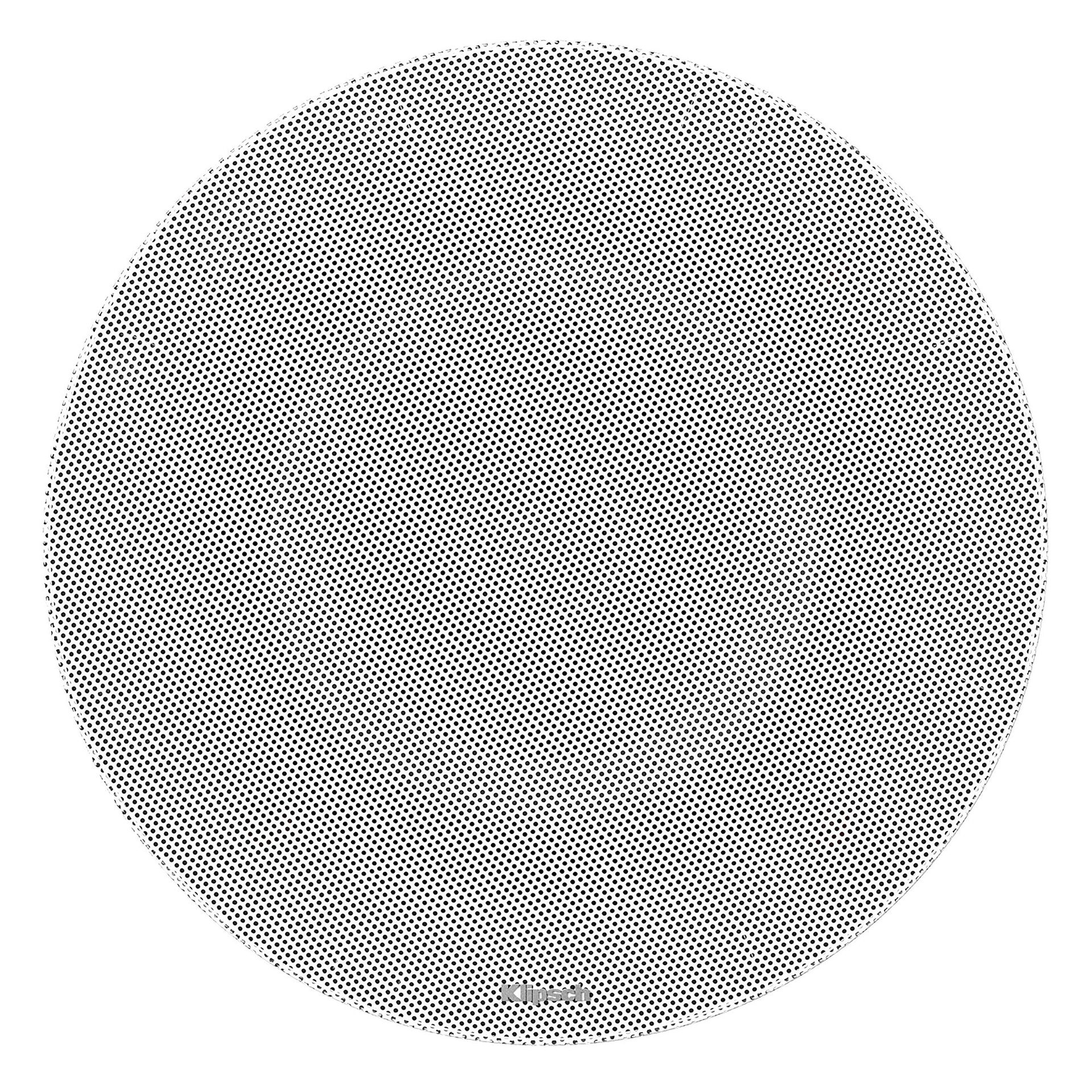

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powdercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
SPECIFICATIONS
| Frequency Range | 77Hz – 20kHz +/- 3dB |
| High Frequency Driver | 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5” (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
| Mounting Depth | 4.34” (11.03cm) |
| Cutout Dimensions | 8.3” (21.1cm) |
| Product Weight | 7 lbs (3.18kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-650-C II (Sold Separately) |
| Fire Rated Enclosure | ME-650-C (Sold Separately) |
| Built From | 2017 |
