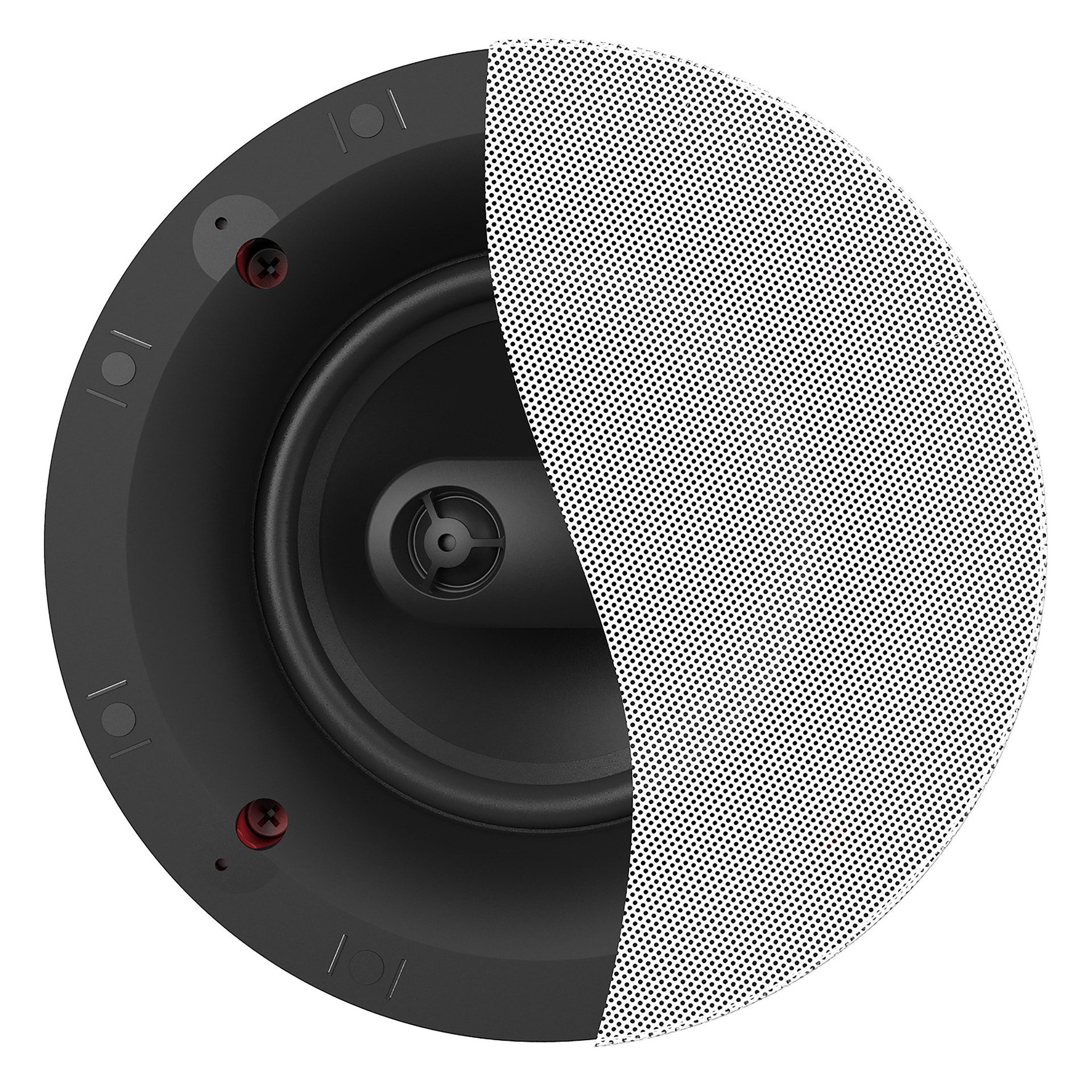

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system – for true stereo sound in spaces where two speakers aren’t possible.
Features:
- 8” Polypropylene woofer
- Dual .75” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System

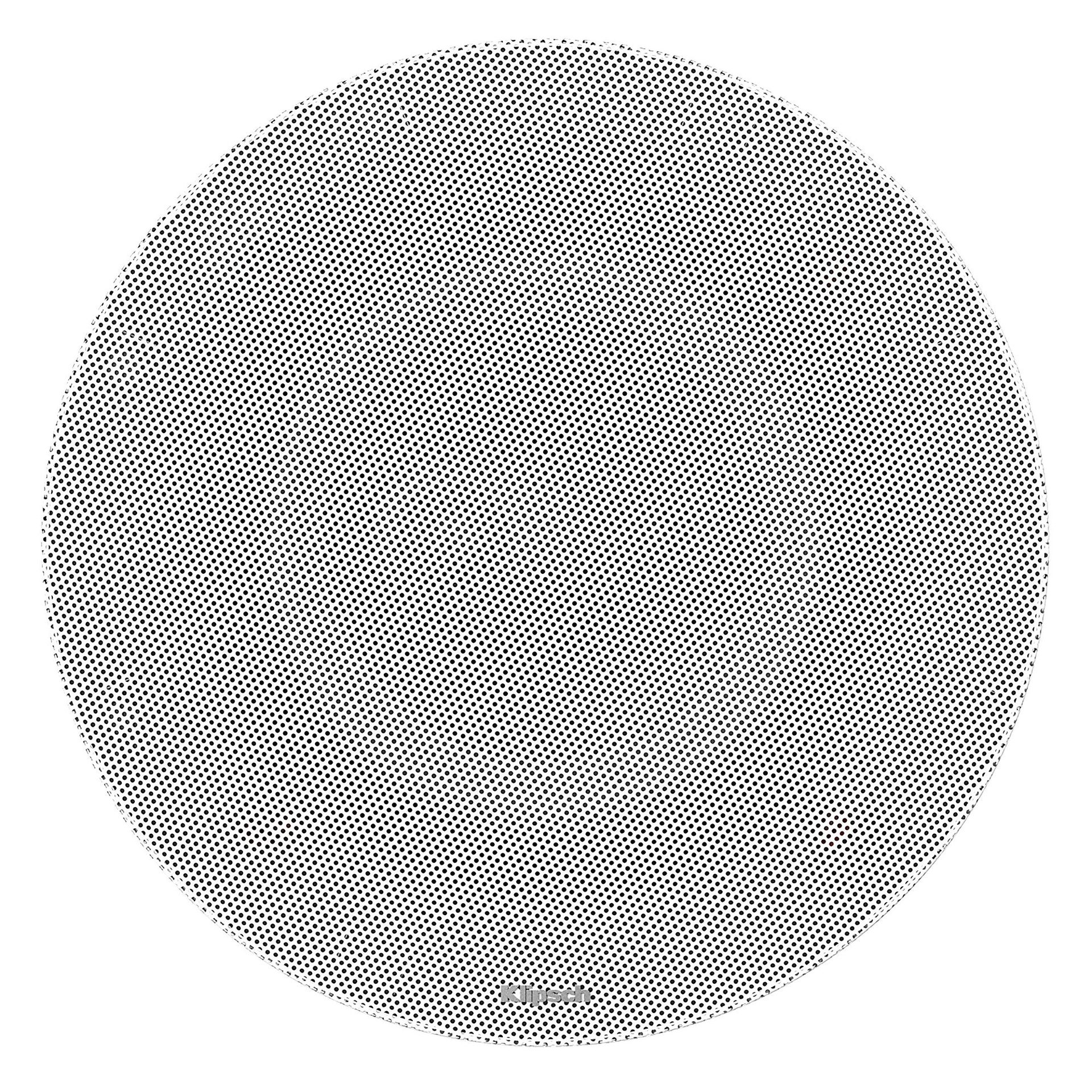

- Bezel-Free Magnetic Grille
SPECIFICATIONS
| Frequency Response | 73Hz – 20kHz +/- 3dB |
| High Frequency Driver | Dual .75″ (1.9cm) Silk Dome Tweeters |
| Low Frequency Driver | 8″ (20.32cm) Polypropylene Woofer |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Coverage Angle | 160° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 4 Ohm |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
| Mounting Depth | 4.45” (11.3cm) |
| Cutout Dimensions | 9.8” (24.9cm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
