HIGH PERFORMANCE POWER PLATFORM

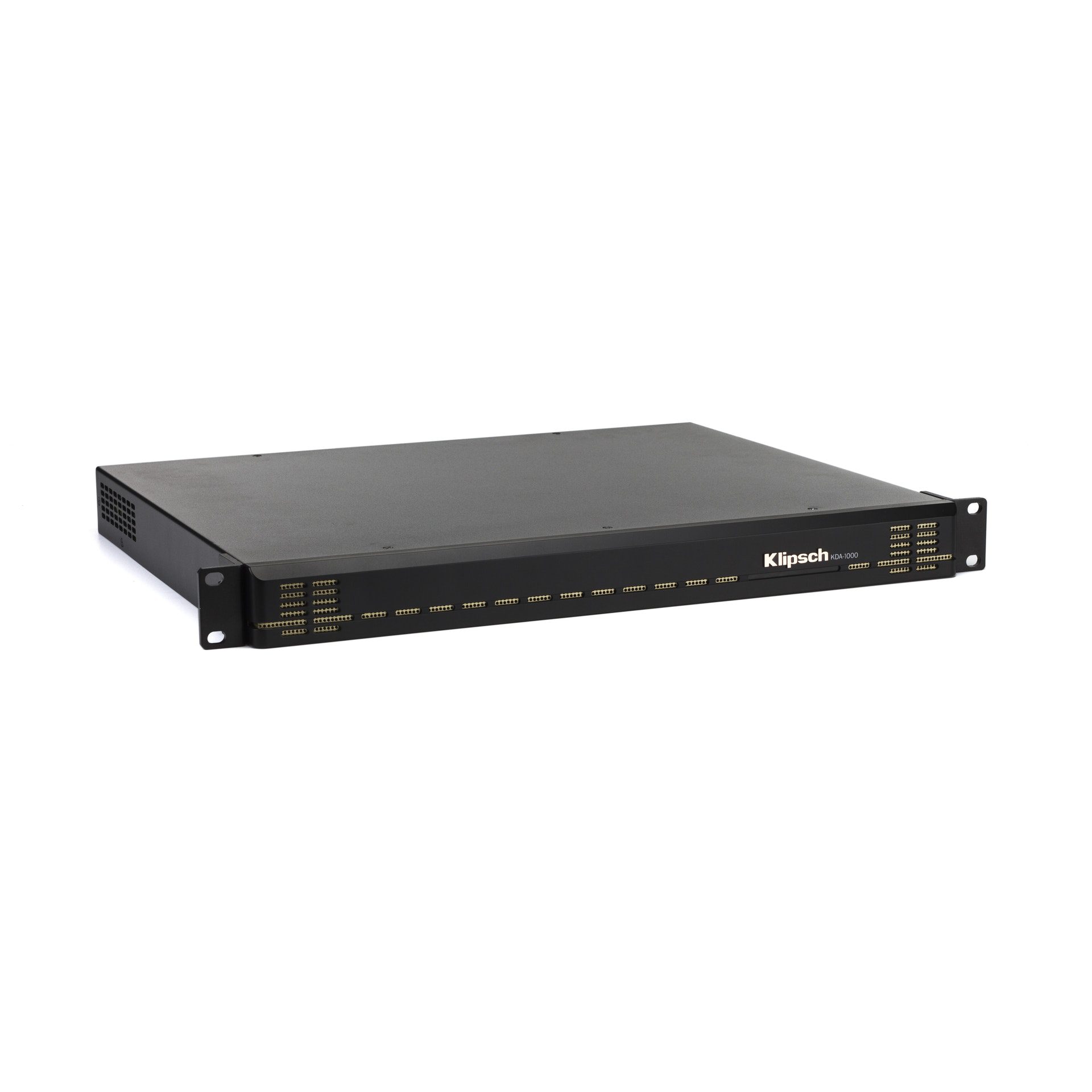

The Klipsch KDA Series DSP Amplifiers offer legendary
Klipsch power and performance in a sleek, high-tech, 1
rack unit solution. The KDA-1000 offers 1000W of class G/H
power, for clean, dynamic power in any type of install.
70V / 100V / LOW IMPEDANCE COMPATIBILITY
From small residential systems to massive commercial installs,
the Klipsch KDA-1000 is designed for maximum install flexibility
– offering low impedance and 70V/100V compatibility for
distributed line applications. These impedance settings are
fully independant from channel to channel – so an installer
can run one channel low impedance with another channel
70V/100V for full customization and optimization of their system.
FLEXIBLE I/O
The KDA-1000 boasts fully matrixed 4×4 I/O with fully balanced
Phoenix connector inputs and Phoenix speaker outputs capable
of connecting up to 12 gauge wire. For non-balanced connections,
RCA inputs and outputs (throughs) are also built-in, making the
KDA-500 one of the most flexible power solutions on the market today.
STATE-OF-THE-ART DSP CONTROL AND SET-UP
The myriad of I/O, impedance, and acoustic settings are fully matrixed
and customizable through the web-based DSP menu – simply plug in a
laptop computer to the RJ-45 port on the back panel of the amplifier,
enter the assigned IP address into your favorite web browser to pull
up the easy-to-use, streamlined menu page. In addition to password
protected channel assignments, gain settings, EQ, and limiting,
the DSP provides presets for almost every Klipsch speaker on the
market – optimizing acoustic performance and power handling for
these products with a single click. Accessing the DSP wirelessly
with a tablet, smartphone, or computer is also quick and easy when
the KDA amplifier is plugged into the network’s wireless router.
SPECIFICATIONS
PART NUMBERS 120V: 1063258
230V: 1063261
AMPLIFIER TYPE High Efficiency Class G/H
AMPLIFIER POWER 1000W Total System Power
4 x 250W Per Channel
INPUTS Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
Unbalanced: 4 x RCA Line Level
OUTPUTS 4 x Phoenix Speaker Level (up to 12 AWG wire)
4 x RCA Line Level (Throughs)
INPUT SENSITIVITY 750mV Balanced, 0dBU
INPUT IMPEDENCE Balanced 40k
THD <1% @ Rated Output
SIGNAL-TO-NOISE -100dB Below Rated Output
ENCLOSURE MATERIAL Front Face: ABS Plastic
Case: Machine Formed Steel
RACK UNIT 1RU
PRODUCT DIMENSIONS 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)
PRODUCT WEIGHT 15 lbs (6.82 kg)
MOUNTING Removable 1RU Rack Ears, Removable Rubber Feet
BUILT FROM 2016
