Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
TRUE REFERENCE ACOUSTICS
Using the same acoustic components and horn design as the
highly acclaimed Reference box speaker line, the Professional
Reference Architectural series perfectly combines the aesthetics of
an architectural speaker with the pure performance and dynamic
voicing of the Klipsch Reference series. With a 6.5” IMG woofer and
a 1” Aluminum Dome tweeter mated to a round Tractrix® horn, the
Pro-16RC brings dynamic, powerful, detailed Klipsch Reference sound
to your distributed audio or home theater system.

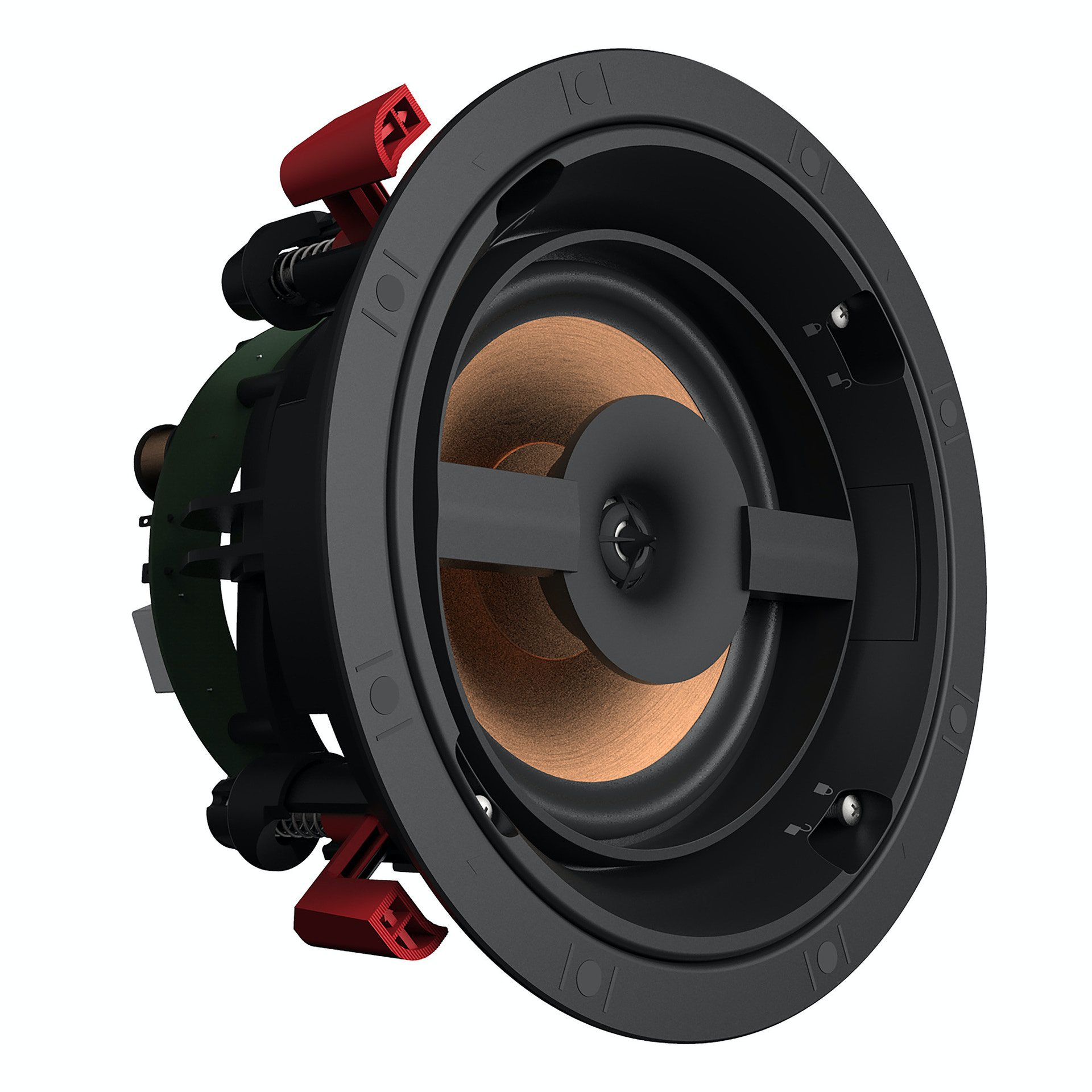

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.

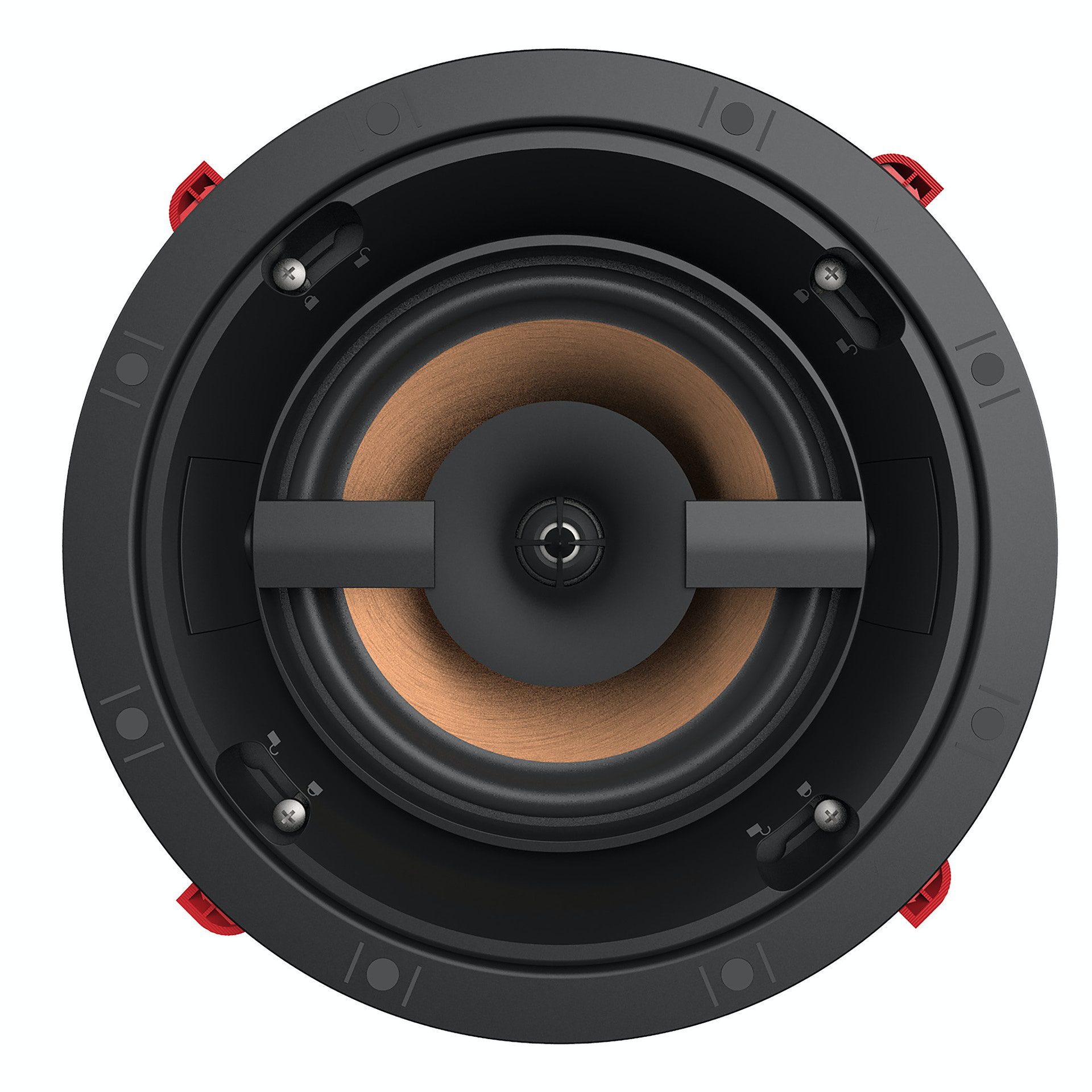

CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.

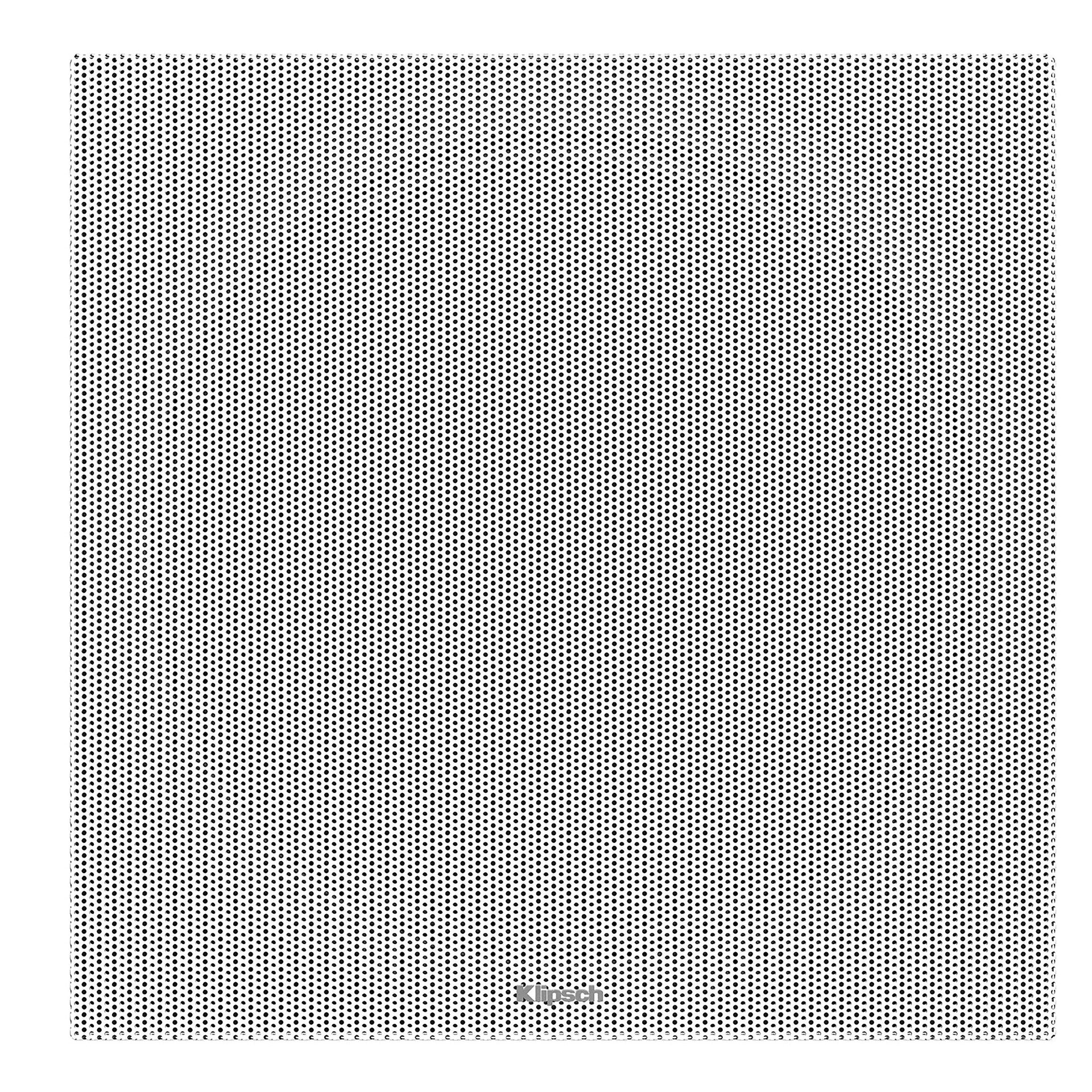

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living

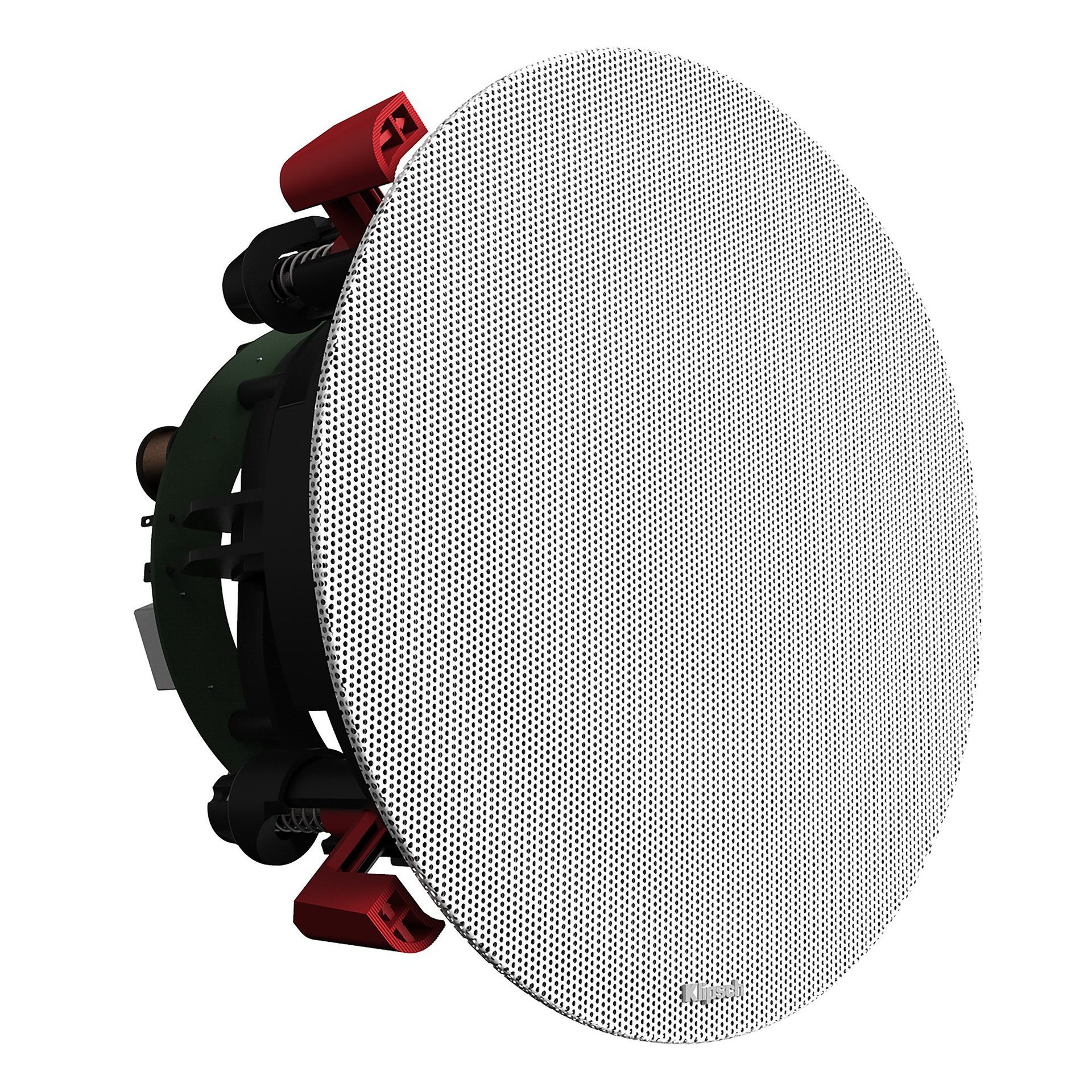

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but blend
in seamlessly with even the most luxurious interior designs. The
Professional Series Reference Premiere in-ceiling speakers include
both round and square grilles in the box, so they look great in any
space right out of the box.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.
|Power Handling||50W RMS / 200W Peak|
|Product Dimensions||9.31″ W x 9.31″ H x 6.4″ D ( 23.7cm W x 23.7cm H x 16.2cm D)|
|Cutout Dimensions||Ø8.15 ” (Ø20.7cm)|
|Product Weight||7 lbs (3.18kg)|
|Sensitivity||94 dB @ 2.83V / 1m|
|Frequency Range||63Hz – 23kHz +/- 3dB|
|High Frequency Driver||1″ (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn|
|Low Frequency Driver||6.5″ (16.51cm) IMG Woofer|
|Impedance||8 Ohm Compatible|
|Enclosure Type||ABS/Infinite Baffle|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Mounting Depth||6.15″ 15.6cm)|
|Included||Round Grille, Square Grille, Paint Shield|
|Installation Kit||IK-650-C II (Sold Separately)|
