SPUN COPPER IMG CONES
Injection Molded Graphite (IMG) woofers are exceptionally light
while being extremely rigid — providing remarkable low frequency
response, with minimal cone breakup and distortion.
LINEAR TRAVEL SUSPENSION (LTS) TWEETER
A Linear Travel Suspension minimizes distortion for enhanced,
detailed performance. LTS tweeters have been a hallmark of our
Reference series product lines, making it a core component of
some of the best speakers in the world.

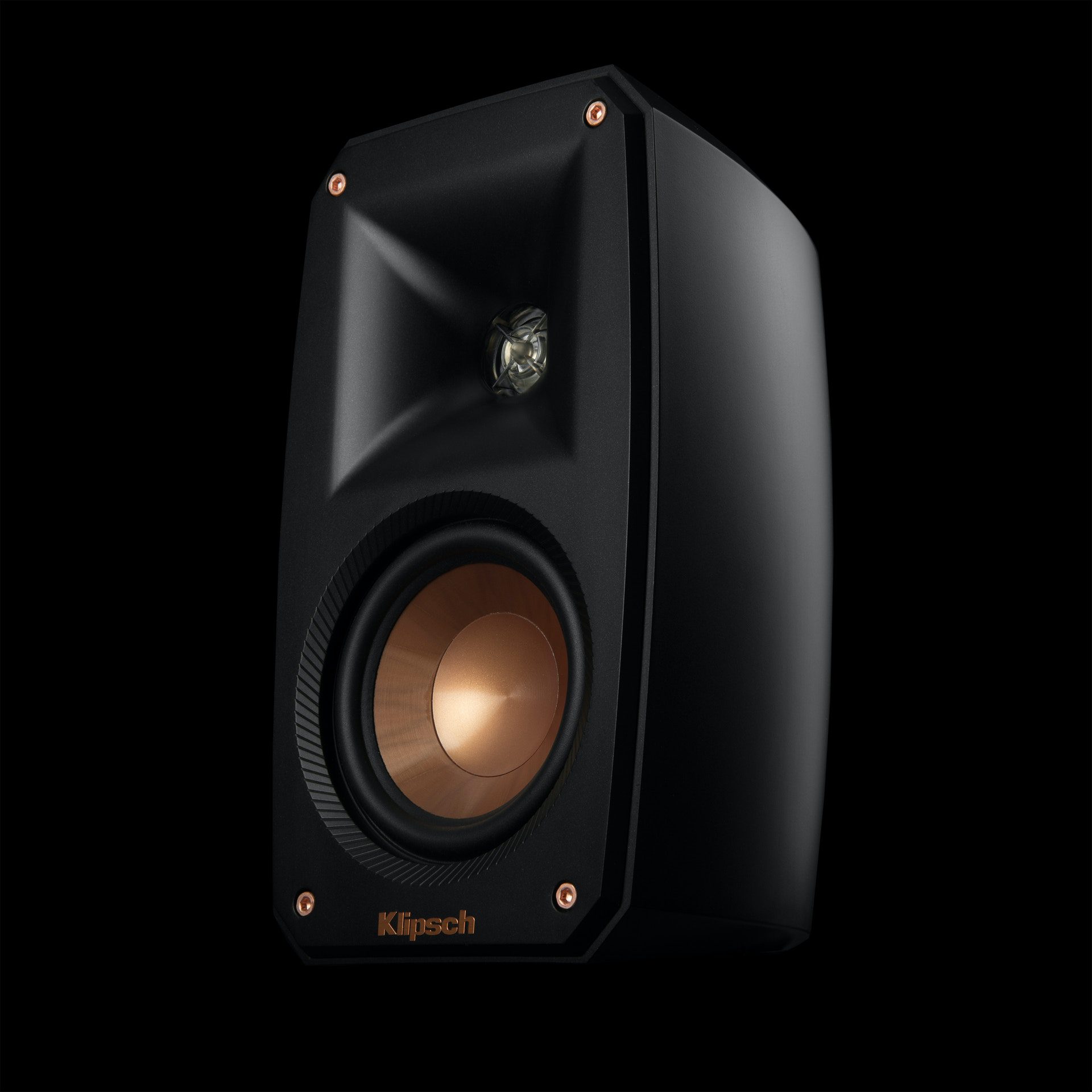

90° x 90° TRACTRIX® HORN
Our exclusive Tractrix horn technology and aluminum tweeters
deliver the most impressive high-end response and greater
extension, enhanced imaging and powerful dynamics. This creates
the cleanest, most natural sound possible.
FLEXIBLE SYSTEM PLACEMENT

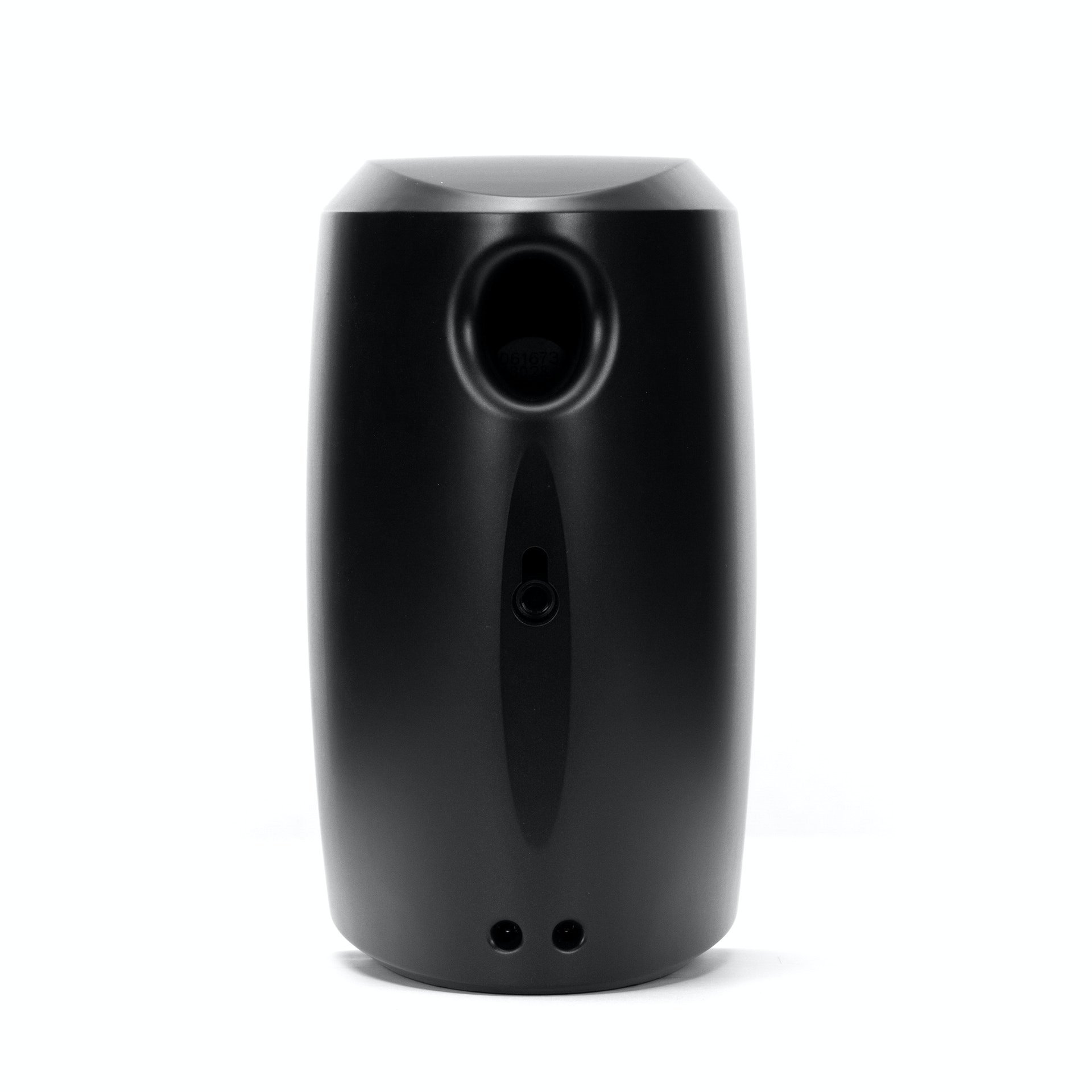

Each satellite speaker has a keyhole mount and a 1
/4” x 20 threaded
insert (the center channel has dual keyhole / inserts) for maximum
mounting flexibility.

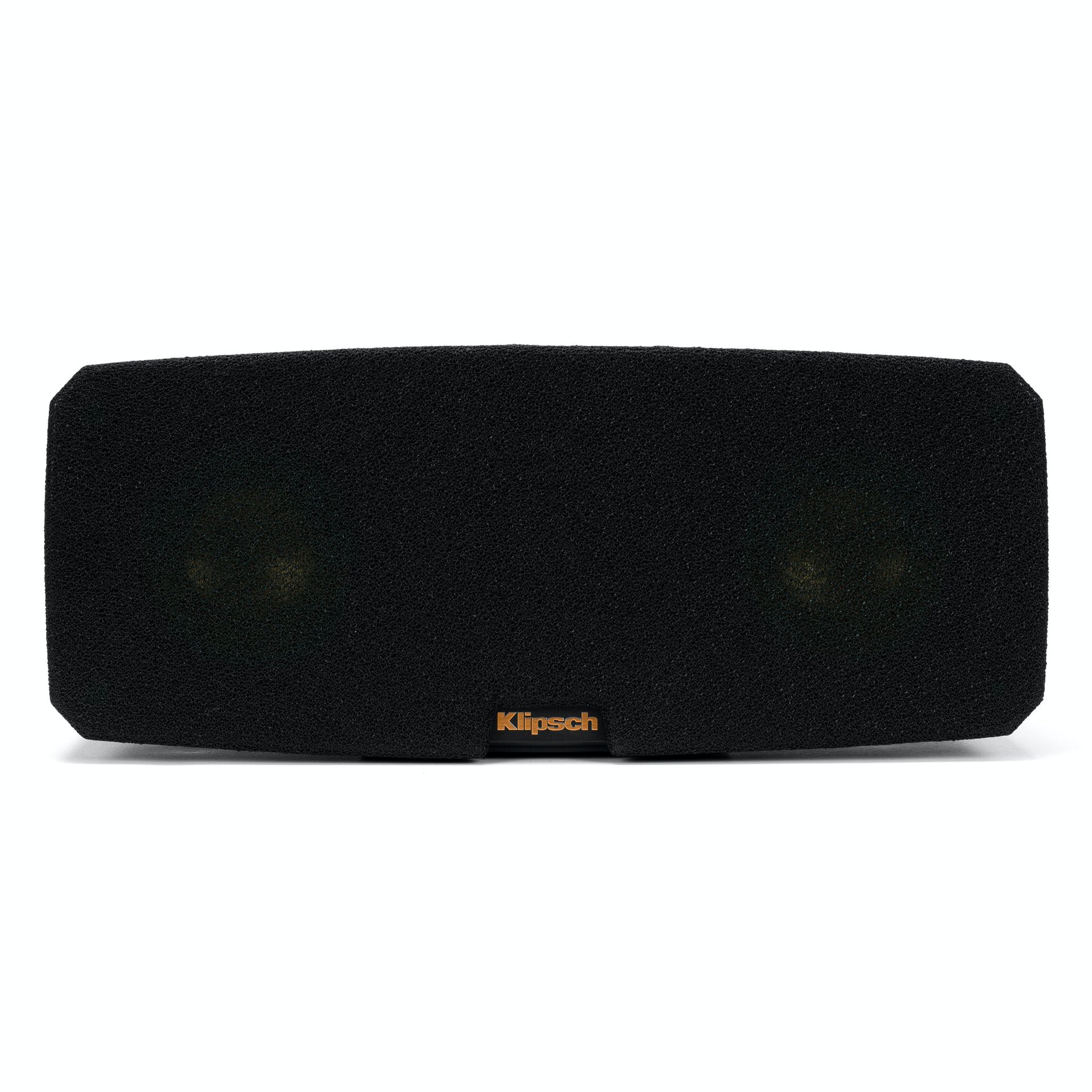

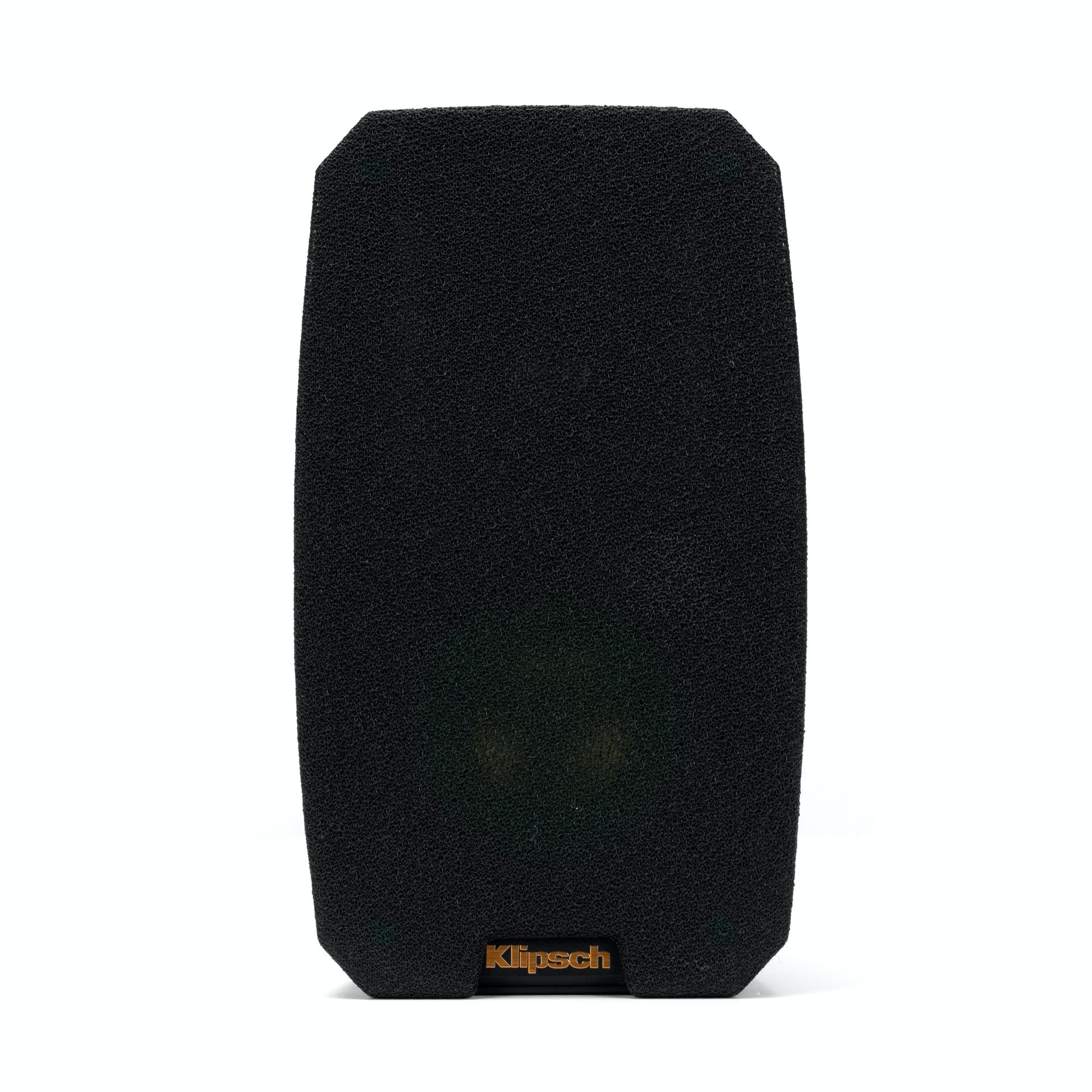

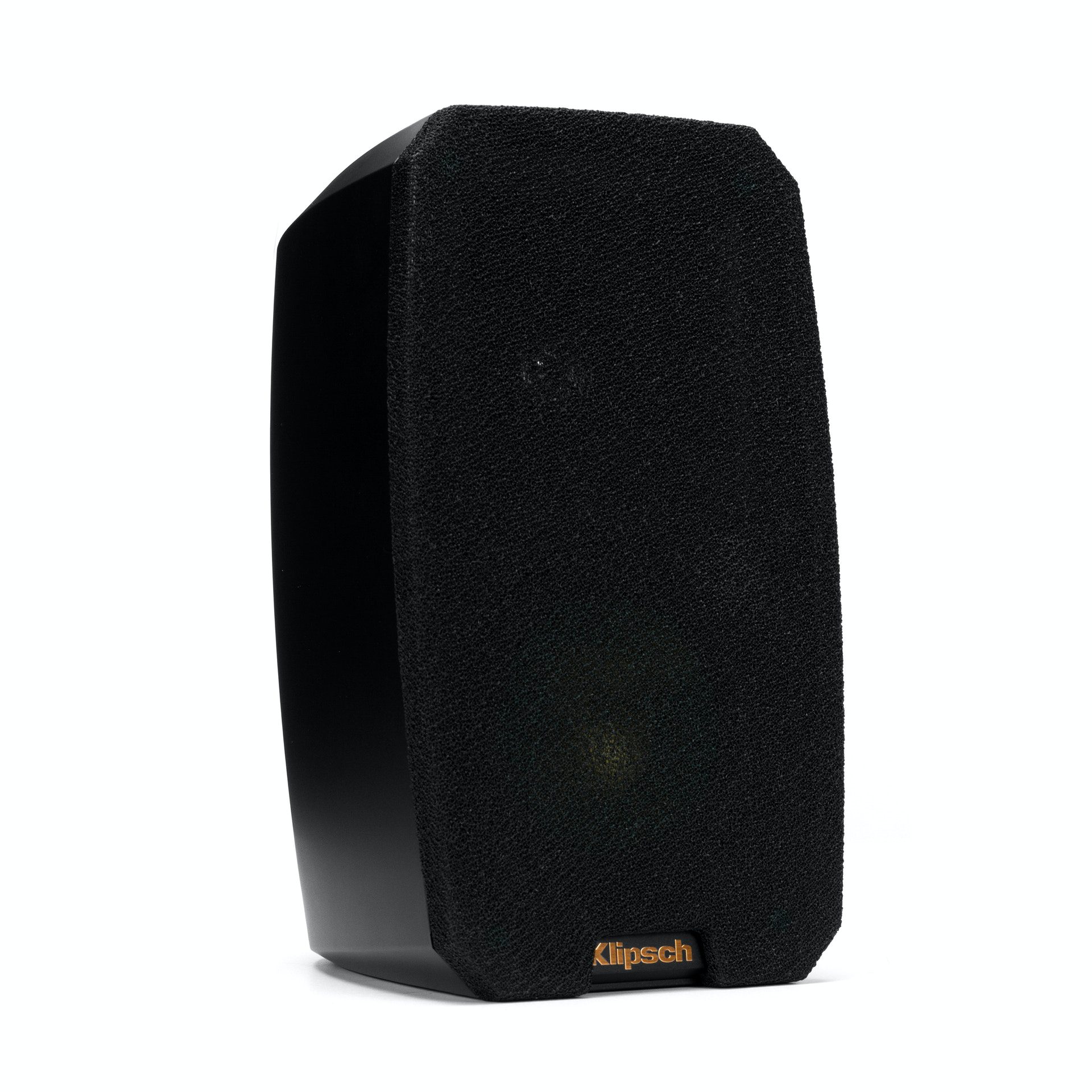

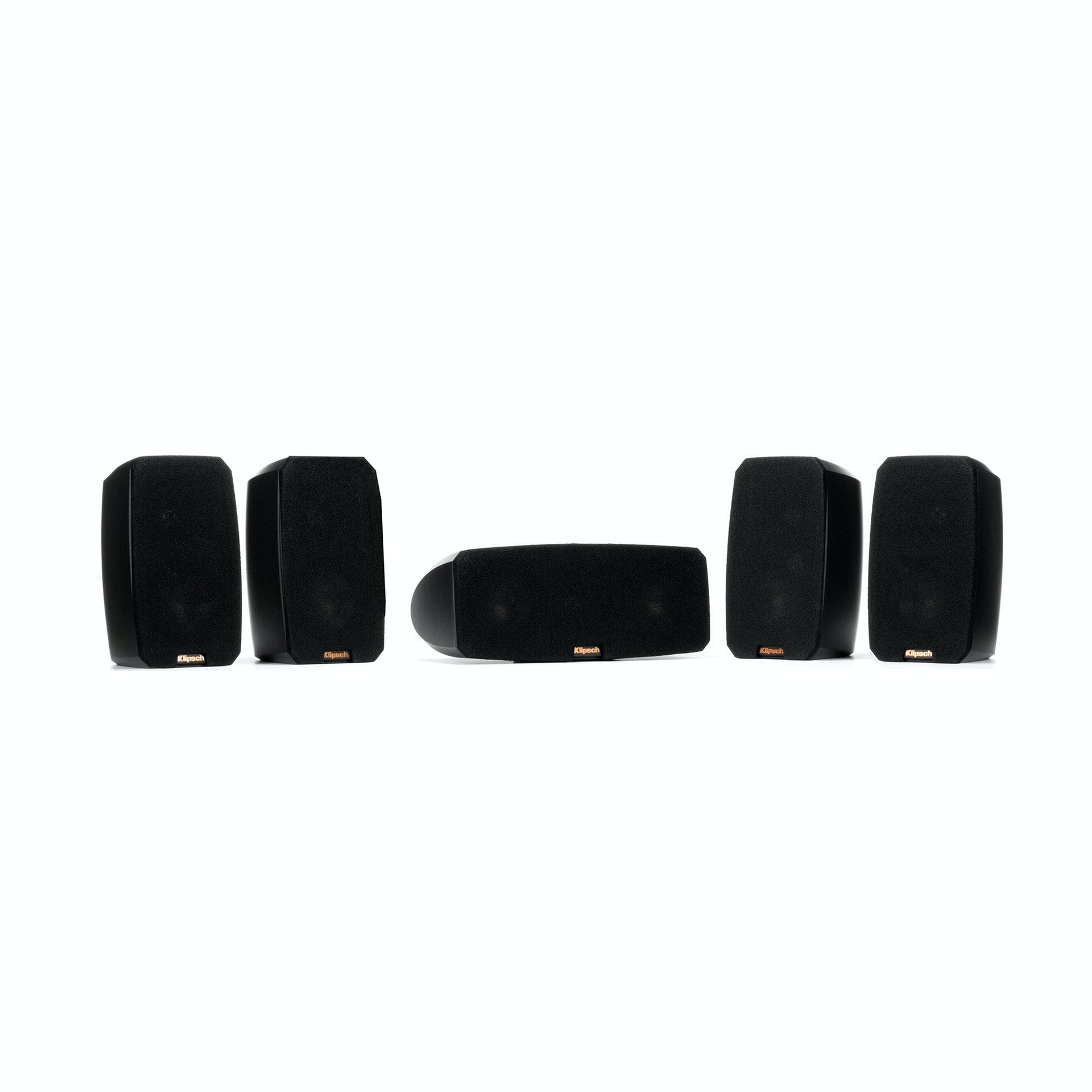

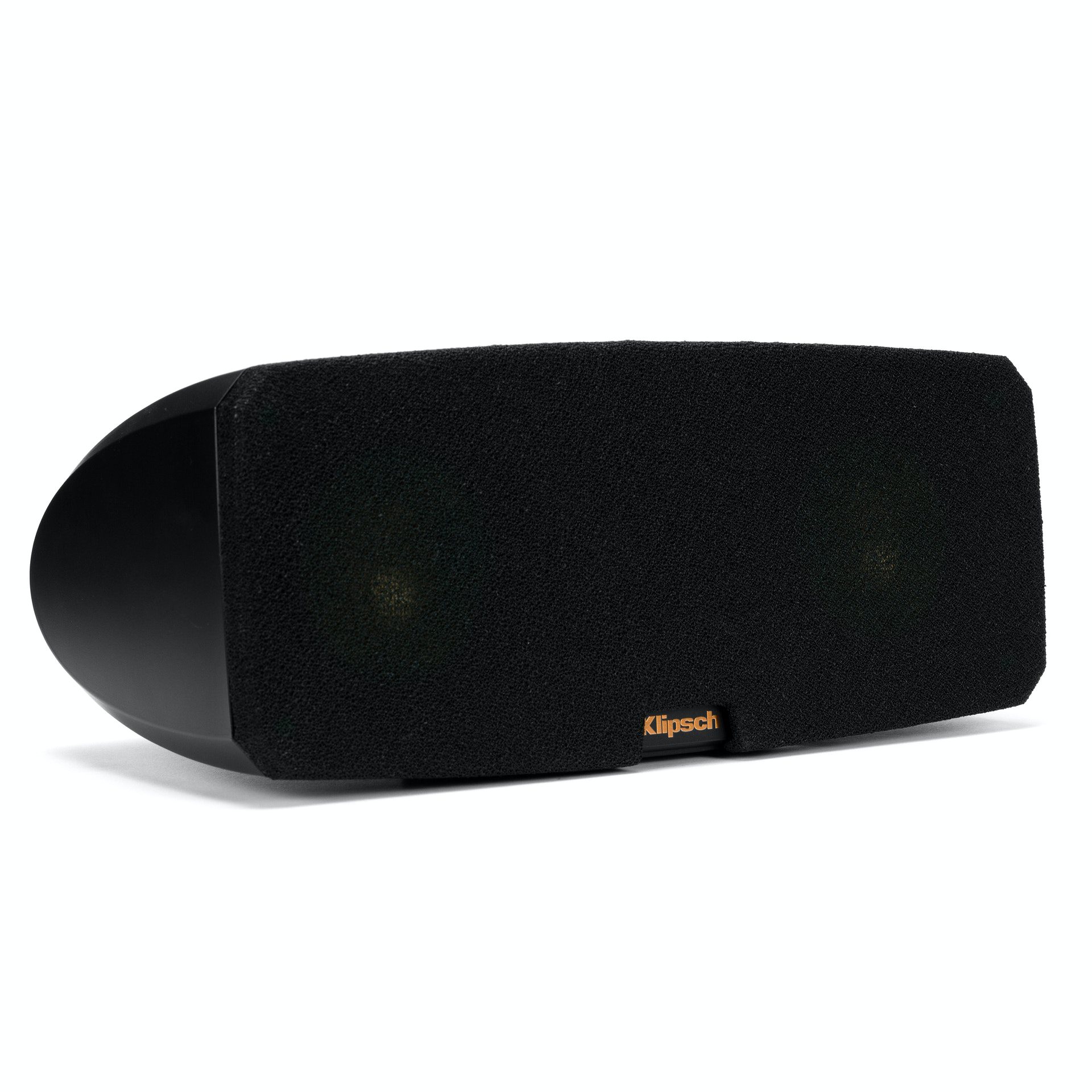

STRONG, FLEXIBLE, REMOVABLE GRILLES
Grilles attach magnetically for a cleaner, more elegant
appearance.
HIGH-QUALITY SPRING-LOADED BINDING POSTS
Easy-to-connect spring-loaded binding posts are recessed to
maintain a clean cable exit from the rear of the enclosure.

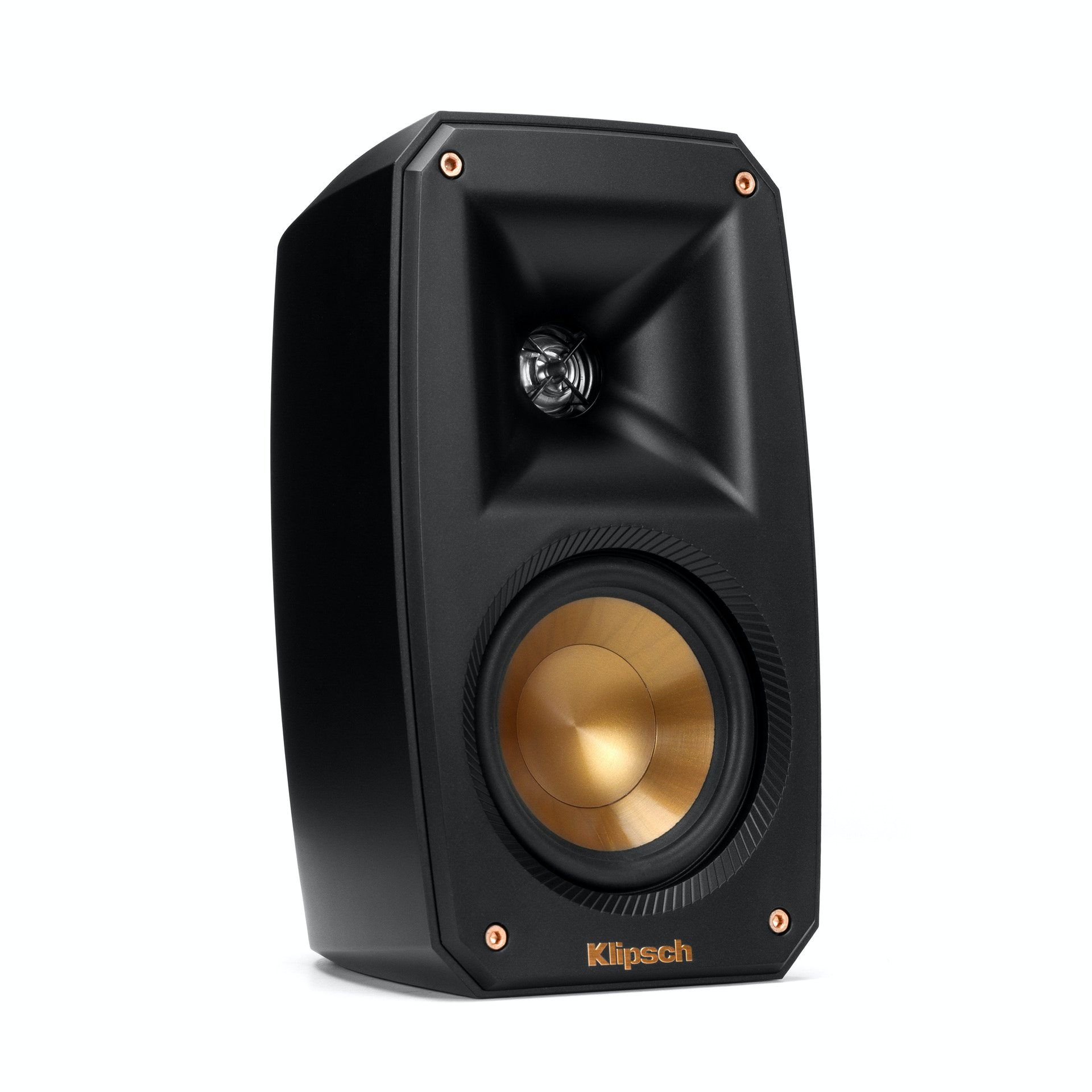

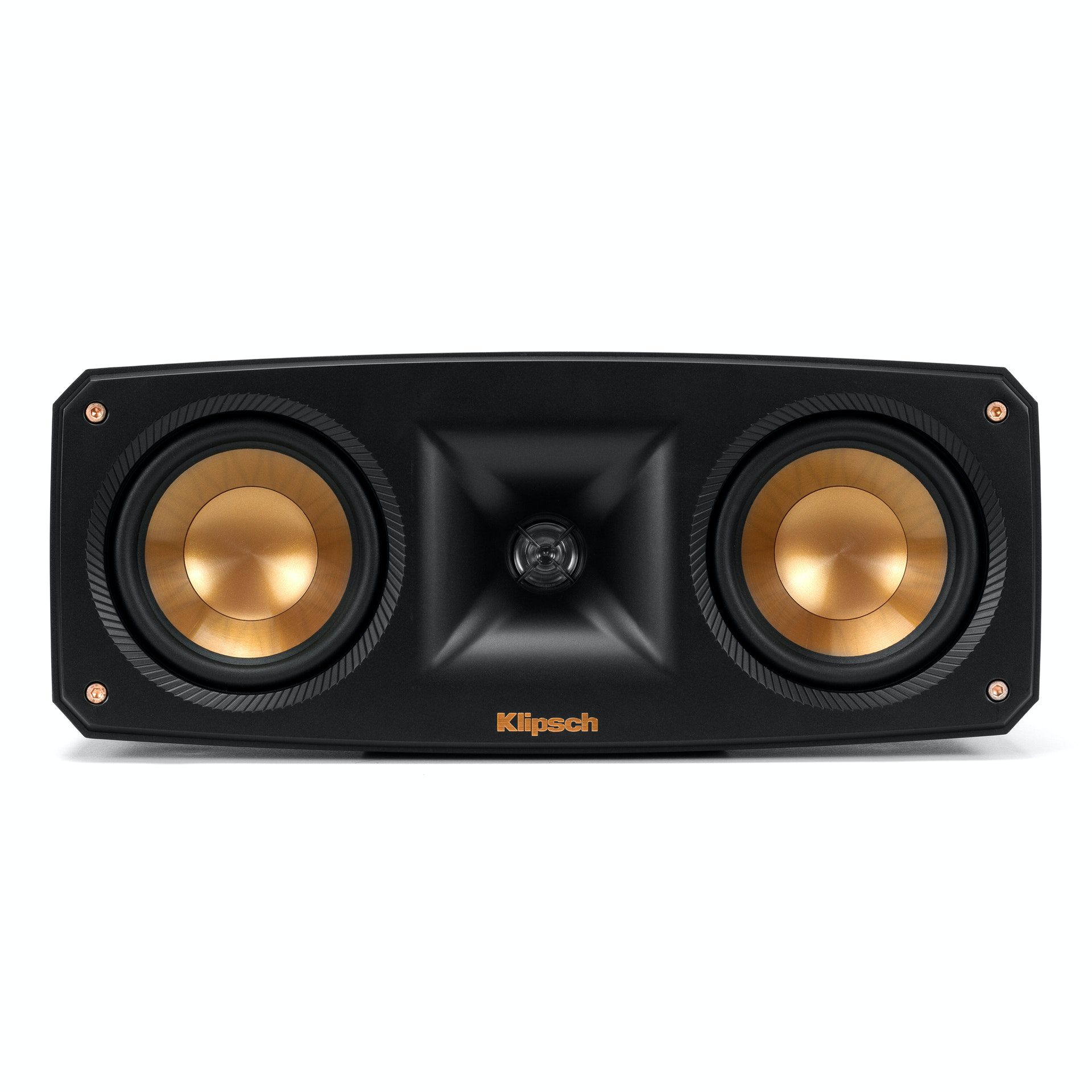

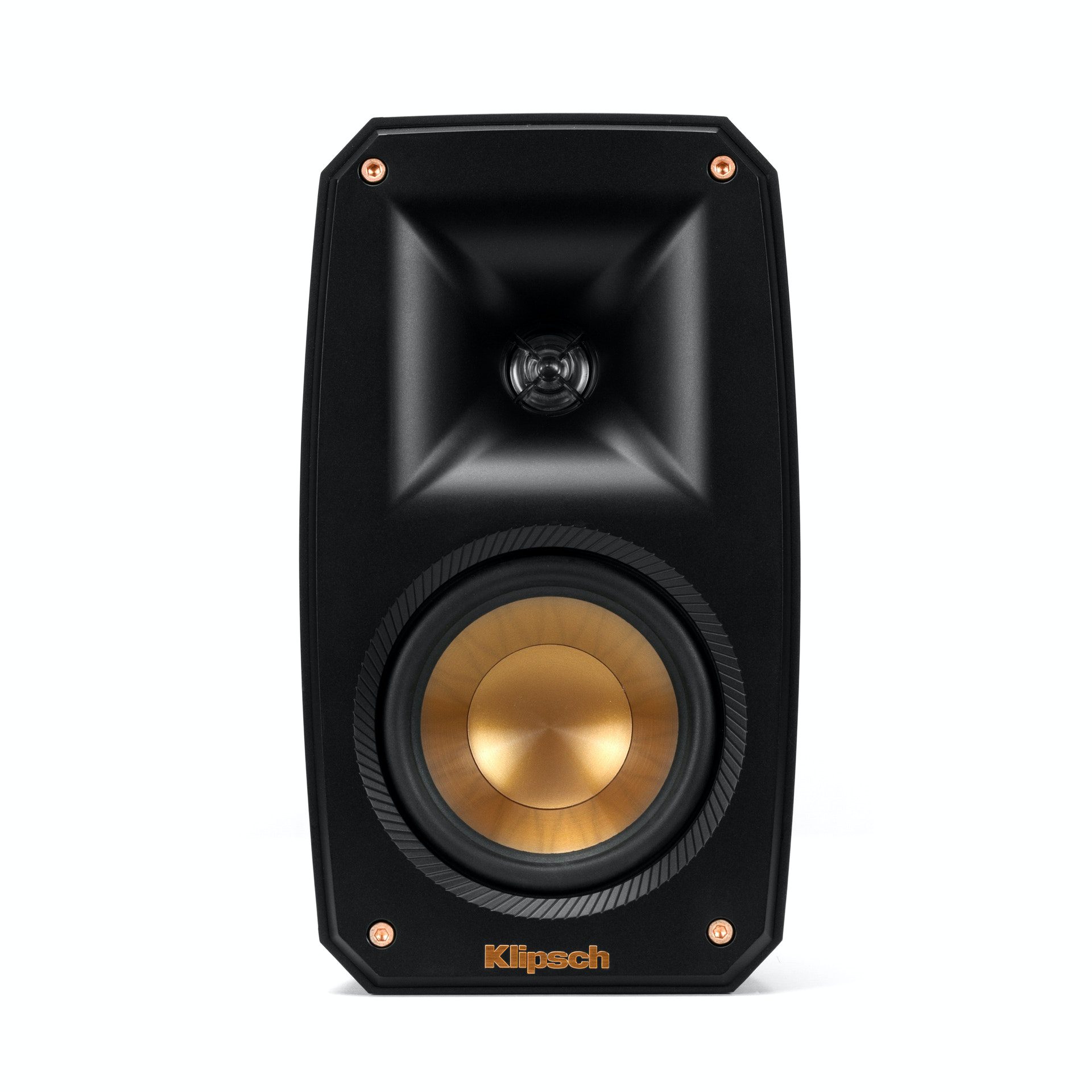

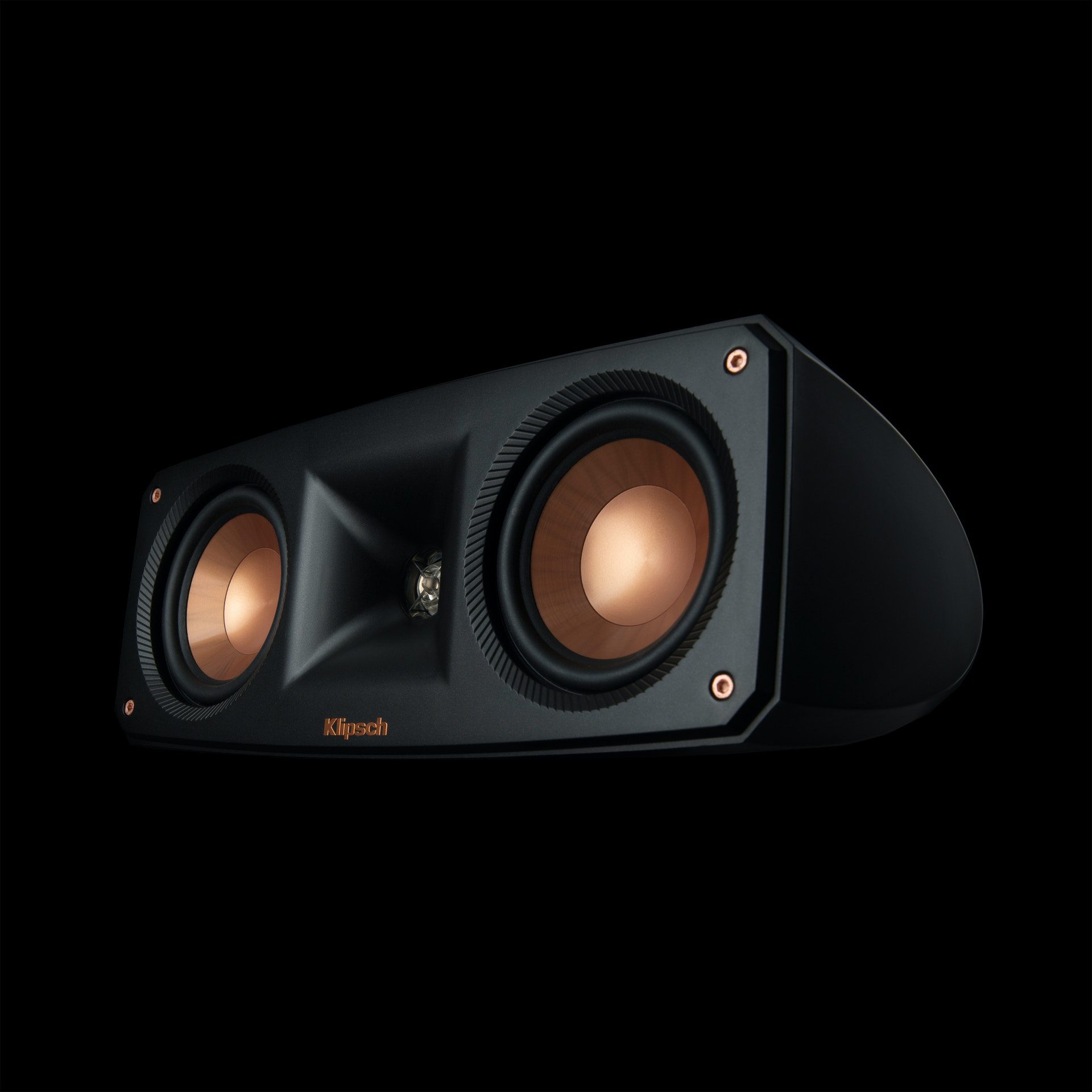

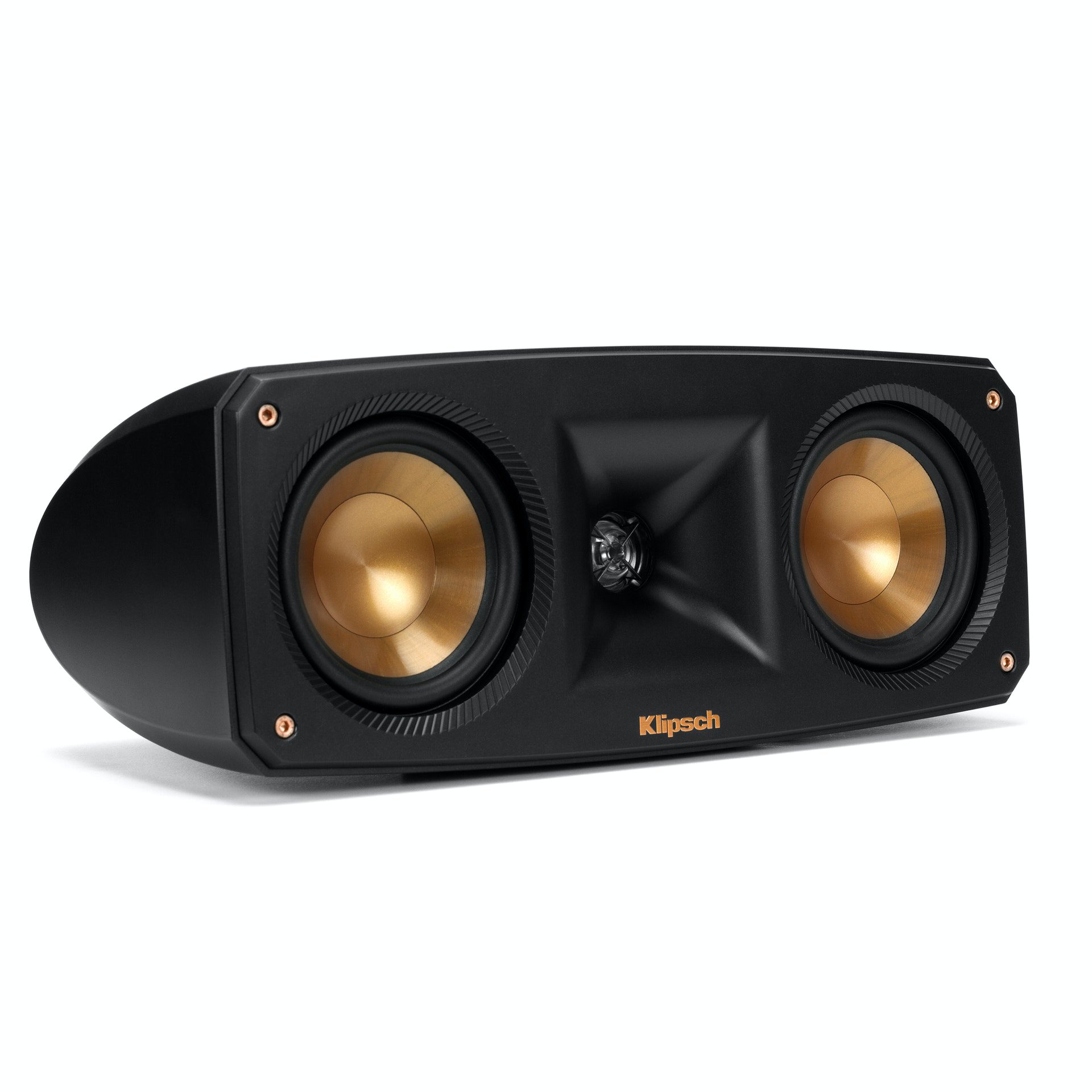

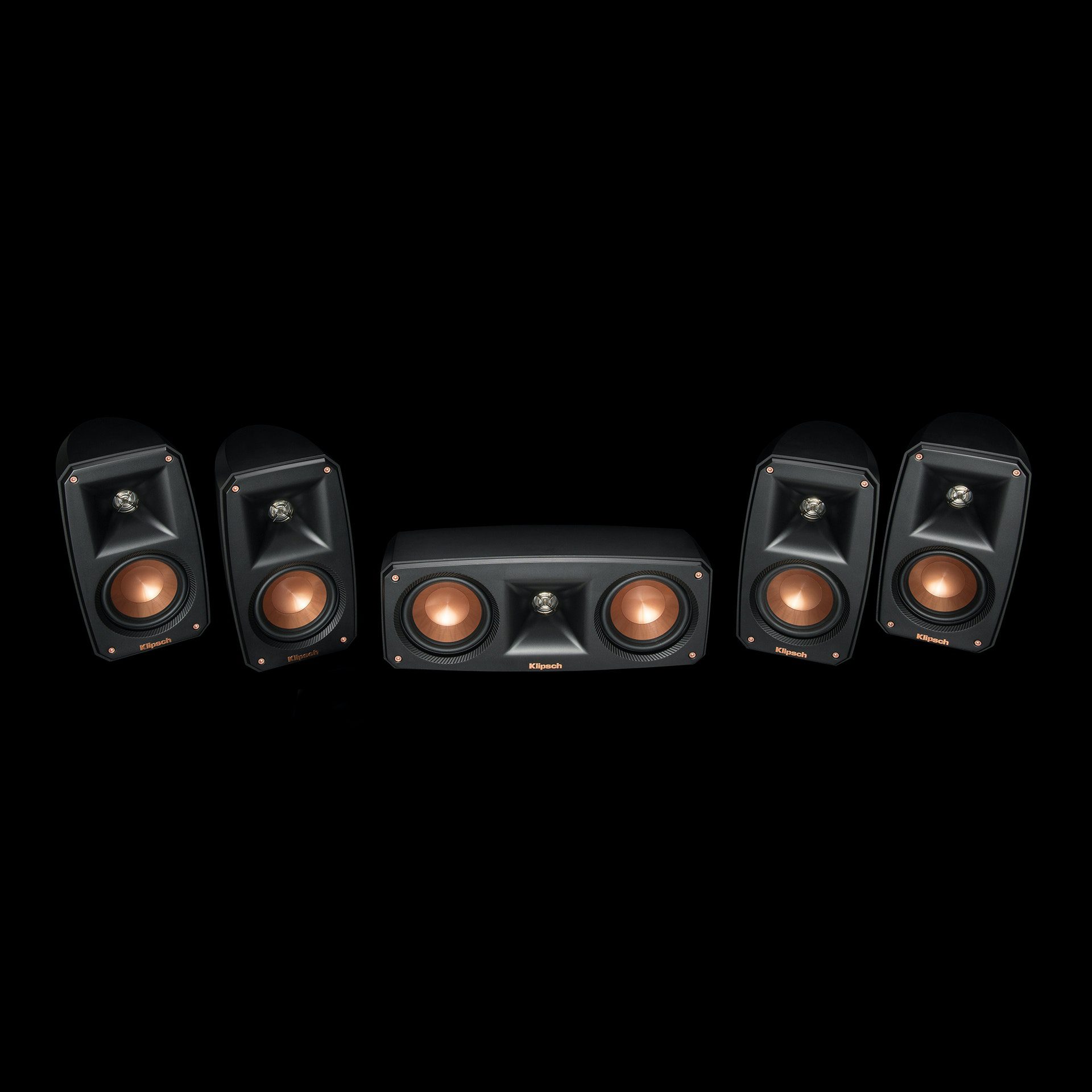

SATELLITE & CENTER CHANNEL
FREQUENCY RESPONSE 110Hz – 23kHz +/– 3dB
NOMINAL IMPEDANCE 8 ohms compatible
SENSITIVITY Satellite: 91dB @ 2.83 volts / 1 meter
Center: 94dB @ 2.83 volts / 1 meter
POWER HANDLING Satellite: 50 watts (200 watts peak)
Center: 75 watts (300 watts peak)
HIGH FREQUENCY DRIVER Satellite & Center: 3
/4” (1.9 cm) aluminum diaphragm
compression driver mated to 90° x 90° Tractrix® horn
LOW FREQUENCY DRIVER Satellite: 3.5” (8.9 cm) copper IMG woofer
Center: Dual 3.5” (8.9 cm) copper IMG woofer
DIMENSIONS Satellite: 7.75” H (19.7cm) x 4.38” W (11.1cm) x 5.37” D (13.7cm)
Center: 4.38” H (11.1cm) x 10.75” W (27.3cm) x 5.37”D (13.7cm)
WEIGHT Satellite: 3 Ibs (1.4kg)
Center: 5 Ibs (2.3kg)
MOUNTING Satellite: Keyhole and 1
/4” x 20 threaded insert
Center: Dual Keyhole with dual 1
/4” x 20 threaded insert
SPEAKER WIRE 14–18 gauge compatible
