90° x 90° SILICON COMPOSITE HYBRID TRACTRIX® HORN
Horn loading maximizes efficiently and increases detail while focusing high
frequencies towards the listening area. Proprietary Tractrix® geometry provides the
most efficient transfer of high frequency waves into the listening area. The phase
plug and compressed molded silicon face ensure smooth frequency response. When
combined, the cleanest, most natural sound possible is created.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS tweeters are a hallmark of previous Reference lines, making it a
core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The new vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
SPUN COPPER CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series, Cerametallic™ woofers are
exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
When paired with the Tractrix horn-loaded LTS tweeter, it provides the highest
speaker efficiency in its class.
WIDE DISPERSION SURROUND TECHNOLOGY
As the cornerstone of every Klipsch surround speaker, proprietary Wide Dispersion
Surround Technology (WDST) provides astounding sonic detail – for lifelike, cinematic
sound in any room, even with less-than-ideal placement configurations.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl, walnut vinyl and piano gloss. Ebony and walnut models
boast satin painted top cap with a scratch resistant finish, while the premium piano
gloss cabinet is hand-sanded for a clear, mirror-like finish. The mirror-life piano gloss
finish is seamless due to the meticulous hand sanded and hand polished process.

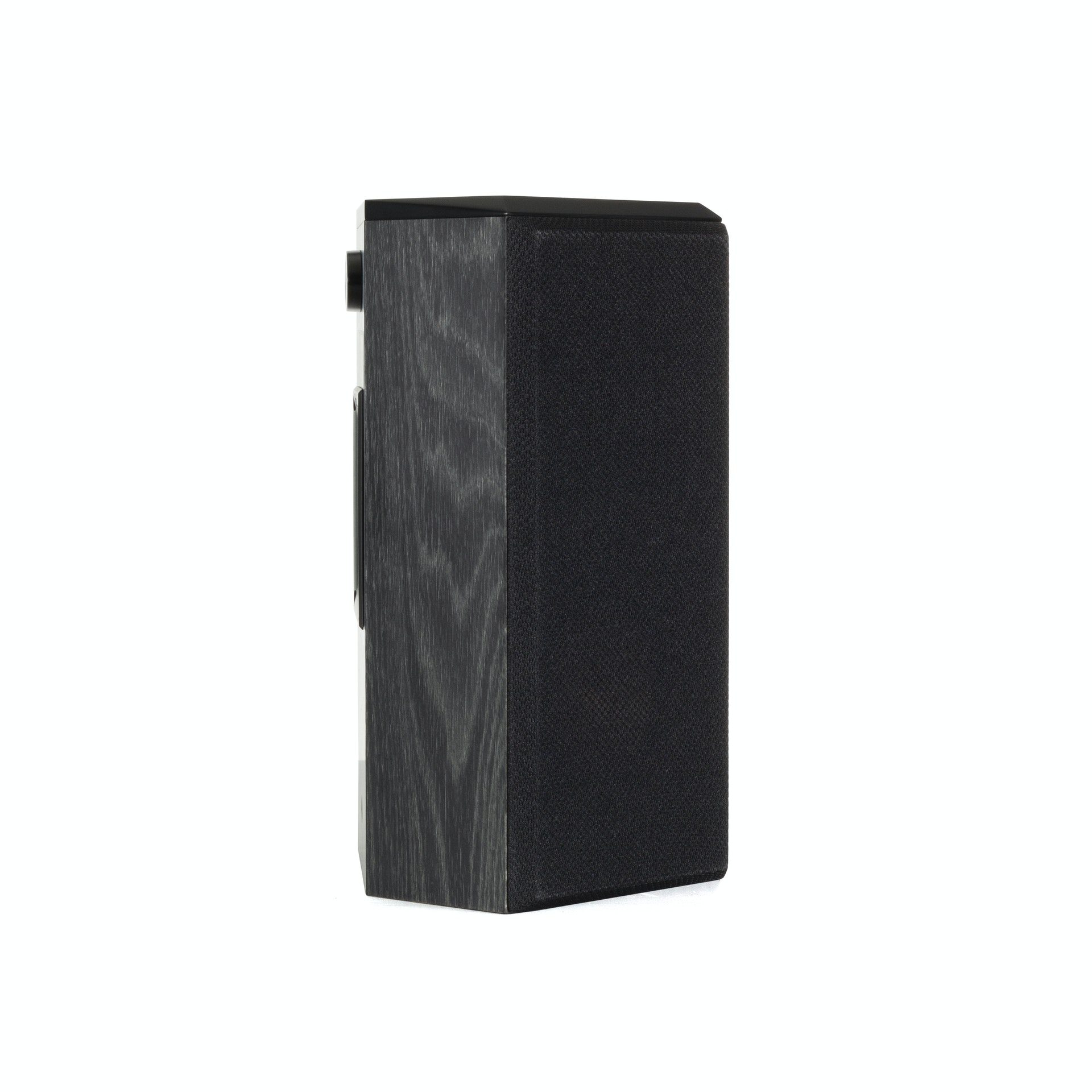

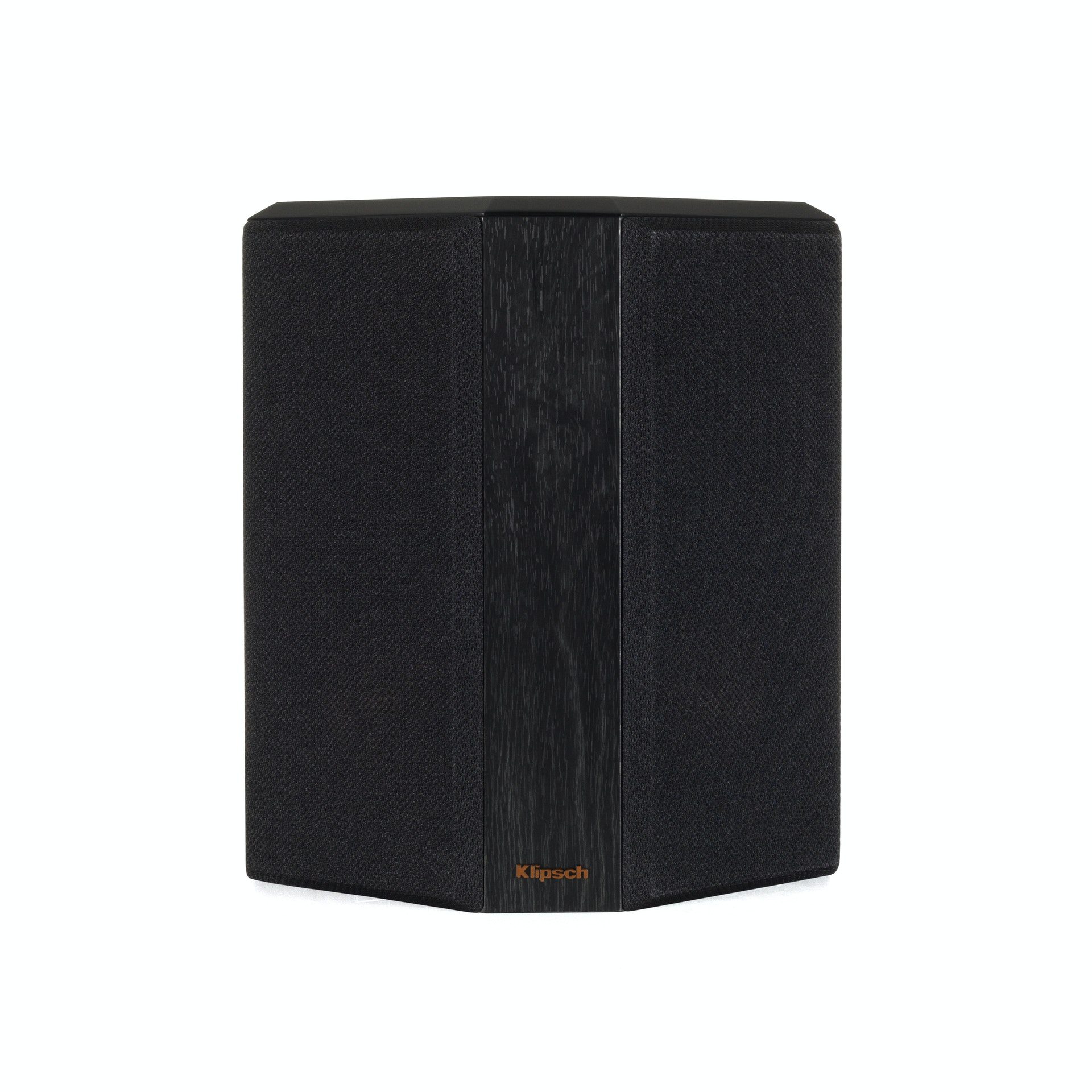

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to
discrete performance piece.
Copper anodized trim rings, cast aluminum feet, satin painted baffles and a
laser etched logo treatment give the Reference Premiere II series a modern,
FREQUENCY RESPONSE 62-25kHz +/- 3dB
SENSITIVITY 93dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1500Hz
HIGH FREQUENCY DRIVER 1” Titanium LTS Vented Tweeter with Hybrid
Cross-Section Tractrix® Horn
LOW FREQUENCY DRIVER Dual 4” Cerametallic Cone Woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Sealed

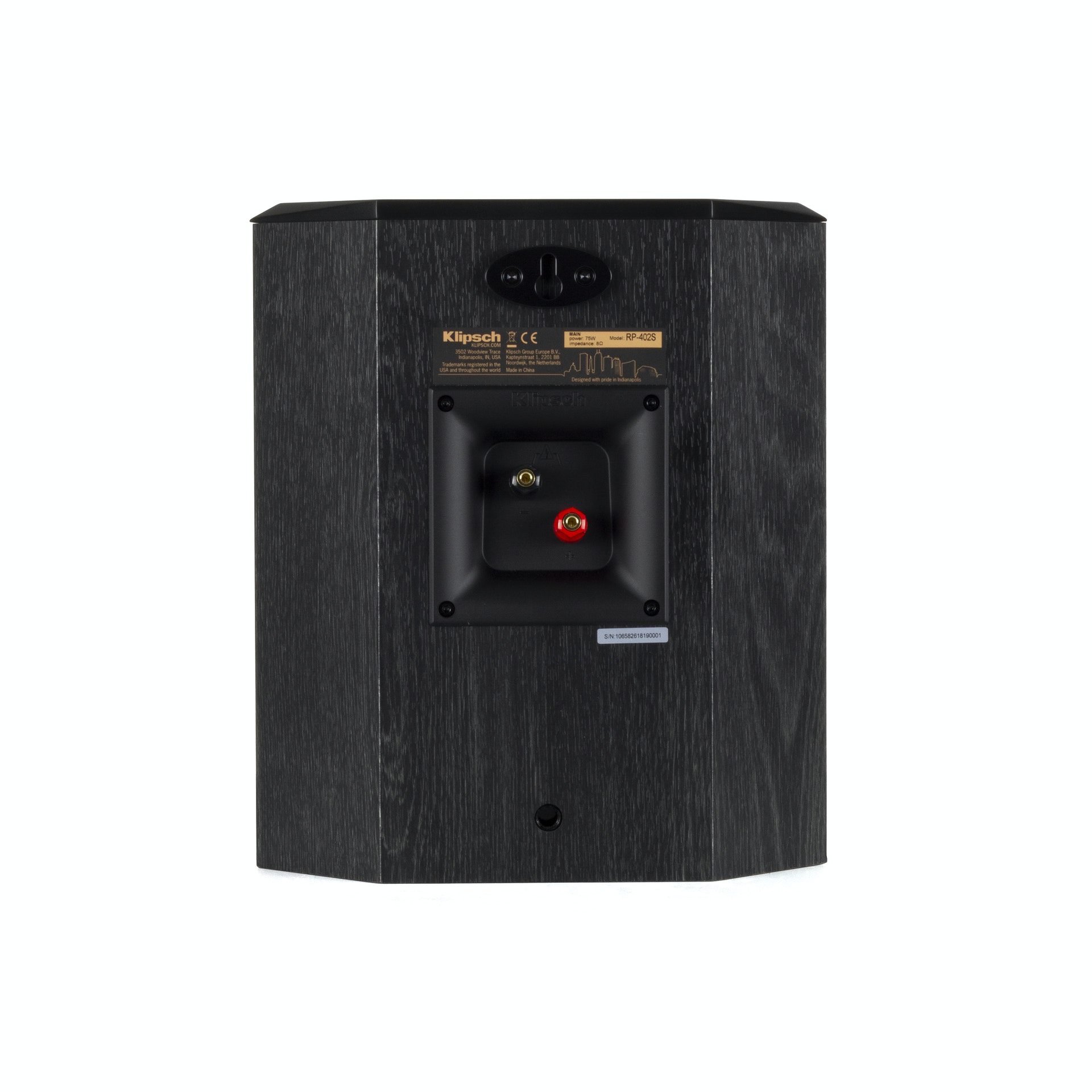

INPUTS Single Binding Posts
HEIGHT 11.85” (30.1 cm)
WIDTH 10.26” (26.1 cm)
DEPTH 6.51” (16.5 cm)
WEIGHT 13 lb (5.9 kg)
FINISH Ebony, Walnut, Piano Black
ACCESSORIES Rubber Feet (8)
BUILT FROM 2018
