MODERN LOOK. LEGENDARY SOUND.
The Reference Premiere Designer On-Wall family brings the dynamic,
detailed, powerful sound of the Reference Premiere box speakers to a slim,
on-wall solution. The matte finish helps it blend more seamlessly with
contemporary interiors and electronics, making it a great sounding, great
looking solution in a high performance home theater or media room where
floor space is at a premium. The RP-440D SB is a passive “soundbar” design
with a separate Left channel, Center channel and Right channel speaker all
built into separate chambers in one aesthetic cabinet.
90×90 TRACTRIX HORN
The Tractrix® horn geometry helps to improve high-frequency response and
extension, while enhancing imaging and dynamics. It also focuses the high
frequency sounds towards the listening area, for the cleanest, most natural
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER
The same tweeter used in the Reference Premiere box line, a Linear Travel
Suspension maximizes dynamics for enhanced, detailed performance. LTS
Tweeters have been a hallmark of previous Reference lines, making it a core
component of some of the best speakers in the world.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design,
maintaining exceptional rigidity, and lightweight construction, for minimal
cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS
tweeter, it provides speaker efficiency highest in its class.

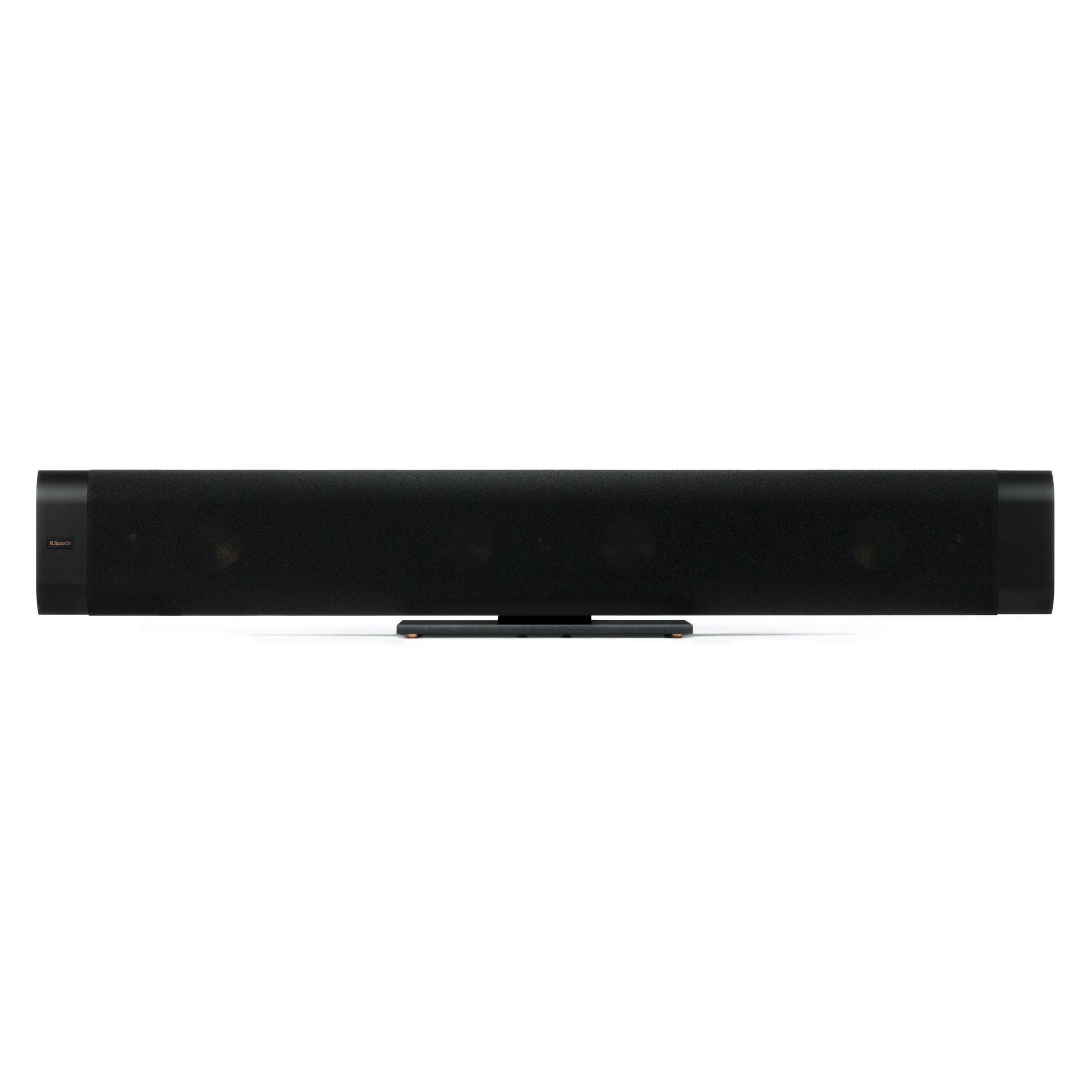

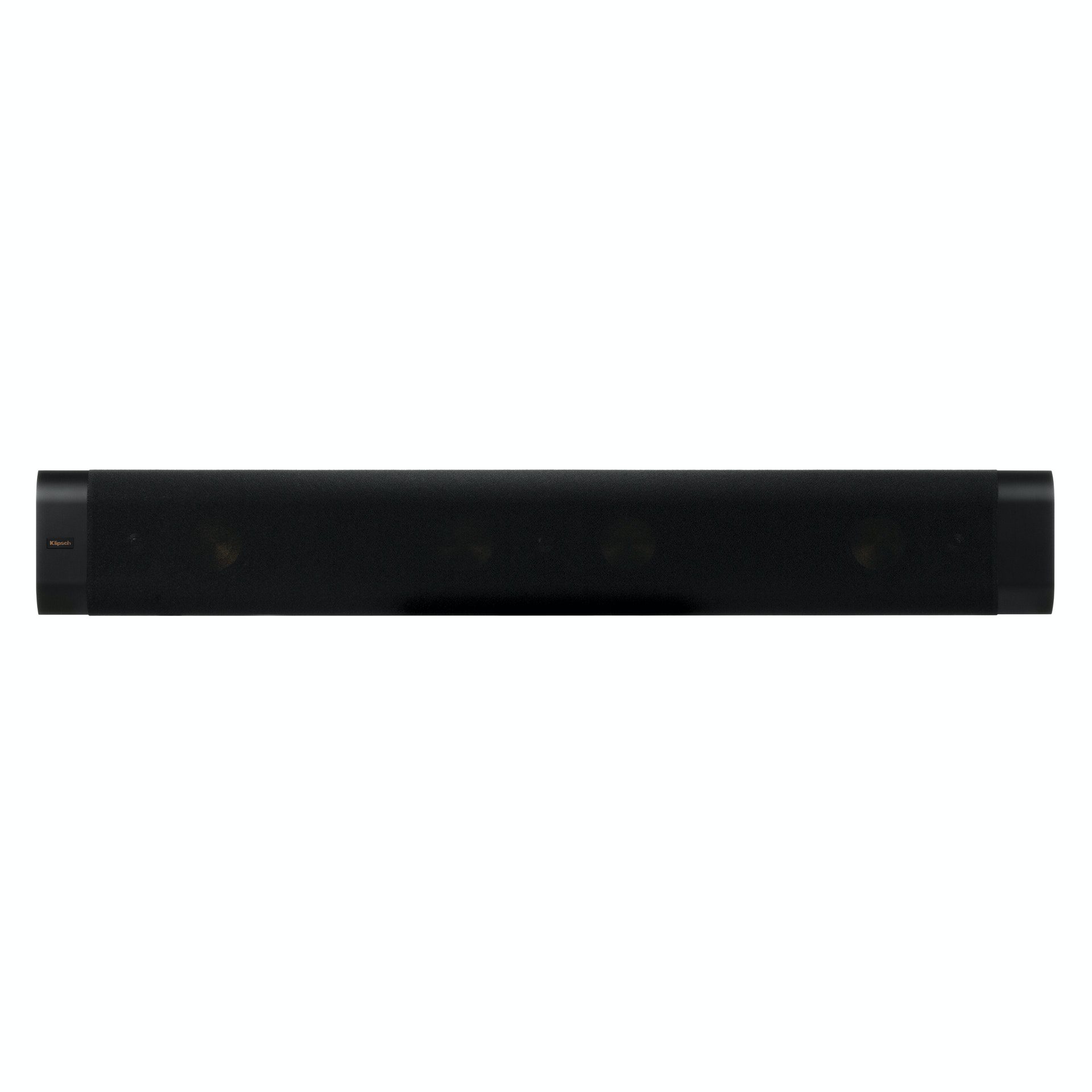

WRAP-AROUND MAGNETIC GRILLE
Front grill attaches magnetically for an elegant transition from powerful
showstopper to discrete performance piece.

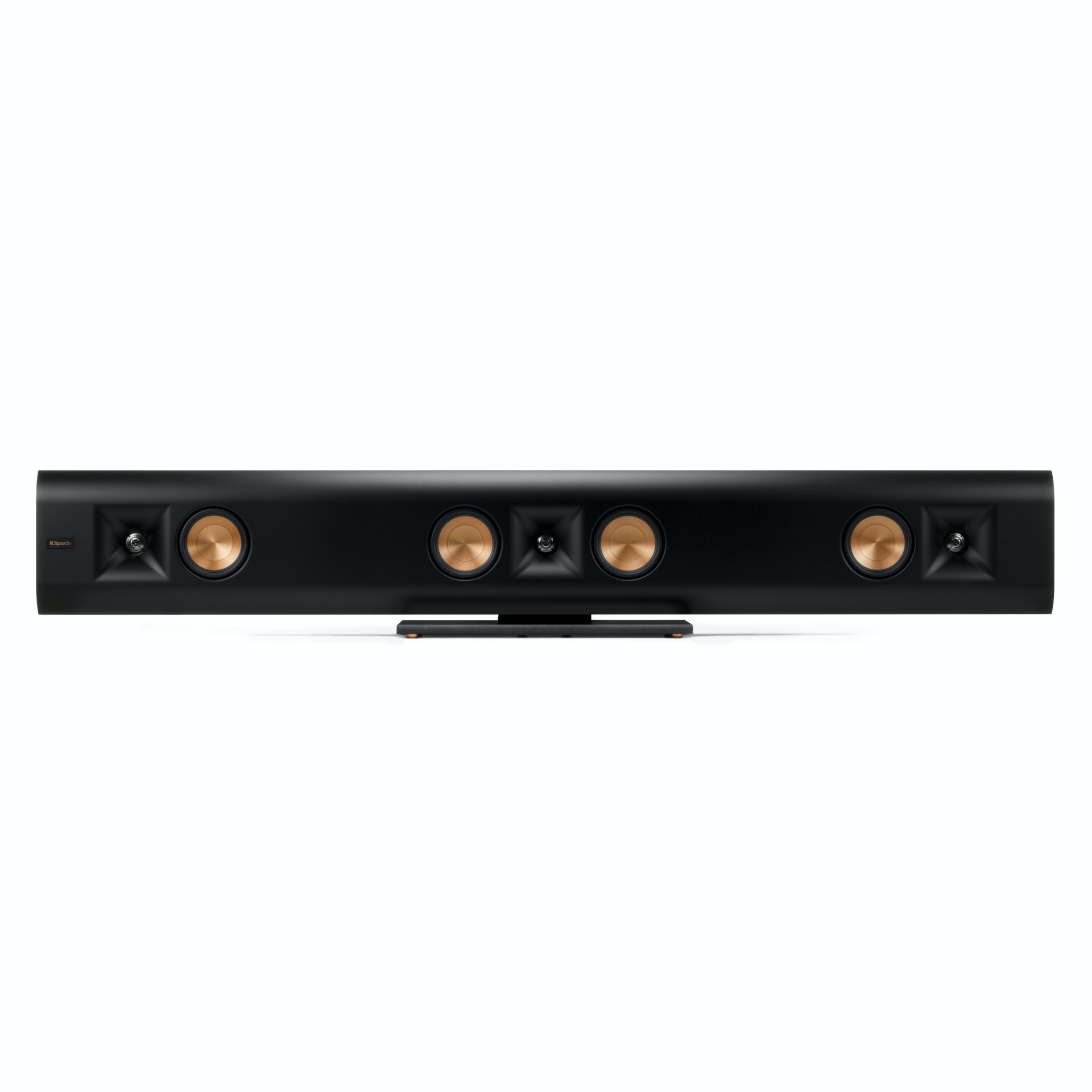

TABLE MOUNT INCLUDED

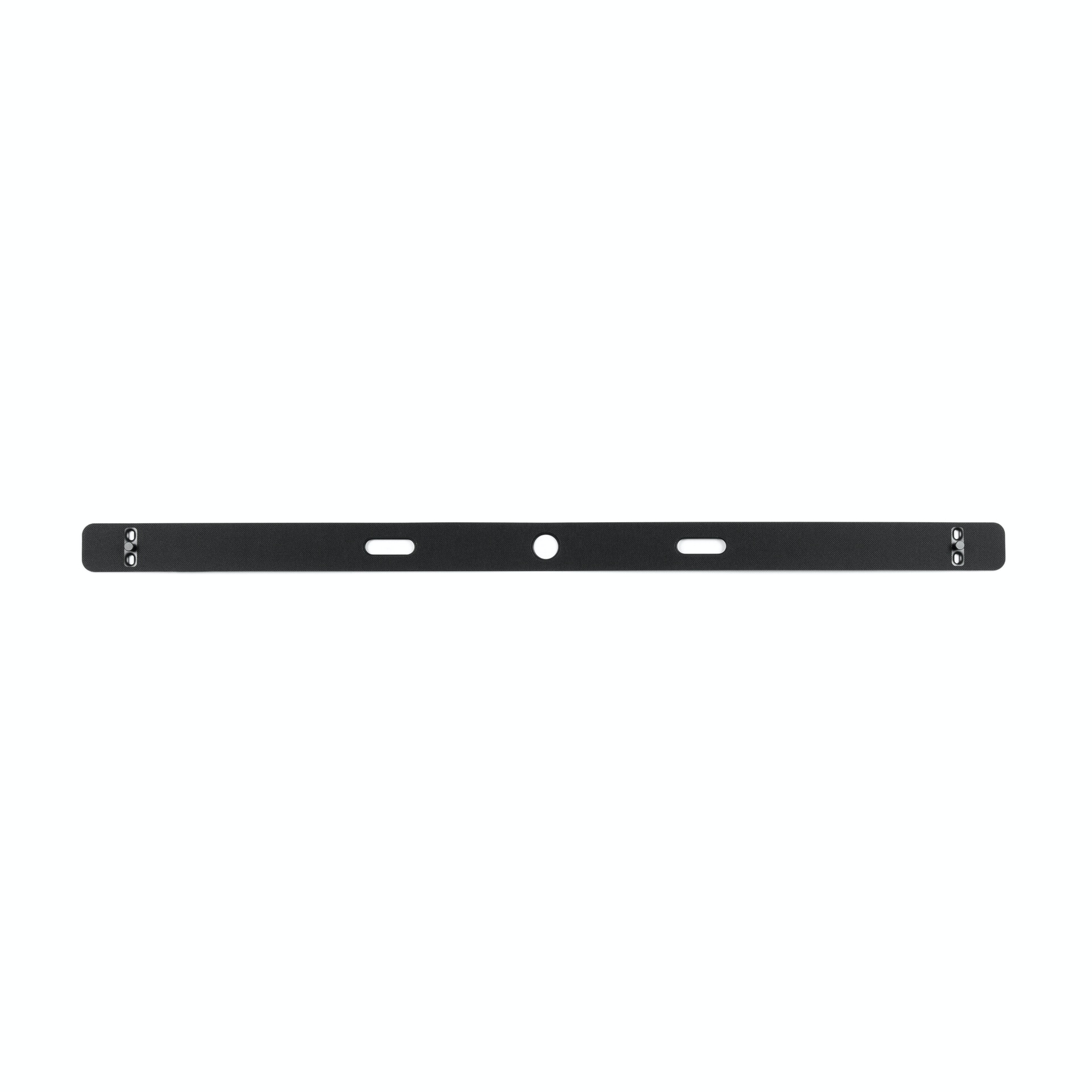

Dual four-way keyholes allows for easy, tight-to-the-wall mounting
either vertically or horizontally, while the included glass base provides a
luxurious, modern table-top or bookshelf option.
SPECIFICATIONS – MAIN CHANNEL
FREQUENCY RESPONSE 65Hz-25kHz +/- 3dB
SENSITIVITY 92dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 50W / 200W Per Channel
NOMINAL IMPEDANCE 8 Ohms Compatible Per Channel
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER Thee 1” (2.54 cm) Titanium Dome LTS Tweeter
with 90°x90° Tractrix Horn (One Per Channel)
LOW FREQUENCY DRIVER Four 3.5” (8.89 cm) Cerametallic Cone Woofers
(One each for Left and Right, Two for Center Channel)
ENCLOSURE MATERIAL ABS
ENCLOSURE TYPE Bass Reflex

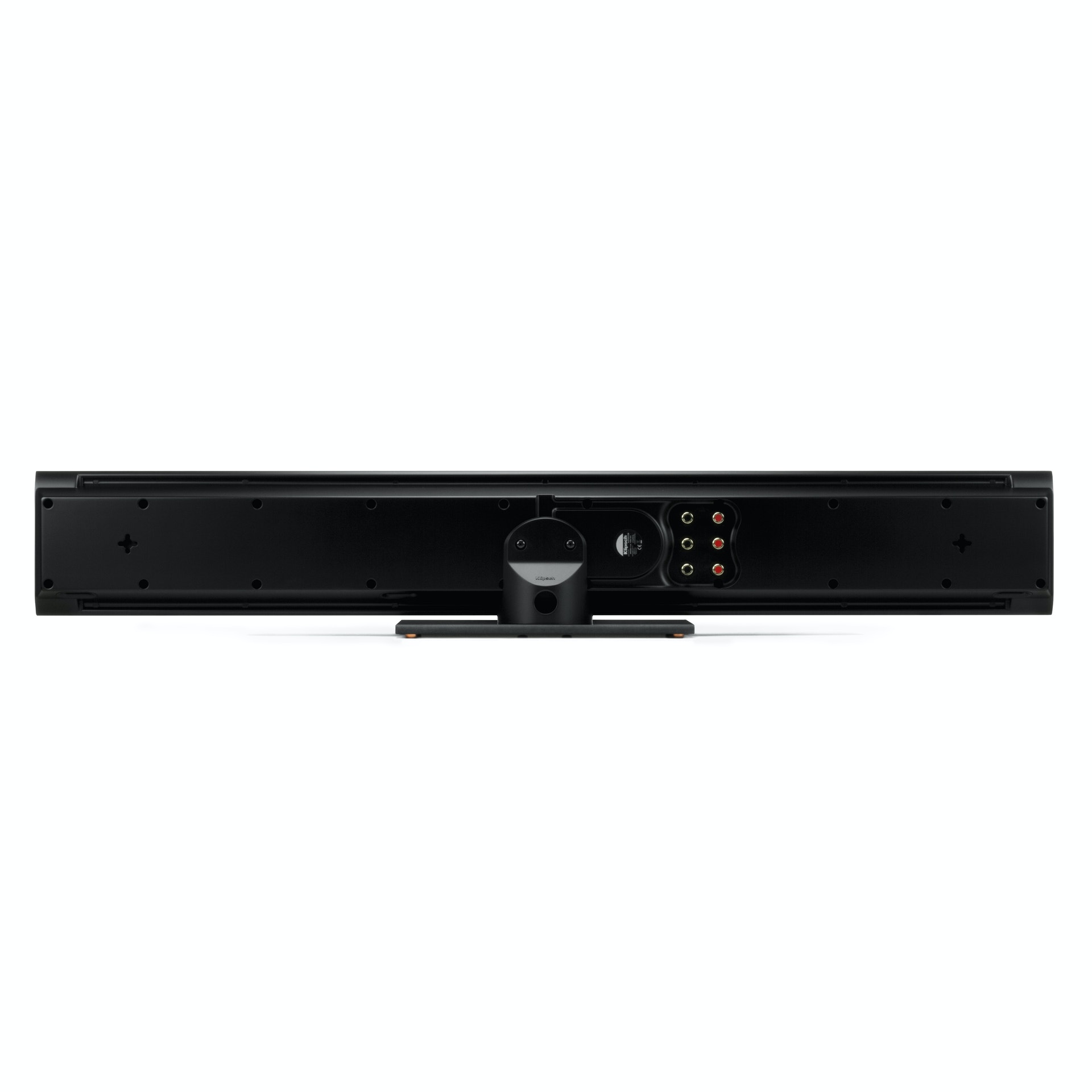

INPUTS Three Sets Single Binding Posts
HEIGHT 6” (15.24 cm)
WIDTH 42″ (106.68 cm)
DEPTH 2.4″ (6.10 cm)
WEIGHT 12 lbs (5.44 kg)
FINISH Matte Black Paint
BUILT FROM 2017
