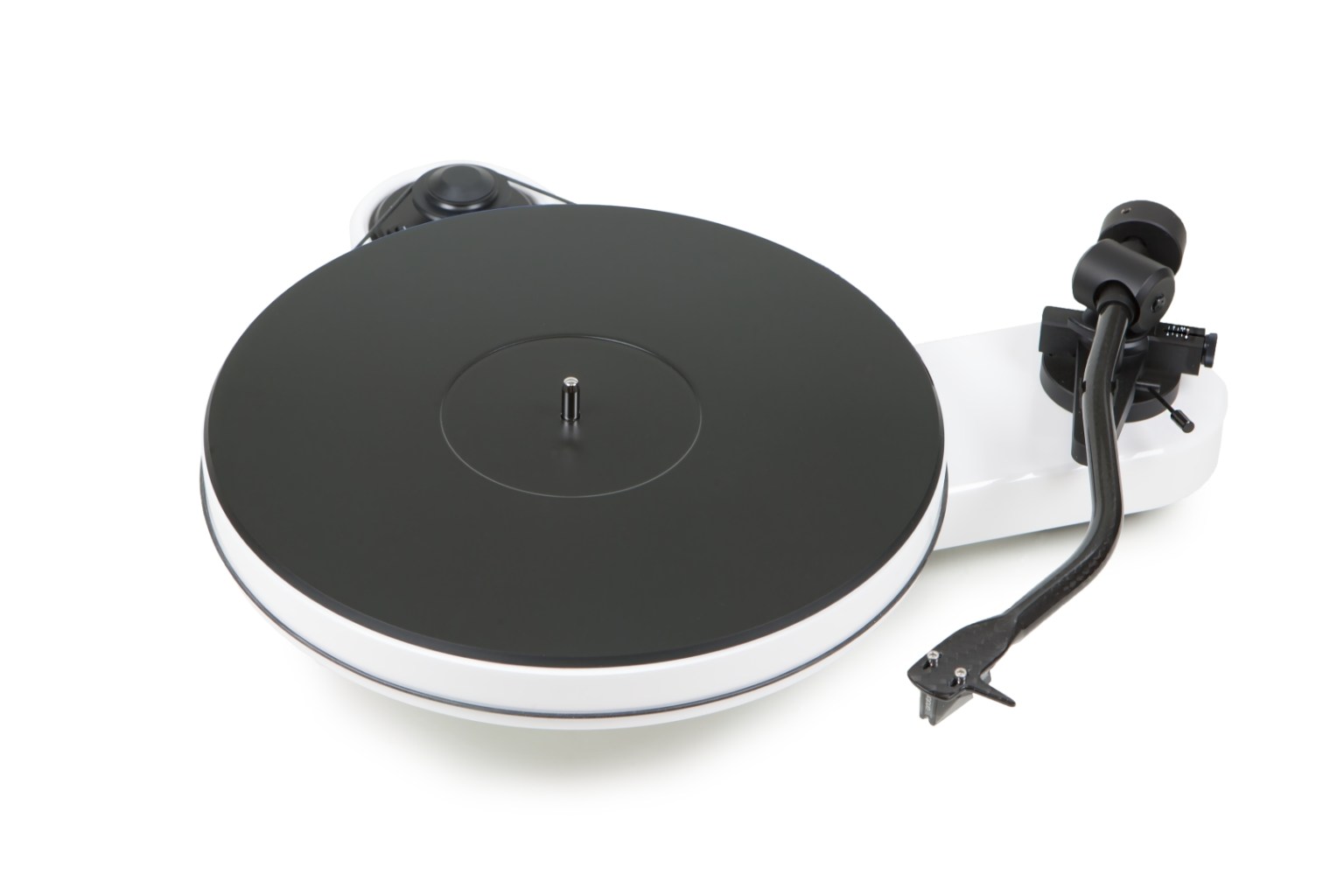

Manual turntable with 10” carbon tonearm
The entry into the RPM world
RPM 3 Carbon utilises evolutionary enhancements to improve the performance of the RPM series: A low resonance chassis holds an inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra precision AC generator with DC power supply for further enhanced speed stability. A 10“ S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, the arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges. Additional features are a magnetic antiskating mechanism and a TPE-damped counterweight.
The RPM 3 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.
In the box:
- RPM 3 Carbon (with or without Ortofon 2M-Silver)
- Connect it E Phono Cable
- Adapter for 7“ singles
- Power supply
- Allen key, stylus pressure gauge
Technical Specifications
| Speed | 33, 45 (manual speed change) |
| Drive principle | Belt drive |
| Platter | 300 mm MDF |
| Mains bearing | Stainless steel axle with ceramic ball |
| Speed drift | 33: +/- 0.14% I 45: +/- 0.11% |
| Wow & flutter | 33: +/- 0.19% I 45: +/- 0.08% |
| Signal to noise | – 71dB |
| Tonearm | 10” carbon; aluminium and resin |
| Effective arm length | 254 mm |
| Effective arm mass | 16 g |
| Overhang | 16 mm |
| Tracking force | 0 – 25 mN |
| Included accessories | 15 volts DC / 500 mA power supply |
| Power connection | 110/240 Volt – 50 or 60 Hz |
| Power consumption | 5 watt max / < 0,5 watt standby |
| Dimensions | 422 x 118 x 373 mm (WxHxD) |
| Weight | 5.5 kg net |
