For the ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable KEF Ci R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

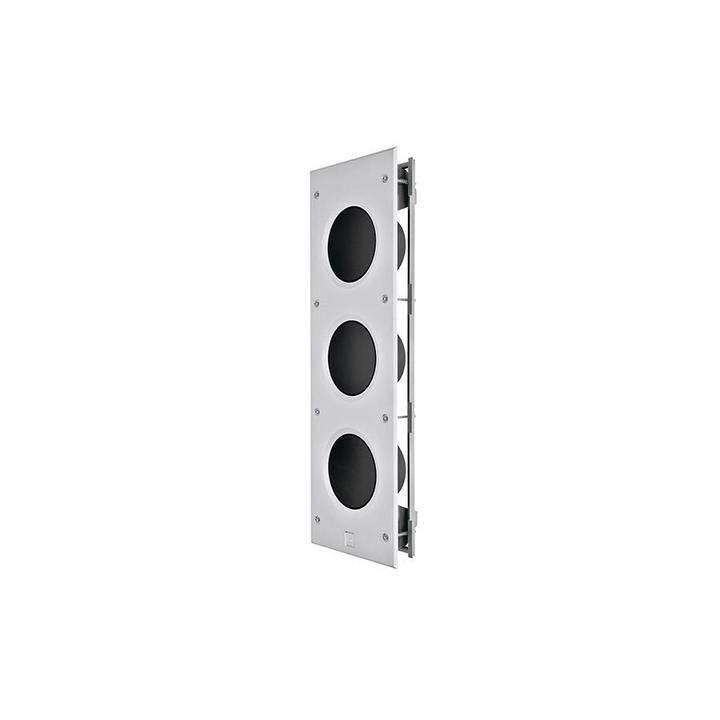

Ci3160RLb-THX
For the ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable new Ci R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

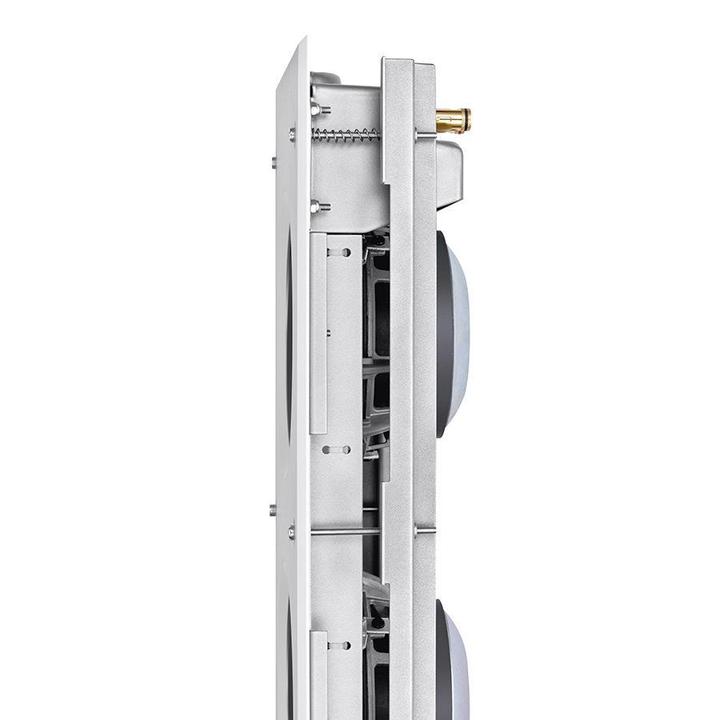

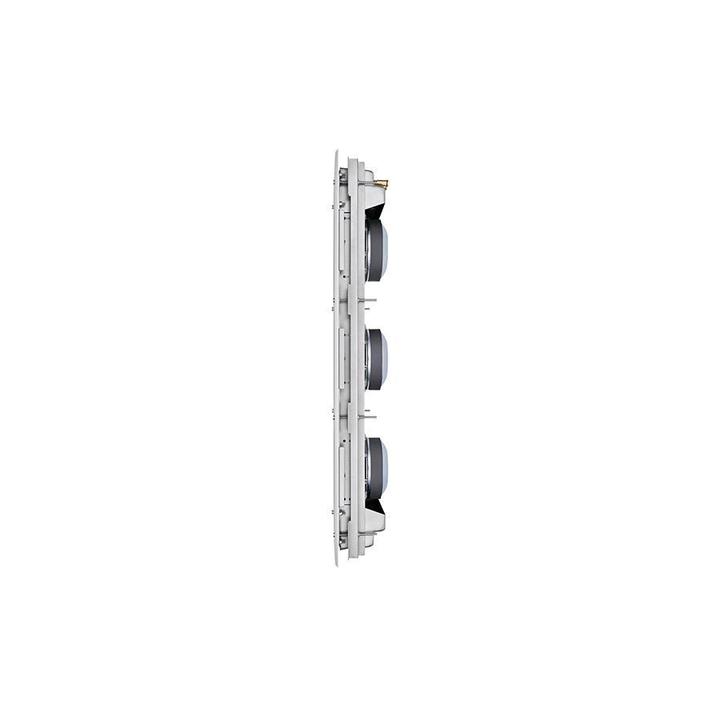

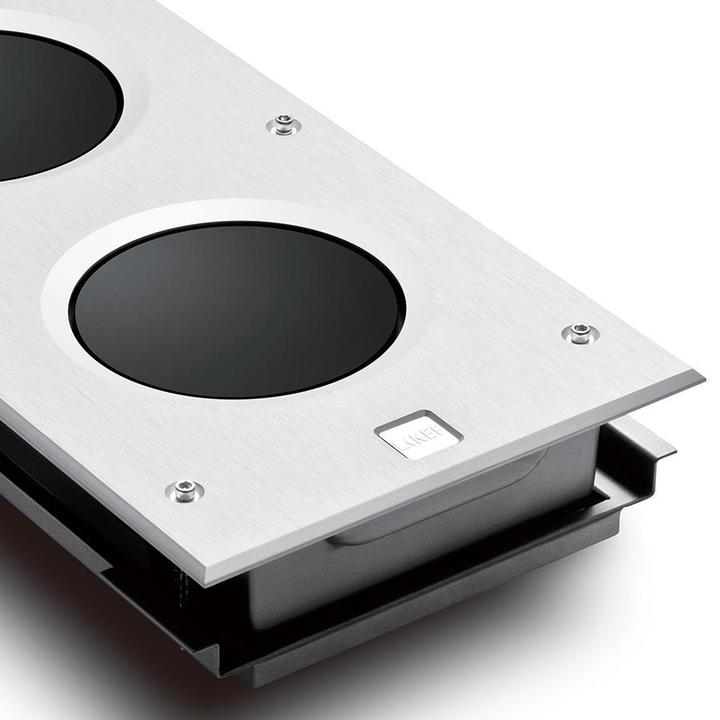

With three high-output 160mm sub-bass drivers mounted to a massive aluminium baffle the Ci3160RLb-THX must be matched with KEF’s powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.

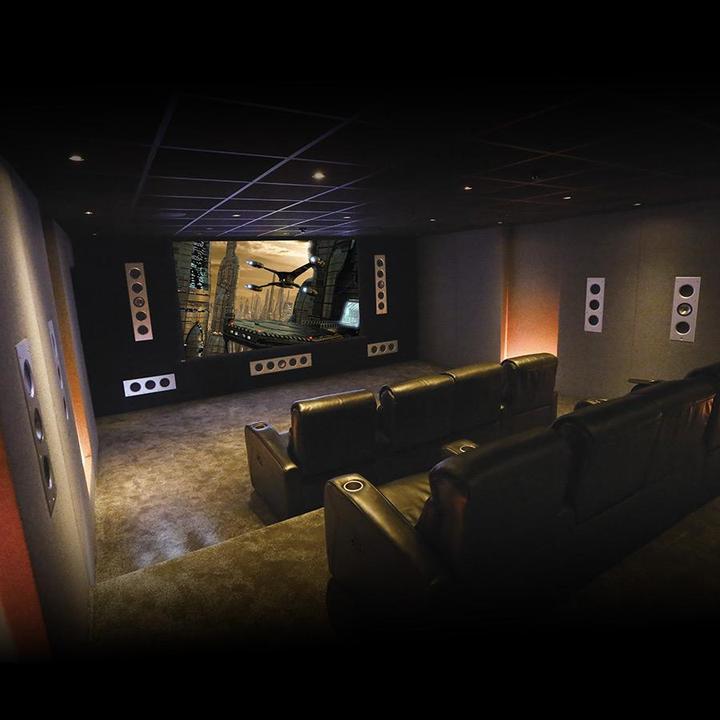

For theatre building flexibility, the remainder of KEF’s Extreme Theatre suite consists of two THX Ultra2 certified in-wall LCR speakers, a THX Ultra2 certified in-ceiling LCR speaker, as well as a smaller in-wall subwoofer and smaller in-wall LCR.
The Details
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
92dB (2.83V/ 1m)
Frequency Response
20Hz – 140Hz (±6dB) open backed
Drive Units
LF: 3 x 160mm (6.5 in.)
Amplifier Requirements
Product External Dimension (H X W X D)
680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
With Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
With Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
Cut-out Dimensions (H X W)
660 x 209mm (25.98 x 8.23 in.)Lorem ipsum dolor sit amet.
Lorem ipsum dolor sit amet.
Lorem ipsum dolor sit amet.
Mounting Thickness
Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
88.5mm (3.84 in.)
Net Weight
10.9 kg (24.1 lbs)
Unit Measurement
Piece
Downloads
Remarks
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, Ultra2 and Select2 are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
