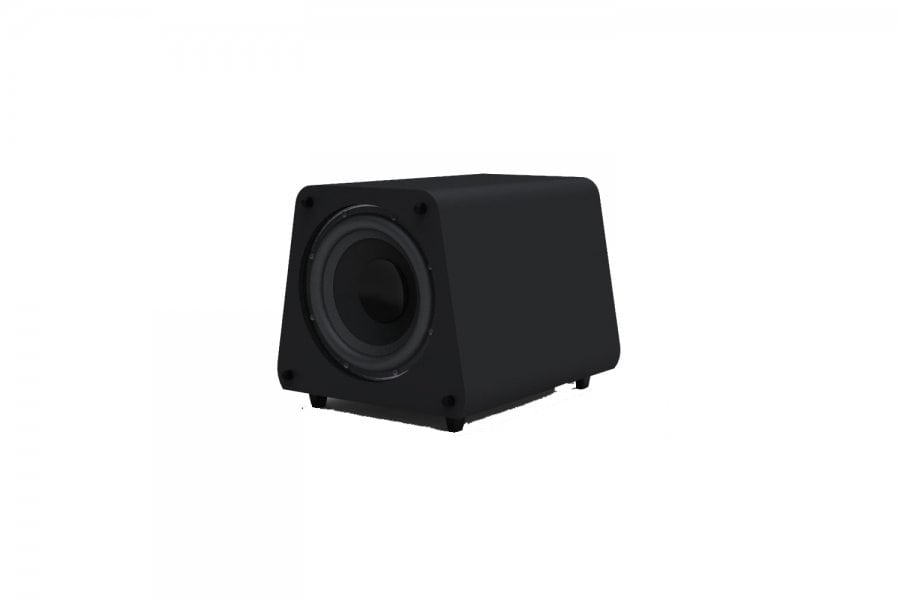

The compact ForceField 4 incorporates the same 1200-watt digital amp developed for the Triton Two. It drives a front-mounted high-power ultra-long-throw 10” sub-bass driver coupled to a downward-firing 11”x 13-7/8” quadratic planar infrasonic radiator.
Išmatavimai (aukštis su kojelėmis): 34 cm P x 45.4 cm G x 33.3 cm A
Svoris: 14.5 kg
Atkuriamų dažnių juosta: 14 Hz – 250 Hz
Stiprintuvas: 1200 W ForceField skaitmeninis stiprintuvas
Vienas 10˝ didelės eigos aukštos galios žemų dažnių garsiakalbiai
Vienas 11˝ x 13˝ kvadratiniai planariniai infragarsiniai radiatoriai
Aukštų dažnių filtras: 6 dB per oktavą ties 150 Hz (apytiksliai)
Žemų dažnių filtras: 12 dB per oktavą pasirenkamas nuo 40 iki 150 Hz
Žemo lygio įėjimas (Mono): nefiltruotas, tiesioginis
ForceField Subwoofers Overview
The ForceField Subwoofers’ unique and attractive cabinet shape, with its non-parallel cabinet walls (the top is narrower than the bottom when viewed from the front), helps the ForceField subs achieve extraordinarily deep and tuneful bass that is ideal for music and movies. Their cutting-edge amplifier design employs state-of-the-art DSP control for frequency shaping so the subs produce accurate, consistent and musical bass performance.
Let’s take a look at the ForceField subwoofers to see what makes them special. We’ll start with two very common sub design concepts and then we’ll delve into GoldenEar’s unique and better solutions. Many of today’s subs fall into either the ultra-compact high-output category, or the (larger) high performance, extended response, high-output category. These two design types tend to offer different performance benefits, the ultra compact having the ability to play extremely loud, but over a narrower bandwidth and the large subs having this high output plus more extended response.
GoldenEar’s engineering team set out to accomplish the best of both worlds with the new ForceField subwoofers: small size, yet with the smooth & wide response of a larger sub. There’s no sleight of hand, just great engineering – all ForceField subs share the same technologies, here is a list of their features. Read through these and then take a good demo disc into your GoldenEar dealer’s sound room and listen for yourself.
Custom-designed high-output drivers with very large motor assemblies. These drivers handle massive power, have very long excursions, and have ultra-low distortion.
Rigid cabinets with non-parallel sides to minimize standing waves and distortion. The drivers are front firing in all of our subwoofers for optimal performance. The cabinets’ possess a unique and understated shape and style that matches well with any décor.

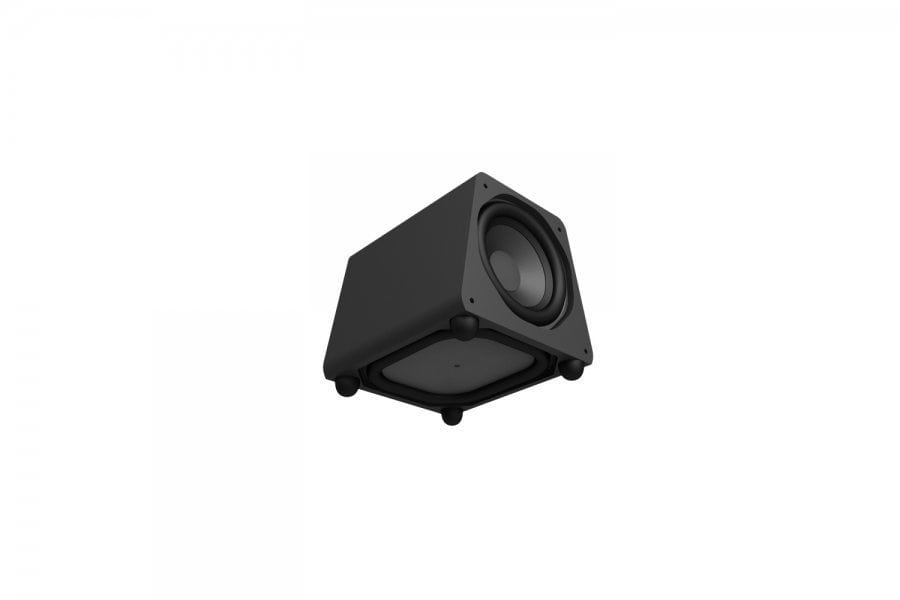

The driver’s response is enhanced with a carefully tuned, down-firing, quadratic-shaped passive radiator (no noisy ports on ForceField subs). The quadratic shape allows the radiators to use maximum surface area on the bottom of the cabinets and gets even greater output from the slot-loading that results from the subwoofers’ interface with the floor (see next point).
The soft, energy-absorbing feet provided with every ForceField sub serve a number of functions. First, they hold the sub the correct distance off the floor so the passive radiator slot-loads with it for significantly increased output at the lowest frequencies. Second, the soft feet keep the sub from dancing around on the floor.
ForceField subwoofer amplifiers are designed in-house by GoldenEar engineering, so each is the perfect amp to power its specific subwoofer model. In addition the amps all have powerful DSP sections to optimize frequency response, minimize distortion and prevent damage from overdriving. These amplifiers are all low distortion and extraordinarily powerful (up to 1500 watts on the ForceField 5) for reproducing seriously high-output AND low bass.
ForceField subs all have speaker-level inputs and outputs (with a high pass crossover on the outputs) as well as a direct LFE input, too.
We realize there is a huge selection of subs on the market – but by incorporating the latest technology, and not a rehash of the last five years’, we know ForceField subs offer a real value. There is nothing available at these price points that will play lower or louder, with less noise and distortion, than the ForceField subs. Our ForceField subs are almost as small as many of the ultra compact models, yet they outperform many of the big boys. Listen for yourself and be amazed!
Finish on the subwoofers is an attractive matte black.
