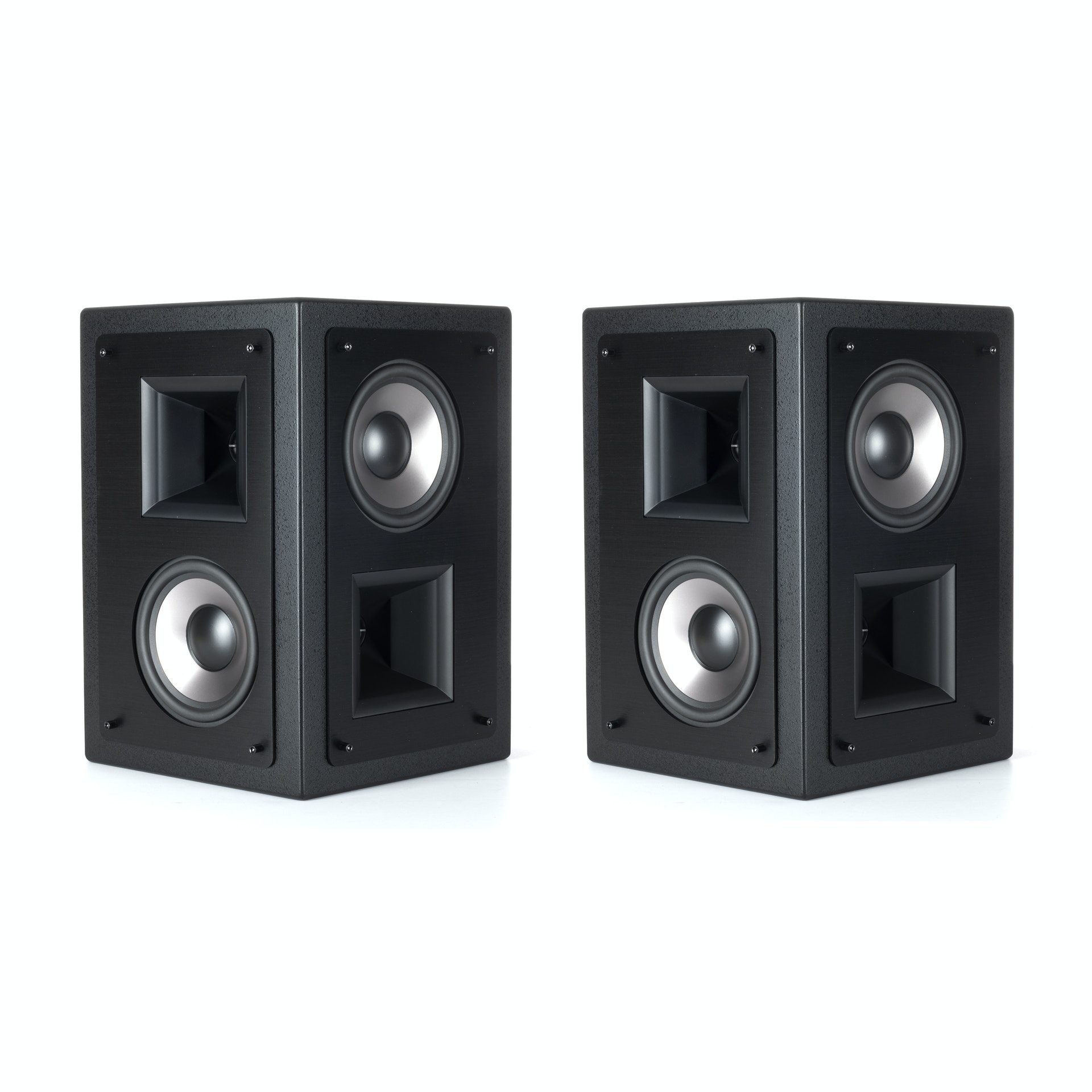

The THX-5000-SUR produces a smooth, seamless, broad distribution of sound by employing a pair of 5.25-inch Cerametallic™ woofers and dual 5-inch square Tractrix® Horn tweeters in a Wide Dispersion Surround Technology array. WDST is the industry’s no-compromise approach to surround speaker design because it offers both rich, immersion surround sound and precise localization of individual effects from a speaker that has much more placement flexibility than conventional designs.

This surround’s sealed enclosure has the dado and rabbet construction used in Klipsch professional speakers, ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points facilitate wall or ceiling mounting using standard hardware.

Available in a custom Galaxy black finish with an aluminum fascia, the THX-5000-SUR also utilizes top-of-the-line internal wiring to help listeners experience the true impact and exhilaration of surround sound.

SPECIFICATIONS

Frequency Response	80Hz-20kHz ± 3dB
Sensitivity	96dB @ 2.83 volts / 1 meter
Nominal Impedance	8 ohms compatible
High Frequency Crossover	2100Hz
Power Handling	100 watts maximum continuous (400 watts peak)
Enclosure Type	Sealed
Enclosure Material	Medium density fiberboard construction (MDF)
Tweeter	Two 1″ (2.5cm) magnetically shielded titaniumdome compression drivers with neodymium magnet structures
High Frequency Horn	5″ square 90° x 60° Tractrix® Horns
Woofer	Two 5.25″ (13.3cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers
Inputs	Two sets of binding post speaker terminals (connected via brass strap jumpers)
Dimensions	13.75″ (35cm) H x 13″ (33cm) W x 8.5″ (21.6cm) D
Weight	20 lbs. (9.1kg)
Finish	Galaxy Black cabinet with Black anodized aluminum fascia
Mounting	2-bolt pattern 1/4″-20 thread
