Features KEF’s patented Uni-Q driver array

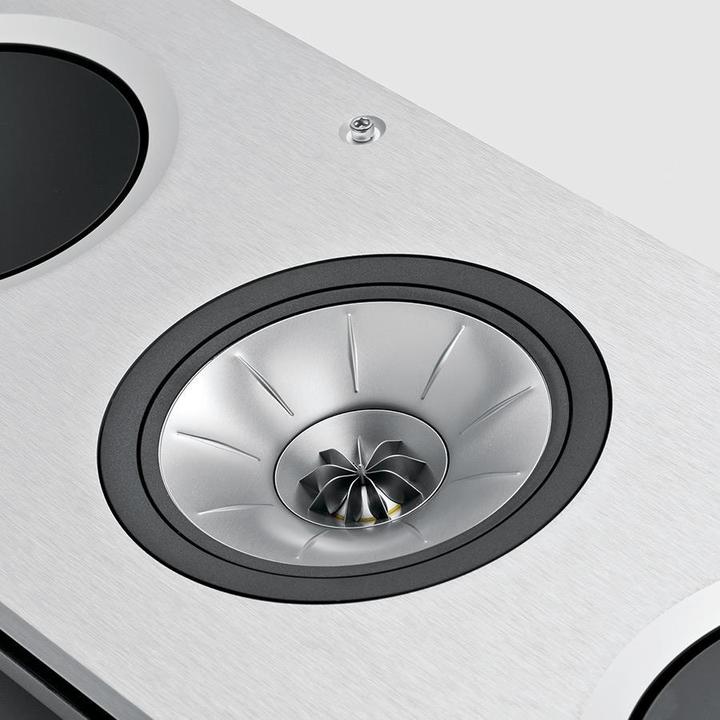

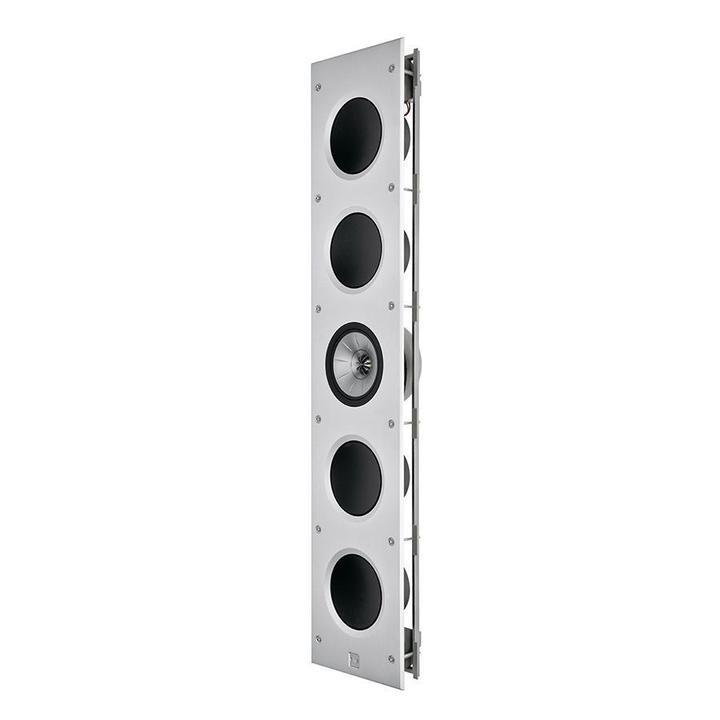

The Ci5160RL-THX is crafted with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 160mm aluminium cone Uni-Q with tangerine waveguide, and four 160mm woofers. Capable of bi-wire and bi-amplifier connections the Ci5160RL-THX delivers on the performance promise of all KEF R Series speakers.

Ci5160RL-THX

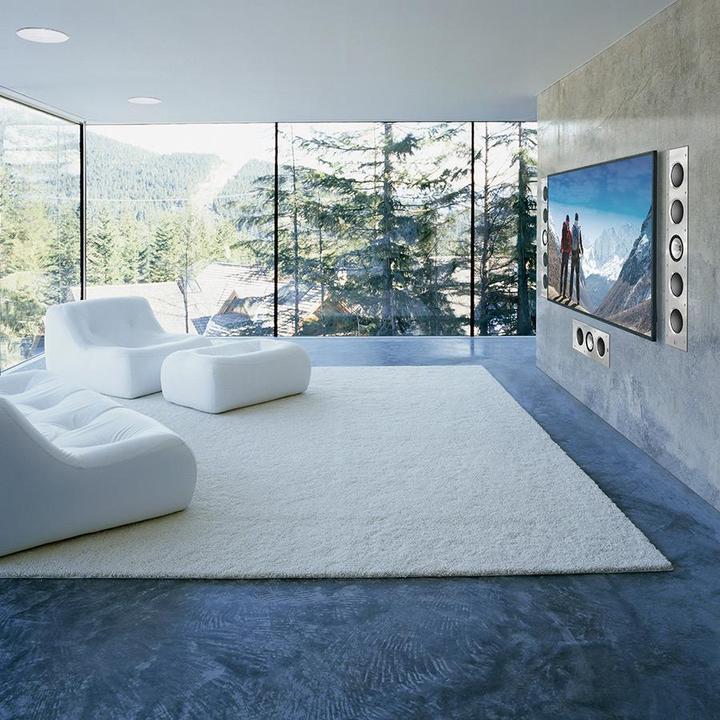

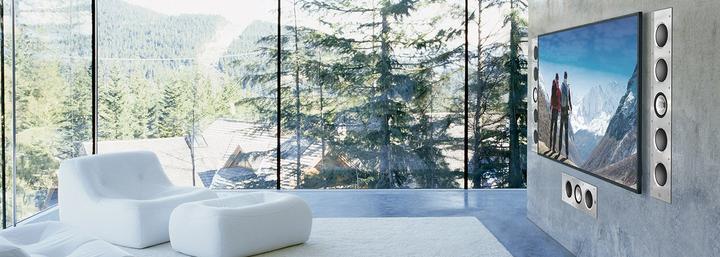

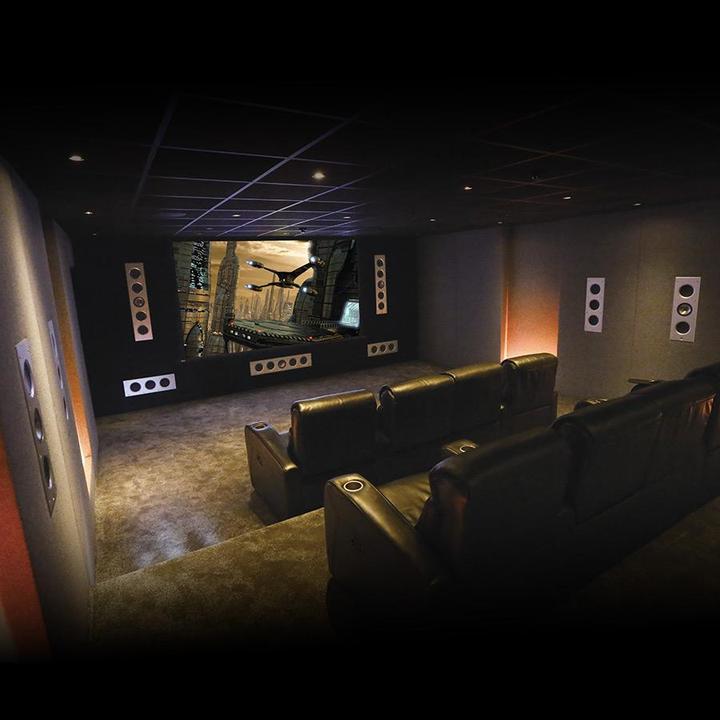

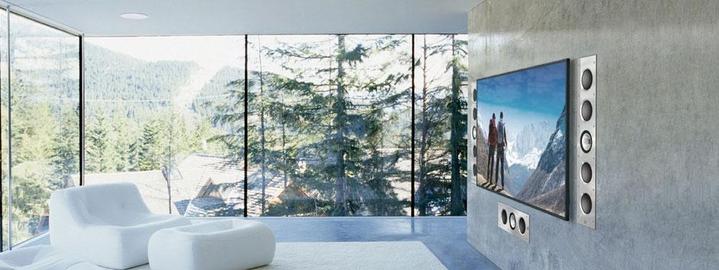

For the ultimate in custom installed Extreme Home Theatre, the formidable new Ci R Series has the jaw-dropping acoustic capabilities of the classic KEF floorstander it’s named after, with all the drama and emotional intensity of full theatre sound quality.

The Ci R Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.

Ci5160RL-THX is an in-wall speaker certified to THX ULTRA2 standards. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX certified 2.1, 5.1 and 7.1 speaker system. Engineered with design characteristics of professional studio speakers, THX recreates the tonal balance of the filmmaker’s final mix in your living room. The results? Action sequences are impactful, and dialogue-driven moments are natural and engaging. THX certified in-wall speakers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds – THX surround sound performance from components that blend harmoniously with any room decor.

The Details

SPECIFICATIONS

Nominal Impedance

4 Ohms

Sensitivity

90dB (2.83V/ 1m)

Frequency Response

40Hz – 28kHz (±6dB) open backed

Crossover Response

300Hz, 2.4kHz

Drive Units

LF: 4 x 160mm (6.5 in.)
MF: 160mm (6.5 in.)
HF: 25mm (1 in.) Uni-Q

Recommended Amplifier Power

40 – 250W

Product External Dimension (H X W X D)

1070 x 230 x 105.7 mm (42.13 x 9.06 x 4.16 in.)

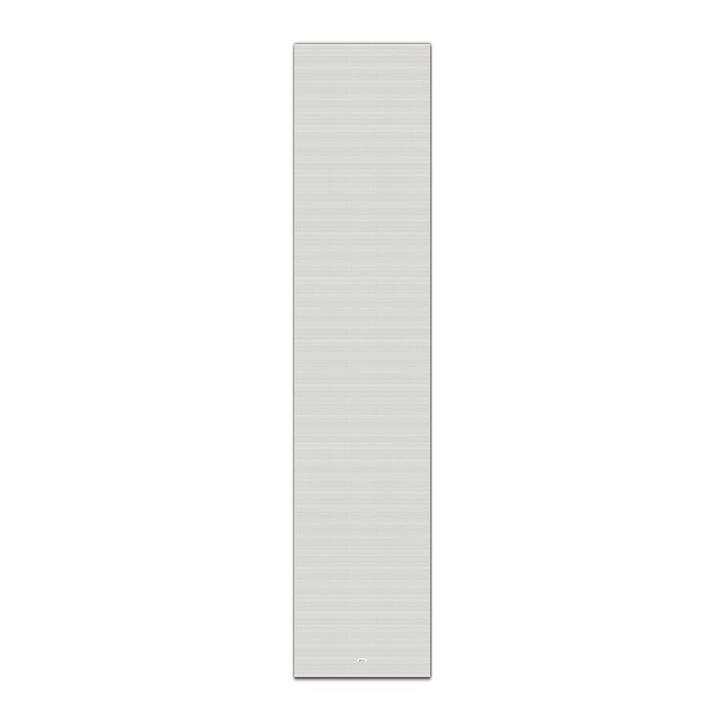

With Grille : 1073 x 242 x 112.4 mm (42.24 x 9.53 x 4.43 in.)

Cut-Out Dimensions (H X W)

1052 x 209mm (41.42 x 8.23 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

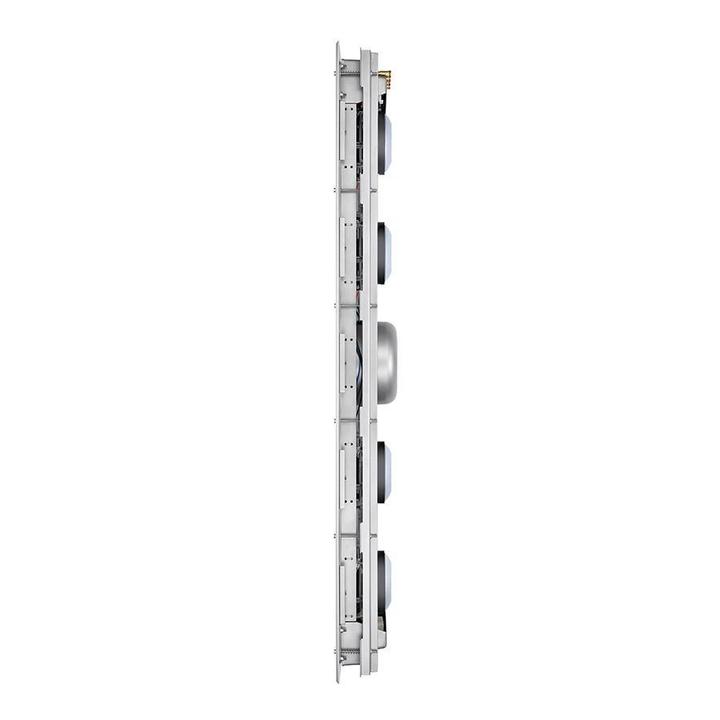

Mounting Depth From Surface

99mm (3.9 in.)

Net Weight

19 kg (41.89 lbs)

Unit Measurement

Piece

Downloads

Manual Individual Information Spec. Sheet Ci Brochure Ci Series Spec. Sheet Ci Series Minimum Cabinet Volume Chart Cutout Template Product Drawing Ci Series Pamphlet Ci Accessory Guide Product Group Spec. Sheet

Remarks

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra2 are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
