10 inches bass driver active subwoofer

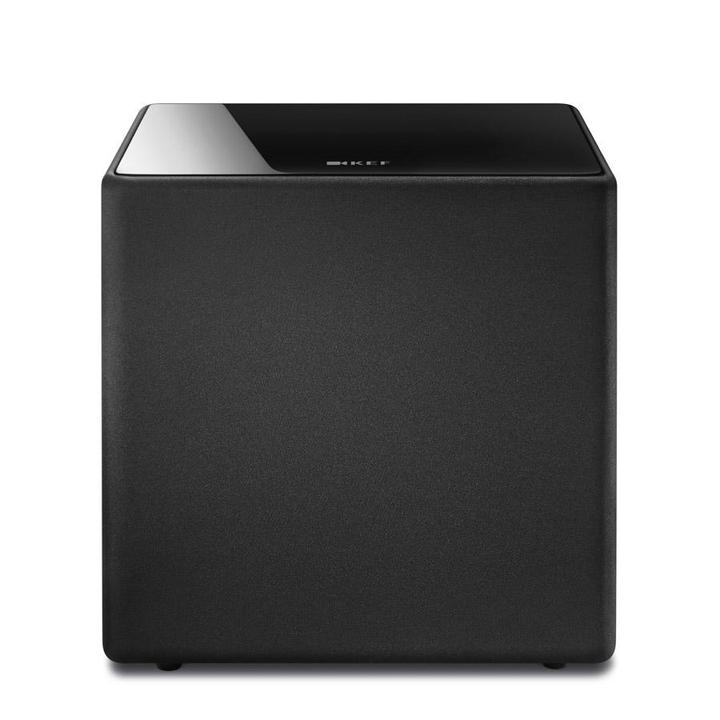

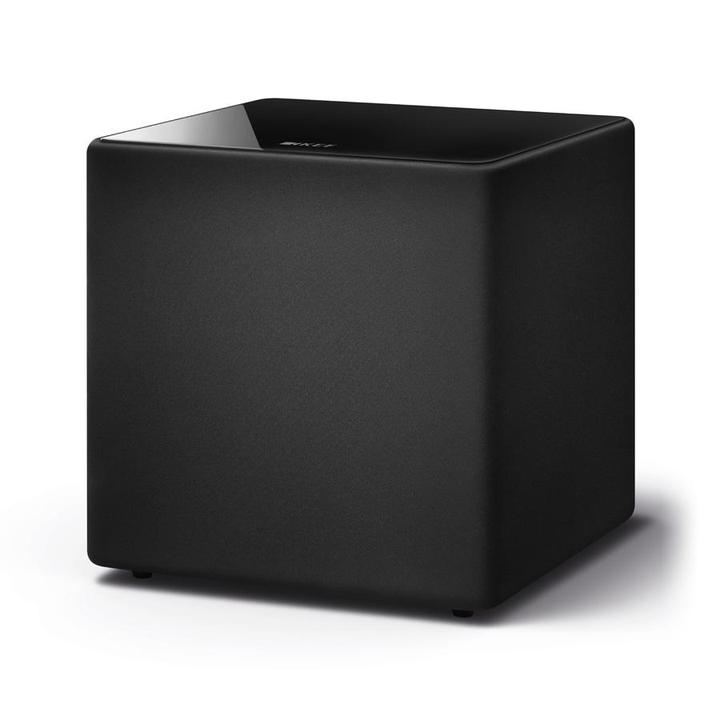

The mid-sized Kube 10b has a sealed cabinet, 10 inches bass driver and 300 Watts to produce serious extension and control. The latest addition to KEF’s powerful range of subwoofers opens up sound’s hidden depths thanks to 300 Watts of Class D power integrated with a 10 inches driver and iBX dynamic bass extension technology.
Hear new dimensions in sound with Kube subwoofers
The Kube 10b effortlessly unleashes explosive power. iBX technology extends the bass depth dynamically and KEF’s unique ability to design, build and integrate the driver in-house takes optimisation to a whole new level. Delivering immersive music and home theatre sound that takes you to the heart of the performance.
Immersiveness
Go deep or go home. KEF’s design and engineering team worked in chorus to develop iBX. This Intelligent Bass Extension algorithm creates an extended depth that unlocks the full potential of the custom driver. Giving you unparalleled precision and ultimate synchronicity between amplifier, driver and sealed cabinet.
Easy configuration
Kube subwoofers offer unmatched set up flexibility. A range of LFE, line and speaker-level inputs, phase selection and DSP controlled EQ settings help you get the best from a Kube. Put it in a convenient place, match it to any main speaker or type of music system and start exploring new depths in the sound.
Integration
KEF is quite possibly the only high-end manufacturer that designs, engineers and assembles the driver, cabinet and circuitry in-house. This level of integration means we are commited to pure sound and the Kube stays true to that ideal. The result is a driver and amplifier that are perfectly in tune.
The Details
SPECIFICATIONS
Weight
17.4kg
Dimensions
(with Rear panel and feet / H x W x D)
370 x 353 x 370mm (14.6 x 13.9 x 14.6in.)
370 x 353 x 370mm (14.6 x 13.9 x 14.6in.)
Design
Powered Subwoofer (sealed)
Power Requirements
100V – 120V / 220V – 240V ~ 50 / 60Hz
Unit Measurement
Piece
Variable Low Pass Filter
40Hz – 140Hz & LFE
Frequency Response
24 to 140Hz (±3dB)
Maximum Output
111dB
Recommended Amplifier Power
300 Watts RMS
Amplifier Type
Built-in Class-D
Drive Units
1 x 250mm (10in.)
Inputs
RCA phono sockets Speaker level inputs
Analogue Input
RCA phono sockets Speaker level inputs
Document Download
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.. * Measurement per unit
