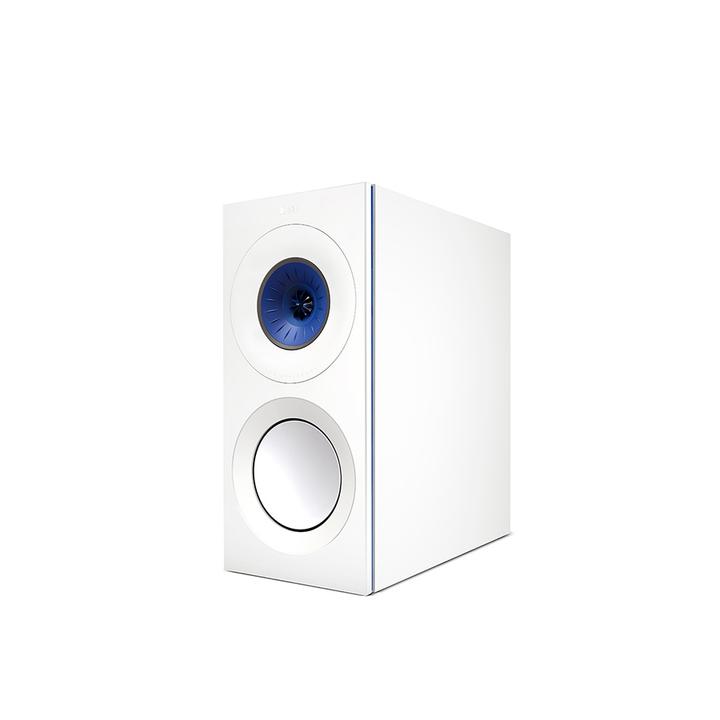

Reference 1 pairs KEF’s latest 125mm (5 inch) MF/HF Uni-Q driver array with the sensational new 165mm (6.5 inch) alloy cone bass driver to create a compellingly realistic, large scale sound stage. Uni-Q’s inherently wide, even dispersion also makes it the perfect rear channel speaker in a serious home theatre system.

The Details

SPECIFICATIONS

Cabinet Finish

Silver satin walnut, Copper black aluminium, Blue ice white, Deep piano black [while stock last], Satin American walnut [while stock last], Luxury gloss rosewood [while stock last]

Weight

18.2kg (40.1lbs)

H X W X D With Grille And Terminal

440 x 205 x 430 mm (17.3 x 8.1 x 16.9 in. )

Design

Three-way bass reflex

Unit Measurement

Pair

Frequency Range

Typical in room bass response: 30Hz (-6dB)
Free Field – Short port: 40Hz – 45kHz (-6dB)
Free Field – Long port: 37Hz – 45kHz (-6dB)

Typical In-Room Bass Response

26Hz (-6dB)

Frequency Response

45Hz- 35kHz (±3dB)

Harmonic Distortion

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz

Maximum Output

111 dB (peak sound pressure level at 1m with pink noise)

Amplifier Class

50-200W

Sensitivity

85dB (2.83V/1m)

Nominal Impedance

8Ohms (min.3.2Ohms)

Drive Units

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units
LF: 1 x165mm (6.5in.) aluminium

Crossover Frequencies

350Hz, 2.8kHz

Downloads

THE REFERENCE Manual THE REFERENCE 8b Manual THE REFERENCE Information Sheet THE REFERENCE White Paper THE REFERENCE Brochure

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
