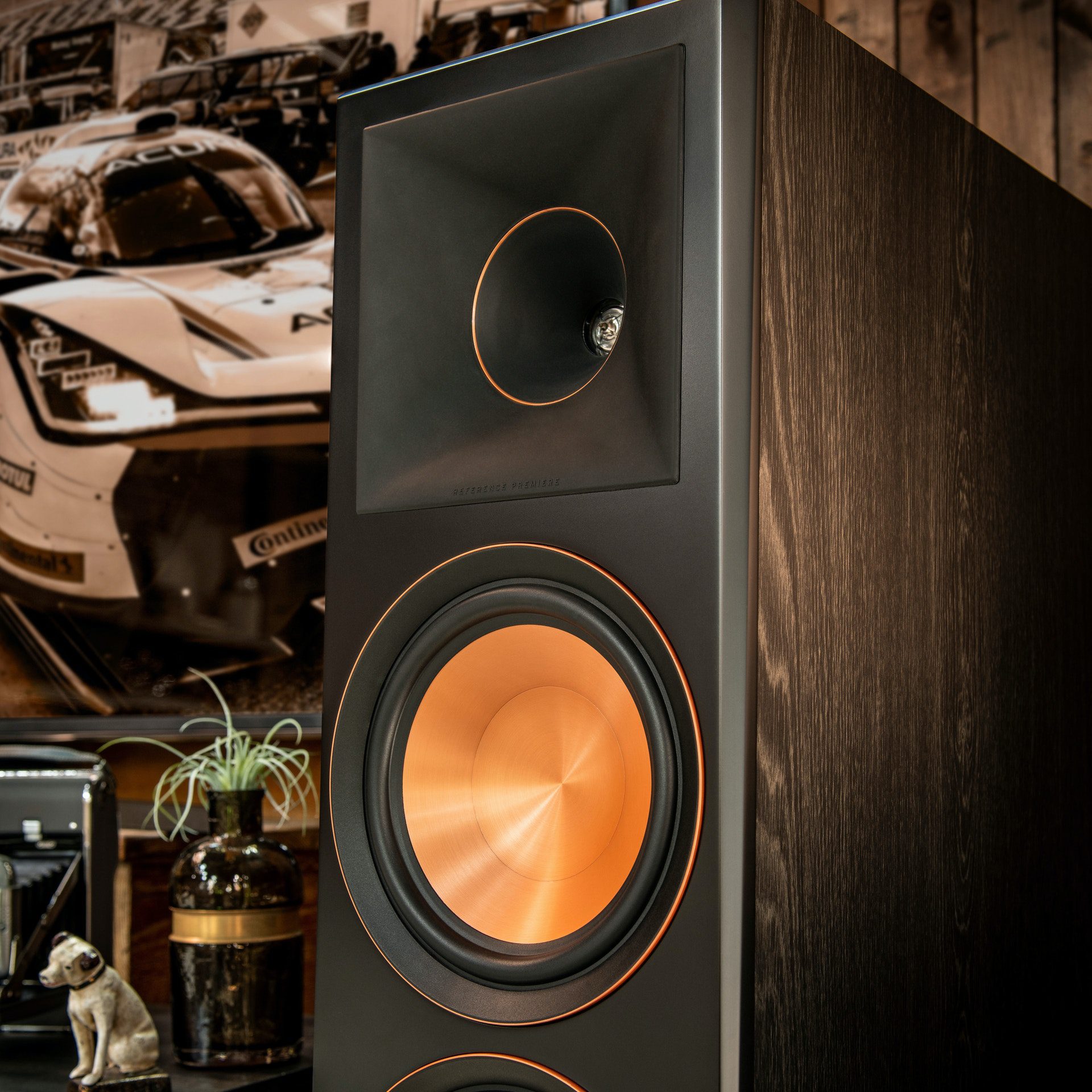

90° x 90° SILICON COMPOSITE HYBRID TRACTRIX® HORN
Horn loading maximizes efficiently and increases detail while focusing high
frequencies towards the listening area. Proprietary Tractrix® geometry provides the
most efficient transfer of high frequency waves into the listening area. The phase
plug and compressed molded silicon face ensure smooth frequency response. When
combined, the cleanest, most natural sound possible is created.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS tweeters are a hallmark of previous Reference lines, making it a
core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The new vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
SPUN COPPER CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series, Cerametallic™ woofers are
exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
When paired with the Tractrix horn-loaded LTS tweeter, it provides the highest
speaker efficiency in its class.

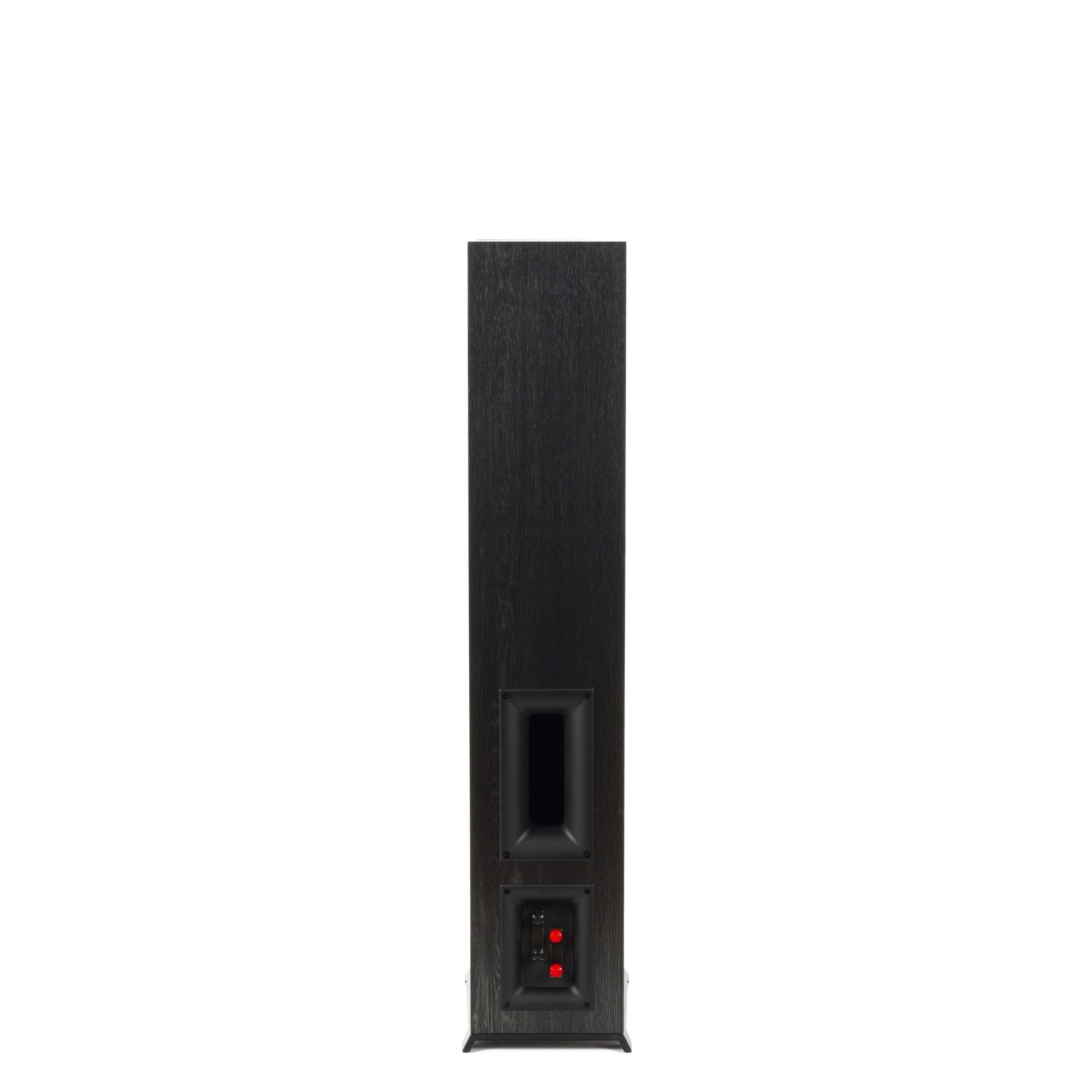

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most
efficient, fastest air transfer from the cabinet, which reduces port noise for punchier
low frequencies. Klipsch Tractrix ports have custom designed inner flares that help
reduce air turbulence entering the port. Less turbulent air helps reduce port noise
for cleaner, more powerful bass.
BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high
and low frequency current into separate speaker cables, reducing intermodulation
distortion, for clearer midrange. Bi-amping allows for customization using outboard
crossovers when using separate amplifiers.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl, walnut vinyl and piano gloss. Ebony and walnut models
boast satin painted baffles with a scratch resistant finish, while the premium piano
gloss cabinet is hand-sanded for a clear, mirror-like finish. The mirror-life piano gloss
finish is seamless due to the meticulous hand sanded and hand polished process.
CAST ALUMINUM FEET
Provides a more modern look with less resonance than MDF or ABS plastic. It is
mechanically designed to minimize surface area in contact with floor, decoupling the
speaker for faster, tighter low frequencies and more detail.

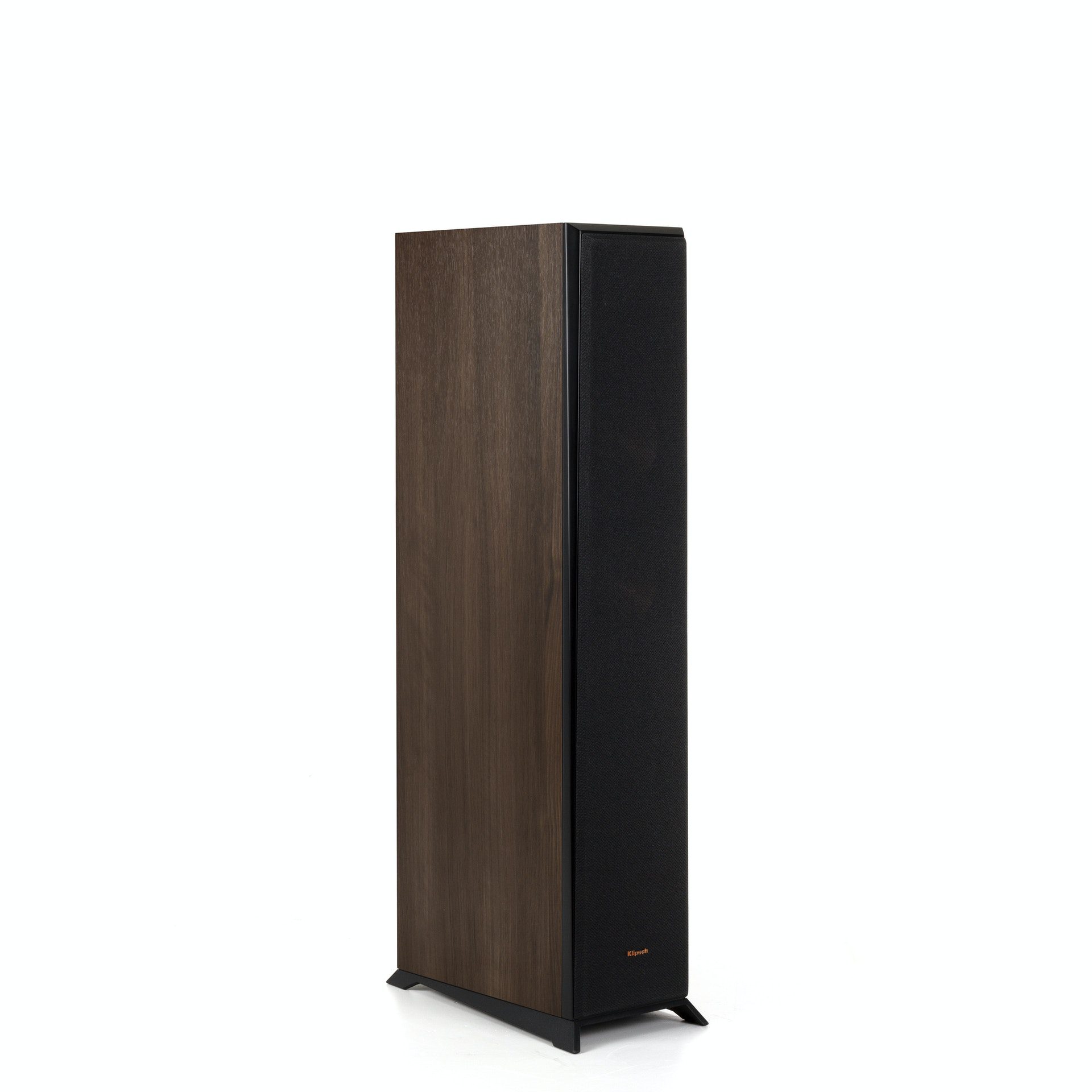

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to
discrete performance piece.
Copper anodized trim rings, cast aluminum feet, satin painted baffles and a
laser etched logo treatment give the Reference Premiere II series a modern,
FREQUENCY RESPONSE 35-25kHz +/- 3dB
SENSITIVITY 96dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 100W / 400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1800Hz
HIGH FREQUENCY DRIVER 1” Titanium LTS Vented Tweeter with Hybrid
Cross-Section Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25” Cerametallic Cone Woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Dual binding posts / bi-wire / bi-amp
HEIGHT 36.12” (91.7 cm)
WIDTH 8.21” (20.8 cm)
DEPTH 14.38” (36.5 cm)
WEIGHT 37 lb (16.8 kg)
FINISH Ebony, Walnut, Piano Black
BUILT FROM 2018
