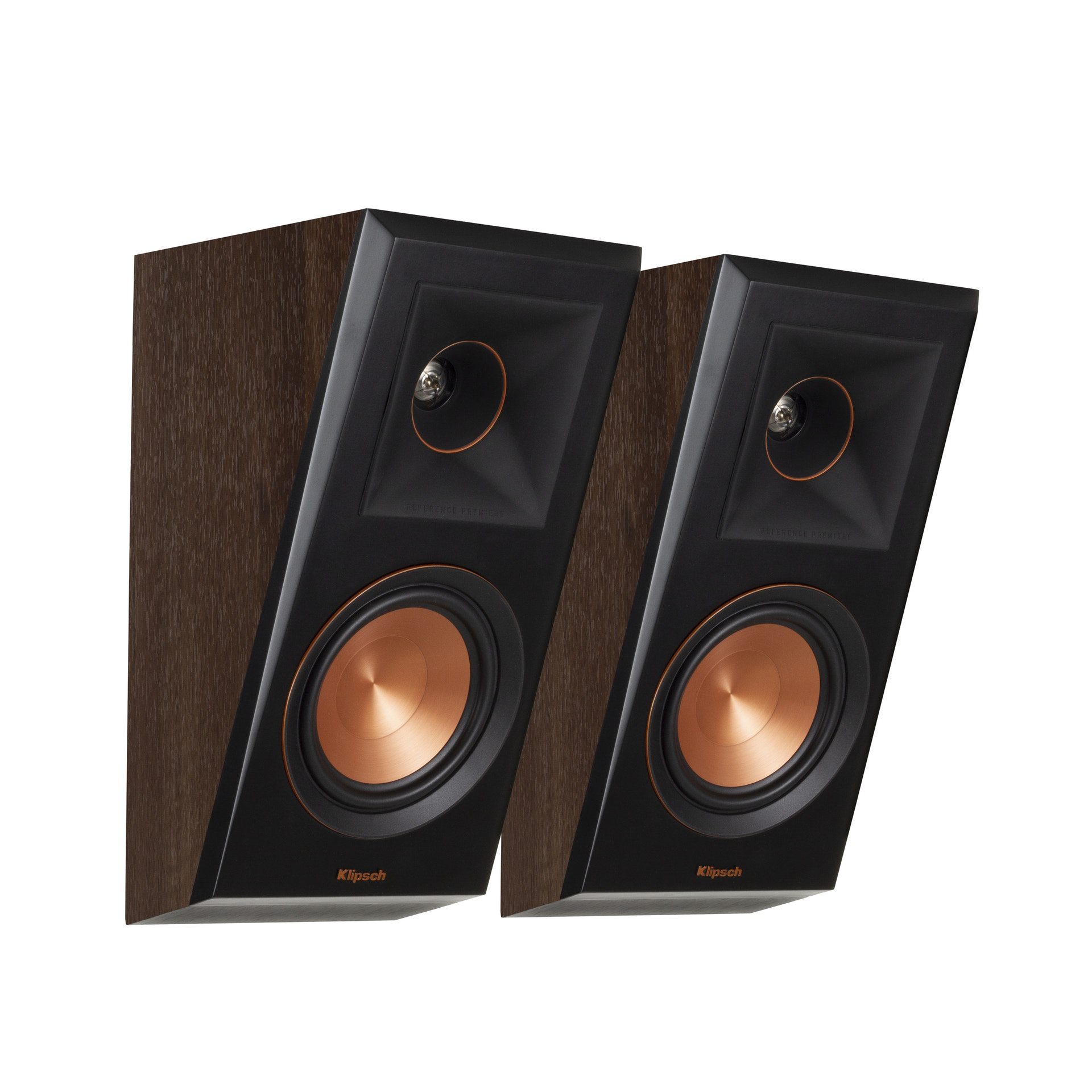

THE MOST VERSATILE SURROUND SPEAKER AVAILABLE
The RP-500SA can be used as an up-firing immersive speaker for Dolby Atmos
Technology, a height speaker or a rear surround model all with the flip of a switch.
Immersive sound comes alive from all directions, including overhead, with these
Dolby Atmos® enabled speakers. Add to any monitor or tower speaker or use as
surround speakers for a hemisphere of rich, detailed sound.
DOLBY ATMOS CERTIFIED ELEVATION SPEAKER
Tested and approved by Dolby labs to faithfully reproduce Dolby Atmos Elevation
effects with power, accuracy, and detail – for a cinematic listening experience unlike
The RP-500SA features a switchable crossover that changes between Atmos and
Surround speaker modes, for optimized performance as a Dolby Atmos Elevation
speaker or a wall mounted side or rear surround.
90° x 90° SILICON COMPOSITE HYBRID TRACTRIX® HORN
Horn loading maximizes efficiently and increases detail while focusing high
frequencies towards the listening area. Proprietary Tractrix® geometry provides the
most efficient transfer of high frequency waves into the listening area. The phase
plug and compressed molded silicon face ensure smooth frequency response. When
combined, the cleanest, most natural sound possible is created.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS tweeters are a hallmark of previous Reference lines, making it a
core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The new vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
SPUN COPPER CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series, Cerametallic™ woofers are
exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
When paired with the Tractrix horn-loaded LTS tweeter, it provides the highest
speaker efficiency in its class.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl, walnut vinyl and piano gloss. Ebony and walnut models
boast satin painted baffles with a scratch resistant finish, while the premium piano
gloss cabinet is hand-sanded for a clear, mirror-like finish. The mirror-life piano gloss
finish is seamless due to the meticulous hand sanded and hand polished process.
STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to
discrete performance piece.
FREQUENCY RESPONSE Conforms to Dolby Atmos Specifications
SENSITIVITY Conforms to Dolby Atmos Specifications
POWER HANDLING (CONT/PEAK) 75W / 300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY Conforms to Dolby Atmos Specifications
HIGH FREQUENCY DRIVER 1” Titanium LTS Vented Tweeter with Hybrid
Cross-Section Tractrix® Horn
LOW FREQUENCY DRIVER 5.25” Cerametallic Cone Woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Sealed
INPUTS Single Binding Posts
HEIGHT 7.39” (18.8 cm)
WIDTH 6.81” (17.3 cm)
DEPTH 11.16” (28.4 cm)
WEIGHT 8 lb (3.6 kg)
FINISH Ebony, Walnut, Piano Black
BUILT FROM 2018
