SOUND THAT PACKS A PUNCH
A truly powerful, small form-factor music monster packed with Klipsch
acoustics with integrated power and Bluetooth® wireless technology.
DESIGNED FOR SIMPLE SET UP WITH YOUR TURNTABLE, TV,
COMPUTER OR WIRELESS DEVICE
With an integrated phono pre-amp, Bluetooth® wireless technology, digital
optical, analog RCA and USB inputs, your R-51PM is the best performing,
most versatile monitor on the planet.
DYNAMIC BASS EQ
As the human ear perceives frequencies differently with variations in output,
the R-51PM will dynamically match the ear’s ability to hear lower frequencies.
Typically, only available with audio/video receivers, dynamic volume is a first
for Klipsch powered monitors. What you get is powerful bass whether the
listening volume is low, cranked up or somewhere in between.
HIGH EFFICIENCY AMPLIFICATION
Forget the expense, clutter and hassle of an external A/V receiver. The
R-51PM monitors incorporate individual ultra-low noise amplifiers custom
designed to maximize system performance and eliminate the need for
FULL FEATURED IR REMOTE
Allows easy access to system features like dedicated source selection, track
controls, and play/pause.
Add a subwoofer to enhance for even more bass.

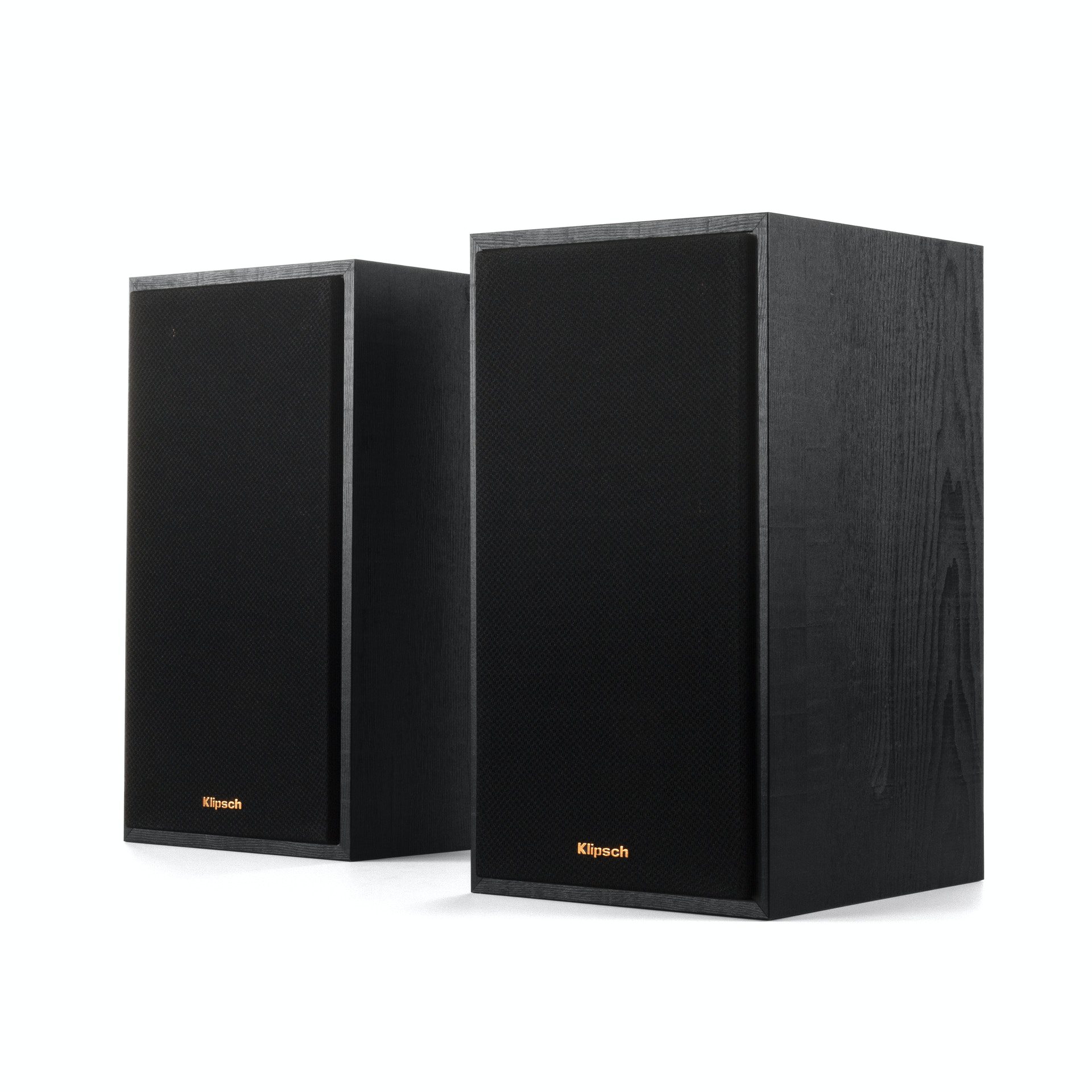

SYSTEM DESCRIPTION Powered Monitor (pair)
FREQUENCY RESPONSE 68Hz – 21kHz
DYNAMIC BASS EXTENSION 49Hz @ 35% Volume
MAX OUTPUT 107.3 dB
TOTAL SYSTEM POWER 120W Total System Power (140W Peak)
60W per channel cont. @ <%1 THD
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum diaphragm compression driver mated
to 90° x 90° square Tractrix® horn
LOW FREQUENCY DRIVER 5.25” (13.3cm) copper spun magnetically shielded IMG woofer
CROSSOVER FREQUENCY 1663 Hz (Passive)
ENCLOSURE MATERIAL MDF

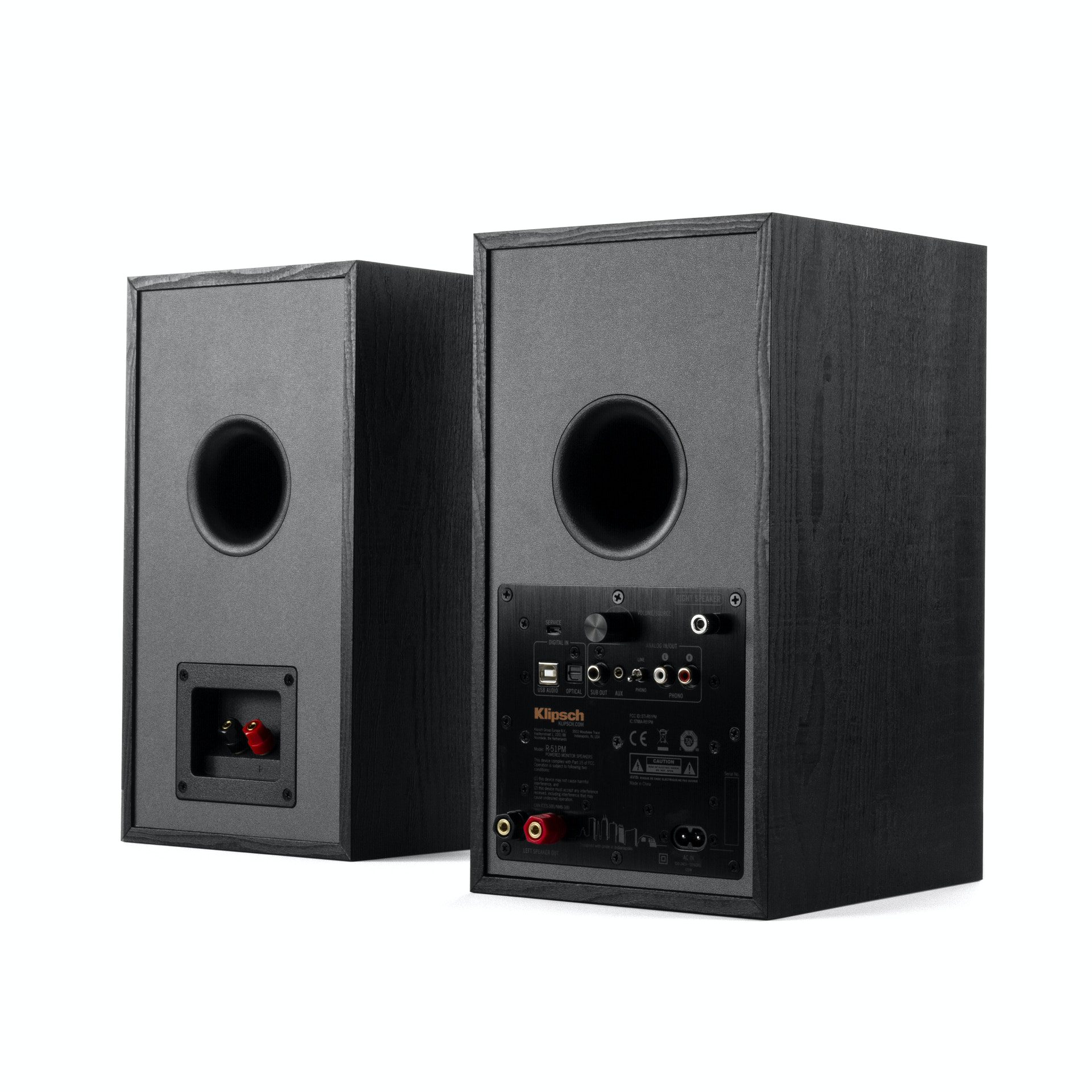

ENCLOSURE TYPE Bass-reflex via rear-firing port
• Bluetooth® wireless technology
• Phono/Line analog (with switch and ground screw terminal)
• 3.5mm analog mini jack
• USB digital
• Optical digital
OUTPUTS Single RCA line level output for connection to subwoofer
HEIGHT, WIDTH, DEPTH 13.3” (33.8 cm), 7” (17.78 cm), 9.12” (23.16 cm)
WEIGHT 10.6 lbs (4.8 kg)
VOLTAGE 100V-240V 50/60Hz internal power supply with region specific

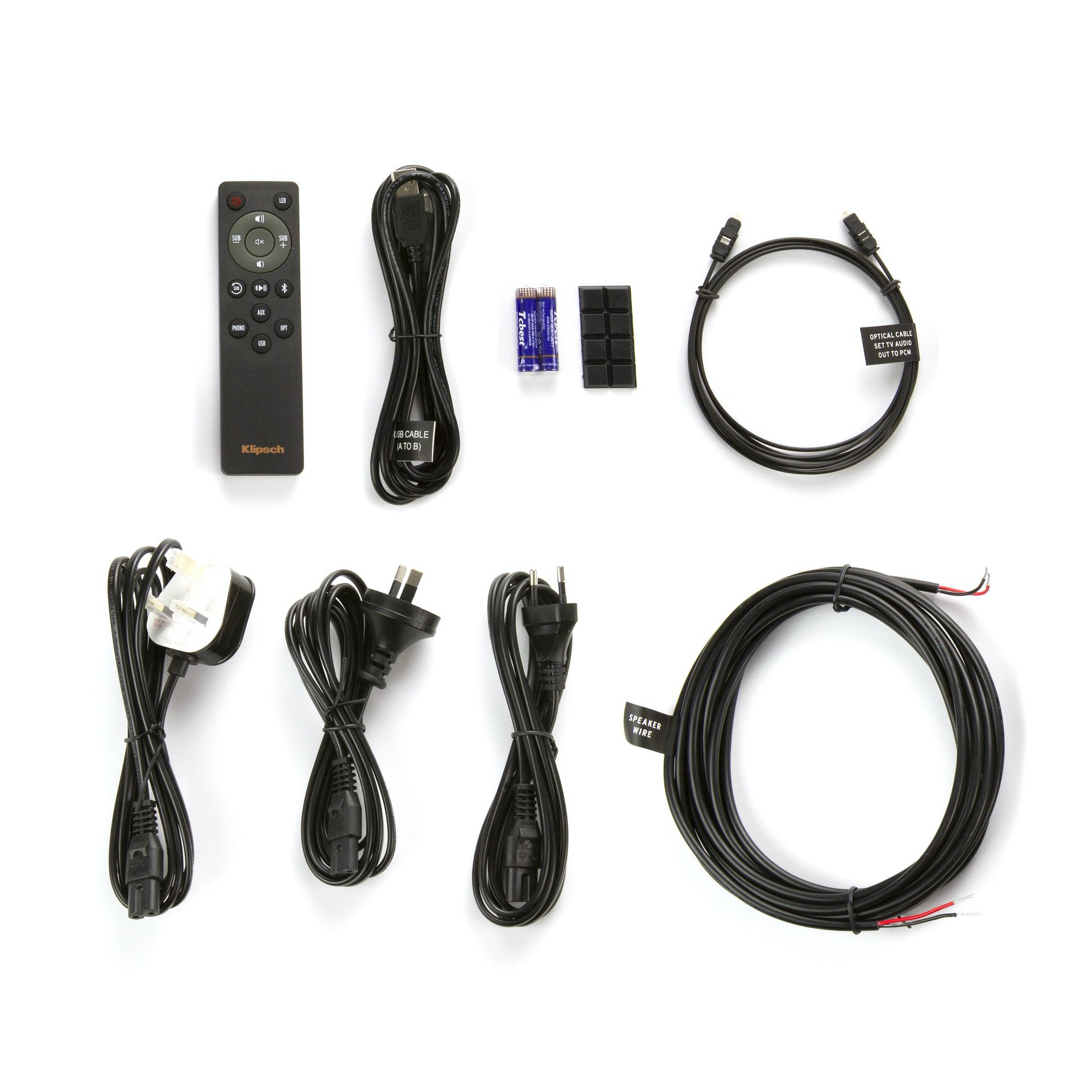

• Remote control (with 2 x AAA batteries)
• 4M speaker wire with soldered tips
• 2M power cord (region specific)
• 2M USB Type A to Type B cable
• Rubber feet
BUILT FROM 2018
