Aprašymas

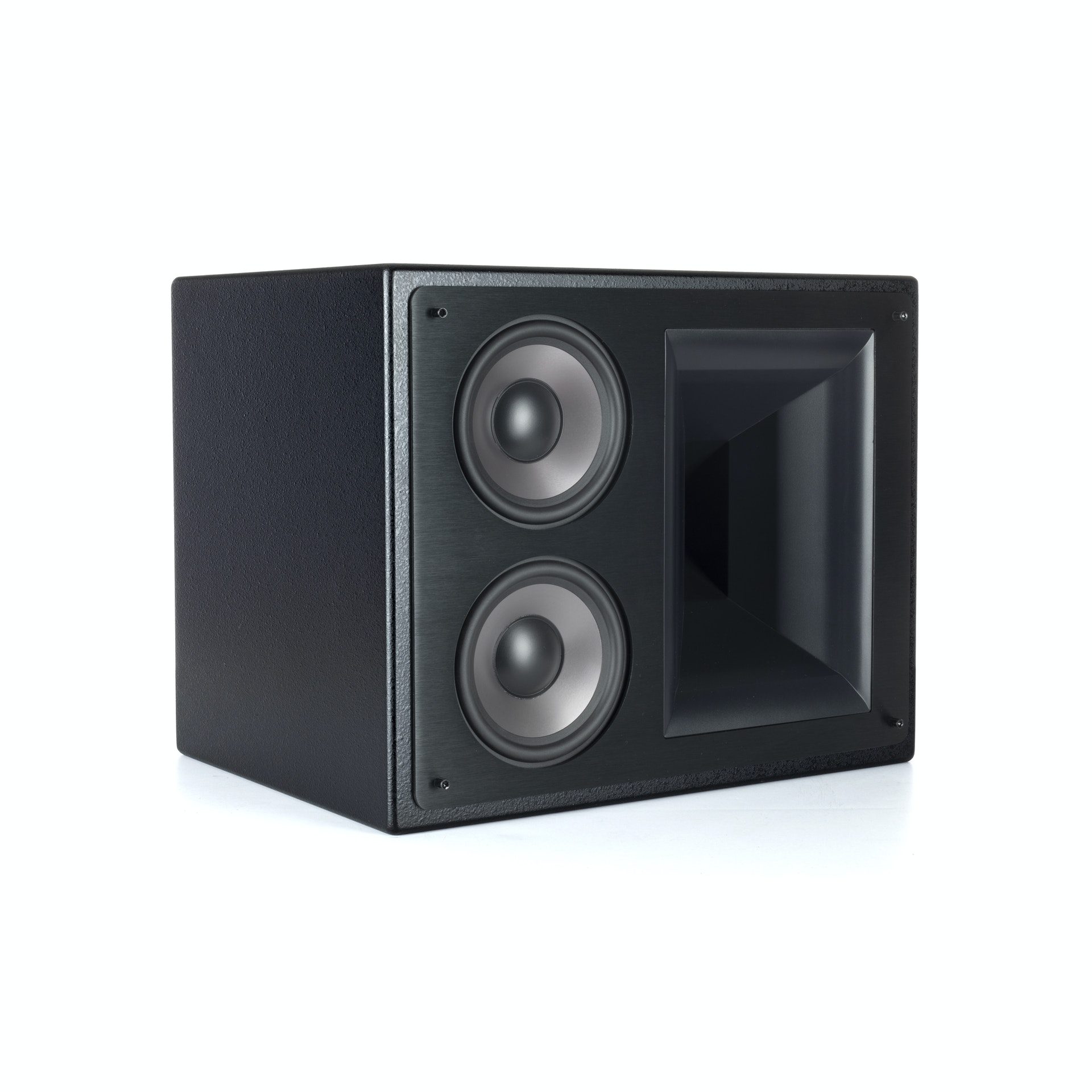

THE THX-6000-LCR IS A THX® ULTRA2 CERTIFIED LOUDSPEAKER.
It was designed primarily for front left-, center-, and right-channel
reproduction in large, ultimate-performance home theaters. It can
also be used for surround channels, however, and is equally suitable
for combination home-theater/music systems demanding superb
sound and high output capability. Its enclosure is front-ported to
facilitate installation in custom cabinetry and has back – panel 1/4” – 20
threaded inserts compatible with the Klipsch SB-9 mounting bracket
or any high quality wall/ceiling speaker mount rated for 40lbs or
higher load.
THE THX-6000-LCR DESIGN EMERGES DIRECTLY FROM KLIPSCH’S
EXPERIENCE AS A LEADING SUPPLIER OF CINEMA SOUND SYSTEMS.

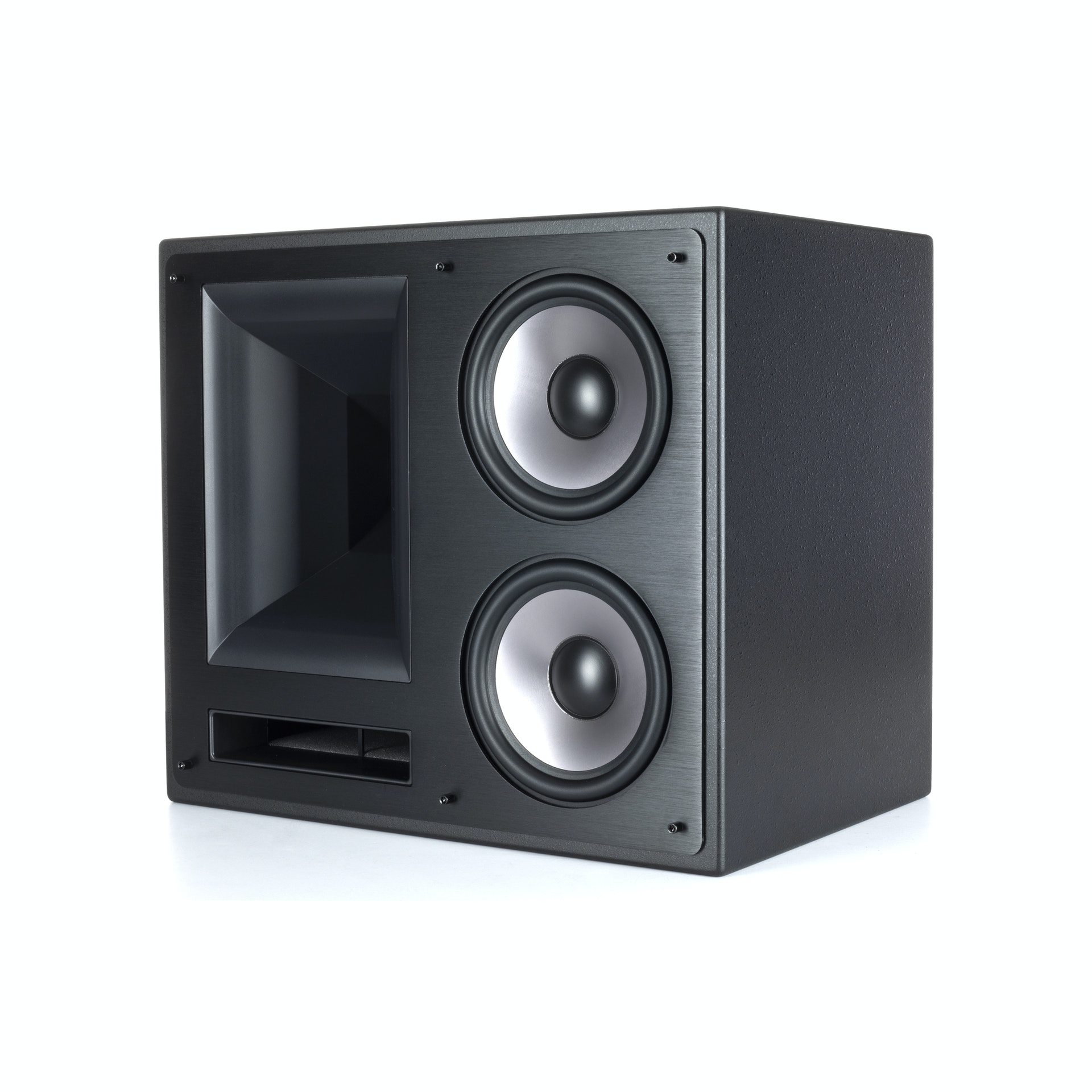

A large, rectangular 90° x 60° Tractrix® Horn raises the efficiency
of the speaker’s 1-inch titanium-dome compression driver tweeter
and optimizes its radiation pattern. The horn enables the speaker
to meet THX Ultra2 directivity specifications without the lobing and
comb filtering effects that afflict conventional multiple-tweeter
solutions. And its dual 6.5” woofers have large, magnetically shielded
motor structures that drive rigid, low-mass Cerametallic™ anodizedaluminum vcones for high output and low distortion.
CONSTRUCTION IS TO THE HIGHEST STANDARD.
With a professional grade rabbet and dado locked panel cabinet and
premium components throughout to ensure sonic purity, consistency,
and reliability.
SPECIFICATIONS
| Frequency Response | 48Hz-20kHz ± 3dB |
| Sensitivity | 97dB @ 2.83 volts / 1 meter |
| Nominal Impedance | 8 ohms compatible |
| High Frequency Crossover | 1400Hz |
| Power Handling | 150 watts maximum continuous (600 watts peak) |
| Enclosure Type | Bass reflex via front-mounted port |
| Enclosure Material | Medium density fiberboard construction (MDF) |
| Tweeter | 1″ (2.5cm) magnetically shielded titanium dome compression driver with 9.6oz ceramic magnet structure |
| High Frequency Horn | 10″ x 6″ rectangular 90°x 60 °Tractrix® Horn |
| Woofer | Two 6.5″ (16.5cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers |

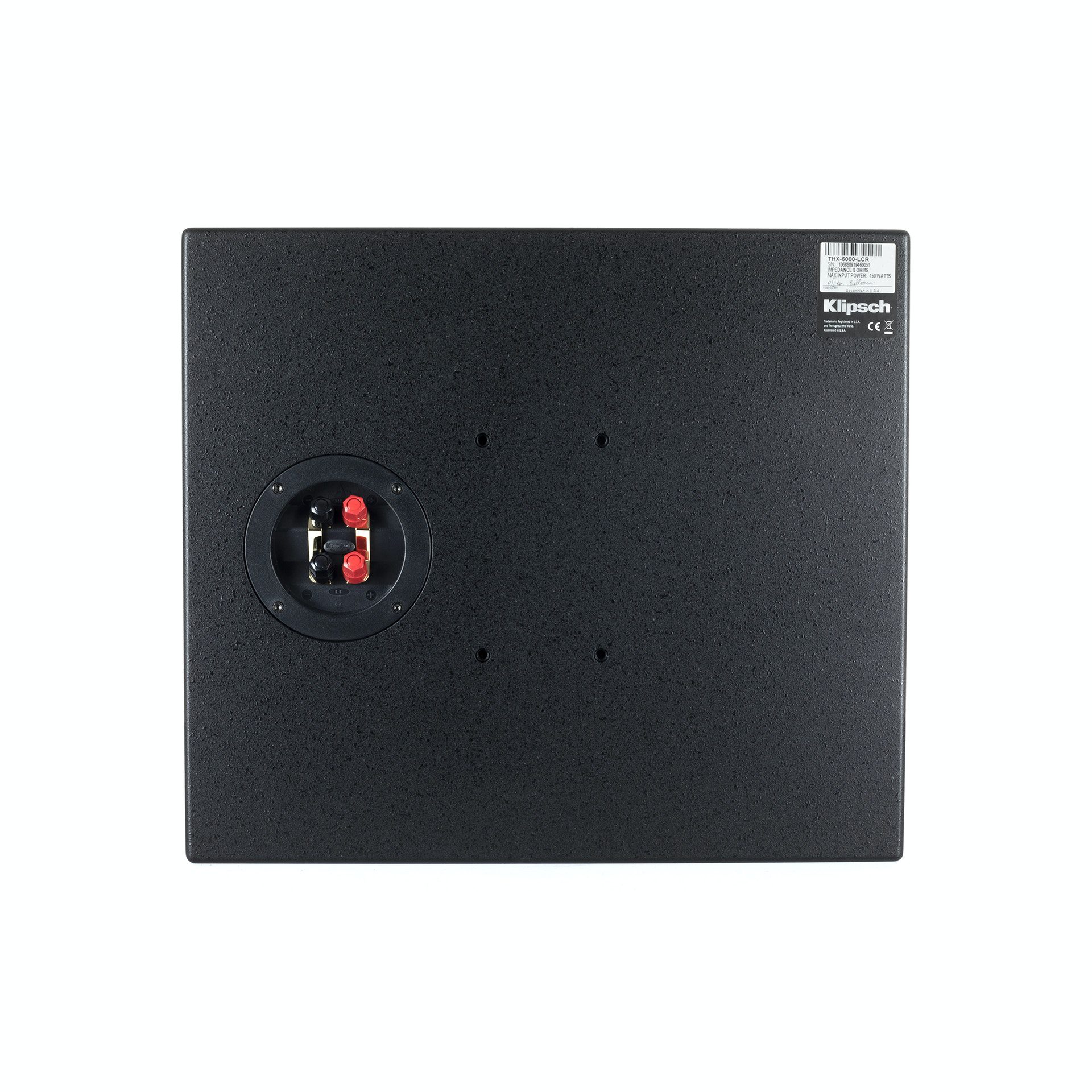

| Inputs | Two sets of binding post speaker terminals (connected via brass strap jumpers) |
| Dimensions | 15″ (38.1cm) H x 17″ (43.2cm) W x 12.5″ (31.8cm) D (w/grille) |
| Weight | 39 lbs. (17.7kg) |
| Finish | Galaxy Black cabinet with Black anodized aluminum fascia |
| Mounting | 4-bolt pattern 1/4″-20 thread |
