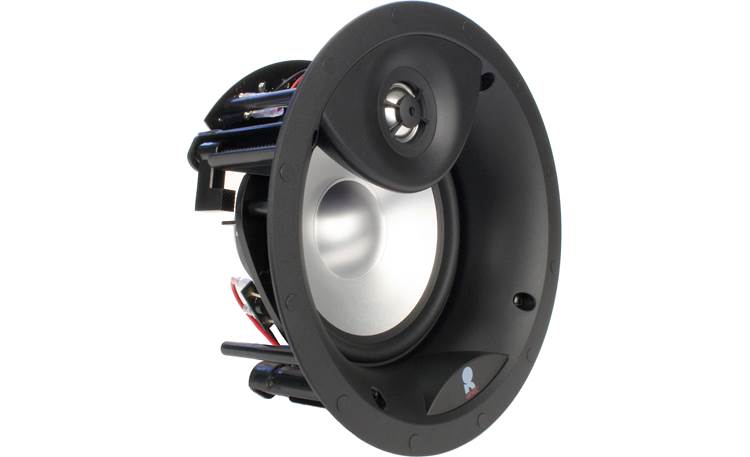

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
General Specifications
| Height | Cutout dimensions (dia.) 8” (20.3 cm) Square grille finished Height 9.1” (23.1 cm) |
|---|---|
| Width | Square grille finished Width 9.1” (23.1 cm) |
| Depth | Mounting Depth 4.8” (120mm) |
| Weight | 3.1 lb (1.4 kg) / Shipping weight 4.6 lb (2.1 kg) |
| High Frequency Driver Components | 1” Aluminum-Dome Tweeter with Waveguide |
| Low Frequency Extension | 6-1/2” Aluminum Cone, Cast-Polymer Frame Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5” – 2.0” (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 100 Watts RMS |
