Aprašymas
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
General Specifications
| Height:Cutout dimensions (dia.) | 8″ (20.3 cm) • Square grille finished Height 9.1″ (23.1 cm) |
|---|---|
| Width | Square grille finished width 9.1″ (23.1 cm) |
| Depth | Mounting depth 4.8″ (12.2 cm) |
| Weight | 1.6 lb (0.8 kg) / Shipping weight 2.4 lb (1.1 kg) |

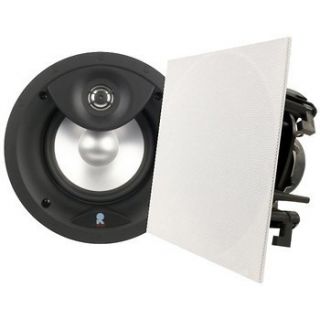

| Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1″ (23.1 cm) |

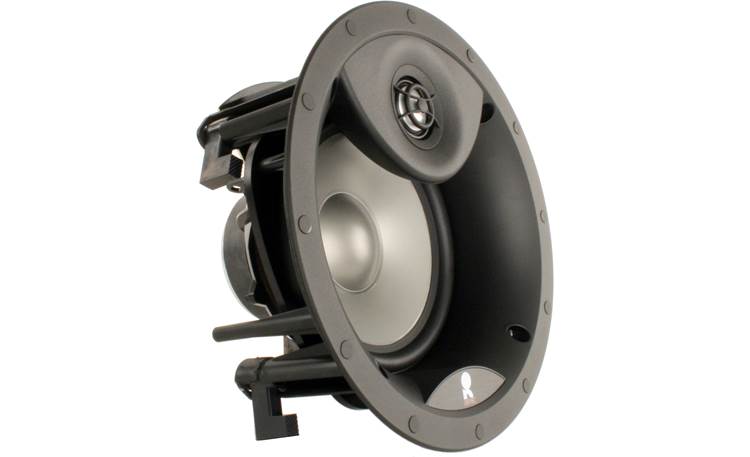

| High-frequency Driver Components | 1″ aluminum dome swiveling tweeter with waveguide |
| Low-frequency Driver Components | 6 ½” Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 120 Watts RMS |
