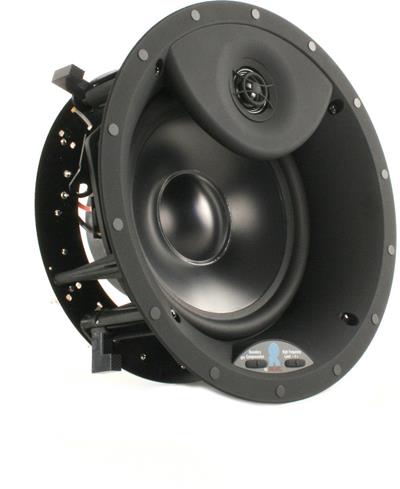

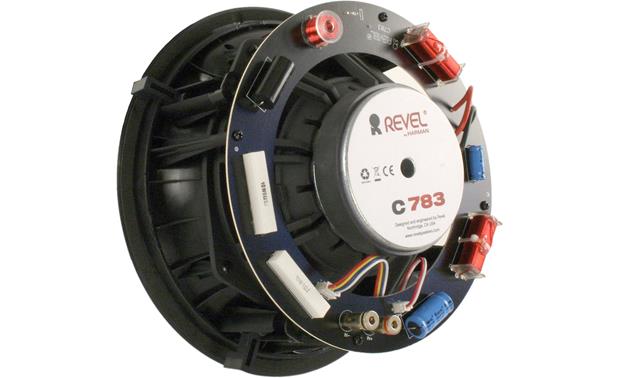

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
General Specifications
| Height | Cutout dimensions (dia.) 9.6″ (24.4 cm) Square grille finished Height 10.7″ (27.2 cm) |
|---|---|
| Width | Square grille finished Width 10.7″ (27.2 cm) |
| Depth | Mounting depth 5.2″ (13.2 cm) |
| Weight | Weight 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg) |
| Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7″ (27.2 cm) |
| High Frequency Driver Components | 1″ aluminum dome swiveling high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
| Low Frequency Driver Components | 8″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 150 Watts RMS |
