The speaker’s two sets of transducers operate in a bi-polar configuration, which maximizes the speaker’s timbre match with that of other Revel Performa3 speakers and further integrates the entire system’s sound into a spacious, enveloping surround-sound environment.
The S206 tweeters feature an integrated acoustic lens waveguide that is based on a breakthrough mathematical approach that accurately matches the tweeters’ dispersion to that of the low-frequency transducers in the crossover region. This gives the loudspeaker very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area.
In fact, this new waveguide actually increases the tweeter’s dispersion at higher frequencies. The S206 enclosure features strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration.
To learn more about the S206 surround-channel loudspeaker, please read the Owner’s Manual located in the downloads section.
|Height||13.5″ (34.3 cm)|
|Width||15.8″ (40 cm)|
|Depth||8.5″ (21.6 cm)|
|Weight||Net Weight 16 lb (7 kg)|
|Crossover Frequencies||1.4 kHz|
|High-frequency Driver Components||1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide|
|Nominal Impedance||8 Ohms|

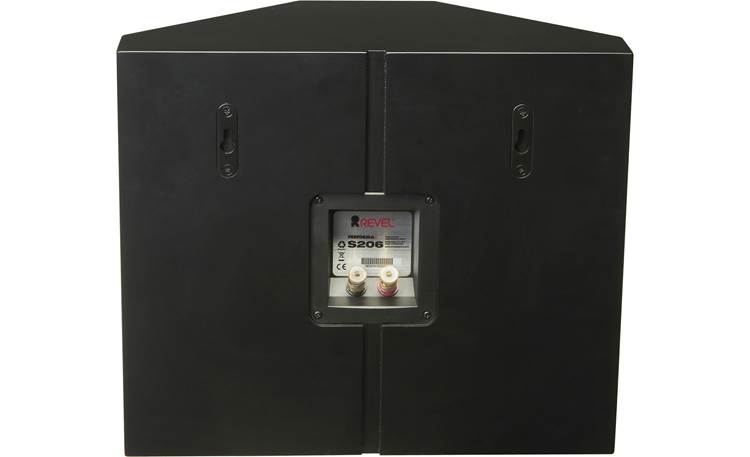

|Input Connections||Binding Posts|
|Low Frequency Extension||10dB@52Hz -6dB@58Hz -3dB@65Hz|
|Low-frequency Driver Components||Dual 6.5” (16.5 cm) Aluminum Cone, Cast-frame Woofers|
|Recommended Amplifier Power||50-150|
