Aprašymas
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Specifikacija:
8” Micro-Ceramic Composite (MCC) Cone, Cast- Aluminum
Frame High-Output Woofer
• 1” aluminum dome swiveling high-output tweeter with
waveguide
• 3-position HF level control
• LF boundary compensation
• Mounting depth: 3.7” (9.4 cm)
• Weight: 7.1 lb (3.2 kg) / Packaged weight: 8 lb (3.9 kg)
• Packaged dimensions (H x W x D): 6.9’’ x 12.6’’ x 15.6’’ (175 x 320 x 395mm)
• Cutout dimensions (H x W): 11.9” x 8.9” (30.3 cm x 22.7 cm)

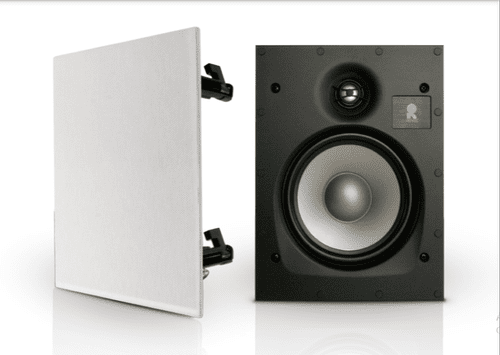

• Includes zero-bezel magnetic grille
• Grille finished dimension (H x W): 12.9” x 9.9” (32.8 cm x 25.2
cm)
• Nominal impedance: 8 ohms
• Recommended amplifier power range: 10- 150 watts
• Sensitivity (2.83V/1m): 89 dB
• Frequency Range -3 dB from 36Hz-28kHz; -10dB from 25-35 kHz
