Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
General Specifications
| Depth | Mounting depth 3.7″ (9.4 cm) |
|---|---|
| Weight | 7.5 lb (3.4 kg) / Shipping weight 9.0 lb (4.1 kg) |
| Crossover Frequencies | Advanced high-order crossover network |

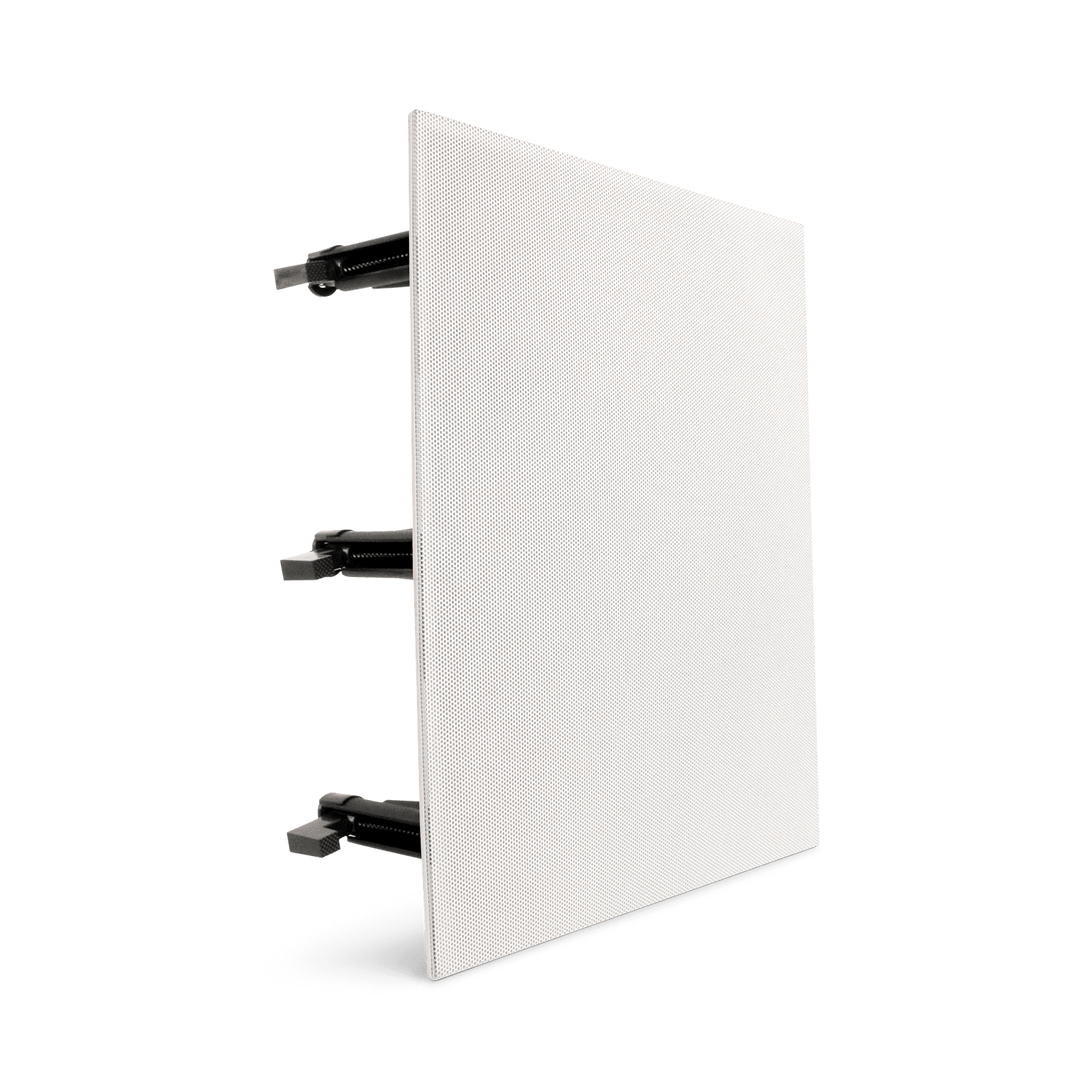

| Features | Cutout dimensions (H x W) 12.1″ x 10.2″ (30.6 cm x 25.9 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 13.0″ x 11.1″ (33.0 cm x 28.2 cm) |

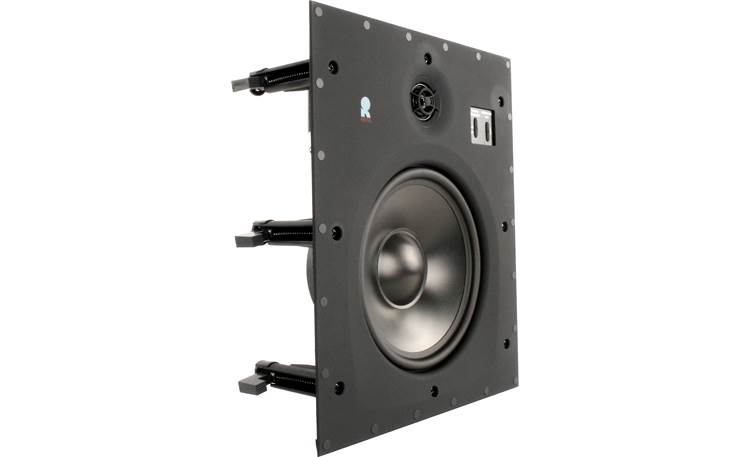

| High Frequency Driver Components | 1″ aluminum dome swiveling high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |

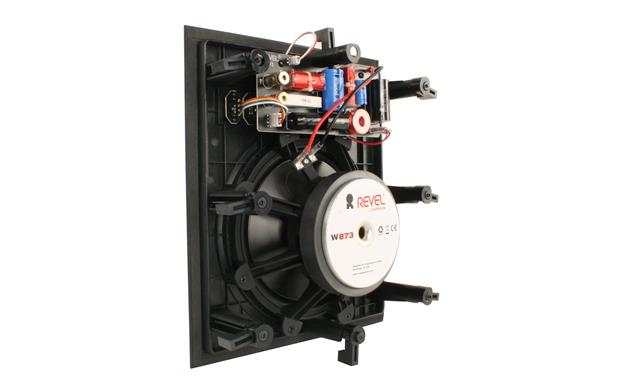

| Low Frequency Driver Components | 7″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 150 Watts RMS |
Audio Specifications
| Depth | Mounting depth 3.7″ (9.4 cm) |
|---|---|
| Weight | 7.5 lb (3.4 kg) / Shipping weight 9.0 lb (4.1 kg) |
| Crossover Frequencies | Advanced high-order crossover network |
| Features | Cutout dimensions (H x W) 12.1″ x 10.2″ (30.6 cm x 25.9 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 13.0″ x 11.1″ (33.0 cm x 28.2 cm) |
| High Frequency Driver Components | 1″ aluminum dome swiveling high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
| Low Frequency Driver Components | 7″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 150 Watts RMS |
