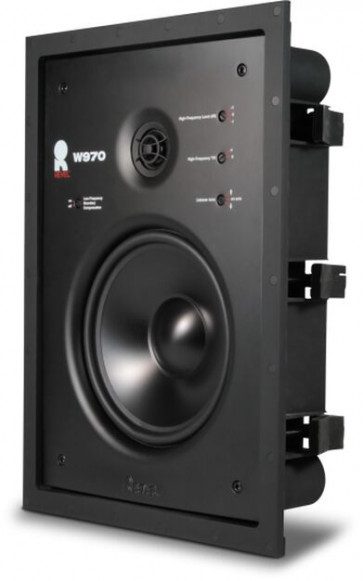

The W970 features Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.

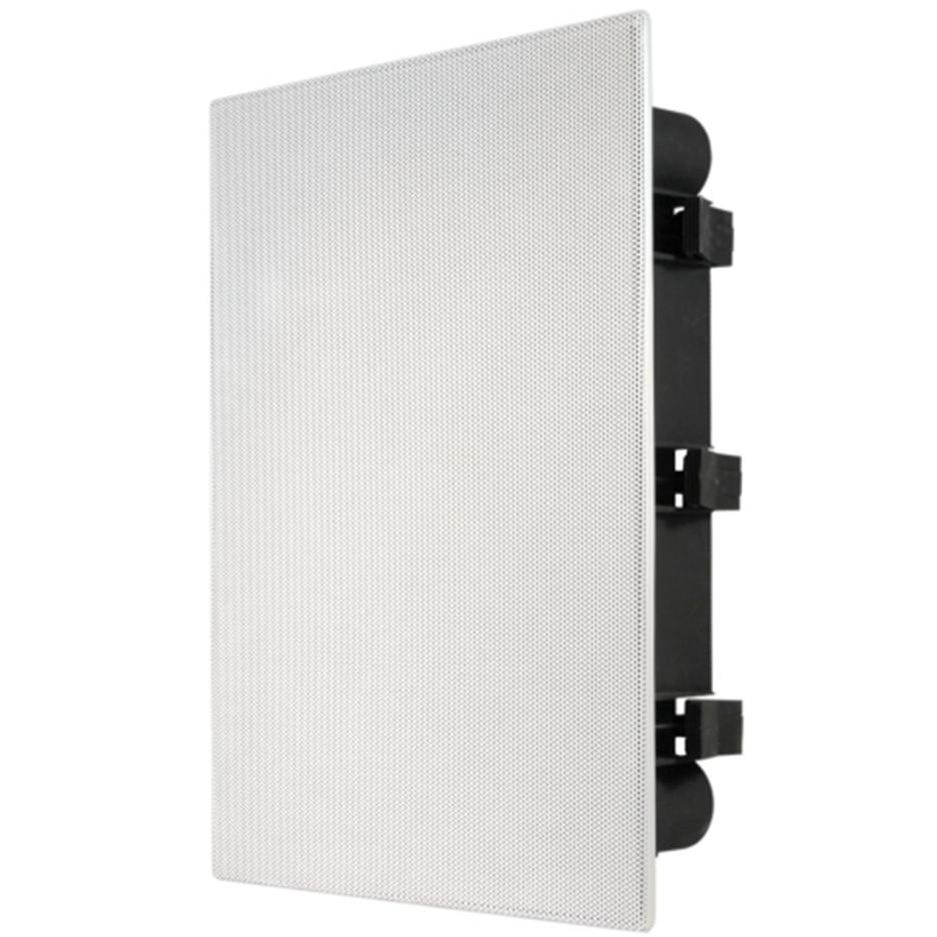

For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting. With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.

Specifikacija:

7” Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum
Frame High-Output Woofer
• 1” aluminum dome high-output tweeter with waveguide
• HF level & tilt controls
• LF boundary compensation, & listener axis
controls

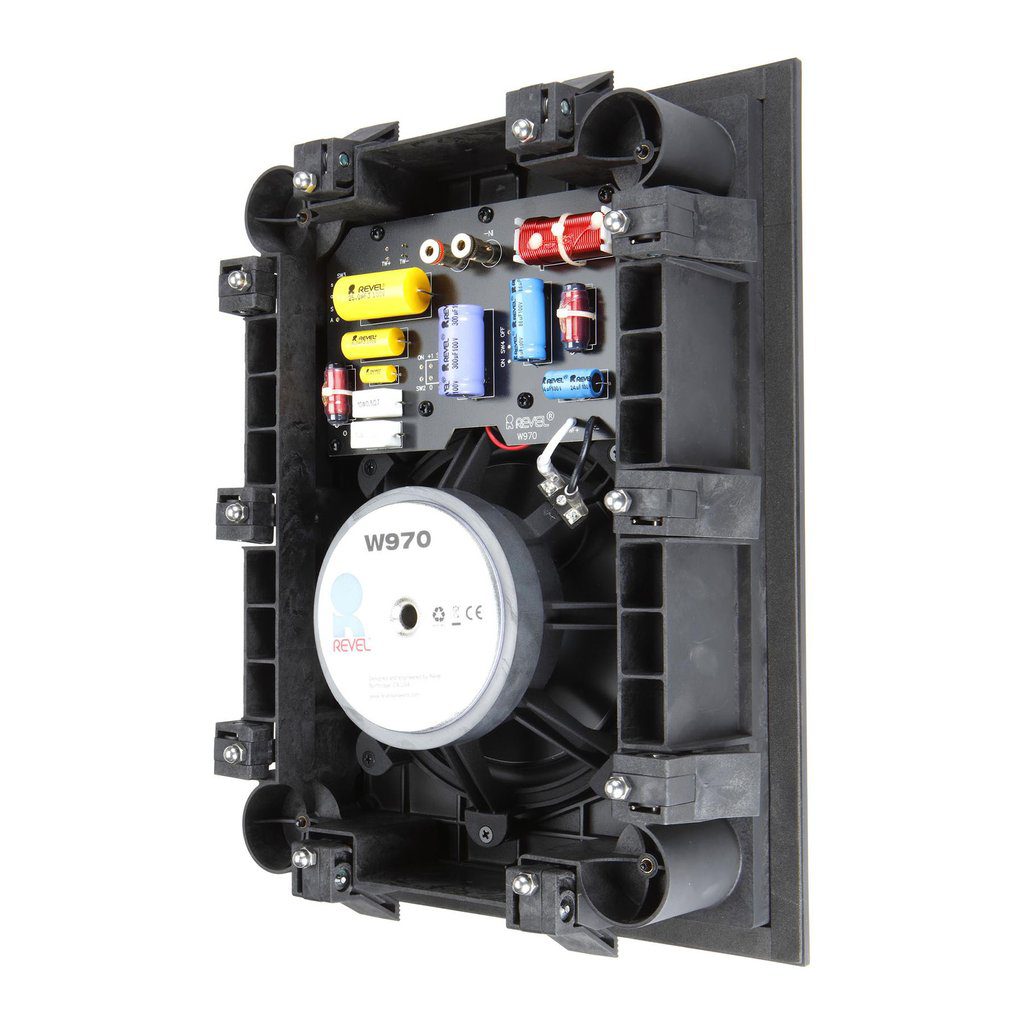

• Advanced high-order crossover network
• Cast aluminum baffle with multi-point spring loaded clamping
mechanism
• Mounting depth: 3.7” (9.4 cm)
• Weight: 12.6 lb (5.7 kg)
• Packaged dimensions (H x W x D): 7.5’’ x 15.9’’ x 19.3’’ (190 x 405 x
490mm)
• Packaged weight: 15 lb (6.8 kg)
• Cutout dimensions (H x W): 14.9” x 10.5” (37.8 cm x 26.7 cm)
• Includes zero-bezel magnetic grille
• Grille finished dimension (H x W): 16.3” x 12.1” (41.4 cm x
30.7 cm)
• Nominal impedance: 8 ohms
• Recommended amplifier power range: 10- 150 watts
• Sensitivity (2.83V/1m): 88 dB
• Frequency Range -3 dB from 40Hz-28kHz; -10dB from 30-
35kHz
