Aprašymas

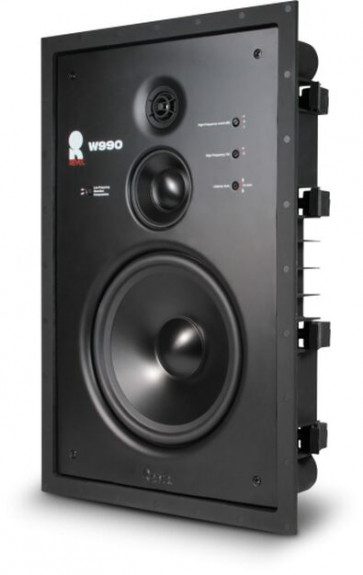

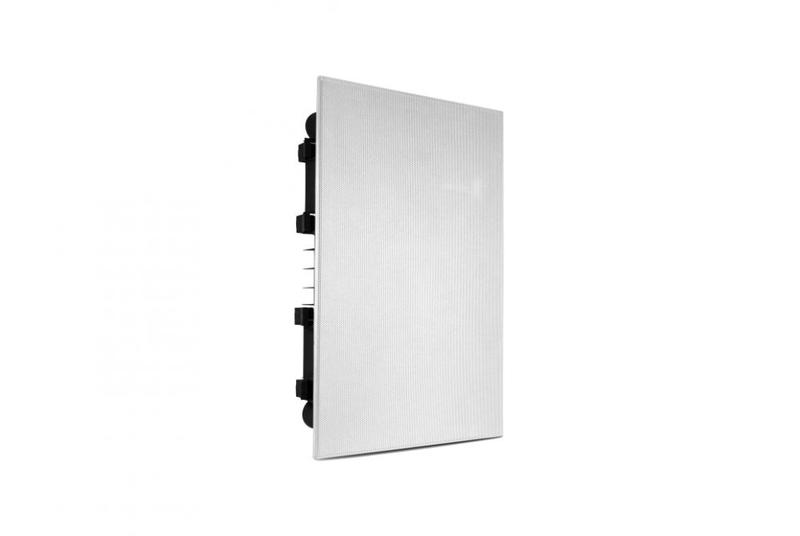

The W990 features Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers. Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types. For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting. With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.
General Specifications
| Depth:Mounting depth | 3.7″ (9.4 cm) |
|---|---|
| Weight | 17.0 lb (7.7 kg) / Shipping weight 19.4 lb (8.8 kg) |
| Crossover Frequencies | Advanced high-order crossover network |
| Features | Cutout dimensions (H x W) 19.1″ x 12.5″ (48.6 cm x 31.8 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 20.6″ x 13.9″ (52.3 cm x 35.3 cm) |
| High-frequency Driver Components | 1″ aluminum dome high-output tweeter with waveguide |
| Low Frequency Extension | High frequency Extension HF level & tilt controls / Low Frequency Extension LF boundary compensation, & listener axis controls |
| Low-frequency Driver Components | 9″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | Cast aluminum baffle with multi-point spring loaded clamping mechanism |
| Recommended Amplifier Power | 10 – 200 Watts RMS |
Audio Specifications
| Depth:Mounting depth | 3.7″ (9.4 cm) |
|---|---|
| Weight | 17.0 lb (7.7 kg) / Shipping weight 19.4 lb (8.8 kg) |
| Crossover Frequencies | Advanced high-order crossover network |
| Features | Cutout dimensions (H x W) 19.1″ x 12.5″ (48.6 cm x 31.8 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 20.6″ x 13.9″ (52.3 cm x 35.3 cm) |
| High-frequency Driver Components | 1″ aluminum dome high-output tweeter with waveguide |
| Low Frequency Extension | High frequency Extension HF level & tilt controls / Low Frequency Extension LF boundary compensation, & listener axis controls |
| Low-frequency Driver Components | 9″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | Cast aluminum baffle with multi-point spring loaded clamping mechanism |
| Recommended Amplifier Power | 10 – 200 Watts RMS |
