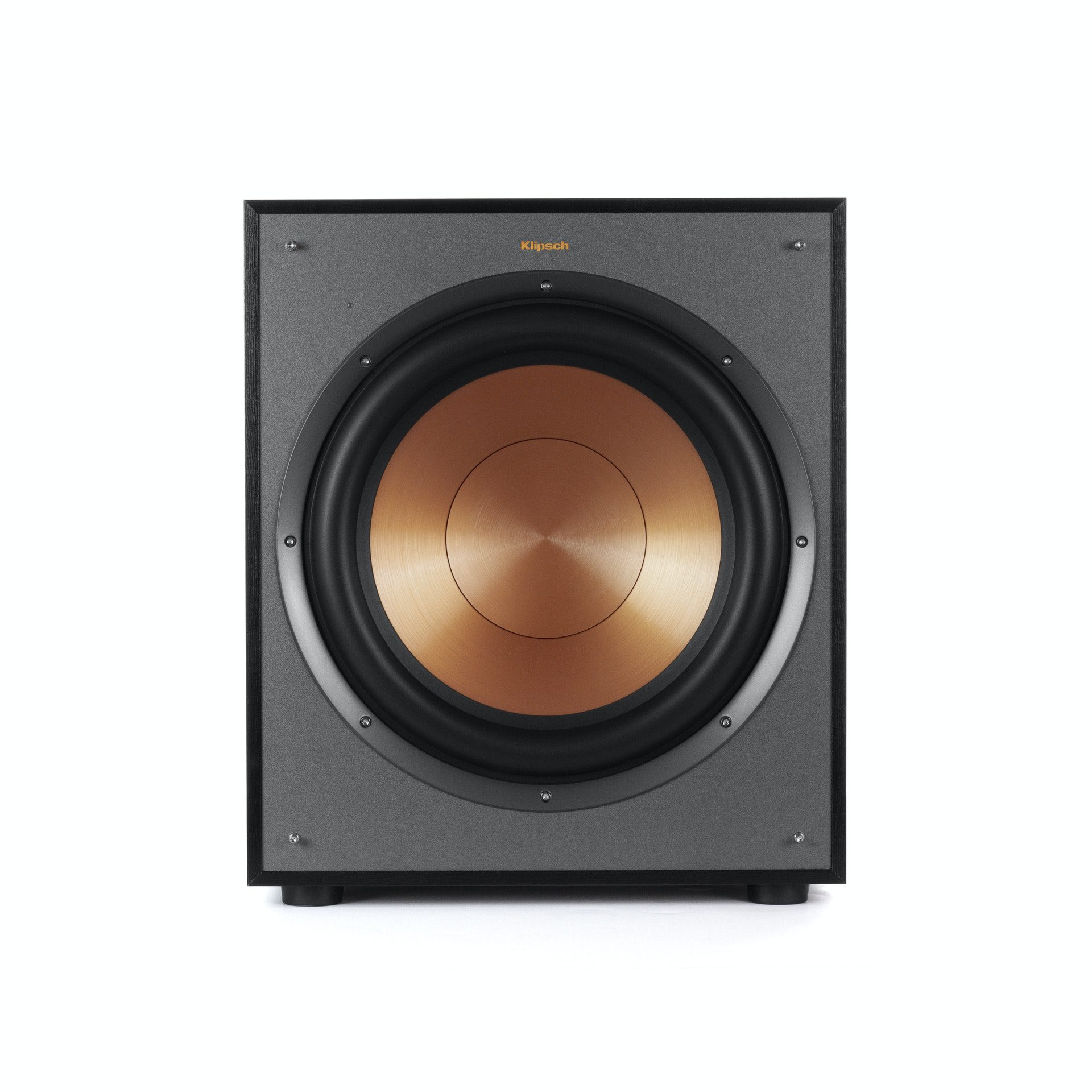

SPUN COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofers are exceptionally light while being
extremely rigid – providing remarkable low frequency response, with minimal
cone breakup and distortion.
ALL-DIGITAL AMPLIFIER
The built-in, all-digital amplifier delivers ample power with high efficiency and
true-to-source accuracy in reproduction, ensuring maximum efficiency for
maximum output, detail, and power.
FRONT-FIRING DRIVER
The high-performance driver provides deep bass and room placement
flexibility.
LOW PASS CROSSOVER AND PHASE CONTROL
Ensures the subwoofer’s low-frequency tones blend with other Klipsch
speakers and establish the ideal level of bass for your room.
LINE/LFE INPUTS
Ensures compatibility with home theater receivers.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD
GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless
integration into any décor.
FRONT-MOUNTED LED POWER INDICATOR
Indicates when the system is on or off.

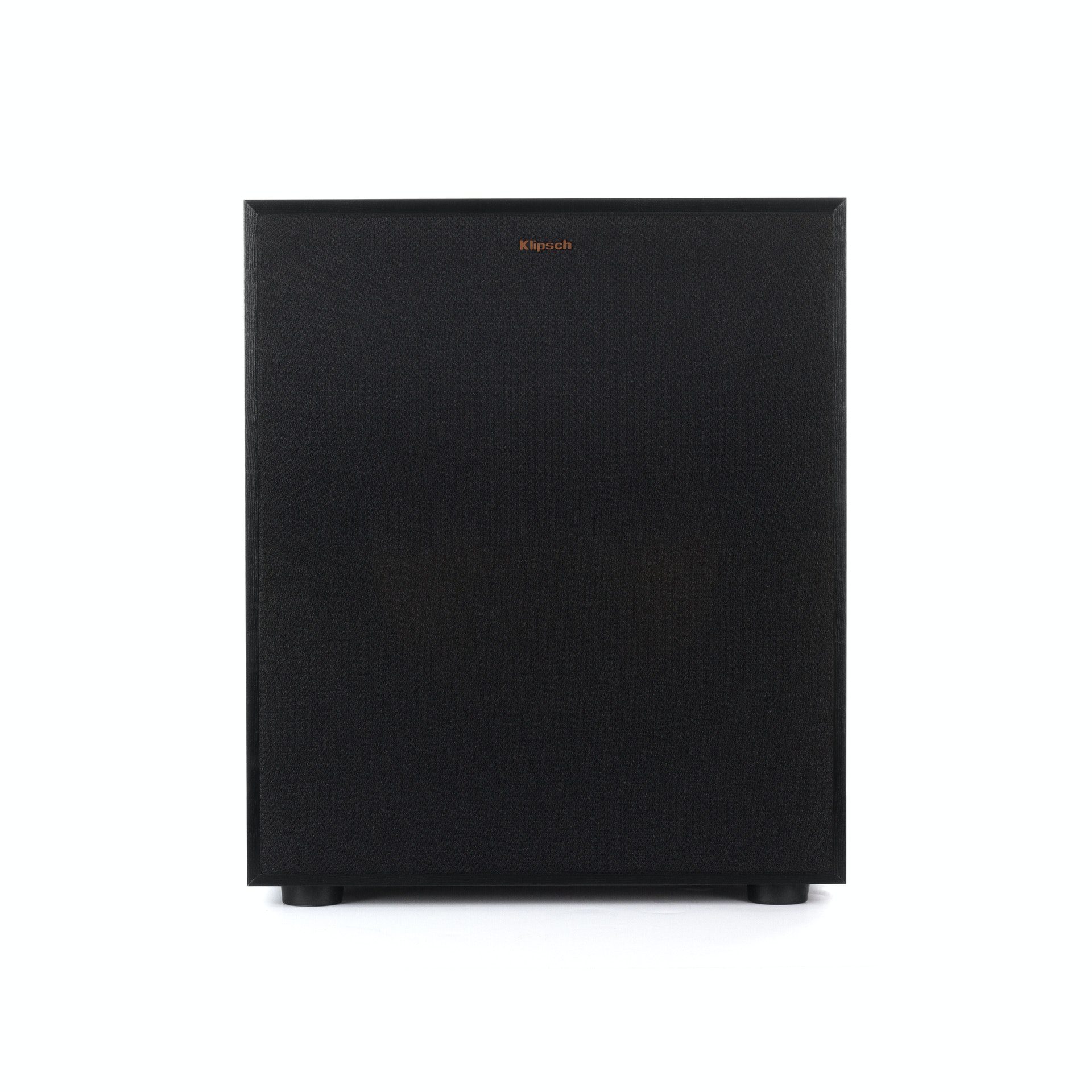

LOW PROFILE GRILLE
Adds a refined look that is acoustically transparent.
FREQUENCY RESPONSE 29Hz – 120Hz +/- 3dB
MAXIMUM ACOUSTIC OUTPUT 116 dB
AMPLIFIER All Digital
AMPLIFIER POWER (CONT/PEAK) 200W/400W
AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On
DRIVER COMPONENTS 12” high excursion spun-copper IMG woofer
ENCLOSURE MATERIAL MDF

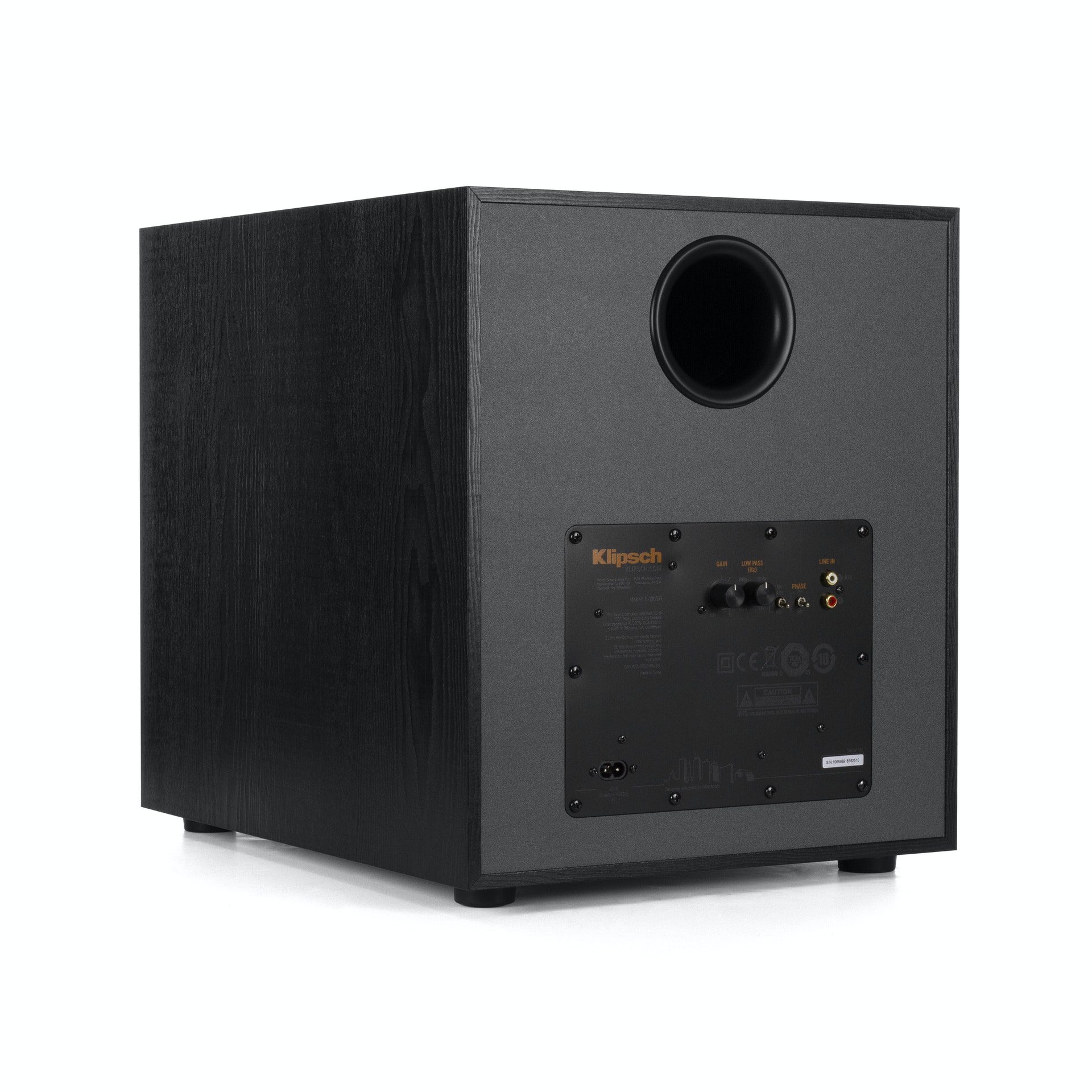

ENCLOSURE TYPE Bass-Reflex via rear-firing port
INPUTS Line level/LFE RCA jacks
HEIGHT 16.5” (419 mm)
WIDTH 14” (356 mm)
DEPTH 19.2” ( 488mm)
WEIGHT 31 lbs (14.1 kg)
FINISHES Black Textured Wood Grain Vinyl
BUILT FROM 2018
