Aprašymas

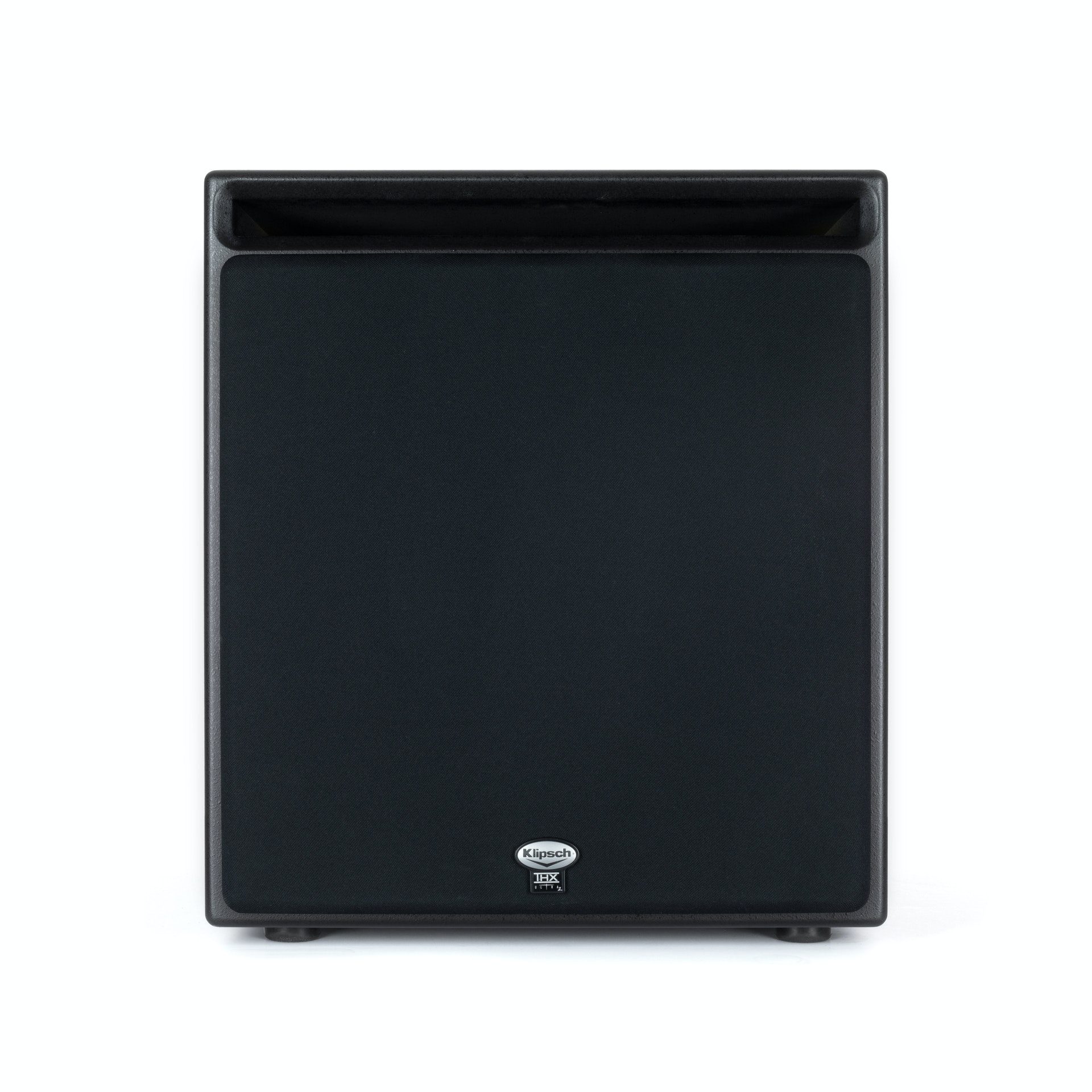

THE THX-1200-SW IS A COMPACT, HIGH-OUTPUT, LOW-DISTORTION
PASSIVE SUBWOOFER
It is suitable for use in any high-performance home-theater or music
system. A pair of THX-1200-SW’s driven by a KA-1000-THX amplifier meet
all requirements for THX Ultra2 certification. Although a single THX1200-SW does not satisfy the stringent THX Ultra2 maximum output
specification, which assumes a very large room, it is more than
adequate for a typical small or medium-sized room. Either
configuration is capable of intense, powerful deep-bass reproduction,
with no loss of clarity or detail at even the highest levels demanded
by modern action-movie soundtracks. The cabinet is front-ported to
maximize installation flexibility.

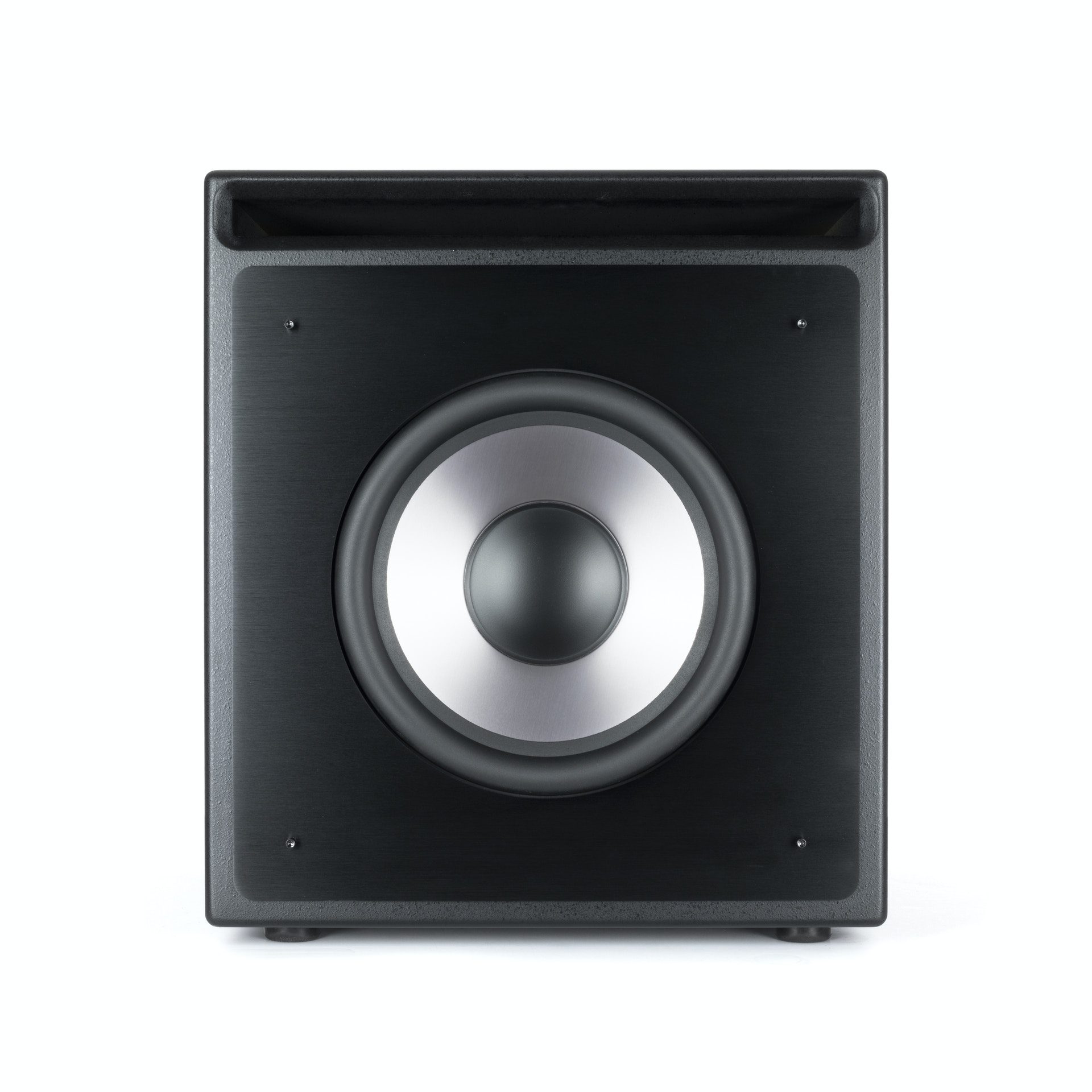

THE THX-1200-SW IS BUILT AROUND A CASTFRAME, LONG-THROW
DRIVER WITH A 12-INCH CERAMETALLIC™ CONE.
Propelling it is a powerful motor structure with a huge, 240-ounce
magnet. This rugged, no-compromise driver is capable of staggering
output without breakup or distortion.
CONSTRUCTION IS TO THE HIGHEST STANDARD
With a professional grade rabbet and dado locked panel cabinet and
premium components throughout to ensure sonic purity, consistency,

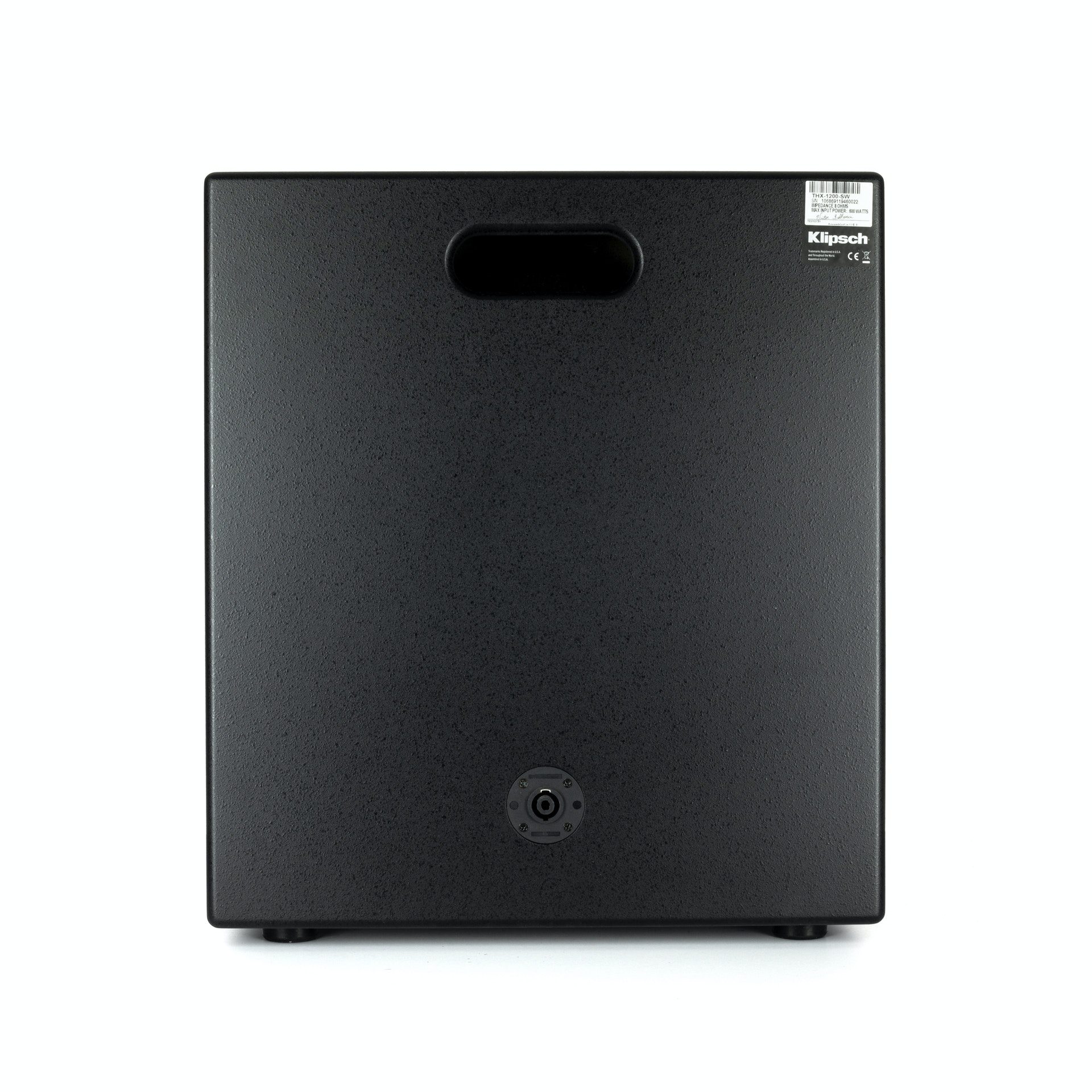

and reliability. Each subwoofer enclosure has a NL2 SpeakOn™ input
for correct, secure amplifier connections, and each THX-1200-SW is
supplied with a 20-foot THX Ultra certified speaker cable terminated
with NL2 SpeakOn connectors.
• Very high output capability (130dB @ 30Hz)
• 12” Cerametallic cast-frame, long-throw driver with
240-ounce magnet structure
• Front-ported enclosure for maximum installation flexibility
• NL2 SpeakOn inputs for correct, secure amplifier connection
SPECIFICATIONS
| Frequency Response | 20-200Hz ±3dB |
| Max Acoustic Output | 130dB @ 30Hz, 122dB @ 20Hz, 112dB @ 15Hz 1/8 space, 1M (2 enclosures side-by-side per THX Ultra2) |
| Nominal Impedance | 8 ohms |
| Enclosure Type | Bass-reflex via front-firing slot port |
| Amplifier Type | Use only with KA-1000-THX |
| Amplifier Power | See KA-1000-THX specifications |
| Woofer | 12″ (30.5cm) front firing, Cerametallic™ cone, cast aluminum frame driver with a 240oz ceramic magnet structure |
| Dimensions | 20.25″ (51.4cm) H x 17.75″ (45.1cm) W x 17.75″ (45.1cm) D (w/grille) |
| Weight | 80 lbs. (36kg) |
| Speaker Enclosure | Medium density fiberboard construction(MDF) |
| Finish | Galaxy Black cabinet with Black anodized aluminum fascia |
