The ST-10 amplifier is for listeners who require a reference-class amplifier at a somewhat lesser power rating of 2 x 150W (8 Ohm). NuPrime’s sonic character stands well apart from – and indeed above – the soft, cushy sound we often associate with most tubed amplification and the dry, clinically edgy sound we often associate with solid-state and switching technology. Rarely does an amp achieve an ideal balance of richly textured timbres and harmonics, bottom-end authority, startling dynamics, exquisite low-level detail, and a fully revealed, fully dimensional sound stage against a backdrop of mile-deep silence.
The fourth generation (V4 amplifier module) of this patented amplifier design outperforms its predecessor in several aspects:
– It lowers the noise floor by an astounding 20dB and elevates the output stage to 85% efficiency.
– Shortened circuit pathways result in a 20% improvement in through-put.
– Improved reliability in no-load condition and short circuit protection.
– Increased output current drive capability for low impedance speakers.
– Increased switching frequency to 600 KHz and an improved musical sampling rate.
– Improved S/N ratio and dynamic range.
– New linear power supply with a high-efficiency toroidal transformer. Reduced high-frequency noise and strengthened low-frequency performance.
– Signal path avoids cross-linking capacitors, thus achieving a frequency response at DC level for pure musical enjoyment.
– Enhanced even-order harmonic (H2) circuitry resembling the most attractive features of tubed-amp sound without its drawbacks and limitations.
The NuPrime Sound
– Vast soundstage
– Wide, lightning-fast dynamics
– Ultra-low distortion and noise
– Music emerges from a pristine background, with delicate details and nuances intact

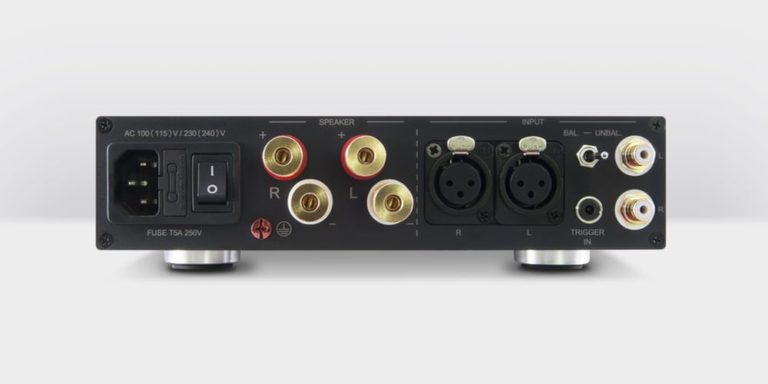

- Inputs:
- RCA: Un-Balanced input x 1
- XLR: Balanced input x 1
- Outputs:
- Stereo Speaker Out x 1
- Power Output: 150W x 2 at 8 Ohms; 150W x 2 @ 4 Ohms
- Gain: X 28 (RCA); X 52 (XLR)
- Input Impedance: 23.5k Ohms
- 12V trigger input. It can use any standard male to male 3.5mm (3-pin type) cable.
- Sensitivity: 0.89 V to rated power
- THD+N: 0.01%
- Frequency Response: 0 Hz to 50kHz (-3dB)
- S/N Ratio: 91dB @ 10W
- Dimensions: 59 mm H x 215.4 mm W x 394 mm D
- Weight: 7 kg
ST-10 is a phase inverting amp. If you are certain that the +/- (usually the red/white connectors) phase of your inputs are non inverting, then you should reverse the +/- inputs for each channel on ST-10. All other NuPrime amps were designed as non-inverting amp. If you have no idea what this is all about, don’t bother with making any adjustment.
