A-70DA Black

Integruotas stereo stiprintuvas.

1,499.00 vnt

Neturime

Share this product

Aprašymas

A-70DA Audiophile Pure Audio Full Amplifier/Converter with 2×90 Watt, High-Class Phono Stage and asynchronous USB Digital Input



Class and a great deal of mass

The A-70DA, which weighs more than 17 kilos, is not just about mass, it is above all about class: Separate mains transformers for pre-amplifier and amplifier sections, above all when they are individually cast and shielded as here, provide not only weight, but also working conditions with unsurpassed low interference for the audio circuitry. The doubled A-70DA is worth it because its pre-amplifier has a completely symmetrical layout. An individual, particularly low-loss loudspeaker volume control was even integrated for the symmetrical XLR input. Via its digital inputs the A-70DA is equipped for all modern music formats. In this respect, the very highest resolutions, such as Quad-DSD (11.2 MHz) and PCM with 384 kHz and 32 bit, are supported via USB. The high-resolution counterparts in the analog world are exclusive MC pick-ups which, thanks to the a switchable phono stage, supply this top model just as precisely as the widespread MM systems. With its doubled chassis, the full-metal loudspeaker knob and the thick aluminium front and side panels, the casing guarantees a suitably high-class performance.



AUDIO FEATURES

90 W + 90 W (20 Hz-20 kHz, THD 0.5 %, 4 ohms)

65 W + 65 W (20 Hz-20 kHz, THD 0.5 %, 8 ohms)

THD: 0.02 % (Rated Output -3 dB, 8 ohms, 1 kHz)

Guaranteed Speaker Impedance: 4-16 ohms (A or B), 8-32 ohms (A+B), 4-16 ohms (Bi-Wiring)

Frequency Response (Measured with DIRECT button switched on): SACD/CD, NETWORK, LINE1, LINE2 5 Hz-50 kHz, ±3 dB

RIAA Deviation: PHONO MM 20 Hz-20 kHz, ±0.5 dB, PHONO MC 20 Hz-20 kHz, ±0.5 dB

Signal-to-Noise Ratio (IHF, A Network, Short Circuited)

SACD/CD: 101 dB

Phono: 89 dB (MM: 5 mV input)/74 dB (MC: 0.5 mV input)

Power Amp Direct: 110 dB

Channel Separation

SACD/CD: 90 dB (100 Hz), 84 dB (1 kHz), 75 dB (10 kHz)

Power Amp Direct: 95 dB (100 Hz), 95 dB (1 kHz), 80 dB (10 kHz)

Pure Audio Grade High Efficiency Power ›› MOSFET Amplifier (Class D Amplifier)

Fully-Balanced Preamplifier Circuitry

Separated Construction for Preamp and Power Amp

Source Direct Mode

Highly Acclaimed ESS SABRE32 Ultra DAC

384 kHz/32-bit USB-DAC for Asynchronous Transfer

Shielded Twin Transformer for Preamp and Power Amp

Trans-Stabilizer

Speaker A, B, A+B Selector

OPERATING FEATURES

Machine-Cut Aluminium Rotary Knob

Aluminium Front/Side Panels

Auto Power Down

High-Grade AC Power Cord

Rigid Under Base

Aluminium Hair Line Finish Remote Controller

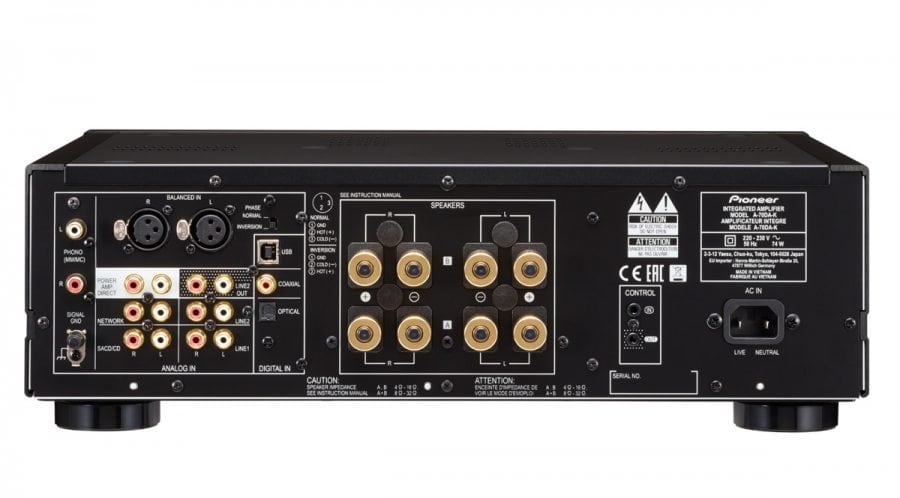

CONNECTIONS

Exclusive Gold-Plated Speaker Terminals (Large Type)

Gold-Plated Analogue Audio Input (Phono MM/MC, Balanced, SACD/CD, LINE 1, LINE 2, NETWORK, USB, COAXIAL, POWER AMP DIRECT IN)

USB Input for Asynchronous Transmission

Digital Coaxial Input

Digital Optical Input

Audio Output (LINE 2, PHONES)

SR In/Out

AC Inlet (Large Type)

DIMENSIONS & WEIGHT

Dimensions (W x H x D): 435 x 141.5 x 361.5 mm

Weight: 17.2 kg

Spalva

Juoda

USB skaitymas

Ne

Jungtys (įėjimai)

Koaksialinis, Optinis Toslink

Jungtys (išėjimai)

Ausinių

Bevielis muzikos siuntimas

Ne

WI-FI valdymas

Ne

Airplay

Ne

Bluetooth

Ne

Kanalų skaičius

2

Zonos

1

Dydis

Standartinis

Phono įėjimas

Taip

Subwoofer išėjimas

Ne

Sinchronizavimas su TV (ARC)

Ne
