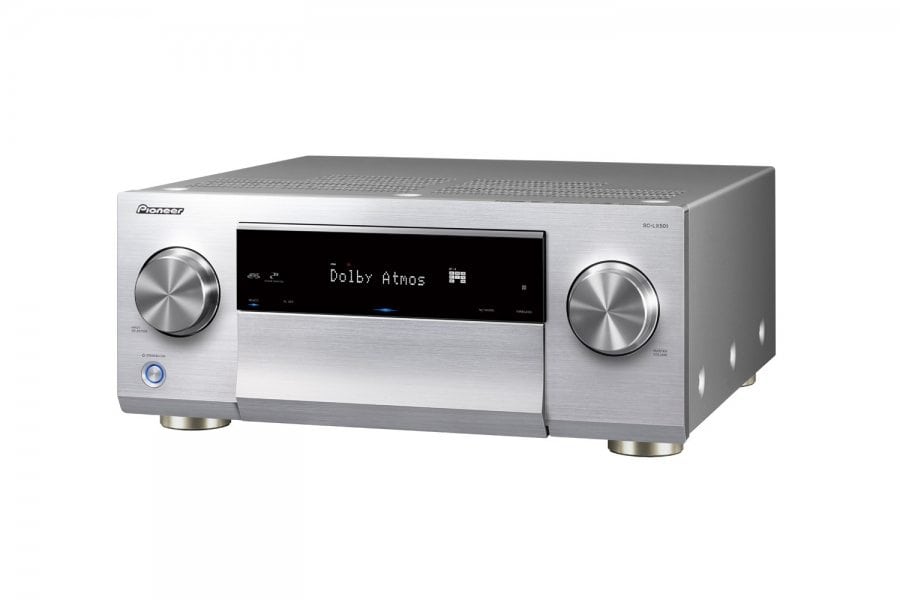

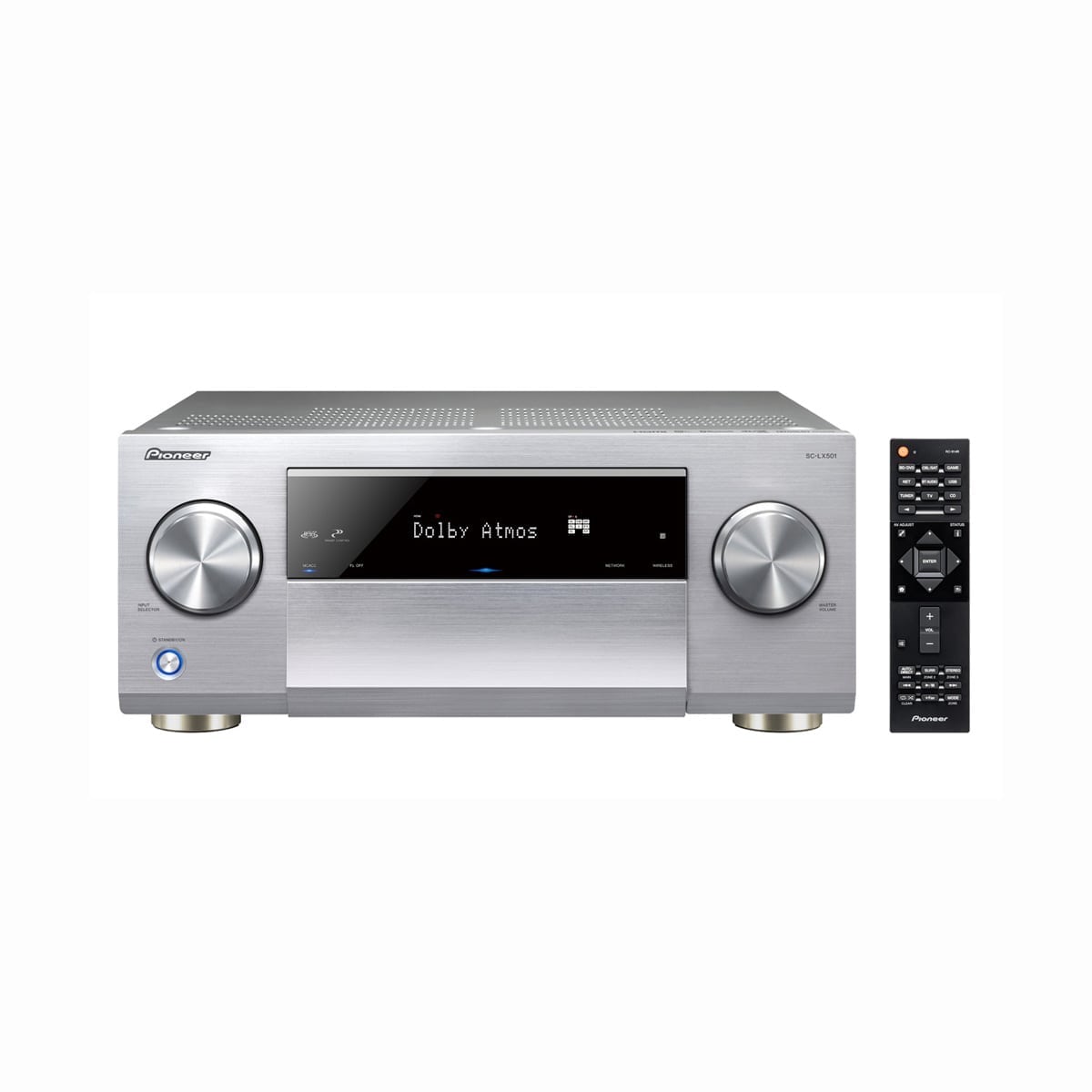

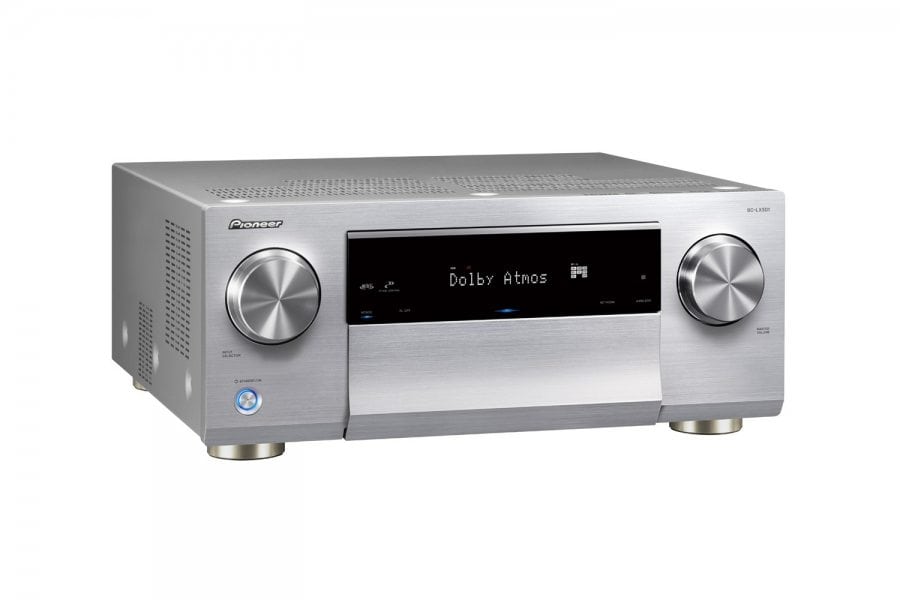

PIONEER SC-LX501 7.2-channel, multi-channel receiver with class D amplifier, 4K ultra-HD upscaling/pass-through, Dolby Atmos, DTS:X and full high-resolution streaming
The new entry-level receiver in the premium class
Pioneer’s Direct Energy HD output stages feature a fine, balanced sound, huge performance reserves and optimum efficiency – they sound great, stay comfortably cool in operation and have a pleasantly low impact on the electricity bill. Yet not every home cinema fan needs nine of them. That is why Pioneer designed the entry-level receiver in the premium class with seven channels while otherwise equipping it as generously as usual. Users of the SC-LX 501 get all the opulent networking and streaming capabilities of Pioneer’s new streaming board. The best streaming services are on board with Tidal, Deezer and Spotify, and also the richest Internet radio with TuneIn. Thanks to Bluetooth, Airplay and (after a free update) Google Cast, smart phone and tablet apps always find the optimum path to the system while audiophile high-resolution downloads on the local NAS readily run with resolutions up to 24bit/192kHz or quad-rate DSD (11.2MHz). While a LAN cable is always recommended for the very highest data rates, wireless access to the SC-LX 501 is convenient and stable thanks to integrated dual-band WiFi. Those who get a taste for streaming thanks to the SC-LX 501 will soon be able to integrate it into a building-wide multi-room network as well since it is FireConnect ready. The features of the SC-LX 501 on the home cinema side are just as comprehensive: decoders for the Dolby Atmos and DTS:X object-based sound formats, 4K image processing including 4K scaling of normal HD material, MCACC-Pro calibration system with Reflex Optimizer and the redesigned, high-resolution GUI make the 501 a universal, user-friendly multimedia centre that is fit for the future.
SPECIFICATION:
AUDIO FEATURES
Channels: 7
Amplification Type: Class D (Direct Energy HD)
560 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
270 W/ch (4 ohms, 1 kHz, 1ch Driven IEC)
160 W/ch (8 ohms, 1 kHz, 1ch Driven IEC)
Fan-less Cooler Design
Anti-Standing Wave Insulator
Dolby Atmos®/Dolby Surround
DTS:X*1/DTS Neural:X*1
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-ES/DTS-HD Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
384 kHz/32-bit DAC (AK4458)
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ (4 Band)
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
AM/FM Tuner 40 Presets
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR and BT.2020 Support
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v.Colour”
NETWORK FEATURES
FireConnect™*1 for Multi-room Audio
Google Cast*1
Apple AirPlay Certified
Spotify® Digital Music-Streaming Service Ready
Internet Radio with TuneIn
TIDAL Music Streaming Service Ready*1
Deezer*1
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 11.2/5.6/2.8 MHz DSD Playback
• Dolby® TrueHD Playback (USB only)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
*1 (available with future firmware update)
OPERATING FEATURES
iControlAV5 Remote Control App Ready (iOS/Android)*5
New GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
Sleep Timer
User-Friendly Simple Remote Control
CONNECTIONS

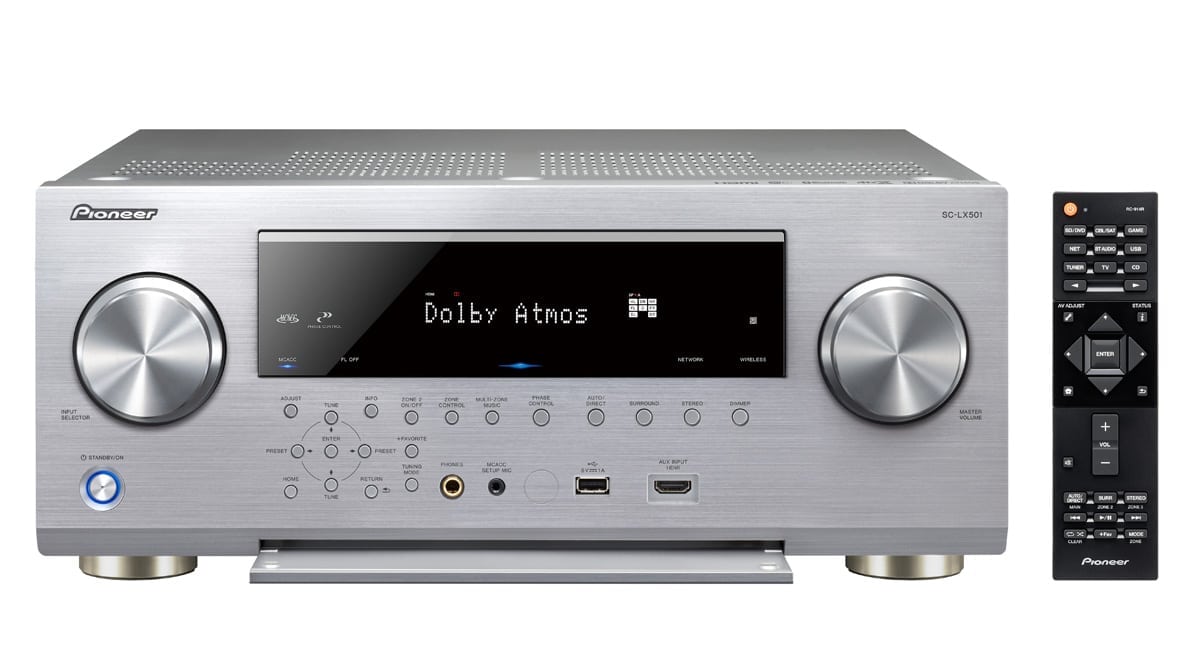

Front Terminals
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out

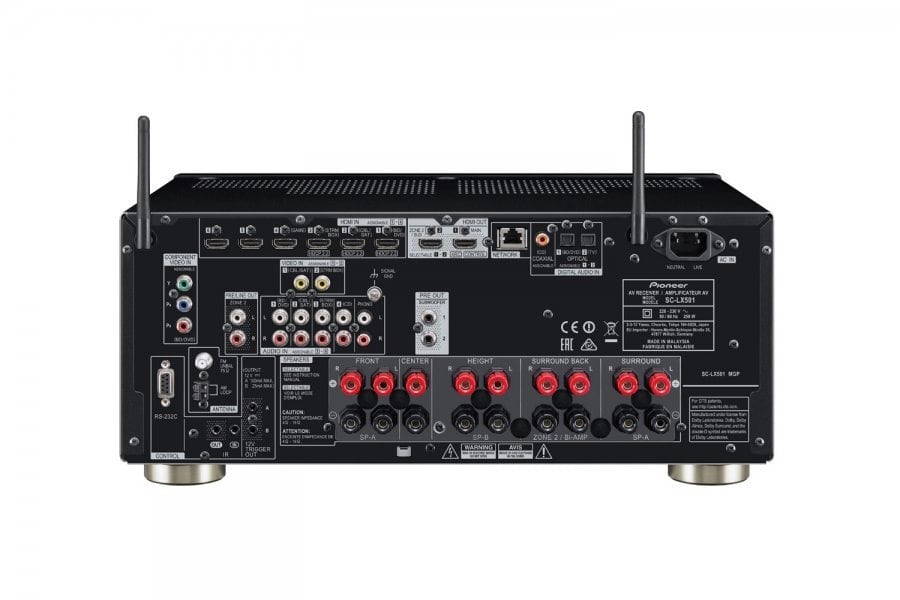

Rear Terminals
HDMI 6 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
AV (Component) 1 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 1 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 2 In (Assignable)
Subwoofer 2 Pre Out
Zone 2 Pre/Line Out
Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)
IR 1 In/1 Out
12 V Trigger 2 Out/RS-232C
FM/AM Antenna
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 185 x 395 mm
Weight: 12 kg
