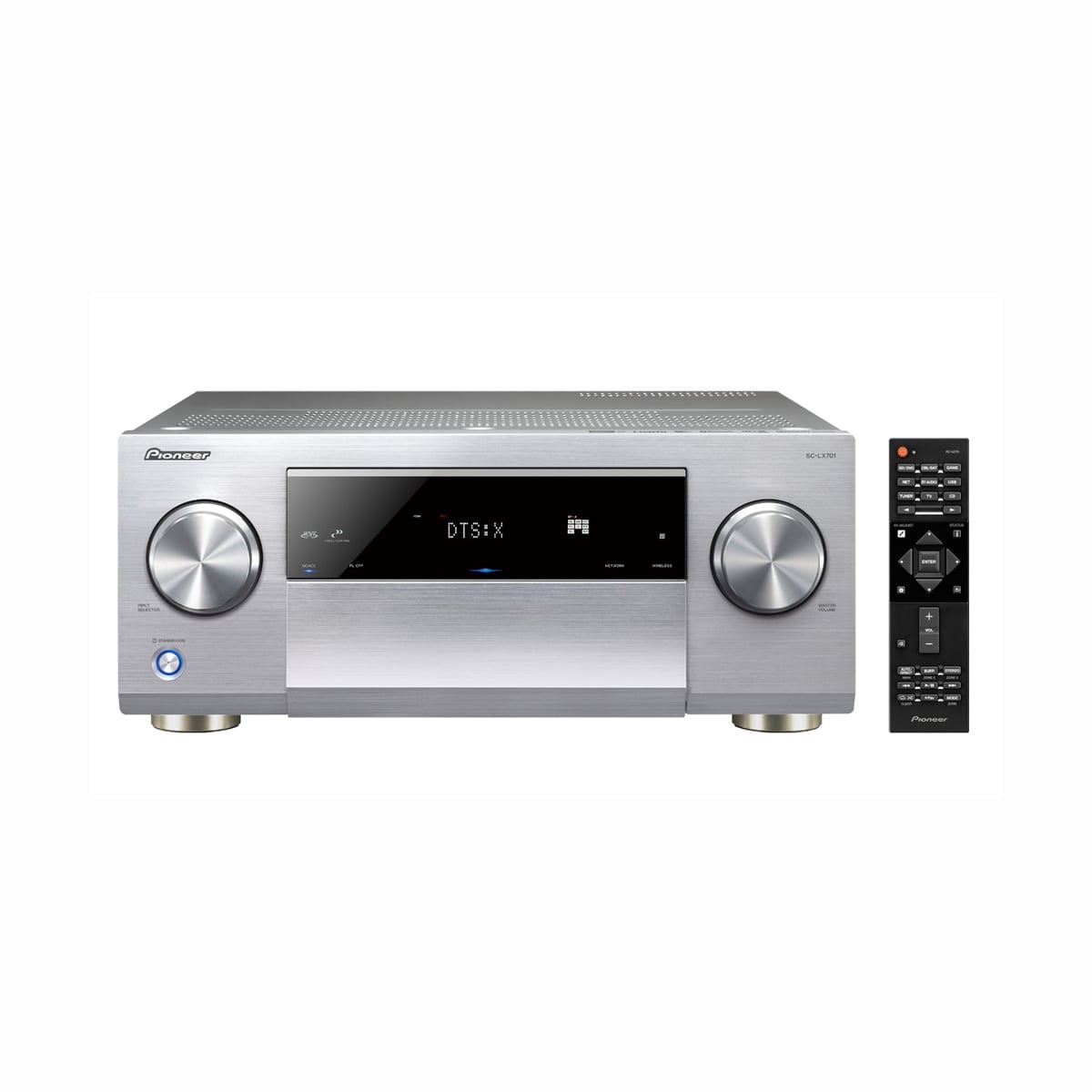

PIONEER SC-LX701 9.2-channel, multi-channel receiver with class D amplifier, 4K ultra-HD upscaling/pass-through, Dolby Atmos, DTS:X and full high-resolution streaming
Concentrated home cinema expertise, the latest streaming technology and superb sound
Conventional wisdom says that AV receivers are no more than average stereo amplifiers – but this is not always true. While the Pioneer SC-LX 701 can easily render the most intense dynamics of modern cinema soundtracks on up to nine channels, it transforms itself into a cultivated hi-fi amp with a natural sound when it comes to music. For Pioneer’s own Direct Power HD output stage technology with its ultra-short signal paths, power and aesthetics are no contradiction. Audiophile quality also defines the SABRE32 D/A converter from ESS used for all channels. Those who want to truly put its tremendous dynamics and high linearity to the test can, in addition to multi-channel premium movie sound (Dolby Atmos, DTS:X), also access super-high-resolution studio master music files with a few taps in the control app. This is because the SC-LX 701 includes a full-fledged, opulently equipped streamer that also plays back high-resolution files from local NAS servers at 24bit/192kHz and quad-rate DSD (11.2MHz). Full CD resolution is promised by the integrated music services Tidal and Deezer along with Spotify, offering full access to over 20 million titles for their subscribers. Bluetooth, dual-band WiFi and Airplay are also available for everyday convenience and the soothing feeling of always being able to offer the right standard – complemented by Google Cast and the high-performance, brand-neutral, FireConnect multi-room standard after a free update.
SPECIFICATION:
AUDIO FEATURES
Channels: 9
Amplification Type: Class D (Direct Energy HD)
760 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
270 W/ch (4 ohms, 1 kHz, 1ch Driven IEC)
185 W/ch (8 ohms, 1 kHz, 1ch Driven IEC)
Advanced Direct Construction
Rigid Trans-Stabilizer
Anti-Standing Wave Insulator
Dolby Atmos®/Dolby Surround
DTS:X/DTS Neural:X
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-ES/DTS-HD Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
ESS SABRE32 Ultra DAC (ES9016S)
HDMI Audio Return Channel (ARC)
MCACC Pro Auto Room Tuning
• Full Band Phase Control
• Subwoofer EQ (4 Band)
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
AM/FM Tuner 40 Presets
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR and BT.2020 Support
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v.Colour”
NETWORK FEATURES
FireConnect™*1 for Multi-room Audio
Google Cast*1
Apple AirPlay Certified
Spotify®, Tidal*1, and Deezer*1 Music Streaming Services Ready
Internet Radio (TuneIn)
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 11.2/5.6/2.8 MHz DSD Playback
• Dolby® TrueHD Playback (USB only)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
*1 (available with future firmware update)
OPERATING FEATURES
Pioneer Remote App Ready (iOS/Android)
iControlAV5 Remote Control App Ready (iOS/Android)
New GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
Sleep Timer
User-Friendly Simple Remote Control
CONNECTIONS
Front Terminals
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out
Rear Terminals
HDMI 7 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
AV (Component) 2 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 2 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 2 In (Assignable)
Digital Optical 3 In (Assignable)
Subwoofer 2 Pre Out
Zone 2/ZONE 3 Pre/Line Out
Speaker 11 ch Out (FRONT, CENTER, HEIGHT 2/ZONE 2/SP-B, SURROUND BACK, SURROUND, HEIGHT 1/Bi-AMP/ZONE 3)
IR 1 In/1 Out
12 V Trigger 2 Out/RS-232C
FM/AM Antenna
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 185 x 441 mm
Weight: 15.3 kg
