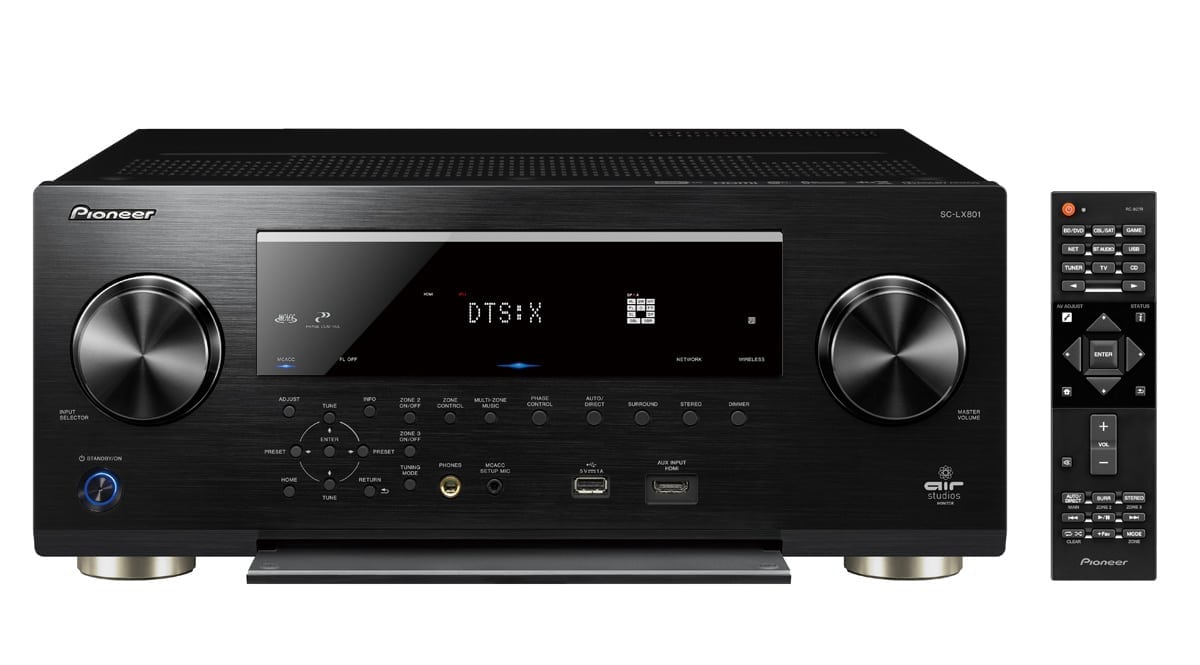

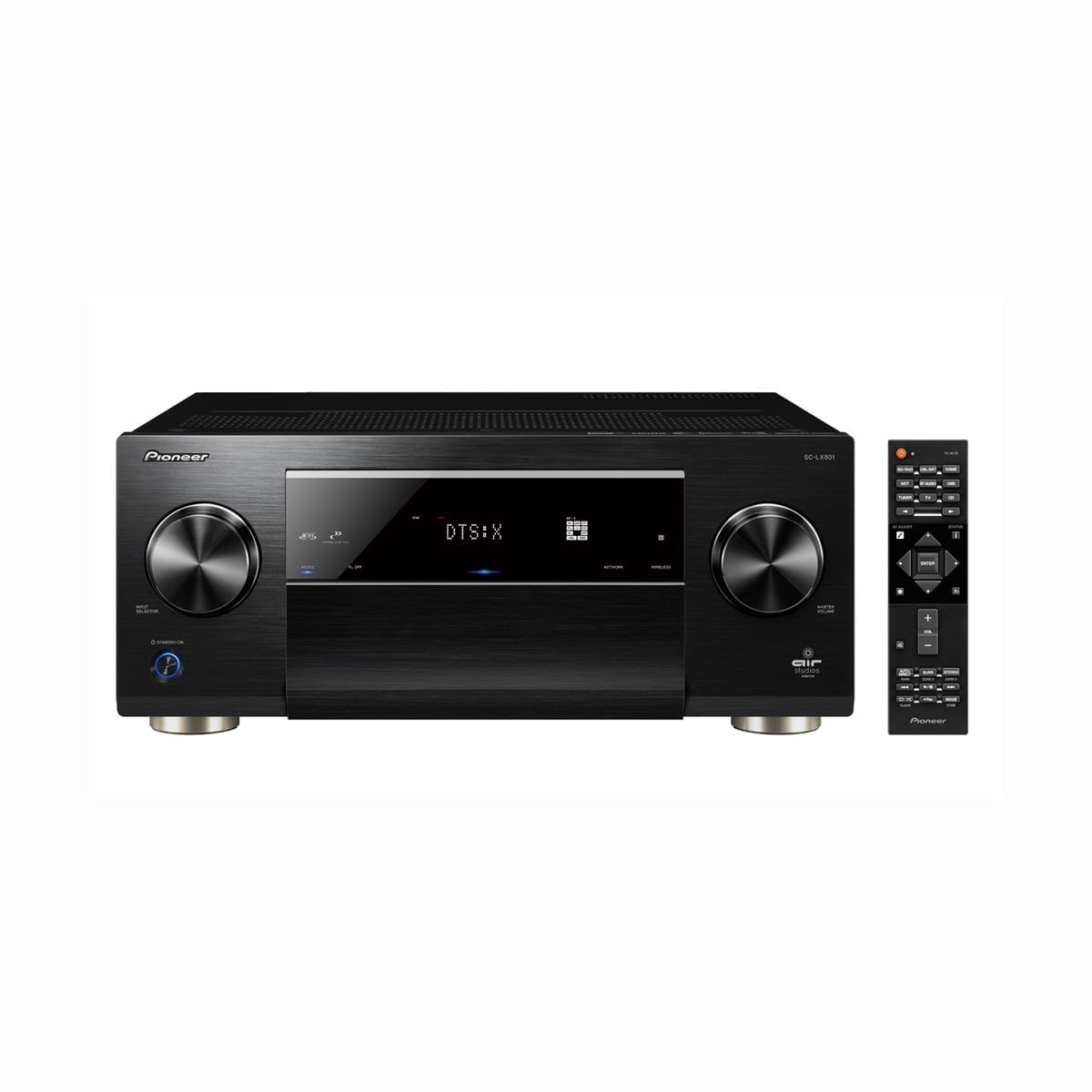

PIONEER SC-LX801 9.2-channel, multi-channel receiver with class D amplifier, Air Studios certification, 4K ultra-DH upscaling/pass-through, Dolby Atmos, DTS:X and full high-resolution streaming
The home cinema leader with the professional studio seal of approval
If one needs to choose between more channels and higher quality, pick the latter in case of doubt – or simply realise both without compromises thanks to the SC-LX 801: with nine output stages and two sub-outputs, this receiver fully utilises the potential of the DTS:X and Dolby Atmos object-oriented cinema formats – with a full UHD image and high-quality 4K scaling of course. Measuring laboratories and listening tests unanimously answer the question of sound quality: fatigue-free continuous high performance, natural, dynamic sound and the best energy efficiency have long been hallmarks of Pioneer’s Direct Energy HD amplifier technology, which has once again been fundamentally revised and further improved for the SC-LX 801. This was fully appreciated by the sound engineers at London’s Air Studios, who awarded the coveted “Monitor” certificate to the receiver after extensive tests. At home one is more likely to listen to music from the Internet rather than directly out of the mixer. Yet this does not have to mean a reduction in quality, since the loss-free streaming music services Deezer and Tidal in addition to Spotify are natively supported by the SC-LX 801. Even studio master quality is no problem from the local NAS since DLNA streaming with the new Pioneer plays back even high-resolution files up to 24bit/192kHz and DSD up to quad-rate 11.2MHz. This does not even come close to exhausting the versatility of the new Pioneer streaming engines. Naturally Bluetooth and all network-based standards from AirPlay to Google Cast are supported by the SC-LX 801 as well. With a free update, it can also become part of a FireConnect high-performance multi-room network.
SPECIFICATION:
AUDIO FEATURES
Channels: 9
Amplification Type: Class D (Direct Energy HD)
810 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
270 W/ch (4 ohms, 1 kHz, 1ch Driven IEC)
200 W/ch (8 ohms, 1 kHz, 1ch Driven IEC)
Advanced Direct Construction
Rigid Trans-Stabilizer
Anti-Standing Wave Insulator
AIR Studios Sound Tuning
Dolby Atmos®/Dolby Surround
DTS:X/DTS Neural:X
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-ES/DTS-HD Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
ESS SABRE32 Ultra DAC (ES9016S)
HDMI Audio Return Channel (ARC)
MCACC Pro Auto Room Tuning
• Full Band Phase Control
• Subwoofer EQ (4 Band)
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
AM/FM Tuner 40 Presets
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR and BT.2020 Support
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v.Colour”
NETWORK FEATURES
FireConnect™ for Multi-room Audio *1
Google Cast *1
Apple AirPlay Certified
Spotify®, Tidal*1, and Deezer*1 Music Streaming Services Ready
Internet Radio (TuneIn)
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 11.2/5.6/2.8 MHz DSD Playback
• Dolby® TrueHD Playback (USB only)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
*1 (available with future firmware update)
OPERATING FEATURES
Pioneer Remote App Ready (iOS/Android)
iControlAV5 Remote Control App Ready (iOS/Android)
New GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
Sleep Timer
User-Friendly Simple Remote Control
CONNECTIONS
Front Terminals
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out
Rear Terminals
HDMI 7 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
AV (Component) 2 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 2 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 2 In (Assignable)
Digital Optical 3 In (Assignable)
Subwoofer 2 Pre Out
Zone 2/ZONE 3 Pre/Line Out
Speaker 11 ch Out (FRONT, CENTER, HEIGHT 2/ZONE 2/SP-B, SURROUND BACK, SURROUND, HEIGHT 1/Bi-AMP/ZONE 3)
IR 1 In/1 Out
12 V Trigger 2 Out/RS-232C
FM/AM Antenna
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 185 x 441 mm
Weight: 18.1 kg
