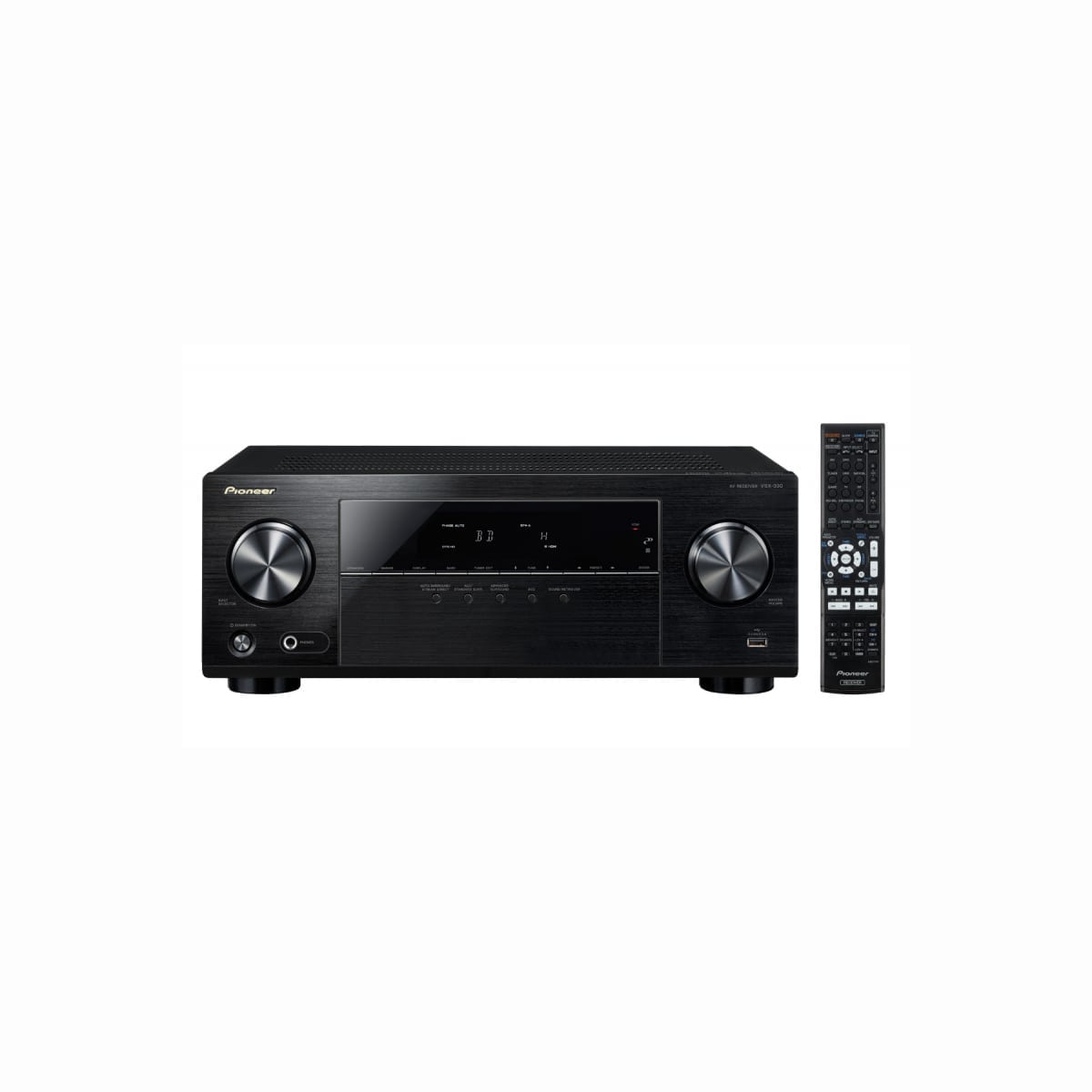

PIONEER VSX-330 5.1-channel AV Receiver with Dolby TrueHD, DTS-HD Master Audio and Ultra HD 4K Pass Through
Budget-friendly 105W AV Receiver.
Intensify your home entertainment experience with 5.1 HD surround sound. The VSX-330 will be the centre of your audio gaming setup and home cinema system. This AV receiver ensures amazing movie-watching madness: it will even pass through ultra high resolution 4K video. To enhance your favourite movies with great sound, just select one of the high definition Dolby or DTS advanced surround modes.
The VSX-330 supports music playback and control from your iPod and iPhone via the front USB input. The Advanced Sound Retriever will even restore your compressed audio to CD quality output.
AUDIO FEATURES
Channels: 5
Amplification Type: Direct Energy
105 W/ch (6 ohms 1 kHz THD 1.0 % 1ch Driven)
Dolby® TrueHD/Dolby Pro Logic II/Dolby Digital Plus
DTS-HD/DTS Neo:6
DSD Disc (SACD) Playback via HDMI (2.8 MHz, 2ch)
Digital Core Engine with Texas Instruments Aureus™ DSP
192 kHz/24-bit DAC
HDMI Audio Return Channel (ARC)
Phase Control
Pioneer Sound Enhancements
Advanced Sound Retriever (2ch)
Auto Level Control (2ch)
Advanced Surround Modes
Action, Drama, Advanced Game, Sports, Classical, Rock/Pop
Front Stage Surround, Extended Stereo
Phones Surround
ECO Mode 1, ECO Mode 2
VIDEO FEATURES
HDMI 4 in/1 out
3D Ready (Blu-ray Disc®, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
Ultra HD Pass-through (4K/60p/4:2:0/24-bit, 4K/24p/4:4:4/24-bit, 4K/24p/4:2:2/36-bit)
OPERATING FEATURES
Charges iPod/iPhone
On Screen Display (Analogue only)
Auto Power Down
AM/FM Tuner 30 Presets
Sleep Timer
Remote Control
CONNECTIONS
FRONT TERMINALS
USB 1 in for iPod/iPhone, USB drive
Phones 1 out
REAR TERMINALS
HDMI 4 in
HDMI 1 out
AV (Composite) 2 in
Audio 1 in (assignable)
Digital Coaxial 1 in (assignable)
Digital Optical 1 in (assignable)
Monitor Composite 1 out
Preout 0.1ch (SW)
Speaker 5 ch out (FRONT, CENTER, SURROUND)
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 168 x 331.5 mm
Weight: 7.2 kg
LOVES YOUR IDEVICE
Made for iPod, iPhone and iPad certification means it’s easy to connect your Apple devices to seamlessly bring your music and video library into your living room. The front USB terminal allows a direct connection, also providing battery charge for your devices.
ENERGY EFFICIENT SETTINGS
Use the ECO Modes to save energy. ECO Mode 1 is suitable for playing CD’s, 2 channel audio files and internet radio. The more energy efficient ECO Mode 2 also works with movies, live concerts and other surround content.
EASY USB ACCESS
The AV receiver has an easily accessible front USB terminal so you can quickly play your favourite music tracks. It supports all kinds of audio formats, such as MP3, WMA and AAC. It can also be used to charge connected devices.
ELIMINATE PHASE LAG
Phase control eliminates phase lag, caused by low-frequency signals, and significantly improves multi-channel sound without any extra operation.
ENJOY UNCOMPRESSED HD AUDIO
The AV receiver supports the latest Dolby TrueHD and DTS-HD Master Audio surround soundtracks, so you can enjoy uncompressed, high-definition multichannel audio from Blu-ray discs, as well as from other media.
4K ULTRA HD VIDEO READY
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.
