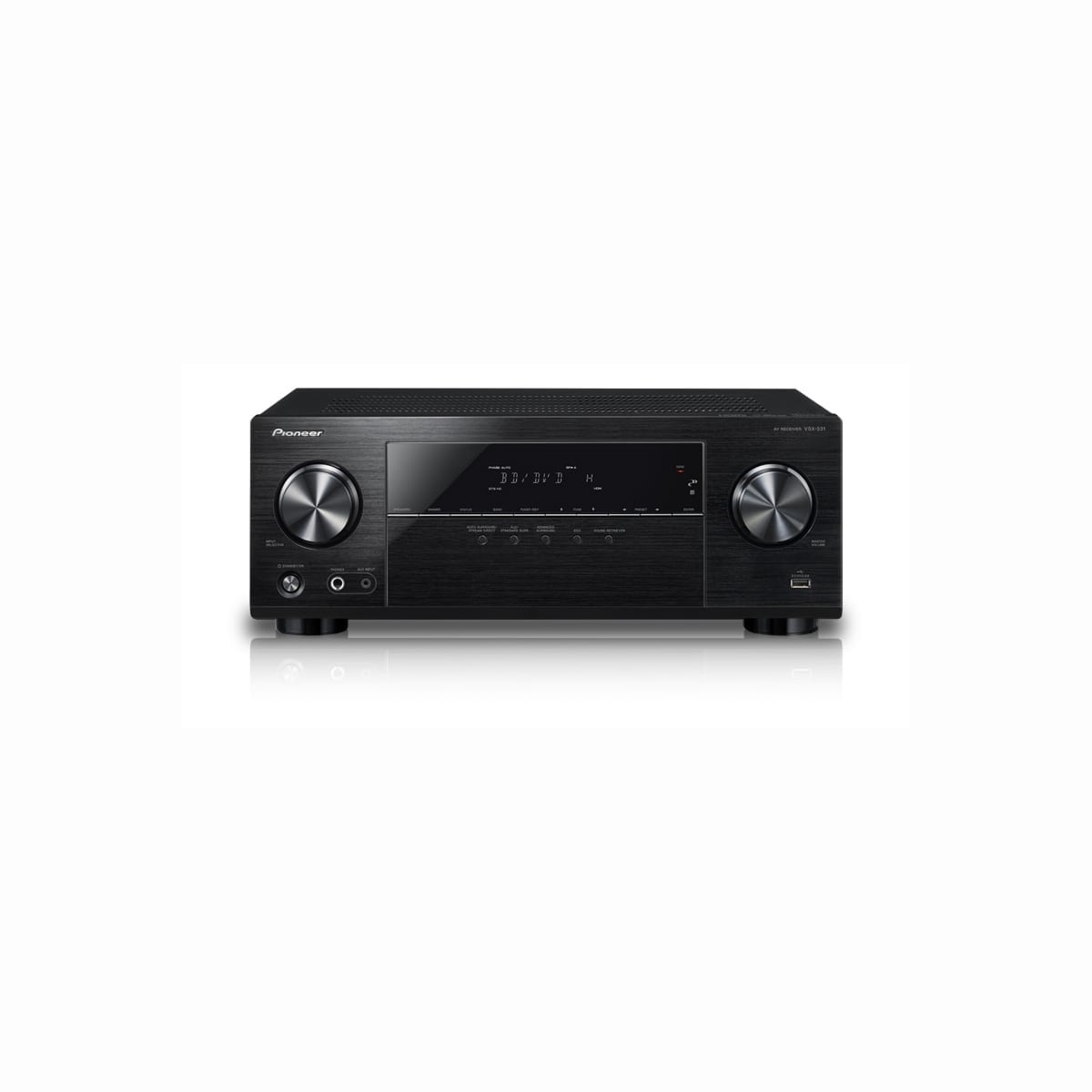

PIONEER VSX-531 5.1-channel receiver with 5×130 Watt, 4 HDMI ports, HDCP 2.2, MCACC automatic calibration, Advanced Sound Retriever, Bluetooth and USB.
Impressive value already at entry level
In addition to digital TV and Blu-ray, one nowadays usually has other HD video sources – such as a game console, a streaming box or a streaming stick. It is reassuring to know that even the affordable VSX-531 has four HDMI ports that can even transmit UltraHD footage to the TV or projector. Of course, via HDMI the sound can also be in high resolution. The HD multichannel formats from Dolby and dts are also decoded by the VSX-531 and precisely adapted to your individual room acoustics, loudspeaker equipment and setup using Pioneer’s proprietary MCACC automatic calibration.
If you prefer to enjoy music instead of a movie, you can also use your smart phone or tablet instead of the usual analogue or digital connectable players. Simply start your favourite music app and connect your device wirelessly to the integrated Bluetooth input of the VSX-531. A USB port on the front panel provides the mobile device with current as needed and you can also optionally play MP3, WMA and AAC music files directly from a memory stick. And do not be surprised when even older, heavily data-reduced files suddenly sound amazingly fresh and natural. Pioneer has gained decades of experience in the reconstruction of lost signal components, which has flowed into the “Advanced Sound Retriever” playback program.
AUDIO FEATURES
Channels: 5
Amplification Type: Direct Energy
130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Dolby® TrueHD/Dolby Digital Plus/Dolby Pro Logic II
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS Neo:6
DTS-Express/DTS 96/24
DSD Disc (SACD) Playback via HDMI (2.8 MHz)
Digital Core Engine with Texas Instruments Aureus™ DSP
192 kHz/24-bit DAC
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
– Phase Control
– Automatic Crossover Detection
Pioneer Sound Enhancements
– Advanced Sound Retriever (2ch)
– Auto Level Control (2ch)
– Midnight
– Loudness
Advanced Surround Modes
– Action, Drama, Advanced Game, Sports, Classical, Rock/Pop
– Front Stage Surround, Extended Stereo
– Phones Surround
– ECO Mode 1, ECO Mode 2
AM/FM Tuner 30 Presets
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4)
HDR Support
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
NETWORK FEATURES
Built-in Bluetooth® Wireless Technology (Version: 3.0, Profile: A2DP, Codec: SBC/AAC)
Music File Playback via USB (MP3, WMA, AAC)
OPERATING FEATURES
On Screen Display (HDMI only)
Auto Power Down
Power Save for HDMI Standby Through
Sleep Timer
Remote Control
CONNECTIONS
Front Terminals
USB 1 In for USB Drive
MCACC Setup MIC In
Audio 1 In (Mini Stereo Jack)
Phones 1 Out

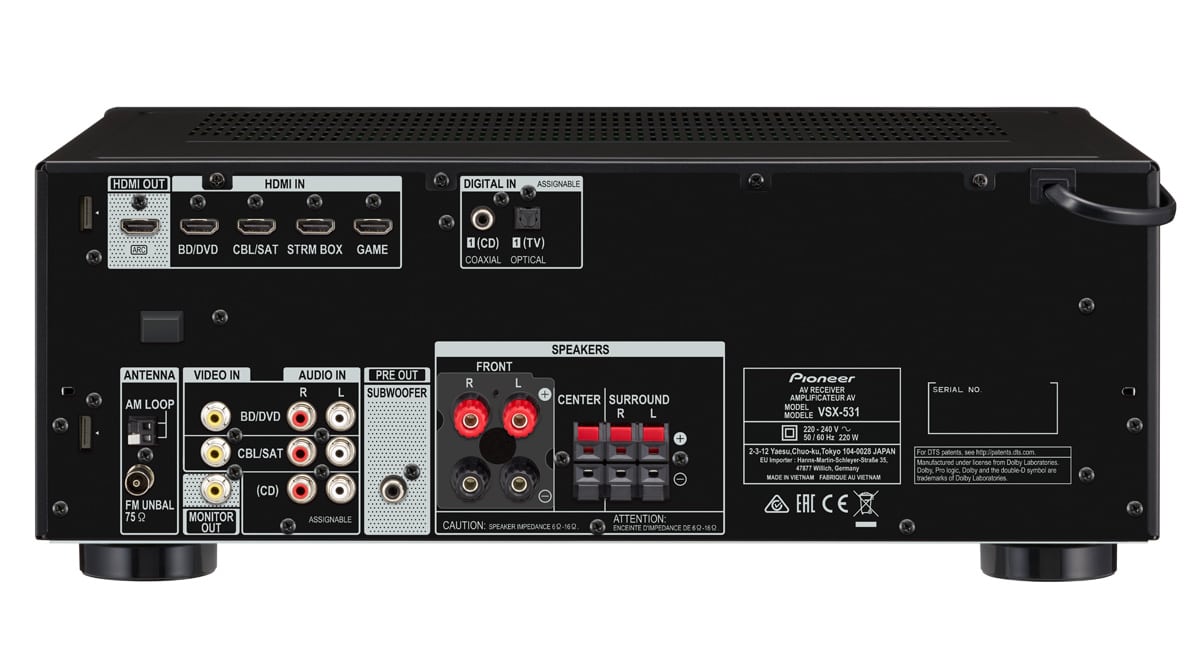

Rear Terminals
HDMI 4 In
HDMI 1 Out
AV (Composite) 2 In
Audio 1 In (Assignable)
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Monitor Composite 1 Out
Subwoofer 1 Pre Out
Speaker 5 ch Out (FRONT, CENTER, SURROUND)
FM/AM Antenna
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 168 x 320.5 mm
Weight: 8 kg
ENERGY EFFICIENT SETTINGS
Use the ECO Modes to save energy. ECO Mode 1 is suitable for playing CD’s, 2 channel audio files and internet radio. The more energy efficient ECO Mode 2 also works with movies, live concerts and other surround content.
EASY USB ACCESS
The AV receiver has an easily accessible front USB terminal so you can quickly play your favourite music tracks. It supports all kinds of audio formats, such as MP3, WMA and AAC. It can also be used to charge connected devices.
ENJOY UNCOMPRESSED HD AUDIO
The AV receiver supports the latest Dolby TrueHD and DTS-HD Master Audio surround soundtracks, so you can enjoy uncompressed, high-definition multichannel audio from Blu-ray discs, as well as from other media.
HIGHRES AUDIO
Experience digitally stored music as close to the original as never before. This device supports formats beyond the CD standard of a 44.1 kilohertz sampling rate and a depth of 16 bit. Experience WAV and FLAC files in real studio quality with resolutions of up to 192/24. This device also plays the direct stream digital (DSD) format used on super audio CDs, with a sampling rate of up to 2.8 megahertz.
4K WITH HDR
Experience four times the HD resolution with 4K UltraHD. The built-in video optimisation scales even SD or normal HD content to 4K resolution at up to 60p and the high dynamic range produces an extremely high-contrast, sharp image.
BLUETOOTH BUILT-IN
Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX.
