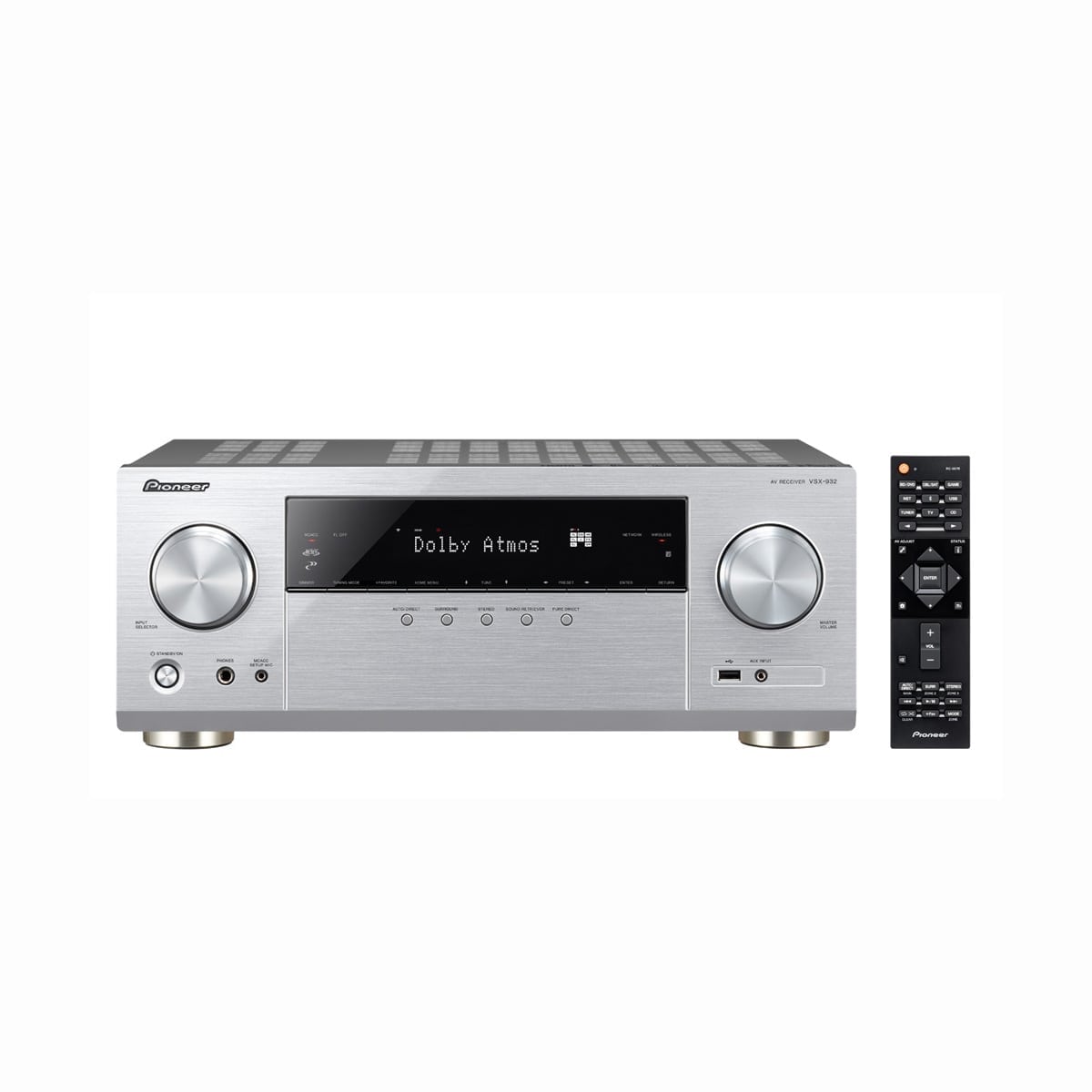

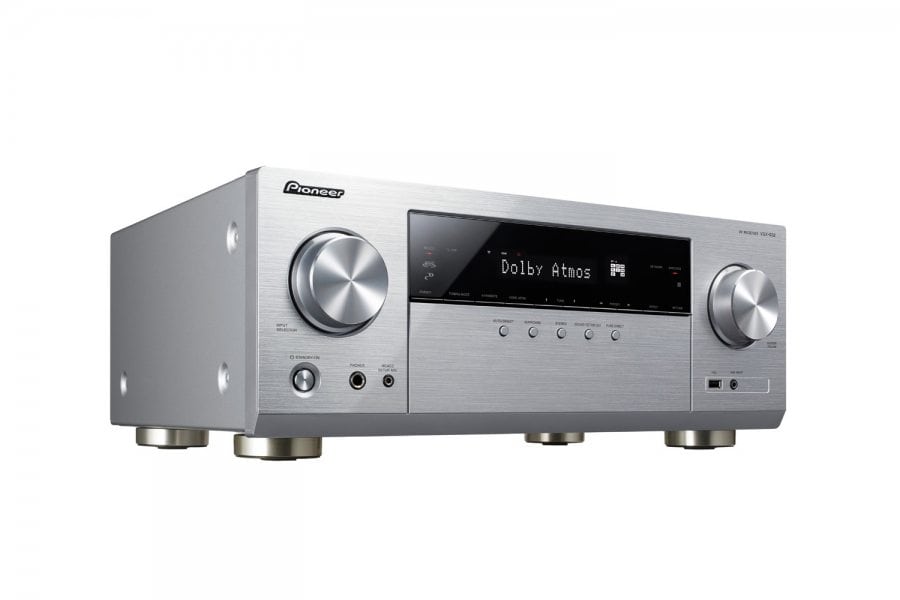

PIONEER VSX-932 – 7.1-channel receiver with 7×130 watts, full-range streaming, Dolby Atmos and dts:X, 4K Ultra HD, video scaler, 4 HDMI ports, HDCP 2.2, high resolution audio playback, dual-band WiFi & Bluetooth.
The VSX-932 is surprisingly versatile for its price class and supports all current state-of-the-art sound and image formats. With Dolby Atmos, dts:X and Pioneer’s proprietary MCACC automatic calibration, discriminating multi-channel cinema sound can be realised even in acoustically challenging living rooms. All music regardless of the format and storage location finds an optimum way to the system thanks to comprehensive streaming capabilities.
The new entry-level member of the seven-channel class
A receiver that can competently power a complete Dolby Atmos speaker set with front, centre, surround and height speakers as well as two independent subwoofers no longer has to cost a small fortune: the VSX-932 has all required decoders and seven powerful output stages with Pioneer’s exclusive “Direct Energy” technology that minimises electricity consumption and waste heat. Thanks to the “Reflex Optimizer”, it is able to produce a convincing sound experience with a spacious, all-encompassing atmosphere and precise three-dimensionally placed effects, even with the use of indirect projecting Atmos-enabled speakers. In keeping with its comprehensive surround capabilities, the VSX-932 is also equipped with the latest video technology: its four HDMI inputs support 4K/4:4:4/60p/24-bit with the HDR10, Dolby Vision and BT.2020 colour space and dynamics extensions. High-resolution streaming is supported as well: high resolution and DSD support is complemented by the integrated streaming services Tidal, Spotify, Deezer and TuneIn Internet radio. And by WiFi, AirPlay, Bluetooth and, after a future firmware update, integrated Chromecast technology and PlayFi. Since the living room is not the only place for music enjoyment, the VSX-932 with FireConnect can become the centre of a multi-room network that covers the entire house. Suitable multi-room speakers are available from Pioneer and other manufacturers – because FireConnect is a non-proprietary standard and therefore an excellent fit for Pioneer’s policy to consistently offer the best entertainment with maximum freedom in all respects.
DUAL-BAND WI-FI AND BLUETOOTH TECHNOLOGY
You can stream audio from mobile, laptop, and PC over 5 GHz/2.4 GHz Wi-Fi® for a stable wireless connection. Pioneer Remote App gathers music on the device and on network-attached storage devices into an easily navigated library together with access to available streaming services. Bluetooth® wireless technology is also included for convenient transmission of app-based audio to your entertainment system.
MRX SPEAKER FOR MULTI-ROOM
Optional multi-room speakers MRX-3 and MRX-5 available.
PIONEER REMOTE APP READY
Enjoy smooth operation using your beloved device. With the free Pioneer Remote app, you can use your iPad/iPhone/ iPod touch or Android device such as a smartphone for operating the wireless speaker, or play back tunes stored on your smartphone. You can also select internet radio stations, and playback songs from your media server.
WIRELESS MULTI-ROOM AUDIO
This product supports FireConnect™ powered by Blackfire Research. FireConnect™ is a stable wireless protocol that mirrors any audio source connected to a compatible audio product in your main room – from vinyl to streaming audio – on the MRX wireless speaker in another room.
DOLBY ATMOS FOR 3.1.2CH WITH SURROUND ENHANCER
Supports up to 3.1.2ch Dolby Atmos. Surround Enhancer, developed by Dolby Laboratories, Inc., is a virtual speaker technology based on Head-Related Transfer Function (HRTF). With DSP, virtual surround speakers deliver the sound that usually comes from surround speakers. The 3.1.2ch is virtually expanded to 5.1.2ch to create 3D surround sound field. Even those who have difficulty installing rear speakers can also enjoy various audio formats in a wide sound field with Surround Enhancer, as well Dolby Atmos.
DTS:X™
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio.
REFLEX OPTIMIZER
When using Dolby Atmos-enabled speakers, high directivity sound from the unit reflects off the ceiling, while low directivity sound directly reaches the ears. The different pathways cause a phase shift, making the sound feel uncomfortable. The Reflex Optimizer which uses the Phase Control technology adjusts this shift, and improves the localisation of the sound image by aligning the frequencies with those of the floor speakers, creating the ideal reproduction environment.
NEXT GENERATION VIDEO STANDARD READY
Supports pass-through for HDR10 and Dolby Vision. By connecting the source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K, BT.2020, and HDCP 2.2, so you will have no problem when upgrading to new devices.
MCACC AUTO ROOM TUNING
MCACC Auto Room TuningCreate the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalises response.
CHROMECAST BUILT-IN
Features Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecast-enabled apps running on your personal device – Android phone, iPhone, iPad, and tablet, Mac and Chromebook and Windows laptop. Discover Chromecast-enabled apps at g.co/cast/audioapps. The Chromecast built-in logo is a trademark of Google Inc.
DTS PLAY-FI®
DTS Play-Fi wirelessly streams any audio content from any compatible mobile device to DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the DTS Play-Fi app.
SPECIFICATIONS:
AUDIO FEATURES:
Channels: 7
Amplification Type: Direct Energy
130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Dolby Atmos®/Dolby Surround
DTS:X/DTS Neural:X
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
384 kHz/32-bit DAC (AK4438)
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
AM/FM Tuner 40 Presets
VIDEO FEATURES:
HDMI 8 in/2 out (selectable for MAIN ZONE/HDZONE)
3D Ready (Blu-ray Disc®, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
Ultra HD (4K) Upscaling and Pass Through
1080p/24 fps Scaler with Qdeo™
Video Conversion to HDMI
Triple HD Noise Reduction
Advanced Video Adjust
Stream Smoother
Stream Smoother Link
Frame Rate Conversion
NETWORK FEATURES:
Whole Home Audio with FireConnect*
Chromecast built-in*
DTS Play-Fi* Ready
Apple AirPlay Certified
Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
Internet Radio with TuneIn
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 5.6/2.8 MHz DSD Playback (except via Wireless LAN)
• Dolby® TrueHD Playback (via USB only)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
* Available with future firmware update
OPERATING FEATURES:
iPod Digital Transmission via Front USB Terminal
Android™ Audio/Video Playback with MHL™
AVNavigator for easy wiring and setup with PC, Mac and iPad
HDMI ZONE Out (HDZONE) and Analogue Audio Out (ZONE 2)
Charges iPod/iPhone/iPad
iControlAV2013 Remote Control App (iOS/Android) Ready
• AV Receiver and Blu-ray Disc Player Control from Smart Device
Firmware Update via Internet or USB
Graphical User Interface (GUI) with Album Artwork (HDMI only)
Auto Power Down
Power Save for HDMI Standby Through
Sleep Timer
Learning Remote Control (Luminous)
CONNECTIONS:
Front Terminals:
HDMI 1 in (assignable, MHL compatible)
USB 1 in for iPod/iPhone/iPad, USB drive
Video (Composite) 1 in for iPod/iPhone/iPad
MCACC Setup MIC in
Phones 1 out
Rear Terminals:
HDMI 7 in (7 assignable)
HDMI 2 out (selectable for MAIN ZONE/HDZONE)
Ethernet 1 in
AV (Composite) 3 in
Audio 1 in (assignable)
Digital Coaxial 1 in (assignable)
Digital Optical 1 in (assignable)
Component Video 1 in (assignable)
Monitor Composite 1 out
ZONE 2 Analogue Audio out
Preout 1 SW out
Speaker 9 ch out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2, FH/FW/Speaker B)
Bluetooth Adapter Port for AS-BT200
USB Charge Port for AS-WL300
IR 1 in/1 out
DIMENSIONS & WEIGHT:
Dimensions (W x H x D): 435 x 168 x 362.5 mm
Weight: 9.7 kg
