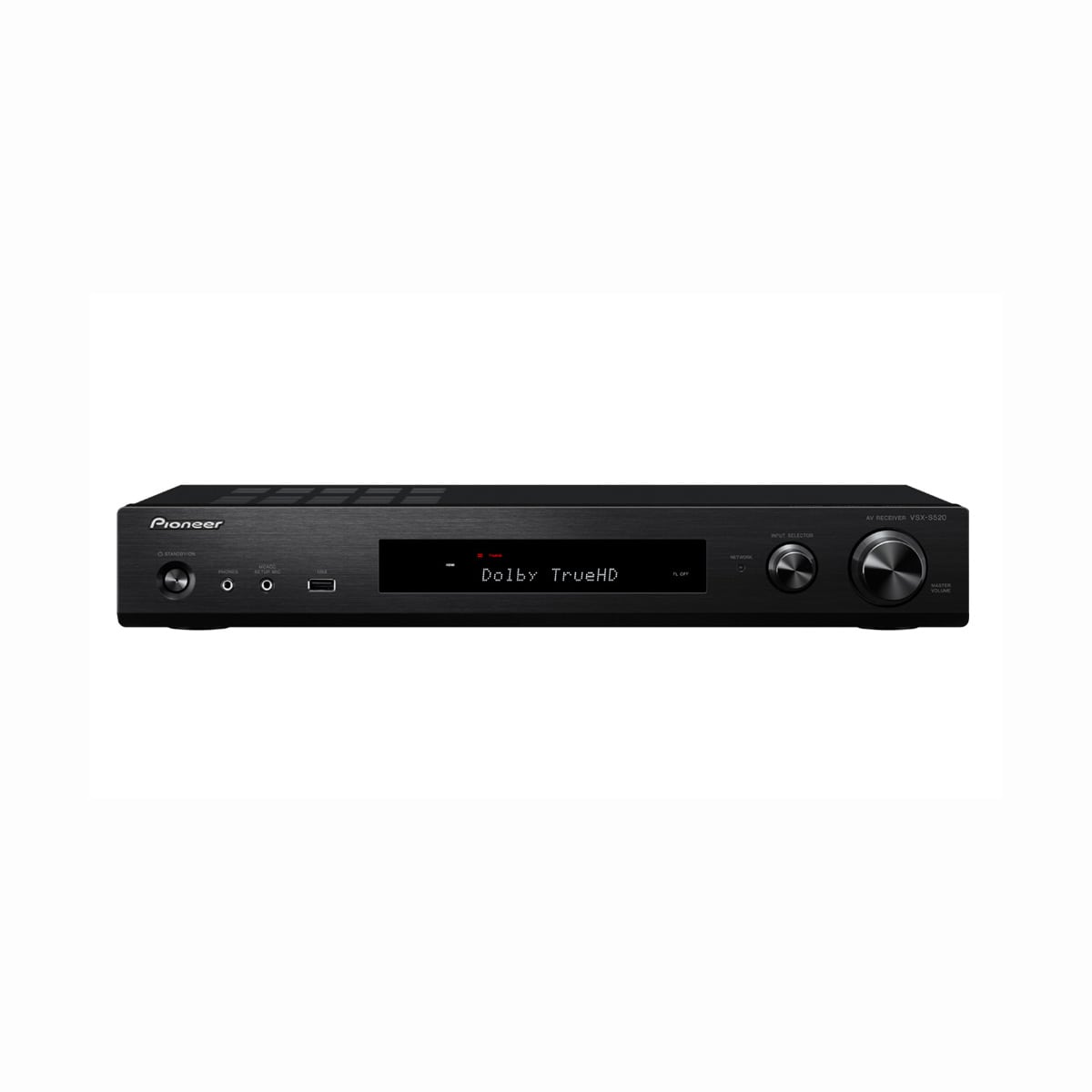

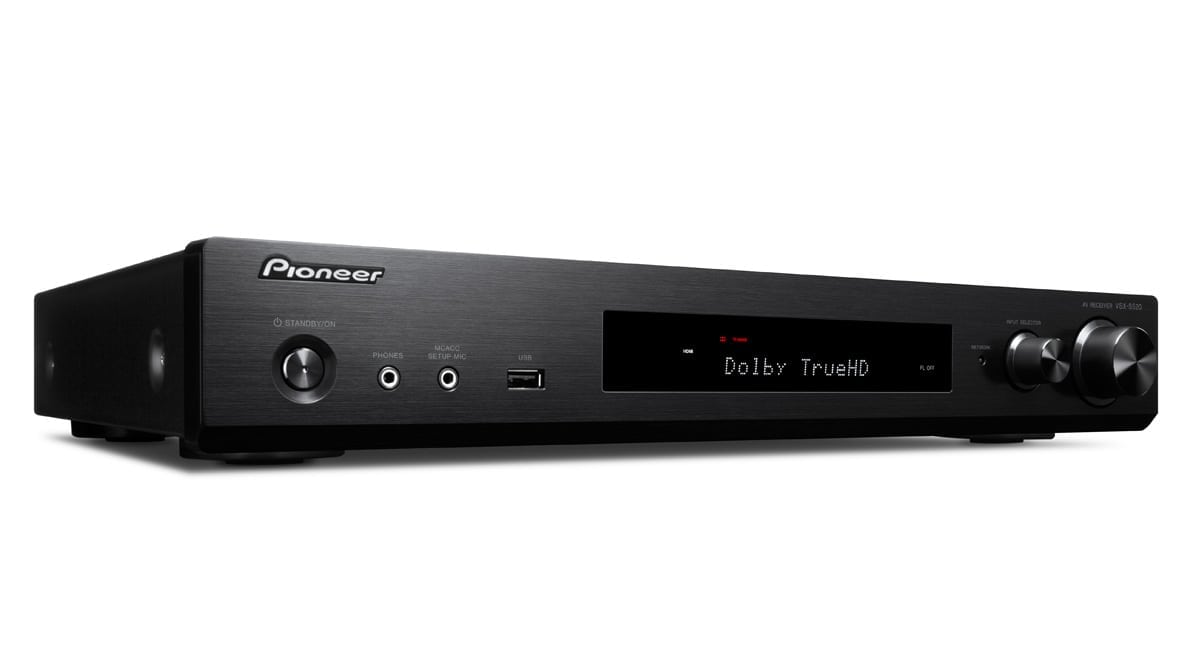

PIONEER VSX-S520 5.1-channel A/V receiver in the slimline format with 4K video pass-through, additional output stage for passive woofer, MCACC calibration system and full streaming features
Super-flat AV receiver with a full list of features
Modern multi-channel speaker sets do not have to be big. Even very discreet, compact 5.1 systems readily create an enthralling cinema atmosphere in the living room that is simply not possible with sound bars, let alone TV speakers. The matching AV receiver should be as flat as possible but also of high quality – a role that is played perfectly by the VSX-S 520. With its housing height of just 65mm, it matches current Blu-ray players like the BDP-X 300. It is available in three different colours to coordinate with any TV model and interior decorating style. Class D output stages developed by Pioneer guarantee rich performance with six 80-watt channels notwithstanding the flat design – enough to adequately power even high-end speakers. In order to take full advantage of their sound even in problematic rooms, the MCACC automatic calibration system unerringly and effectively corrects problems with the acoustics. And since the VSX-S 520 looks best with the fewest possible devices around it, Pioneer simply integrated the music sources: high-resolution DLNA streaming, Internet radio, the Spotify, Tidal and Deezer subscription services, AirPlay and Bluetooth ensure that this discreetly styled entertainment professional never runs out of material.
SPECIFICATION:
AUDIO FEATURES
Channels: 6
Amplification Type: Class D
80 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch Driven)DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Dolby® TrueHD/Dolby Digital Plus/Dolby Pro Logic II
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-HD Express/DTS Neo:6 5.1
DSD Playback via Network/USB (5.6 MHz/2ch 2.8 MHz/2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ (4 Band)
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
FM (RDS) Tuner 40 Presets
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR and BT.2020 Support
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v.Colour”
NETWORK FEATURES
FireConnect™ for Multi-room Audio
Google Cast
Apple AirPlay Certified
Spotify®, Tidal, and Deezer Music Streaming Services Ready
Internet Radio (TuneIn)
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 5.6/2.8 MHz DSD Playback
OPERATING FEATURES
Works with Pioneer Remote App (iOS/Android)*4
New GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
Sleep Timer
User-Friendly Simple Remote Control
CONNECTIONS
Front Terminals:
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out
Rear Terminals:
HDMI 4 In
HDMI 1 Out (ARC)
Ethernet 1 In
Audio 2 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Subwoofer 1 Pre Out
Speaker 6 ch Out (FRONT, CENTER, SURROUND, SUBWOOFER)
FM Tuner Antenna
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 70 x 325 mm
Weight: 4.0 kg
