MICHI M8

Galios stiprintuvas.

5,999.00 vnt

Share this product

Aprašymas

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

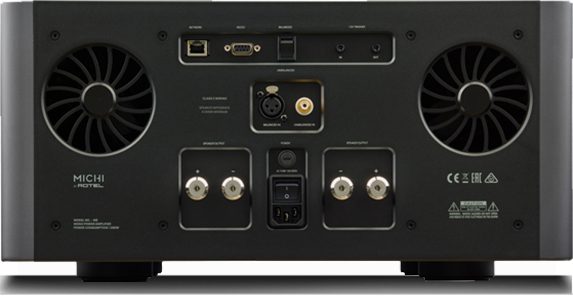

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.



Specifikacija

DIMENSIONS (W × H × D)
485 × 238 × 465mm
19″ × 9.375″ × 18.25″
FRONT PANEL HEIGHT
220mm (8.625″)
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
1200W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
59.1kg (130.3lbs.)
BTU RATING (4Ω, 1/8th power)
3200 BTU/h
CONTINUOUS POWER OUTPUT
1080W/Ch (8Ω)
1800W/Ch (4Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.018%
FREQUENCY RESPONSE
20Hz – 20kHz (+0dB, -0.15dB)
10Hz – 100kHz (+0dB, -0.5dB)
S/N RATIO (IHF “A” Weighted)
120dB
GAIN
Unbalanced (RCA): 34dB
Balanced (XLR): 30dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
200
SPEAKER IMPEDANCE
4Ω minimum
INPUT SENSITIVITY
Unbalanced (RCA): 1.85V
Balanced (XLR): 3V
INPUT IMPEDANCE
Unbalanced (RCA): 12.5kΩ
Balanced (XLR): 100kΩ
