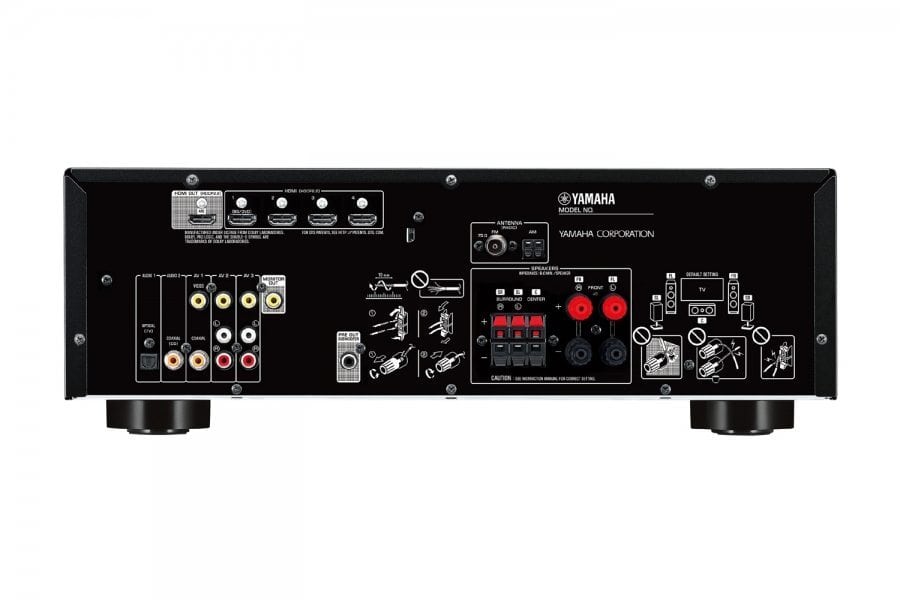

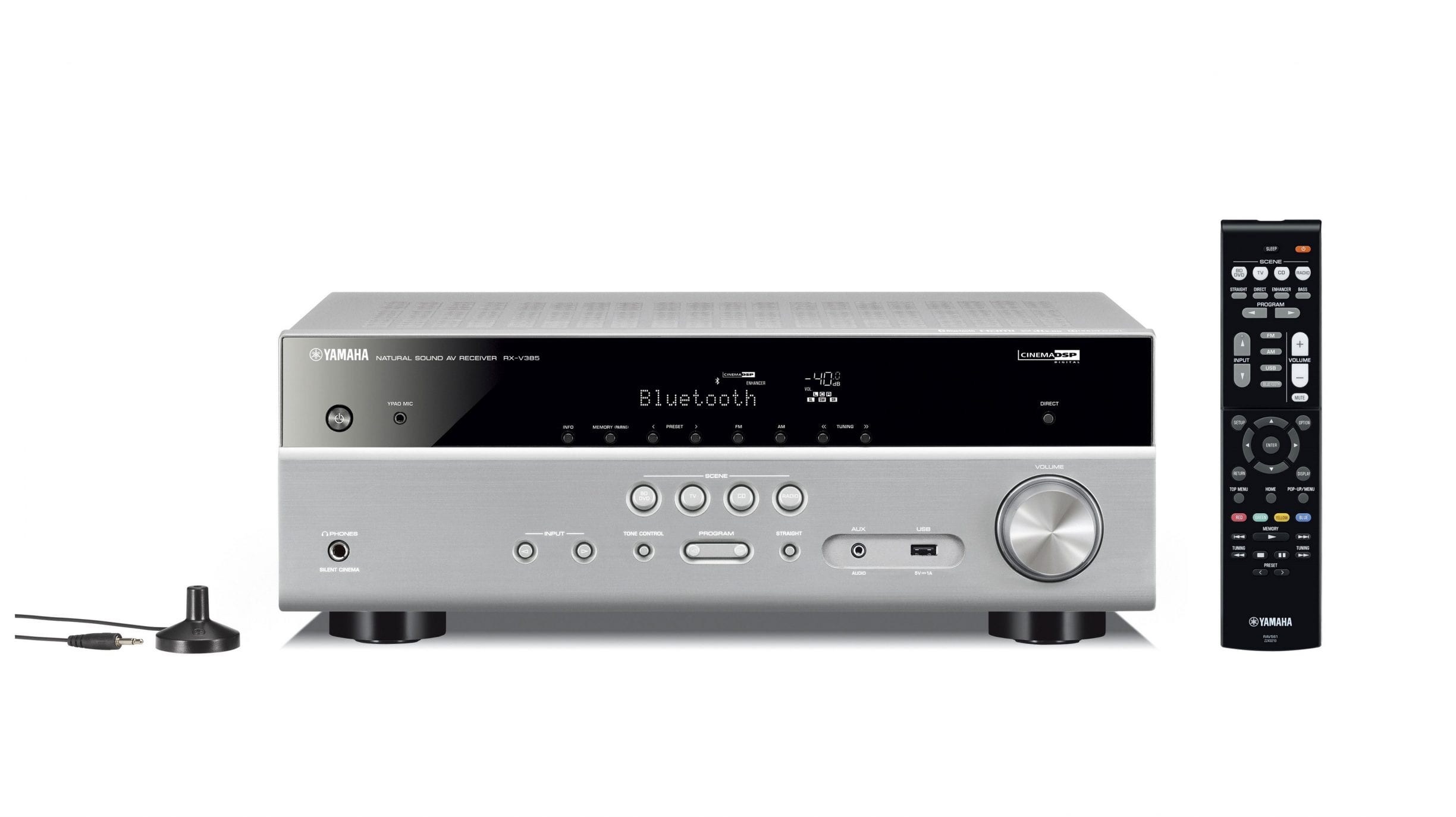

YAMAHA RX-V383 – 5.1-channel AV receiver with fully discrete audio construction plus many advanced functions.
5-channel powerful surround sound
— 70 W per Channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
— 100 W per Channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
— 135 W per Channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
Discrete amp configuration
Bluetooth® for wireless music streaming
Bluetooth Output for convenient music streaming
Compressed Music Enhancer for Bluetooth
HDMI® (4 in / 1 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
Front panel USB Digital Connection for USB thumbdrives
YPAO™ sound optimisation for automatic speaker setup
Dialogue Level Adjustment for proper sound balance with dialogue and vocals
Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
Multi-language colour OSD capable of displaying cover art
ECO mode operation for about 20% less power consumption
Rated Output Power (1kHz, 1ch driven): 100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 135 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): – / 110 / 130 / 150 W
Surround Sound Processing:
DSP Programs: 17
Dialog Level Adjustment
SILENT CINEMA / Virtual CINEMA DSP (Virtual CINEMA FRONT)
Dolby Digital Plus
DTS-HD Master Audio
Compressed Music Enhancer (incl. enhancer for Bluetooth®)
YPAO sound optimization
Adaptive DRC (Dynamic Range Control)
Initial Volume & Maximum Volume Setting
Audio Delay (0-500 ms)
192kHz/24-bit DACs for all channels (Burr-Brown)
4K Ultra HD Pass-through and upscaling (4K / 60p, 4:4:4)
HDMI 3D passthrough
HDMI Audio Return Channel
HDMI upscaling (HDMI® to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync
HDMI Input/Output: 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
USB Input: USB Memory, Portable Audio Player
Front AV Input: USB / Mini Jack
Digital Audio Input/Output: Optical: 1 / 0
Digital Audio Input/Output: Coaxial: 2 / 0
Analog Audio Input/Output: 3 (front 1) / 0
Composite Video Input/Output: 3 / 1
Headphone Output: 1
User Interface On-screen display (colour OSD)
SCENE: SCENE (4 sets)
Remote Control Unit
Standby Power Consumption (IR only): ≤0.3W
Auto Power Standby
Dimensions (W x H x D): 435 x 151 x 315 mm;
Weight: 7.4 kg;

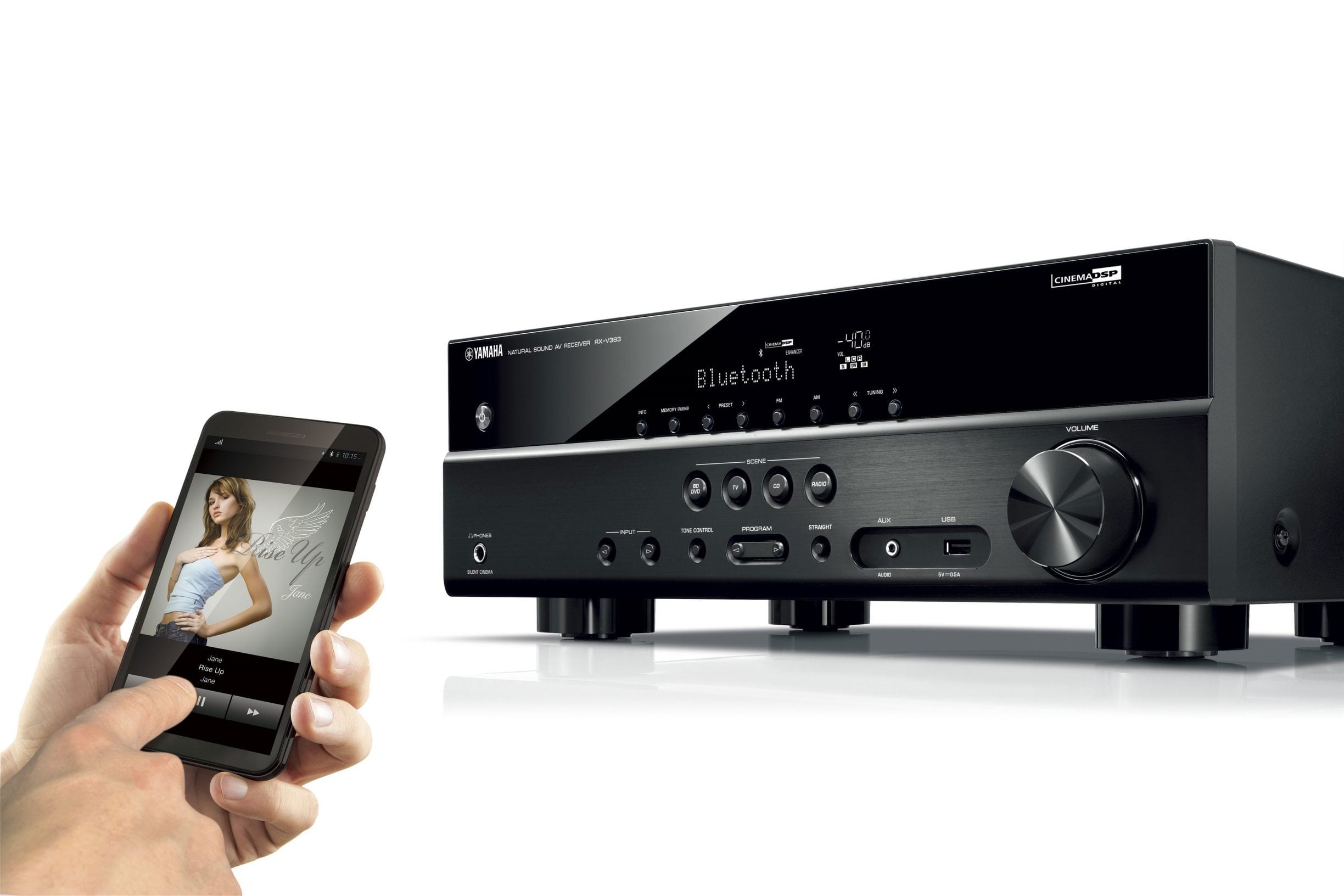

Bluetooth®-Compatible for Wireless Music Streaming
This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. The Compressed Music Enhancer from Yamaha is now optimised for Bluetooth audio transmissions to ensure that your music will have vivid, lively sound quality during wireless playback.
Bluetooth Output for Convenient Music Streaming
The RX-V383 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the RX-V383 to Bluetooth headphones for private listening or to Bluetooth speakers.
4K Ultra HD Full Support with 4K / 60p, HDCP2.2, HDR Video Including Dolby Vision and Hybrid Log-Gamma, and BT.2020 Pass-through
This AV receiver completely supports with latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video including Dolby Vision and Hybrid Log-Gamma which provides incredible contrast, smooth tone and rich, bright colours. Furthermore it supports the wider colour gamut of BT.2020 pass-through. This AV receiver is also compatible with 3D, Audio Return Channel and CEC for easy operation.
*Dolby Vision and Hybrid Log-Gamma will be available via future firmware update.
Discrete Amp Configuration for High Sound Quality
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
AV Setup Guide App Makes System Setup Easier
AV Setup Guide is an app that makes it much easier to perform receiver setup, and also assists you with cable connections between the AV receiver and source devices. It guides you through various settings such as speaker connections, TV and source device connections and power amp assignment. System illustrations and actual AV receiver images help you understand how to make the connections between devices, for much quicker system setup. It is available in multiple languages. Designed for iOS and Android tablet.
SCENE for One-Touch Start
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
YPAO™ Sound Optimisation for Automatic Speaker Setup
YPAO analyses the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.
HD Audio with CINEMA DSP
Yamaha’s exclusive CINEMA DSP technology supports playback of HD Audio (Dolby TrueHD, DTS-HD Master Audio, etc.), providing natural and expansive sound imaging.
Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound with High Quality and Resolution
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 5-channel surround sound filled with realism, with only two front speakers. With Virtual CINEMA FRONT, you will enjoy virtual 5-channel surround sound with higher quality and resolution by installing surround speakers at the front. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.
Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You’ll enjoy video and music with sound that has exceptional power and presence.
Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.
ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
*Compared to power consumption when ECO mode is off (Yamaha measurement).
Selectable Auto Power Standby
Auto Power Standby lets you save energy by selecting to turn off the power after 20 minutes, 2, 4, 8 or 12 hours.
