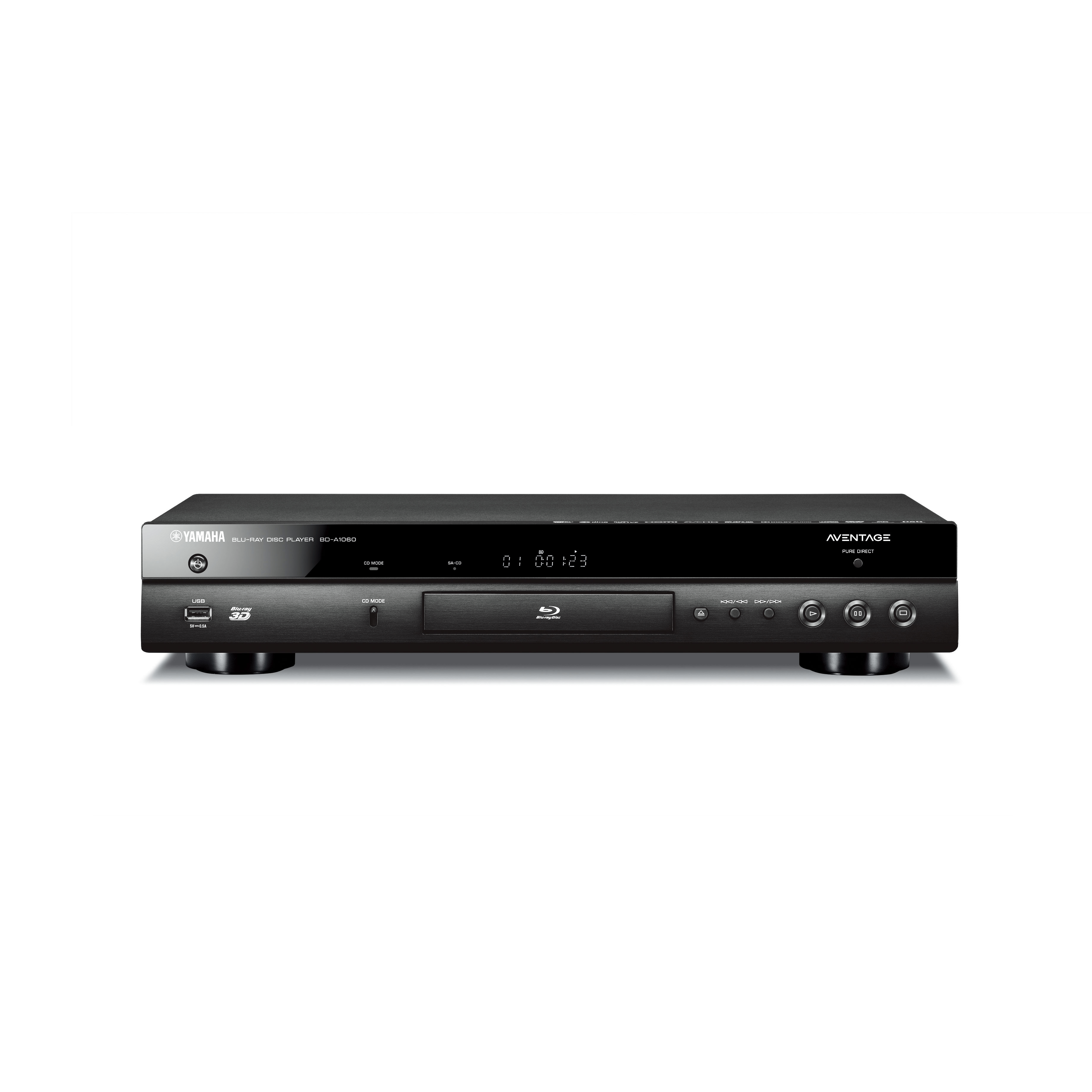

A Blu-ray Disc™ player that offers the superior benefits of AV entertainment associated with the AVENTAGE name. In addition to the expected high level of video quality, it features high performance audio devices and functions such as 32-bit audio DACs and CD Mode. Teaming it with an AVENTAGE AV receiver will provide truly outstanding performance.
● Heavy and stable construction
● High purity power supply and chassis construction
● High sound quality circuitry
● CD Mode and Pure Direct Mode for greater sound purity
● Compatible with XLR terminals and balanced transmission
● HDMI® terminals with 4K upscaling for even higher video quality
● Supports playback of Blu-ray 3D™, the latest video format
● Miracast™ compatibility for enjoying a variety of media from a smartphone or tablet
● Wi-Fi Built in and Wi-Fi Direct®
● Seamless operation with select Yamaha AV receivers and controller apps (AV Controller App)
● VUDU® compatibility for viewing digital photos
● SACD playback and HD Audio format bitstream out
● 192 kHz / 32-bit audio DAC
● High resolution audio DSD 5.6 MHz, FLAC, ALAC 192 kHz / 24-bit playback compatibility
● Connect to the Internet to access the fun and informative features that BD-Live™ provides
● Setup wizard makes setup easy
● Automatic wireless setup with WPS (Wi-Fi Protected Setup™)
BLU-RAY DISC PLAYER

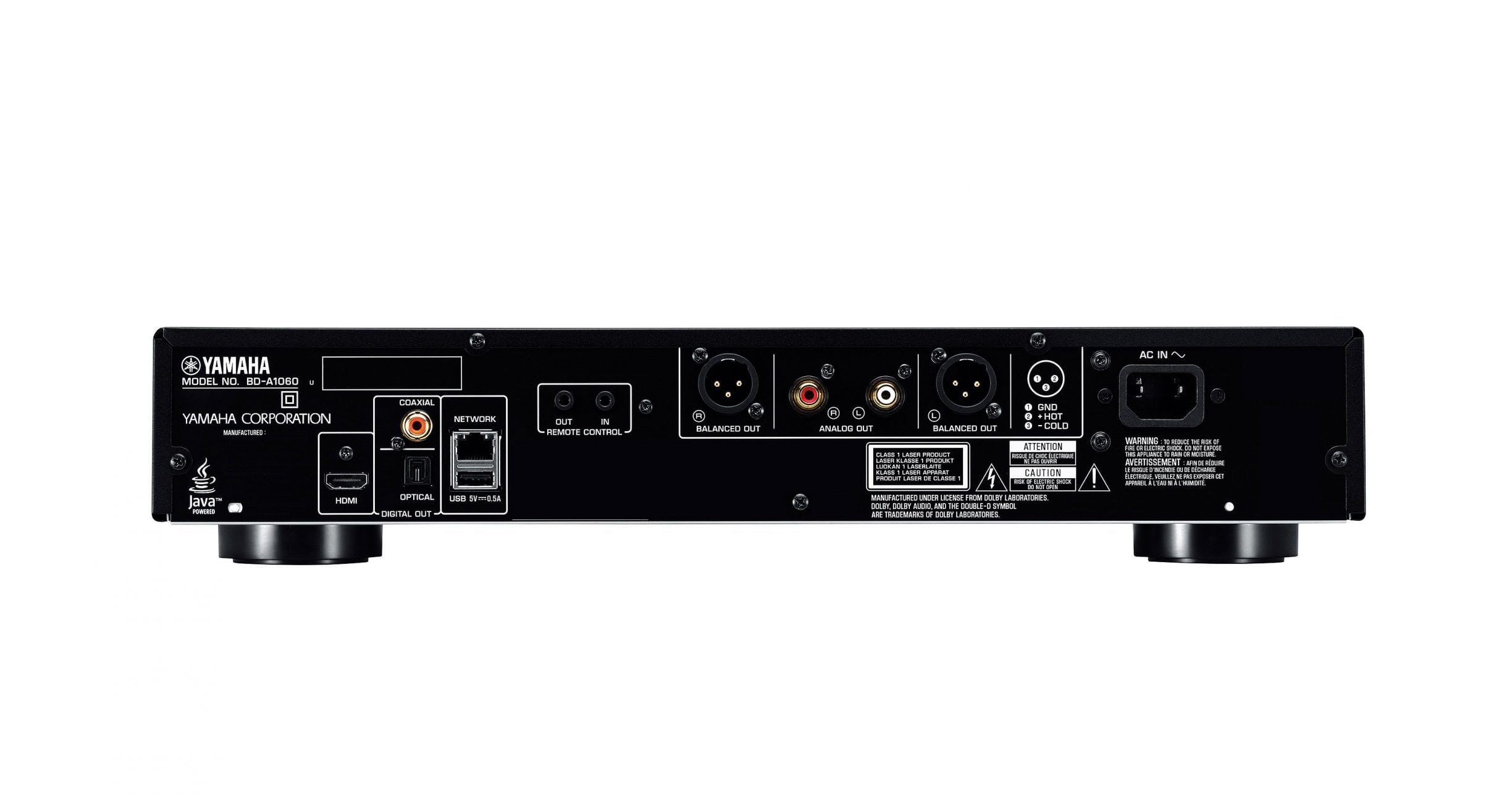

Video / Audio Performance
Media Compatibility: DLNA, USB, BD-ROM/BD-R/BD-RE (BD-Video), DVD-ROM (DVD-Video), DVD-R/DVD-R DL/DVD-RW (DVD-Video/DVD-VR/AVCHD), DVD+R/DVD+R DL/DVD+RW (DVD-Video/DVD-VR/AVCHD), CD-ROM (CDDA/HDCD), CD-R/CD-RW (CDDA), SA-CD
File Compatibility: [VIDEO]: MKV with H.264, MPEG PS, MPEG TS, MPEG-4, VOB, AVI, ASF, WMV [AUDIO]: MP3, WMA, AAC, WAV, FLAC, ALAC, DSDIFF, DSF [PHOTO]: JPEG, GIF, PNG
Blu-ray 3D™ Compatibility
HDMI Output: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 1080p@24Hz, 4K (2160p) @24Hz
USB Port (Front Panel / Rear Panel): 1 / 1
Digital Audio Output (Optical / Coaxial): 1 / 1
Analog Audio Output: 1 (XLR Balance)
2-Channel Mixed Audio Output: 1
Ethernet: 1 (Wi-Fi built in)
Remote Control Input / Output: 1 / 1
Terminal for Detachable Power Cable: 1
Standby Power Consumption: ≤ 0.5 W (HDMI control off, Standby Through off)
Dimensions (W x H x D): 435 x 86 x 262 mm
Weight: 3.8 kg
Heavy and Stable Construction
The BD-A1060 has a front panel made of high-grade aluminium. The top cover is 0.6 mm with a 0.6 mm thick steel plate, and the bottom chassis is 0.8 mm with a 1.2 mm thick steel plate. Compared to the previous model, it is 30% heavier, using a heavy base to provide a stable core for high stability. In addition, the drive mechanism is mounted to the chassis by a 1.2 mm-thick steel plate. Thanks to this strict anti-vibration construction, signal degradation is minimised.
High Purity Power Supply and Chassis Construction
The BD-A1060 has independent power supply and audio circuit boards, with a magnetic shield between them. In addition, the winding wires of the transformer digital and analogue sections are independent and also have separate earths for lower impedance, so noise caused by electrical and magnetic interference is held to an absolute minimum, improving the S/N ratio.
High Sound Quality Circuitry
The audio circuit uses block chemical capacitors of the same type used in the high-end AV receivers and all other major parts are selected for highest sound quality. Furthermore, the earth that is the base of the circuit, applied to all parts, both audio and digital have completely eliminated loops; also points were reconsidered to minimise induction and interference for pure and stable earths, eliminating the negative influences on sound quality.
CD Mode for Greater Sound Purity
The BD-A1060 offers a CD Mode for playing music discs. This mode reduces disc revolution by 20%, thus improving data reading sensitivity. In addition, the combination of drive motor stability and disc rotation greatly reduces vibration. It also turns off the HDMI video output and other circuits that are unnecessary for audio playback. As in high-end CD players, high sound quality music reproduction has become possible.
Compatible with XLR Terminals and Balanced Transmission
The BD-A1060 provides XLR audio output terminals, which are used for pro audio applications and ensure low noise for high sound quality. In addition, all stages after the audio DAC to the output terminals are balanced. When used together with an amp that has balanced input terminals, such as the CX-A5100 AV Preamp or the A-S3000 or A-S2100 Hi-Fi Integrated Amps, the highest possible disc reproduction performance is achieved.
4K Upscaling for Even Higher Video Quality
The BD-A1060 features a 4K upscaling function. Any resolution video image can be upscale to the latest 4K resolution. You can enjoy video from Blu-ray Discs with the image detail and depth that only 4K can provide.
Supports Various Disc Formats and High Resolution Audio Reproduction
The BD-A1060 supports playback from Blu-ray 3D™ discs, as well as from SACD and DVD discs. It is compatible with the Dolby True HD® and DTS-HD Master Audio™ surround sound formats. Additionally, for network use, it can handle FLAC and ALAC 192kHz/24-bit and DSD5.6 MHz high resolution audio formats. You can enjoy a wide variety of video and audio content with just this one player.
Miracast™ Compatibility Lets You Enjoy a Variety of Media from a Smartphone or Tablet
This Blu-ray Disc Player is compatible with Miracast, a wireless standard that lets you connect any Miracast compatible smartphone or tablet for mirroring videos and photos to the player, so the whole family can view them on a widescreen TV. When using a Yamaha AV receiver, you’ll enjoy a variety of media mirrored via Miracast with dynamic sound.
Wi-Fi Built in and Wi-Fi Direct®
Wi-Fi Built-in capability allows wireless connection with your household wireless router, greatly simplifying system connections to enjoy network audio and music streaming services. You can control your Blu-ray Disc Player using the AV Controller app or MusicCast app. If no Wi-Fi router is available, the Wi-Fi Direct feature allows you to stream music and movie directly from your mobile device.
Easy Setup and Operations
• Setup wizard makes setup easy
• Automatic wireless setup with the WPS (Wi-Fi Protected Setup™)
• Software upgrade via network or USB
• Multi language on screen display GUI
• Sequential operation of the TV, AV receiver and this player (HDMI CEC)
• One-touch power on and playback from AV receiver SCENE button via HDMI CEC
• iPhone®/iPad®, Android™ phone/tablet app control
• VUDU® compatibility for video on demand (for USA only)
• Playback DLNA® server (PC or NAS) contents
• Software update capability via network
• x.v.Colour and Deep Colour compatibility
• Video noise reduction feature
• HD Audio format bitstream out
• Direct bitstream and multi channel linear PCM output via HDMI
• Audio Pure Direct
• Connect to the Internet to access the fun and informative features that BD-Live™ provides
• BONUS VIEW™ provides secondary video and audio for enhanced commentary and information
• Wide variety media and format support:
– Blu-ray Discs, DVDs, SACDs, CDs
– BONUS VIEW and BD-Live
• Multimedia compatibility:
– MKV with H.264, MPEG PS, MPEG TS, MPEG-4, VOB, AVI, ASF, WMV, AVCHD (Video)
– MP3, WMA, AAC, WAV, FLAC, ALAC (Audio), DSD
– JPEG, GIF, PNG (Picture)
• Playback of JPEG slideshows with MP3 audio sound track
