SUPRA BILINE AUDIO BLUE
Kaina už 1 metrą.

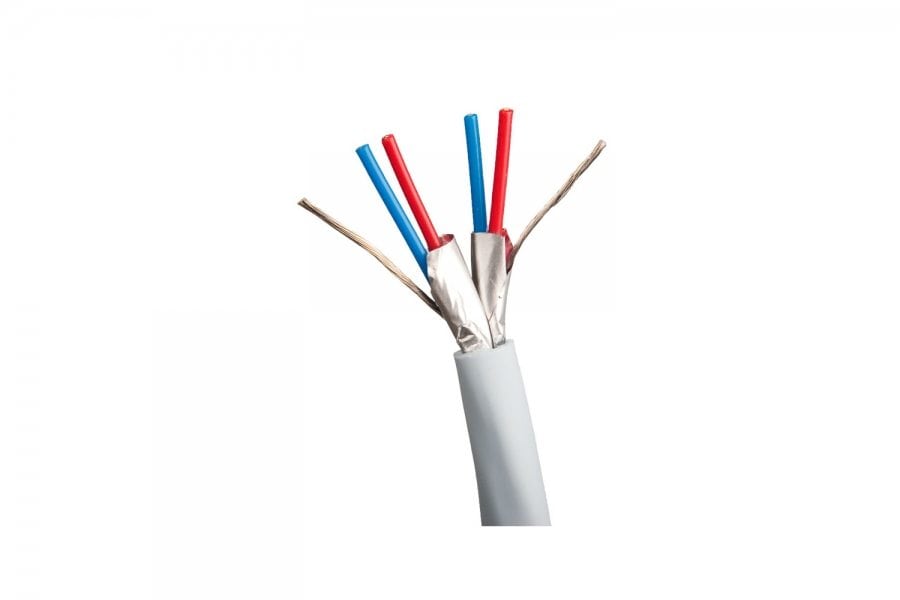

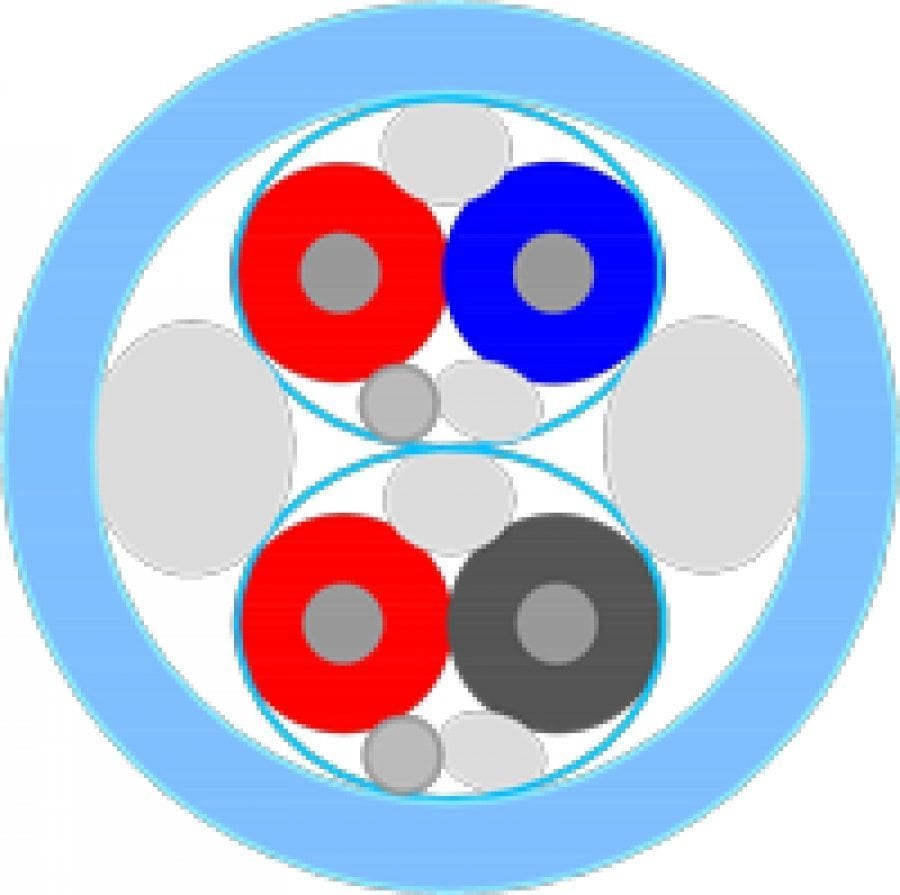

Supra BiLine – Multi-purpose individually shielded stereo analogue interconnect cable
A dual pairs individually shielded interconnect for balanced or single-ended applications. Featuring low capacitance and efficient noise rejection, maintaining signal integrity also for longer cables often required for e.g. subwoofer links.
Suggested applications; y-links from AV amplifiers with single LFE output where sub-woofer features two (“stereo”) inputs primarily intended for pre-out (left and right channel) or equipped with a single stereo Supra MP-8 mini plug from e.g. computer or MP3 to an amplifier’s analogue input.
Suitable connectors; Supra RCA-6, MP and PPX.
Warning: Y-link cabel connection must not be utilized to put stereo (two) channels together into one. Doing so, may severly damage/destroy the connected devices.
N.B. When dividing one channel output, e.g. LFE pre-put, into two inputs, increases the current load on the pre-out amplification circuitry. In some very rare cases, the pre-outputs are not capable to drive this resulting extra load and may be over-heated/damaged. Refer to the device user’s guide, retailer or the manufacturer for additional information.
Mechanical Specifications
Number of channels
2 (stereo)
Lead area
0.24 / 23
mm2 / AWG
Number of strands per lead
19
pieces
Strand dimension
Ø 0.127
mm
Lead material
Tin platen, Oxygen-free, 5N Copper
Di-electric (insulation)
PE
Shield
Aluminized PET foil
Jacket
Age and heat resistant PVC
Outer dimension
Ø 7.5
mm
Weight
56
g/m
Electrical Performance
Resistance
72
Ohm / km
Capacitance
52
pF / m
Characteristic impedance
90
Ohm
Velocity factor
0.66
x C (speed of light)
