SUPRA CAT 8 STP PATCH FRHF BLUE 0.5M
Kaina už 1 vnt.
Supra Cat 8 Network Patch Cable – Astonishing speed and accuracy!
Supra Cat 8 is once more one step ahead by providing a future proof cable, e.g. 40GBASE-T over one singel cable! It is used beneficially in TCP/IP and UDP applications where bit-correct, jitter-free data transmissions is critical, e.g. 4K and 8K video streaming, high quality music streaming (e.g. 32 bits @ < 700 kHz for some downloadable music and in-studio applications), gaming and data centers, and in-building installations such as hotels, conference facilities, among others. Further it is available pre-connected as patch cables in a number of standard lengths, refer to available variant meny, pre-connected with Supra RJ45 Connectors, a fully shielded connector supporting the astonishing performance of the cable also under tough service conditions and it is possible to connect on-site. HDBaseT is transmitted over 6A up to 100 m (328 ft) long, with 8P8C modular connectors of the type commonly used for ethernet local area network connections. From Cat 6A to Cat 8 the step is four times the bandwidth. Supra Cat 8 allows for 2,000 MHz(!) an incredible transfer speed providing for quality enhancing massive headroom. HDBaseT transmits uncompressed ultra-high-definition video (up to 4K), audio, power over HDBaseT (PoHDBaseT – up to 100W), Ethernet, USB, and a series of controls such as RS and IR. Features and benefits Performance better than “8.2” according to preliminary specification IEC 61156-10 – Astonishing future proof transfer speeds Excellent NEXT (= crosstalk), very low dampening and mutual lead pair interference – Bit correct transfers Low dampening – long cable lengths without signal degradation or voltage drops for PoE Excellent shielding, both pair and total – Almost completely interference immune with very low pick-up Low jitter, perfect timing – Very low bit stream timing errors gives low needs for error corrections, thus high transfer speeds Supra Connectors – Allows for maintained transmission performance also under tough service conditions Bandwidth at 2,000 MHz – Buckle up because this is going to be a ride to remember … Flame retardant, halogen-free – Allowed in public spaces and buildings Made in Sweden! Usage Installation and patch cable for all networks conforming to ISO/IEC 11801 and EN 50173 (2nd issue), for computer centrals according to ISO/IEC 24764, EN 50173-5 and also TR 11801-99-1. Ideal for all applications from D up to FA and Class II, Multimedia (TV, video, data, voice) >40 GbE enligt IEEE 802.3 bq (draft), cabel sharing, VoIP and PoE/PoE+.
Mechanical Specifications
Standard
Cat 8 Patch Ethernet Cord

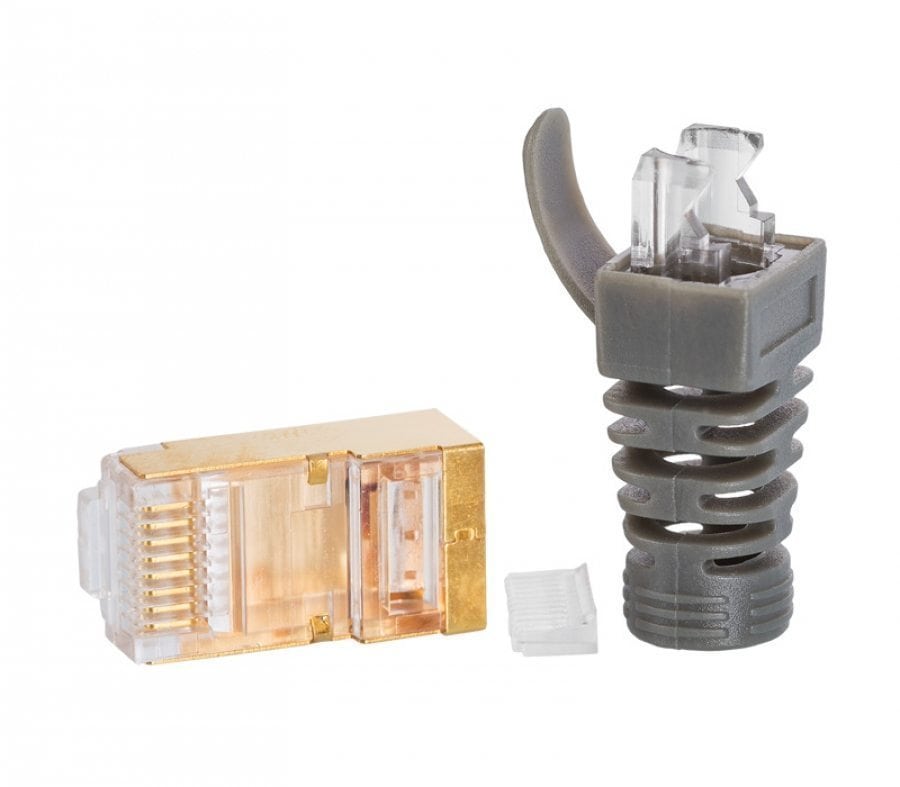

Connectors
Supra RJ45 Male ► Supra RJ45 Male
Signal direction
Bi-directional
Application examples
Ethernet 40GBASE-T
Cable design
Cable
4 pair, Cat 8 S/STP PIMF
Lead area
0.23 / 26
mm2 / AWG
Number of strands
7
pieces
Lead material
Bright drawn oxygen-free 5N copper
Insulation
Air-injected, low capacitance PE
Inner shield
Aluminium foil
Outer shield
Tin plated, oxygen-free 5N copper braid
Jacket
PE (FRHF)
Outer dimension
Ø 6
mm
Flame retardancy
Yes
Electrical performance
Resistance
145
Ohm / km
Capacitance
43
pF / m
Bandwidth
2,000
MHz
Skew @ 100 MHz
5 / 100
ns / m
Impedance
100
Ohm
Velocity factor
0.8x
C (speed of light)
