SUPRA CLASSIC 2X1.6 BLUE 20M
Kaina už 1 vnt.

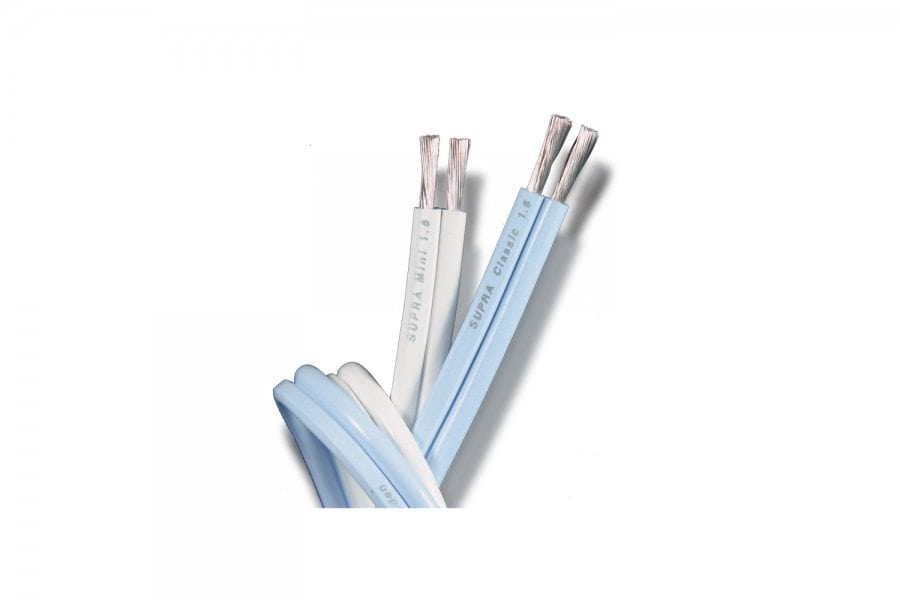

Supra Classic 2 x 1.6 mm2
Typical applications: low powered, short length mid-powered or treble wiring in a bi-wired or bi-amplified Hi-Fi system.
Classic Series – The Original!
The Classic series encompasses flexible tin plated, multi-strand, oxygen-free 5N purity Copper! In addition to the corrosion resistance, the tin plating contributes also to a much wanted skin-effect reduction and prevents the electrons (i.e. the current) from disruptive ”jumps” between the strand surfaces, hence adding unwanted timing errors to the music signal. The insulation of a select grade chemically stable PVC further improving the sonically benign tin surface over time. The Classic cables are available also in a flame retardant and halogen free version; Classic/H FRHF.
The Classic series is according to todays measures good entry level cables and are available in dimensions suitable for a wide range of power transmission demands. Compared to any low cost hifi-kits included speaker cables, Supra Classic will give a clearly audible improvement.
Mechanical Specifications
Crossection area
1.6 / 15
mm2 / AWG
Number of conductors
2
pieces
Number of strands per conductor
204
pieces
Strand diameter
0.10
mm
Conduktor material
Tin plated oxygen free Copper
Jacket
Heat and age resistant PVC

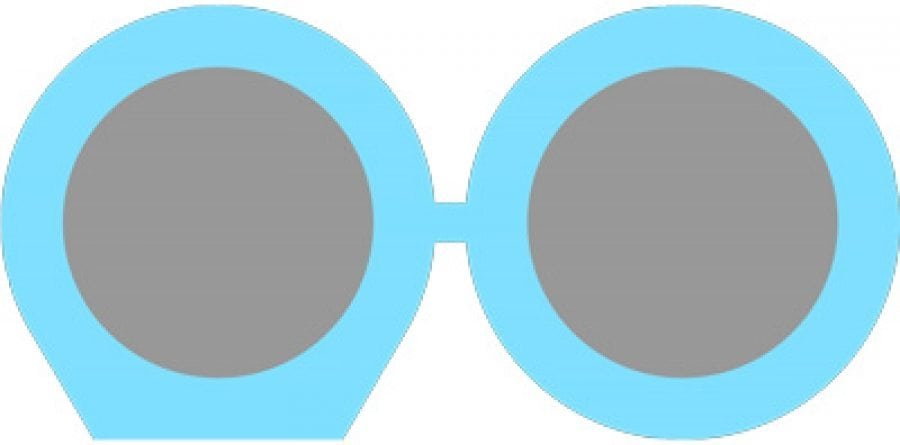

External size
3.1 x 6.2
mm
Weight
44
g/m
Halogen free and flame retardant:
No, refer to Classic FRHF
Electrical performance
Resistance
10.8
Ohm/km
Inductance
0.40
µH/m
