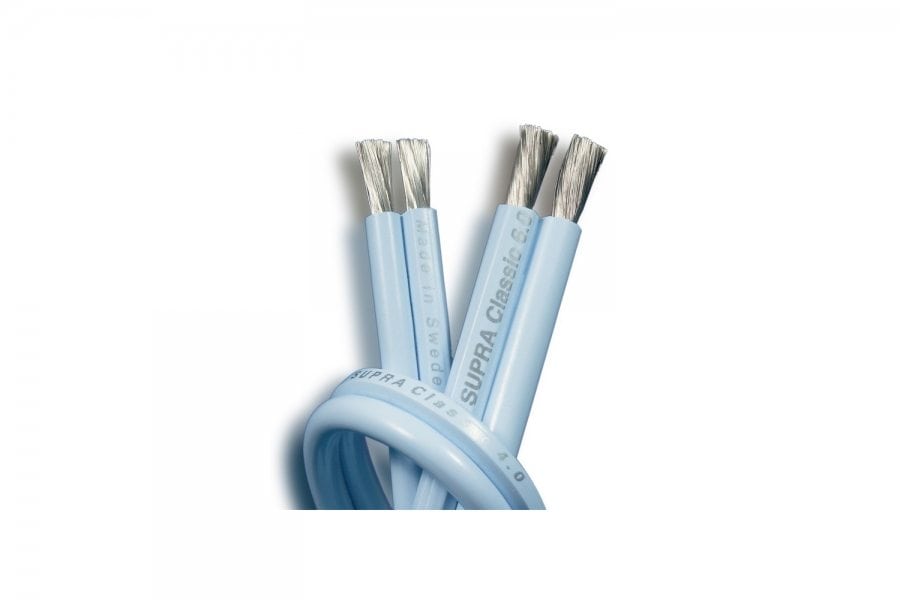

SUPRA CLASSIC 2X4.0 BLUE 10M
Kaina už 1 vnt.
Supra Classic 2 x 4.0 mm2
Typical applications: High powered, also intermediate lengths or bass wiring in bi-wired or bi-amplified Hi-Fi system. Maintained flexibility.
Classic Series – The Original!
The Classic series encompasses flexible tin plated, multi-strand, oxygen-free 5N purity Copper! In addition to the corrosion resistance, the tin plating contributes also to a much wanted skin-effect reduction and prevents the electrons (i.e. the current) from disruptive ”jumps” between the strand surfaces, hence adding unwanted timing errors to the music signal. The insulation of a select grade chemically stable PVC further improving the sonically benign tin surface over time. The Classic cables are available also in a flame retardant and halogen free version; Classic/H FRHF.
The Classic series is according to todays measures good entry level cables and are available in dimensions suitable for a wide range of power transmission demands. Compared to any low cost hifi-kits included speaker cables, Supra Classic will give a clearly audible improvement.
Mechanical Specifications
Crossection area
4.0 / 11
mm2 / AWG
Number of conductors
2
pieces
Number of strands per conductor
511
pieces
Strand diameter
0.10
mm
Conductor material
Tin plated oxygen free Copper
Jacket
Heat and age resitant PVC

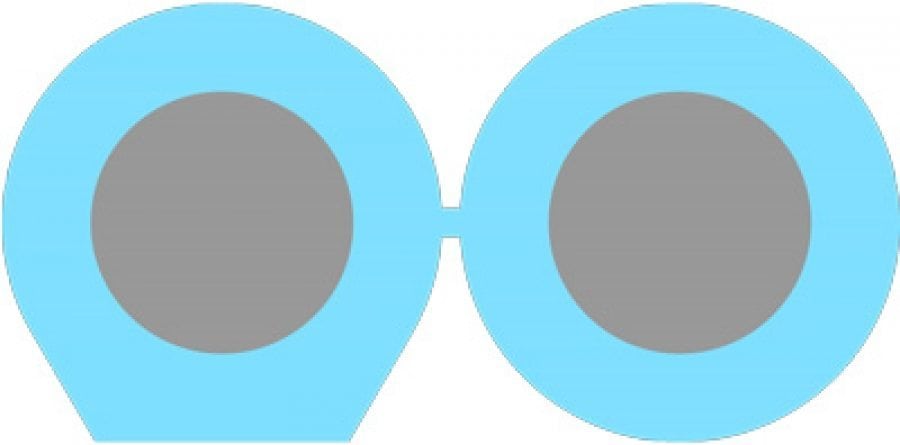

Yttermått
4.8 x 9.6
mm
Weight
108
g/m
Halogen free and flame retardant
No, refer to Classic FRHF
Electrical performance
Resistance
4.3
Ohm/km
Inductance
0.55
µH/m
