SUPRA DAC AUDIO BLUE

Kaina už 1 metrą.

Supra DAC – Ultra-fast digital/analogue interconnect with extraordinary shielding and capacitance properties
An ultra-fast interconnect featuring very low capacitance and highly effecient shielding. Supra DAC’s di-electric of PE foam, containing a minimum of solid PE plastic, but instead the best possible di-electric easily available – air – which exhibits only 45 pF/m. Further it is shielded with our highly efficient and mechanically durable semi-conductive Carbon-filled Nylon.

The Supra DAC high frequency properties are exceptional, thanks to its low capacitance, hence high speed transient response. The velocity factor is as high as 78% of the speed of light, promoting raise and fall time of digital square wave. In the analogue domain the speed means timing/phase preservation between high and low frequency waves giving virtually no frequency roll-off, maintained 3D sound stage and rapid transients. With the by others often used PTFE/Teflon the velocity factor would have been only 71%.

Application examples are mid- to high-end analogue interconnect equipped with Supra RCA or XLR connectors. High bandwidth digital interconnects such as AES/EBU professional standard. Available in both Ice Blue color and Anthracite Grey.

Mechanical data

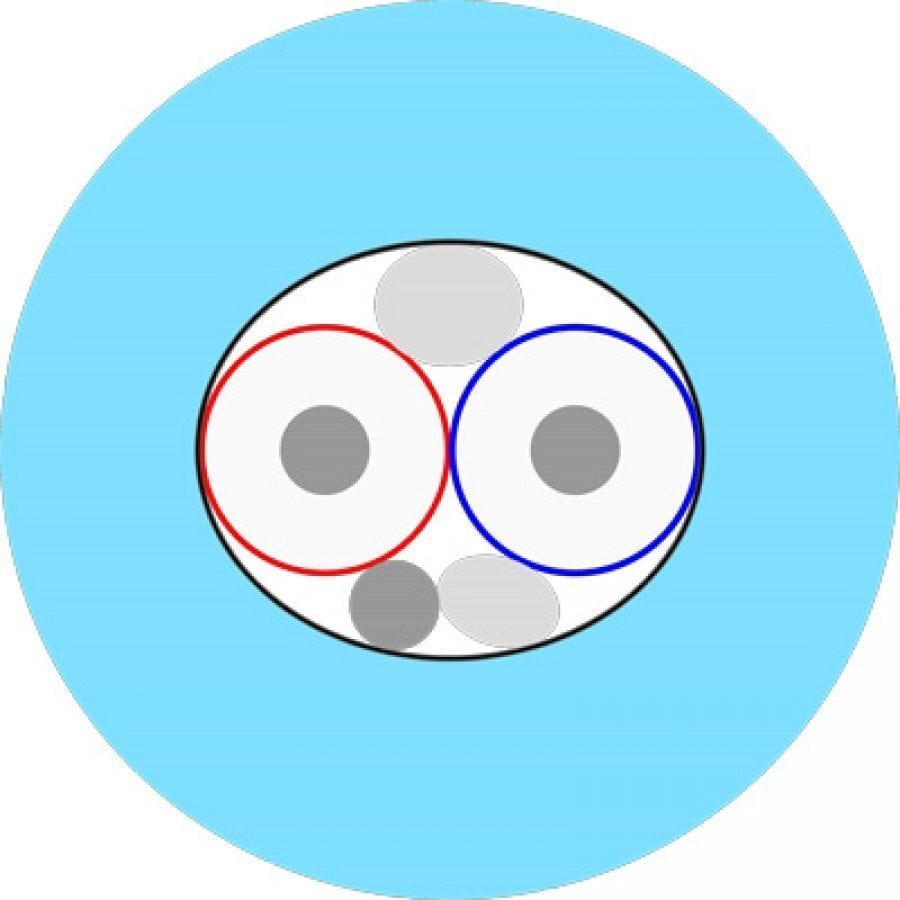

Number of leads, totally (specified)

3 (+, – and drain)

pieces

Lead area

0.54

mm2

Number of strands per lead

19

pieces

Strand dimension

Ø 0.19

mm

Lead material

Oxygen-free 5N Copper

Di-electric (insulation)

PE foam with encapsulated air

Shield

Semiconductive Carbon Nylon

Jacket

Age and heat resistant PVC

Outer dimension

Ø 6.1

mm

Weight

43

g/m

Length per bobbin

50

m

Electrical properties

Resistance

–

Ω / km

Capacitance

45

pF / m

Characteristic impedance

110

Ω

Velocity factor

0.78

x C (speed of light)
