SUPRA DAC-XLR DIGITAL BLUE PC 1M

Kaina už 1 vnt.

Trico

The 75 Ohm digital interconnects are designed for RCA (Phono connectors) interfaced transmission between CD transport and digital to analogue converter. They have the capability to transfer the full digital spectrum and can be used with a number of 75 Ohm applications.

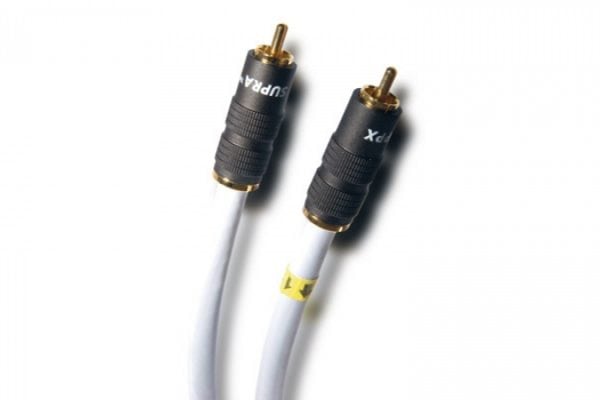

Trico is a 75 Ohm double screened coaxial interconnect cable for digital/ video signals. An interconnect of extremely low capacitance. Supra Trico is insulated with PE foam which makes only 58 pF/m and makes the propagation velocity to 78% of light speed. Trico is double shielded with a braided inner screen of silver plated OFC copper and an outer of bare OFC copper. The screens provide efficient protection from hum and noise caused by electro–magnetical fields. The centre wires are made of silver plated OFC copper. The silver plating of the conductor/screen will also enhance the high frequency properties of the cable. Semi–balanced connection configuration makes the Trico cable immune to electro–magnetic interference, i.e. makes it noise free. It means that the outer screen is connected to earth at only one end of the cable, so there is no signal through that The earth connection is at the end where the marking text starts. Connect the earthed end to the signal source.

DAC-XLR

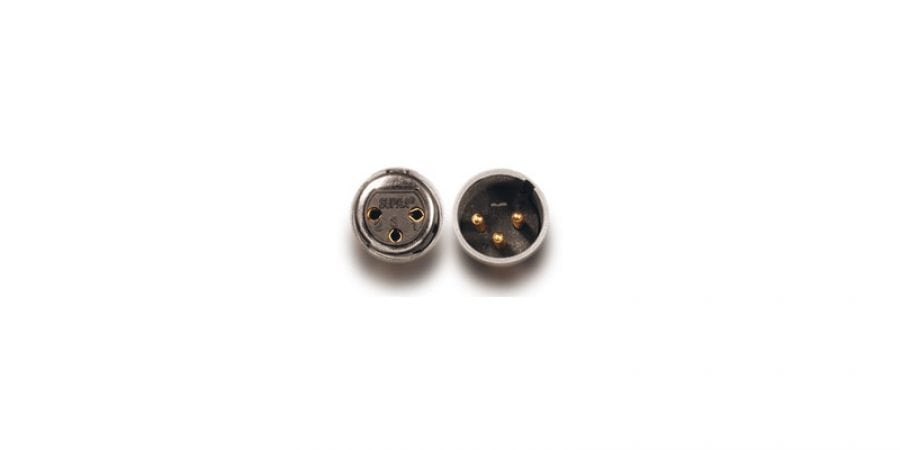

DAC is a 110 Ohm interconnect cable for XLR interfaced digital audio signals. AES/EBU harmonised. DAC–XLR is an interconnect with patented Supra Swift XLR connectors. Balanced

– Application example: CD to DAC

Mechanical Specifications

Cross. Area: 0.54 / 20 (mm2/AWG)

No. Wires: 19

Wire Diameter: 0.19 (mm)

Wire Material: OFC

Insulation PE Foam

Inner Screen Coverage Cond. Nylon, 100%

Jacket: Heat & ageing resitant PVC

Ext. Diameter: 6.1 (mm)

Weight: 43 (g/m)

Electrical performance

Resistance: 8.1 (Ohm/km)

Inductance: 0.28 (uH/m)

C   45 pF/m

Imp. Z 110

Velo Factor 0.78c
