SUPRA DVI-DVI/H SINGLE-LINK FRHF 6M

201.00
žmonių šiuo metu tai žiūri

6 m. vaizdo kabelis.

Prekės prieinamumas: klausti
Klausti


    Image Safe Checkout
    Garantuotas saugus apmokėjimas
    • NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
    • PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Siuntimas ir grąžinimas
    Produkto kodas: 2107 Kategorijos: , ,

    Kaina už 1 vnt.



    Supra DVI-DVI Single Link – Flame retardant and halogen-free
    DVI (Digital Visual Interface) is a standard for digital picture and video transmissions between e.g. computers, screens and projectors. It included also support for HDCP video encyption. SUPRA HD5 high performance DVI single link cable is specially designed for digital high bandwidth transfer up to 30m. Screen resolution support of 1920 x 1200 @ 60 fps (Hz).

    The HD5 cable conductors are insulated with air-injected PE foam for lowest capacitance and highest velocity factor (0.8 x speed of light) giving digital square wave rise time very close to the ideal; from 0 to 1 and back again instantly. The digital pairs have a precise and stable impedance over all working frequencies a property crucial in any digital circuit for not causing jitter. Individual screened pairs are twisted with different directions of the pitches in order to minimise crosstalk. The cable is triple-shielded, the most sensitive conductors are separately screened. In addition, all conductors are protected with a common, double shield of aluminized PET foil and a 5N purity copper braid, which provides highly efficient shielding over a wide band of electro-magnetic interference (EMI, RFI).

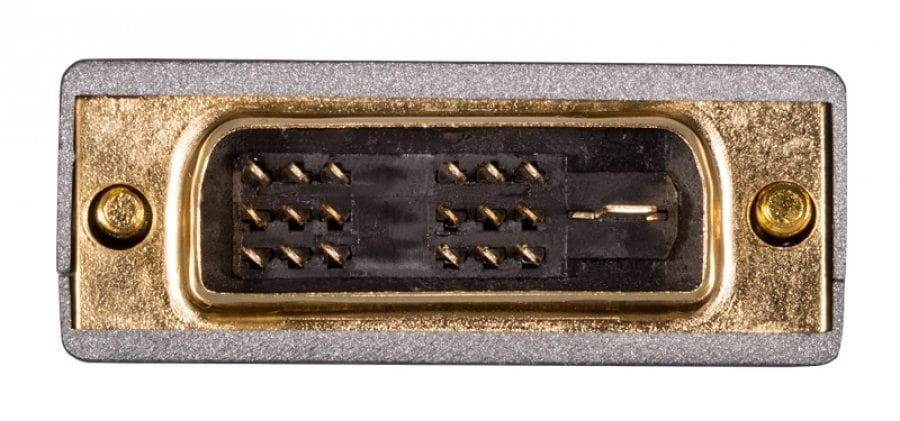

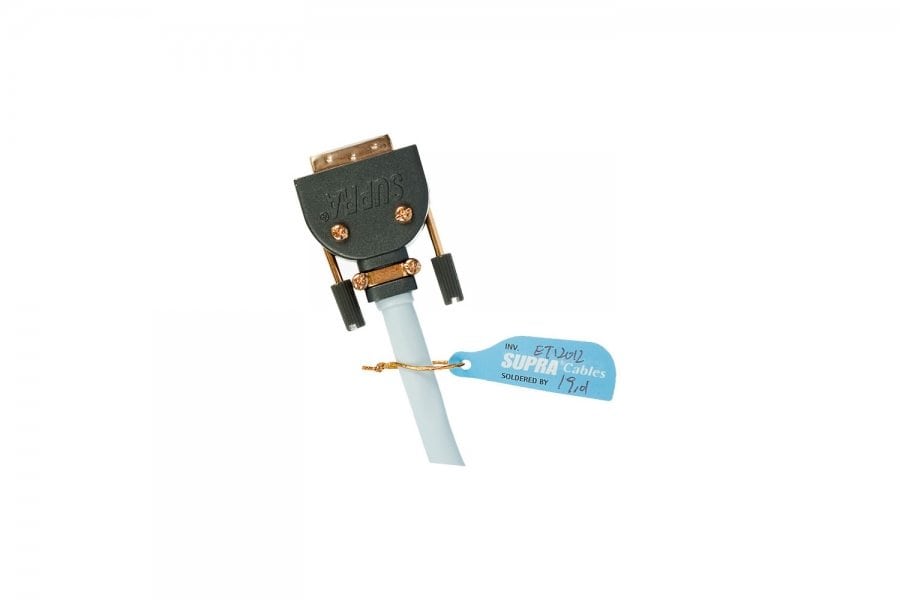

    The cable is equipped with 24K gold plated connectors and a fully shielded contact housing made of aluminium to further avoid signal degradation. The connector is rewireable to enable mounting after cable installation in walls or conduits, tubing, trunking, etc. Since the contact housing is possible to disassemble, the DVI contact body is possible to route in a large enough conduit provided that the fragile leads kan be covered and NO traction force is applied to the contact housing itself. The gold plating of the pins is as thick as 0.8 microns for long service life connection quality also with frequent re-connections.



    High resolution picture
    We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream?” Yes, it is a stream of digital bits. And, yes, it does matter. In the ideal world, a cable would tell the user that it is not upp for the job by simply blanking out the picture. It has, however, to be really poor when that happens. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out/freezes. Many claim that if the picture shows, the signal is good enough. There is, however, circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates. Further, there are protocolls with handshake, that asks sender to re-submit broken bitstreams. If there is time …

    You might experience sync problems (delays, freezing video moments), distorted colorations, insufficient blackness, noise and other unexplainable artefacts during which the hardware is working overtime trying to repair the fragile multimedia bitstream. Do your precious hardware the best possible favour you can by connecting it using Supra HDMI cables and both you and your equipment will be able to fully enjoy/display the show.



    Features and benefits

    High resolution fits many of todays high volume computer/display combinations including FullHD projectors

    Exceptionally fast with low capacitance allows very detailed and easy-to-read square waves at the receiver end providing best possible picture

    Rugged cable, strain relief and connectors provides for long service life also when frequently re-connected

    Made in Sweden! – Highest possible quality according to our rigid quality assurance plan



    Standard
    CPS; Construction Products Regulation; EN 50399:2011 and EN 60322-1-2:2004/A1:2015/A11:2016
    CE marking; EN 50399 and EN60322

    Performance
    Fire behavior:: DCA
    Smoke protection: s1
    Flaming droplets: d1
    Reaction to fire classification: Dca-s1, d1





    Mechanical Specifications

    Standard: DVI (Digital Visual Interface)

    Connection configuration: Single-link, DVI-D 18+1 pins

    Connectors: DVI ♦ DVI

    Signal direction: Bi-directional

    Application examples: Computer, projector, computer displays

    Max resolution: 1920 x 1200 @ 60 (WUXGA) pixels @ fps (Hz)

    Solder tin: Almit SR-34 Super

    Cable strain relief: Screw / clamp integrated in connector housing

    Cable: SUPRA HD5 single-link

    TMDS lead area: 5 x TMDS 0.26 / 23 mm2 / AWG

    Lead material: Solid 5N oxygen-free copper

    Di-electric (insulation): Low density, air-injected PE foam

    Inner screen, coverage: Aluminized PET foil, 100 %

    Communication conductors: 5 x 0.129 / 26 mm2 / AWG

    Di-electric (comm. leads): PE

    Outer screen, coverage: Aluminized PET foil and 5N OFC braid, 100 %

    Jacket: Flame retardant and halogen-free PE

    Flame retardancy: Yes

    Cable diameter: 9.5 mm

    Weight / meter without connector: 0.108 kg/m



    Electrical performance

    Resistance: 82 Ohm / km

    Capacitance: 42 pF / m

    Characteristic impedance: 100 Ohm

    Velocity factor: 0.8 x C (speed of light)
